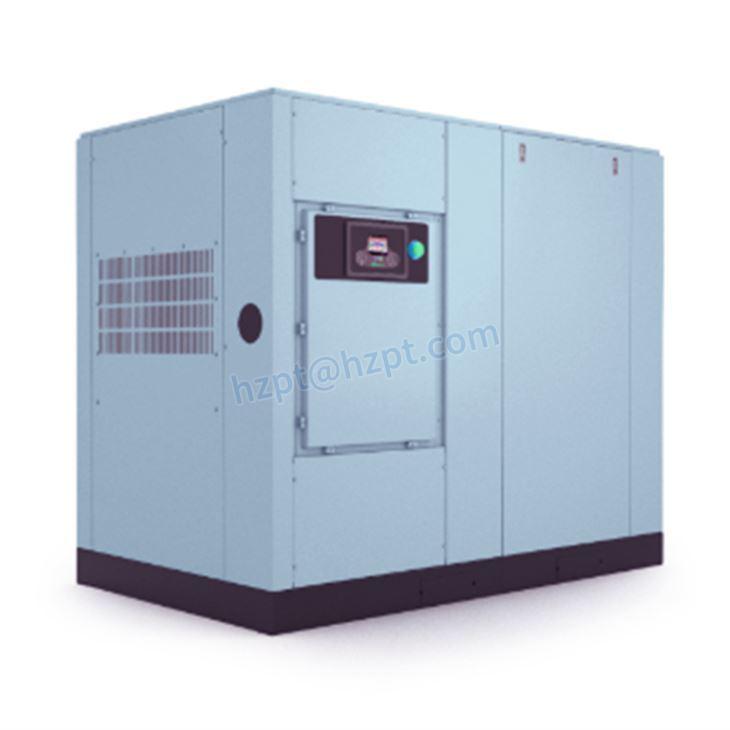

30kw 40hp permanent magnet motor air compressor machines 380V/50Hz/3 Phase for Thermal power Plant(SCR40PM)

Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: None
Condition: New
Type: Screw
Configuration: Stationary
Power Source: AC POWER
Lubrication Style: Lubricated
Mute: Yes
Model Number: SCR40PM
Voltage: 380(400,415)V/50Hz/3Phase, 220V/60HZ/3P
Dimension(L*W*H): 1200*800*1100mm
Weight: 480kg
Warranty: 1 Year
Working Pressure: 7 bar, 8 bar, 10 bar
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2021
Warranty of core components: More than 5 years
Core Components: PLC, Other, Engine, Motor, Pump, Bearing, Gearbox
Gas Type: Air
Color: Blue
Power(KW): 30
Porsepower(HP): 40
Capacity(m3/min): 727 m3/H
Presssure(BAR): 7
Compressed air outlet: 65-110 m3/MIN
Speed type: Speed controlled
Protection Grade: IP 65
Operating Ambient Temp: 1-45℃ {28.8℉-113℉}
Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: None
Warranty: 1 Year
Working Pressure: 7 bar, 8 bar, 10 bar
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2021
Warranty of core components: More than 5 years
Core Components: PLC, Other, Engine, Motor, Pump, Bearing, Gearbox
Gas Type: Air
Condition: New
Type: Screw
Configuration: Stationary
Power Source: AC POWER
Lubrication Style: Lubricated
Mute: Yes
Model Number: SCR40PM
Voltage: 380(400,415)V/50Hz/3Phase, 220V/60HZ/3P
Dimension(L*W*H): 1200*800*1100mm
Weight: 480kg
Color: Blue
Power(KW): 30
Porsepower(HP): 40
Capacity(m3/min): 727 m3/H
Presssure(BAR): 7
Compressed air outlet: 65-110 m3/MIN
Speed type: Speed controlled
Protection Grade: IP 65
Operating Ambient Temp: 1-45℃ {28.8℉-113℉}
Packaging Details: Plywood case or Carton case suitable for long distance transportation.
Port: Shanghai

Products Description

Model	KW	HP	Capacity(m3/min)	Pressure(bar)	Dimension(mm)	Weight	Size
SCR30PM-7	22	30	1.06-3.7	7	1200*800*1100	450	RC1
SCR30PM-8								1.04-3.6	8
SCR30PM-10								0.8-3.2	10
SCR40PM-7	30	40	1.3-5.2	7	1200*800*1100	480	RC1
SCR40PM-8								1.25-5.0	8
SCR40PM-10								1.1-4.2	10
SCR50PM-7	37	50	1.6-6.4	7	1300*950*1270	610	RC1 1/2
SCR50PM-8								1.6-6.3	8
SCR50PM-10								1.4-5.6	10
SCR60PM-7	45	60	1.83-7.3	7	1300*950*1370	650	R1 1/2
SCR60PM-8								1.8-7.2	8
SCR60PM-10								1.8-7.1	10
SCR75PM-7	55	75	2.7-10.2	7	1800*1200*1550	1230	RC 2
SCR75PM-8								2.5-10.1	8
SCR75PM-10								2.1-8.4	10
SCR100PM-7	75	100	3.5-13.3	7	1800*1200*1550	1280	RC 2
SCR100PM-8								3.2-12.9	8
SCR100PM-10								2.9-11.8	10
