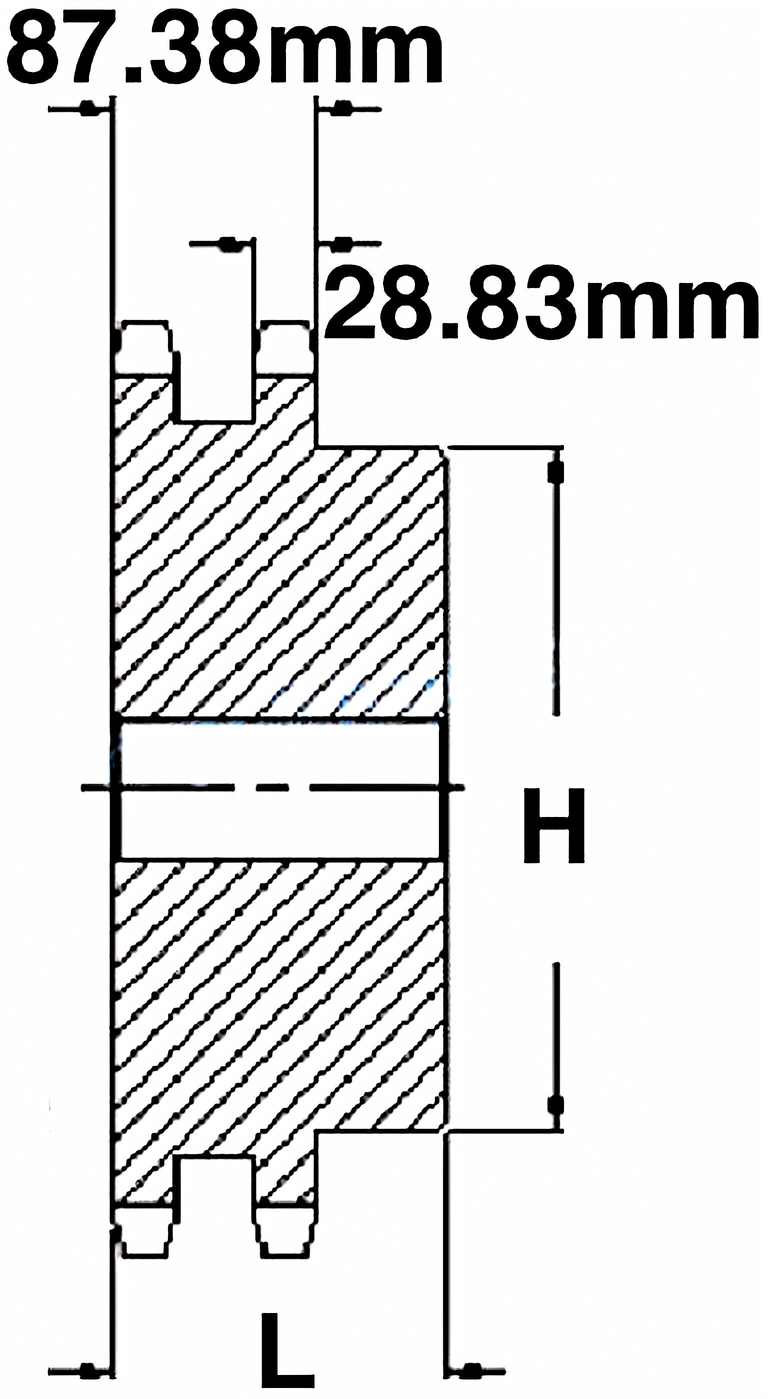

| Sprocket Size | Tooth Count | Pitch Diameter | Stock Bore | Max. Bore | Hub Diameter (H) | Length Thru Bore (L) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| D32B11 | 11 | 180.31" | 40" | 80" | 125" | 120" | 10.42 |
| D32B12 | 12 | 196.28" | 40" | 89" | 133" | 120" | 16.32 |
| D32B13 | 13 | 212.27" | 40" | 96" | 145" | 120" | 21.77 |
| D32B14 | 14 | 228.29" | 40" | 103" | 155" | 120" | 26.31 |
| D32B15 | 15 | 244.33" | 40" | 106" | 160" | 120" | 30.84 |
| D32B16 | 16 | 260.39" | 40" | 120" | 178" | 120" | 34.02 |
| D32B17 | 17 | 276.46" | 40" | 120" | 178" | 120" | 41.28 |
| D32B18 | 18 | 292.55" | 40" | 120" | 178" | 120" | 43.55 |
| D32B19 | 19 | 308.64" | 40" | 120" | 178" | 120" | 48.53 |
| D32B20 | 20 | 324.74" | 40" | 130" | 191" | 120" | 53.98 |
| D32B21 | 21 | 340.84" | 40" | 130" | 191" | 120" | 58.97 |
| D32B22 | 22 | 356.96" | 40" | 130" | 191" | 120" | 63.96 |
| D32B23 | 23 | 373.07" | 40" | 130" | 191" | 120" | 71.21 |
| D32B24 | 24 | 389.19" | 40" | 130" | 191" | 120" | 77.57 |
| D32B25 | 25 | 405.32" | 40" | 130" | 191" | 120" | 84.82 |
| D32B26 | 26 | 421.45" | 40" | 130" | 191" | 120" | 91.17 |
| D32B27 | 27 | 437.58" | 40" | 130" | 191" | 120" | 97.52 |
| D32B28 | 28 | 453.72" | 40" | 130" | 191" | 120" | 101.13 |
| D32B30 | 30 | 485.99" | 40" | 130" | 191" | 120" | 116.57 |

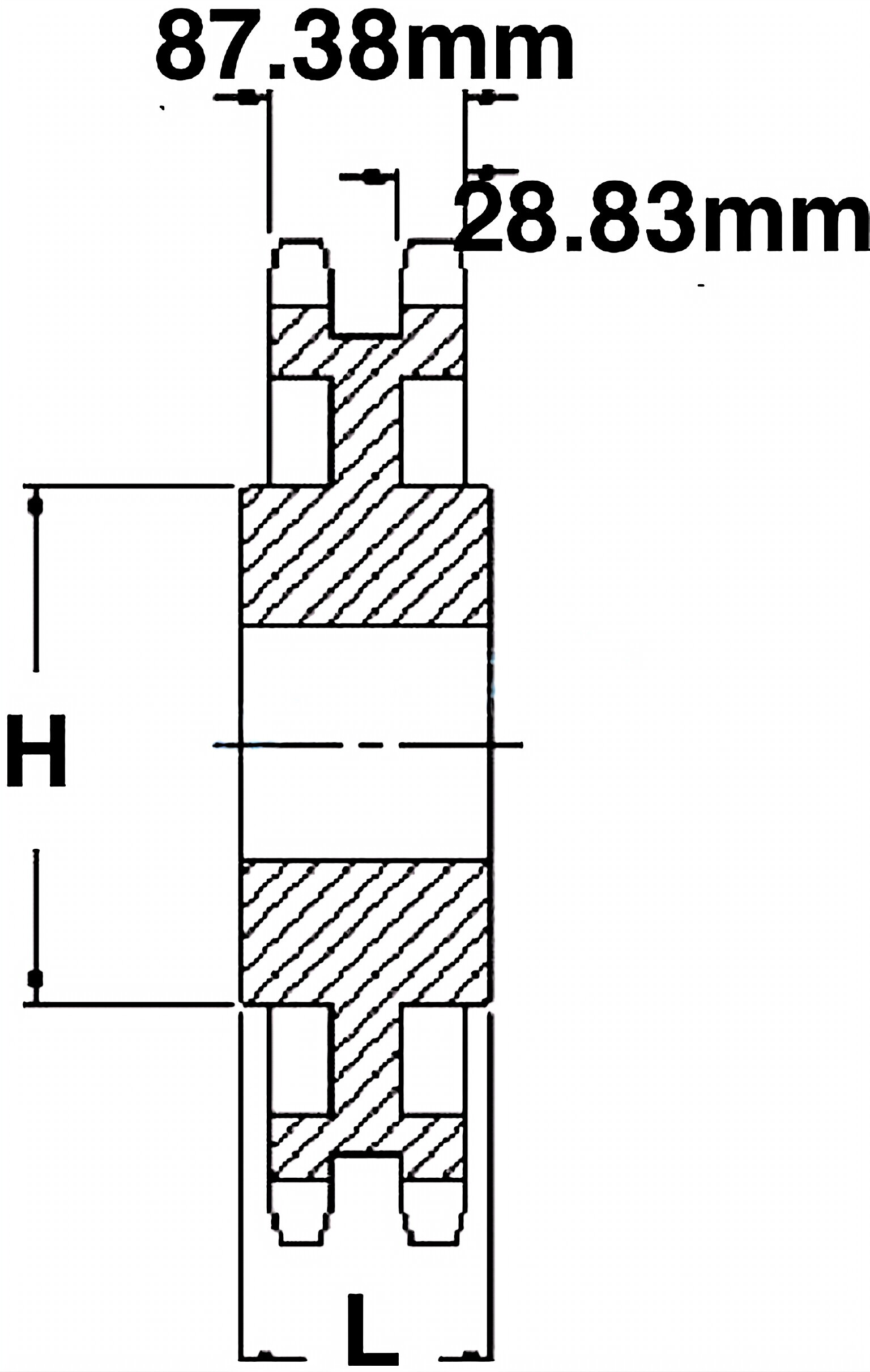

| Sprocket Size | Tooth Count | Pitch Diameter | Stock Bore | Max. Bore | Hub Diameter (H) | Length Thru Bore (L) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| D32C40 | 40 | 647.47" | 40" | 178" | 254" | 181" | 177.46 |
| D32C45 | 45 | 728.25" | 40" | 178" | 254" | 181" | 195.50 |
| D32C48 | 48 | 776.72" | 40" | 178" | 254" | 181" | 204.51 |
| D32C54 | 54 | 873.68" | 40" | 178" | 254" | 181" | 222.53 |
| D32C57 | 57 | 922.16" | 40" | 178" | 254" | 181" | 231.54 |
| D32C60 | 60 | 970.65" | 40" | 178" | 254" | 181" | 255.83 |
| D32C76 | 76 | 1229.28" | 40" | 178" | 254" | 181" | 292.83 |
