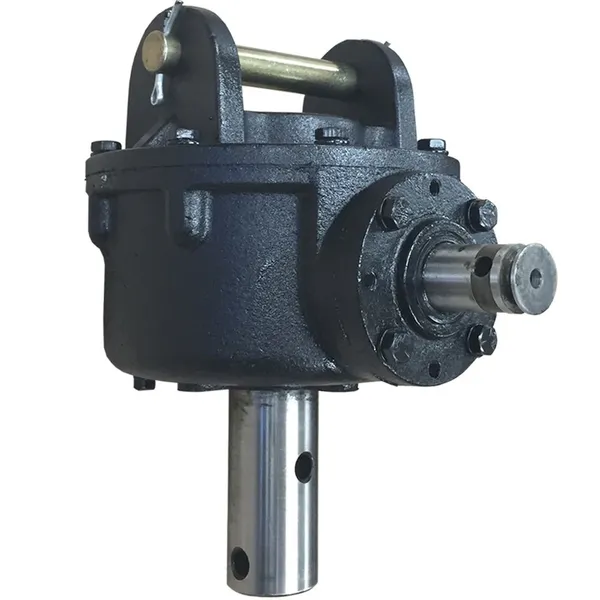

45 HP Heavy Duty Post Hole Digger Gearbox for Post Hole Digger

45 HP Heavy Duty Post Hole Digger Gearbox for Post Hole Digger

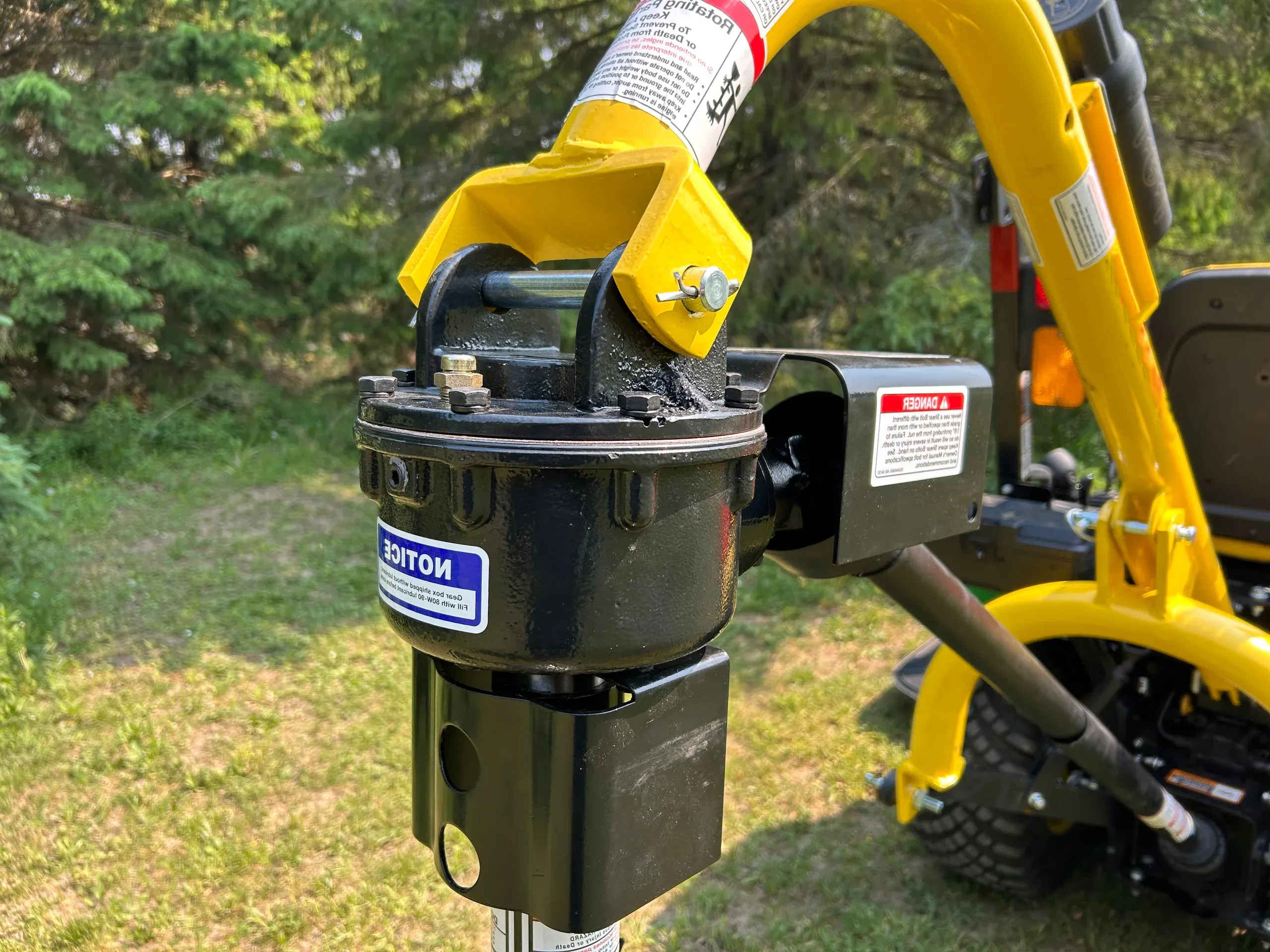

The 45 HP heavy duty post hole digger gearbox is a component of a post hole digger machine used for digging holes in the ground. The heavy duty post hole digger gearbox is designed to transmit power from the tractor or other power source to the auger bit that is used to drill the hole. The "45 HP" in the name refers to the maximum horsepower of the engine or power source that the heavy duty post hole digger gearbox can handle. This means that the gearbox is designed for heavy-duty applications and can handle high levels of torque and power.Post hole digger gearboxes typically have a set of gears that transfer power from the input shaft to the output shaft, which is connected to the auger bit. The gearbox may also have a clutch mechanism that allows the operator to start and stop the auger as needed. Overall, the 45 HP heavy duty post hole digger gearbox is a robust and durable component designed for heavy duty post hole digging applications. If you are looking for a durable and reliable gearbox for your post hole digger, then a 45 HP heavy duty post hole digger gearbox is a good option. It is capable of handling even the most demanding tasks, and it will help you to get the job done quickly and efficiently.

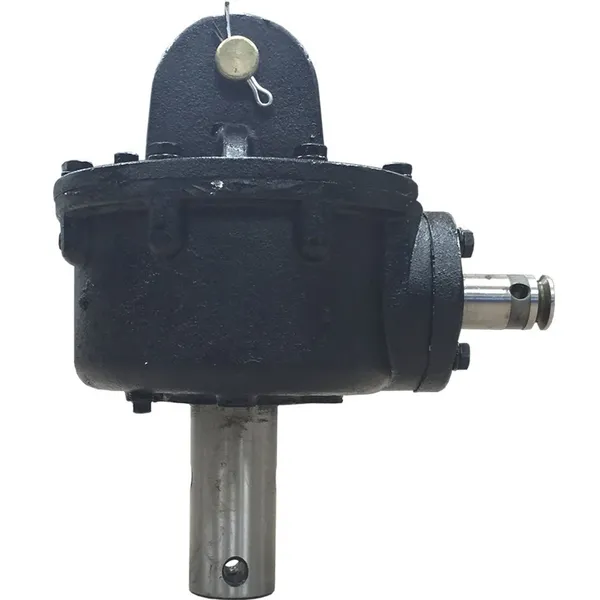

45 HP Heavy Duty Post Hole Digger Gearbox Specification

- 45 HP Rating- Includes Guards- 2.92: 1 Ratio- 1-1/4" Round Input Shaft w/ 3/8" mounting hole- 2" Round Output Shaft with dual 1/2" holes for mounting augers- 7/8" Mounting Pin- 4-1/4" Between the mounting ears- Durable black paint- 55 lbs- SHIPPED WITHOUT OIL ( 80W-90 Gear Oil)

Benefits of 45 HP Heavy Duty Post Hole Digger Gearbox

Using a 45 HP Heavy Duty Post Hole Digger Gearbox offers numerous benefits that can significantly enhance the efficiency and effectiveness of various drilling projects, such as installing fence posts, planting trees, or setting foundations for structures. Here are some of the key advantages:1. Enhanced Power and Efficiency: The 45 HP rating indicates a high power output, enabling the gearbox to handle demanding drilling tasks with ease. This power allows the post hole digger to penetrate tough, compacted, or rocky soils that would be challenging for less powerful models. The enhanced efficiency not only speeds up work but also reduces the physical strain on the operator and the wear on the machine.2. Durability and Reliability: Heavy-duty gearboxes are built to withstand rigorous use in harsh environments. They typically feature robust construction with high-quality materials and reinforced components that resist wear and tear. This durability ensures long-term reliability and reduces the likelihood of breakdowns, which is crucial for professional and commercial operations where downtime equals lost income.3. Versatility in Application: A 45 HP gearbox is capable of driving a variety of auger sizes and types, making it suitable for a wide range of applications. Whether drilling small holes for residential fence posts or larger ones for commercial foundations, the gearbox can handle different tasks efficiently. This versatility makes it a valuable tool for contractors who work on diverse projects.4. Cost-Effectiveness: Although initially more expensive, the long-term cost-effectiveness of a heavy-duty gearbox is significant. Its durability means less frequent replacements and repairs. Moreover, its efficiency in handling tougher jobs quickly and effectively can lead to lower labor costs and faster project completion, maximizing profitability.5. Safety Features: Heavy-duty gearboxes often include enhanced safety features to protect the operator and the equipment. These might include shear pins that prevent damage by shearing under excessive load, overload clutches to protect the gears, and safety shields that reduce the risk of accidents. These features help ensure safer operation under various conditions.

Common Applications:

The 45 HP Heavy Duty Post Hole Digger Gearbox is designed for robust performance and durability, making it suitable for a variety of demanding applications across different fields. Here are some of the common applications:(1) Agricultural Use: In farming and agriculture, this gearbox is extensively used for planting tree saplings and setting up fence posts. It can handle the tough soil conditions often found in rural settings, including compacted soils, clay, and areas with high levels of debris. This makes it essential for efficiently establishing boundaries and integrating agroforestry practices.(2) Construction Projects: The gearbox is ideal for construction sites where foundation posts for buildings, signs, or fences need to be installed. Its heavy-duty capabilities ensure that it can operate effectively in diverse soil types, from soft soil to rocky terrains, facilitating quick and stable installations that are crucial for construction timelines.(3) Landscaping and Grounds Maintenance: For professional landscapers, the gearbox is a key tool for creating holes for decorative trees, shrubs, and fencing in parks, golf courses, and residential properties. Its power helps achieve precise and clean drilling, which is essential for aesthetic landscaping and efficient grounds maintenance.(4) Utility and Infrastructure: Utility companies use the 45 HP gearbox for setting poles for electric and telecommunication lines. The gearbox's strength allows it to drill deep enough to ensure the poles are secure and meet safety standards, which is critical in preventing structural failures.(5) Vineyard and Orchard Development: In vineyards and orchards, precise and efficient post setting is crucial for supporting the growth of grapevines and fruit trees. The gearbox can handle the rigorous task of setting up trellises and other support structures, promoting optimal crop production.

Installation Operation:

Installing a tractor PTO-driven 45 HP heavy-duty post hole digger gearbox involves a series of steps to ensure it is securely attached and operates safely. Here’s a step-by-step guide to help you install the gearbox correctly:

1. Read the Manual: Begin by thoroughly reading the manufacturer’s manual. This document contains crucial information about the specific model you are working with, including safety instructions, required tools, and any specific installation guidelines.
2. Prepare the Tractor and Tools: Ensure the tractor is off, the keys are removed, and it is parked on a flat, stable surface. Assemble all necessary tools and parts for the installation, as indicated in the manual. Typical tools might include wrenches, grease, and hydraulic lift equipment if needed.
3. Attach the Gearbox to the Tractor: Position the gearbox so that its input shaft can align with the tractor’s PTO shaft. Use a tractor’s three-point hitch to lift and align the gearbox. Secure the gearbox using the hitch pins and locking devices provided. Make sure it is stable and does not move independently of the tractor's movements.
4. Connect the PTO Shaft: Attach the PTO shaft from the gearbox to the tractor’s PTO stub. Ensure that the lengths are compatible and adjust if necessary. Secure the PTO shaft with the locking pins and make sure the safety shields are in place to protect against rotating parts.
5. Install the Auger: Attach the auger to the gearbox’s output shaft. Ensure that it is compatible with the gearbox’s specifications for size and weight. Secure the auger using the provided bolts or pins, and confirm it is tightly fixed with no play or wobble.
6. Lubrication and Checks: Lubricate all moving parts according to the manufacturer’s recommendations. Check all connections again for tightness and correct alignment. Ensure that there are no loose parts and that safety shields are securely in place.
7. Test the Installation: Conduct a test run by starting the tractor at a low idle to ensure everything is functioning correctly. Watch for any abnormal vibrations or noises. Inspect the setup as it operates to verify that all components remain securely attached and perform as expected.

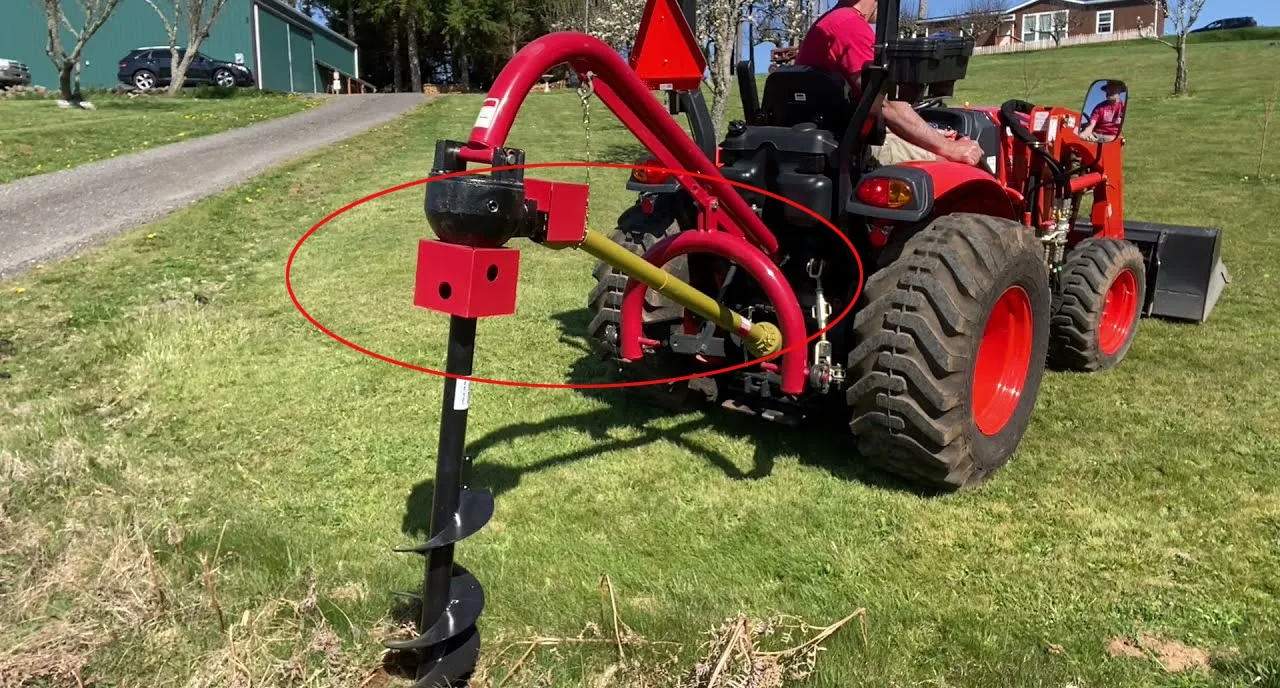

Agricultural PTO Shaft and Post Hole Digger Gearbox

An agricultural PTO (Power Take-Off) shaft is a driveline component used to transfer power from a tractor or other source of power to an implement, such as a post hole digger or other farm machinery. The PTO shaft typically connects to the tractor's transmission and rotates at a speed proportional to the engine speed.A post hole digger gearbox is a component that is attached to the agricultural PTO shaft and transmits power to the auger of a post hole digger. The post hole digger gearbox typically contains gears that increase the torque and reduce the rotational speed of the PTO shaft, so that the auger can dig into the ground more effectively.The design and construction of PTO shafts and post hole digger gearboxes can vary depending on the specific application and the type of equipment being used. It is important to choose the right components for the job to ensure the safe and efficient operation of the equipment. Regular maintenance and inspection of these components are also important to ensure their longevity and safe operation.

Common Troubleshooting of the 45 HP Heavy Duty Post Hole Digger Gearbox

Troubleshooting common issues with a 45 HP Heavy Duty Post Hole Digger Gearbox involves identifying and resolving potential problems that can hinder its performance. Here are some frequent issues and steps to diagnose and fix them:

1. Overheating: If the gearbox overheats during operation, it may indicate insufficient lubrication, overloading, or improper ventilation. Check the gearbox's lubricant level and quality, ensuring it meets manufacturer recommendations. Reduce the workload if overloading is suspected and inspect the gearbox housing for any obstructions that may impede airflow.
2. Excessive Noise or Vibration: Unusual noise or vibration may signal misalignment, worn gears, or loose components. Inspect the gearbox for visible signs of misalignment, damaged or worn gears, and loose fasteners. Tighten any loose components and replace worn parts as necessary to eliminate noise and vibration.
3. Oil Leaks: Oil leaks from the gearbox housing can occur due to damaged seals or overfilling. Inspect the seals for wear or damage, replacing them if necessary. Avoid overfilling the gearbox with lubricant, as it can lead to excessive pressure and leakage. Clean any spilled oil and monitor the gearbox for further leaks.
4. Auger Jamming: If the auger becomes jammed or stuck during operation, it may indicate debris accumulation, gear misalignment, or mechanical failure. Clear any debris from the gearbox housing and inspect the gears for proper alignment. Check for damaged or obstructed components and lubricate moving parts to reduce friction.
5. Loss of Power: Sudden loss of power or sluggish performance may result from engine issues, hydraulic system malfunctions, or gearbox damage. Check the tractor's engine and hydraulic system for faults or abnormalities. Inspect gearbox components for signs of damage or wear and address any issues promptly to restore power and performance.
6. Shear Pin Failure: Shear pins are designed to break under excessive load to prevent damage to the gearbox. If shear pins fail frequently, it may indicate overloading or improper operation. Reduce the workload and ensure the auger is properly aligned and not encountering excessive resistance. Replace shear pins as needed and use the appropriate size and material for the application.

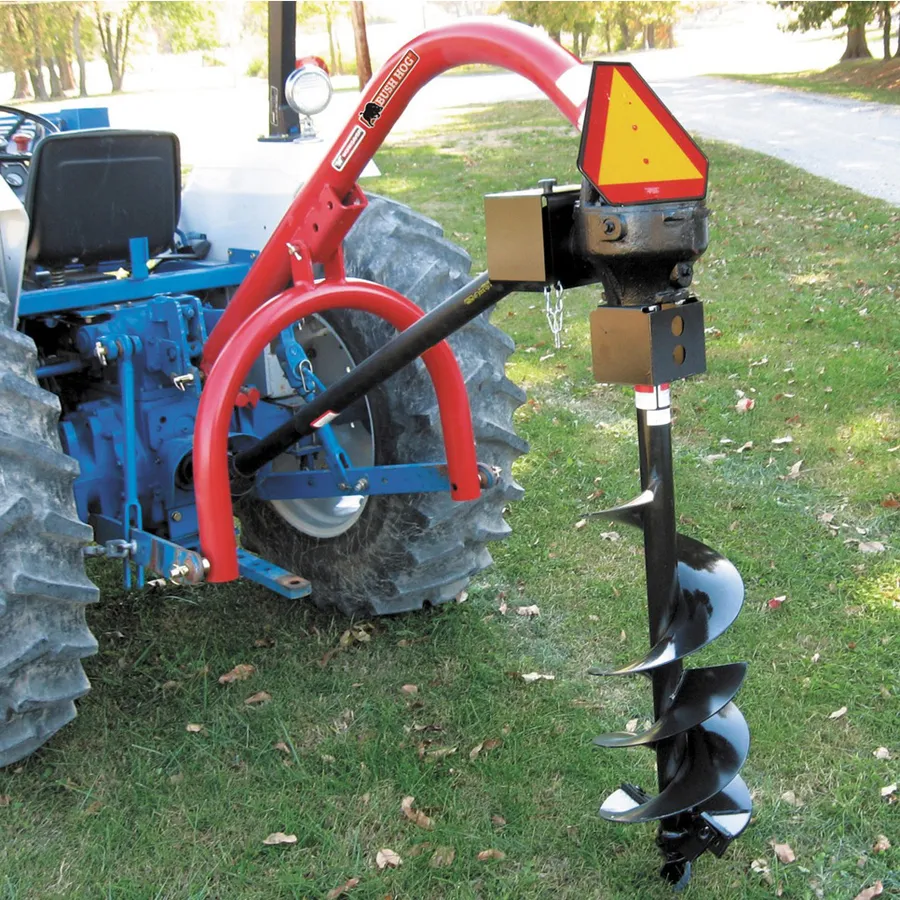

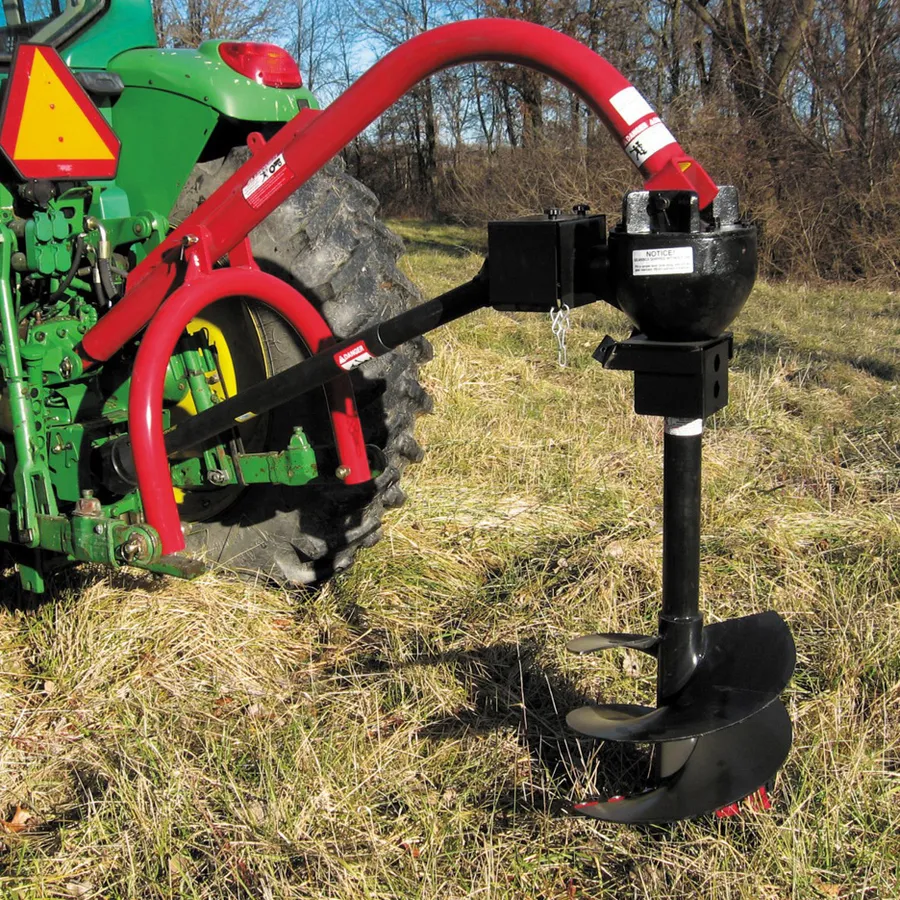

Heavy Duty Post Hole Digger Gearbox Manufacturers

Raydafon is a prominent manufacturer of high-performance post hole digger gearboxes for a variety of applications. Our post hole digger gearboxes are a powerful replacement option for Land Pride, John Deere, Bush Hog, Kubota, SpeeCo, Danuser, King Kutter, Everything Attachments, Agri Supply, RhinoAg, Tractor Supply Co., and other brands of gearboxes. Our technical staff can reconfigure an existing design or assist you in designing a custom post hole digger gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, input speed, output speed, input torque, output torque, mounting position, and the application’s environment are all considerations when choosing a post hole digger gearbox.We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, fertilizer seeder gearboxes, rotary rake gearboxes, cutting bar gearboxes, gearbox for hay tedders, etc. If you want to buy a post hole digger gearbox, please get in touch with us.
