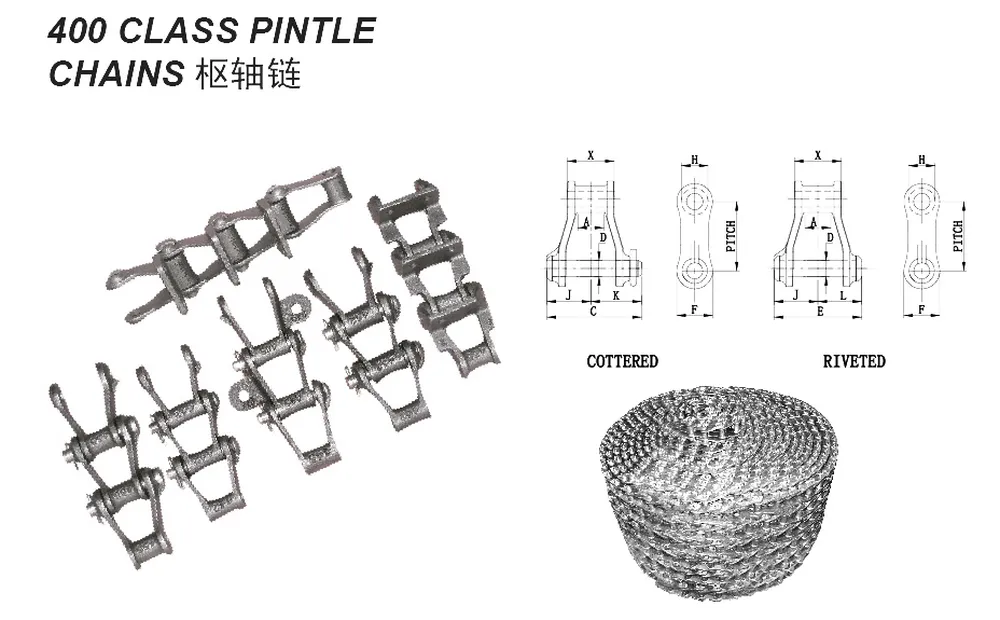

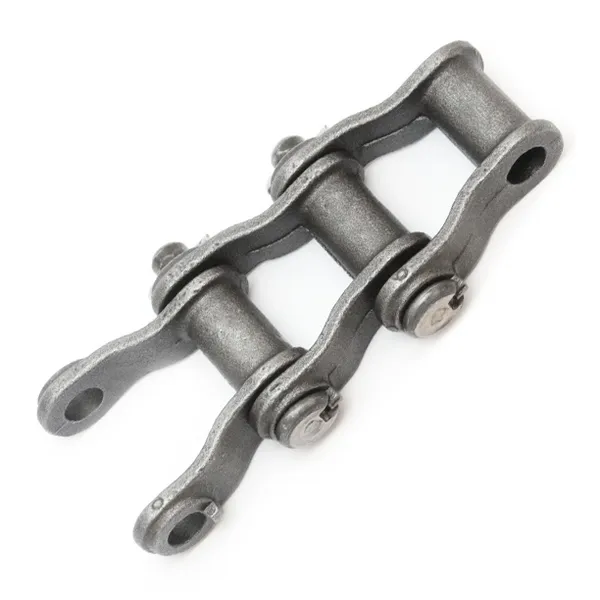

462 Pintle Chain

Chain No.	462 Pintle Chain
Pitch In Inches	1.634
Weight Per Foot LBS	2.50
Average Ultimate Strength	8800
Maximum Working Load LBS.	1880
A	0.88
C	2.56
D	0.44
E	2.38
F	0.94
H	0.72
X	1.44
Available Attachments	A12, F2, K1

462 Pintle Chain Attachments:

There are a variety of 462 pintle chain attachments available, each designed for a specific application. Some of the most common attachments include the A12 attachment, the F2 attachment, and the K1 attachment.

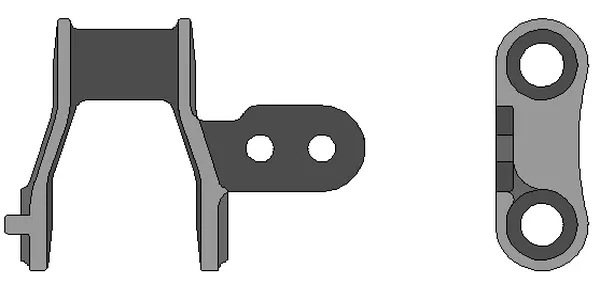

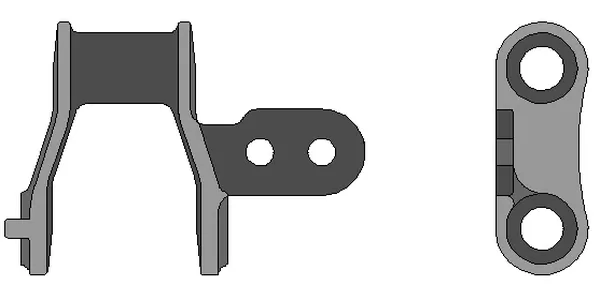

462 Pintle Chain A12L Attachment	462 Pintle Chain A12R Attachment

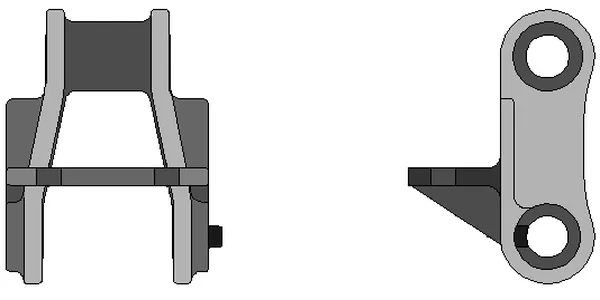

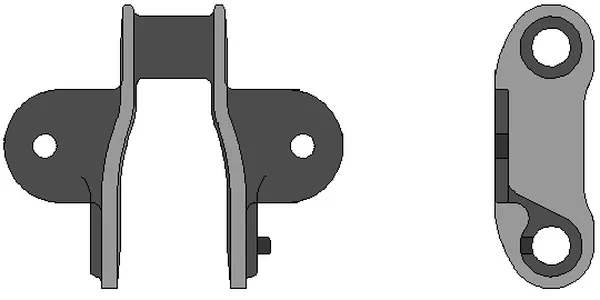

462 Pintle Chain F2 Attachment?	462 Pintle Chain K1 Attachment

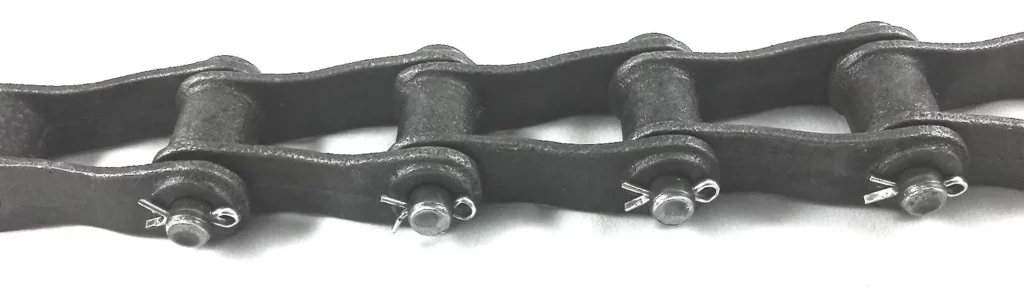

Advantages of Using the 462 Pintle Chain:

The 462 pintle chain has many advantages over other types of chains, including:

1. Lightweight and economical:?The 462 pintle chain is made of lightweight materials, making it easy to transport and install. It is also relatively inexpensive, making it a cost-effective option for many applications.2. Durable and long-lasting:?The 462 pintle chain is made of high-quality materials and is heat-treated to improve its strength and durability. It can withstand a wide range of conditions, making it a good choice for both indoor and outdoor applications.3. Wide range of applications: The 462 pintle chain is versatile and can be used in a variety of applications, including material handling, elevators, environmental and wastewater applications, sand spreaders, manure spreaders, salt spreaders, conveyors, forage harvesters, baggers, and live bottom trailers.4. Available with a variety of attachments:?The 462 pintle chain is available with a variety of attachments, which can be customized to meet the specific needs of your application.

Applications of 462 Pintle Chain:

Here are some specific examples of the advantages of using the 462 pintle chain in different applications:

• Material handling:?The lightweight and durable construction of the 462 pintle chain makes it a good choice for material handling applications, where it can be used to move heavy loads over long distances.
• Elevators:?The 462 pintle chain is also a good choice for elevators, where it can be used to move people and goods between different floors. The lightweight construction of the chain helps to reduce the overall weight of the elevator, which can save energy and improve efficiency.
• Environmental and wastewater applications: The 462 pintle chain can also be used in environmental and wastewater applications, where it can be exposed to corrosive materials. The heat-treated construction of the chain helps to protect it from corrosion and wear, extending its lifespan.

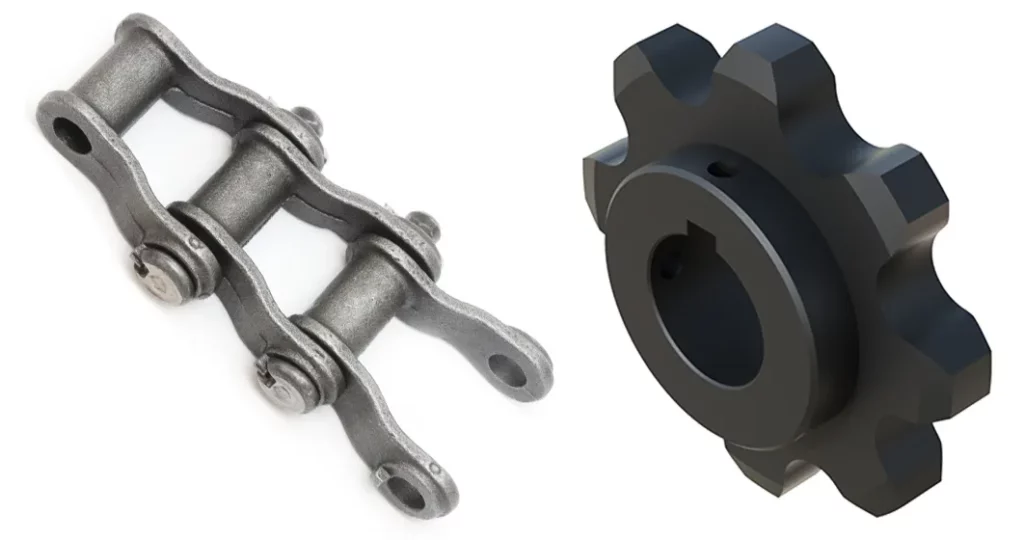

462 Pintle Chain Sprockets and 462 Pintle Chains:

The 462 pintle chain sprockets and 462 pintle chains are two components that work together to transmit power in a variety of applications. The sprocket is a wheel with teeth that engages the links of the chain, while the chain is a series of links that are connected by pins.

The 462 pintle chain is a lightweight and durable chain that is commonly used in material handling, elevator, and environmental applications. It is available in riveted or cottered construction, and it can be used with a variety of sprockets.

The 462 pintle chain sprocket is designed to match the pitch of the chain. The pitch is the distance between the centers of adjacent pins. The sprocket also has a number of teeth that match the number of links in the chain.

The 462 pintle chain sprocket and 462 pintle chain must be properly matched in order to operate efficiently and prevent damage. The sprocket should be made of a material that is compatible with the chain, and it should have the correct number of teeth and pitch.

Here are some of the factors to consider when choosing 462 pintle chain sprockets and 462 pintle chains:

• Application:?The sprocket and chain must be compatible with the application. For example, a sprocket and chain that are designed for a material handling application may not be suitable for an elevator application.
• Load:?The sprocket and chain must be able to withstand the load that will be applied to them.
• Speed:?The sprocket and chain must be able to operate at the desired speed.
• Environment:?The sprocket and chain must be able to withstand the environmental conditions in which they will be used.

China 400 Class Pintle Chain?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?81X conveyor chains, agricultural chains,?CA550 roller chains,?S55 roller chains, silent chains,?X458 conveyor chains,?grip chains (film gripper chains), PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain,?steel pintle chain, welded steel chain, drop forged chain, malleable iron chain,?“H” Class mill chain, CC Class crate conveyor chain, ?“H” Class refuse drag chain,?"H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
