4D Series Cast Iron QD Bushing Sheaves Pulley for "D" Belts

4D Series Cast Iron QD Bushing Sheaves Pulley for "D" Belts

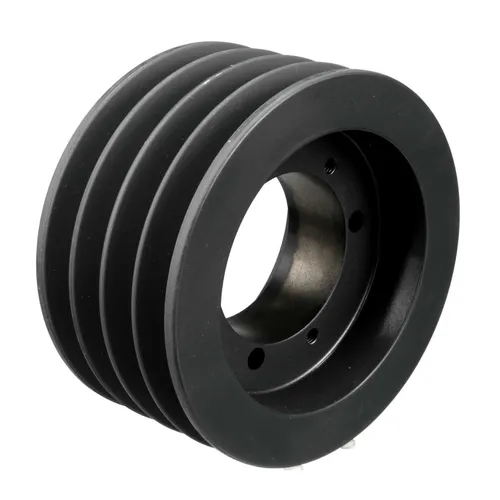

4D series four-groove QD bushed sheaves are manufactured for D-series classic v-belts and D-banded belts; they range from 12.64" to 58.64" in diameter. Depending on the sheave size, they are made to use an F, J, or M QD (quick detachable) bushings, which we also stock. Most of our 4D QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

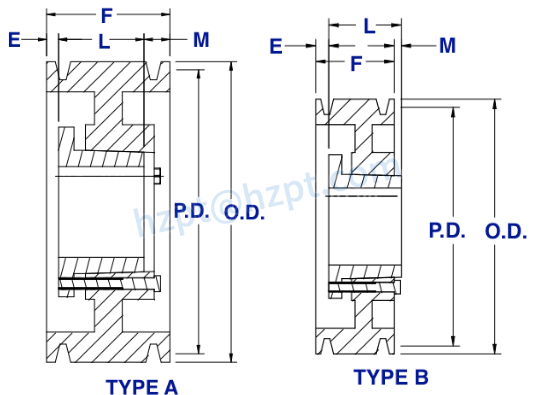

4D QD Sheave Size Chart

Size	Bushing Type	Type	Pitch Diameter	Outside Diameter	(E)	(F)	(L)	(M)	Sheave Weight (LBS)
4D120F	F	A	12.0"	12.64"	31/32"	6-1/16"	3-3/4"	1-11/32"	83
4D130F	F	A	13.0"	13.64"	31/32"	6-1/16"	3-3/4"	1-11/32"	86
4D135F	F	A	13.5"	14.14"	31/32"	6-1/16"	3-3/4"	1-11/32"	89
4D140F	F	A	14.0"	14.64"	31/32"	6-1/16"	3-3/4"	1-11/32"	92
4D145F	F	A	14.5"	15.14"	31/32"	6-1/16"	3-3/4"	1-11/32"	95
4D150F	F	A	15.0"	15.64"	31/32"	6-1/16"	3-3/4"	1-11/32"	99
4D155F	F	A	15.5"	16.14"	31/32"	6-1/16"	3-3/4"	1-11/32"	102
4C160F	F	A	16.0"	16.64"	31/32"	6-1/16"	3-3/4"	1-11/32"	106
4D180J	J	A	18.0"	18.64"	1/8"	6-1/16"	4-5/8"	1-5/16"	120
4D200J	J	A	20.0"	20.64"	1/8"	6-1/16"	4-5/8"	1-5/16"	132
4D220J	J	A	22.0"	22.64"	1/8"	6-1/16"	4-5/8"	1-5/16"	155
4D270J	J	A	27.0"	27.64"	1/8"	6-1/16"	4-5/8"	1-5/16"	193
4D330M	M	B	33.0"	33.64"	11/32"	6-1/16"	6-3/4"	1-1/32"	280
4D400M	M	B	40.0"	40.64"	11/32"	6-1/16"	6-3/4"	1-1/32"	348
4D480M	M	B	48.0"	48.64"	11/32"	6-1/16"	6-3/4"	1-1/32"	380
4D580M	M	B	58.0"	58.64"	11/32"	6-1/16"	6-3/4"	1-1/32"	420

Related Matching D-Series, D-Series Banded V-Belts

(1) D-Series V-Belts

Classic D-Series V-Belts have a 1.25" top-width, 0.75" thickness, and a 40° angle. Additionally, D V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium D-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.

(2) D-Series Banded V-Belts

D-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. D-series v-belts have a 1-1/4" top-width per belt (band/ rib).

Related QD Bushings | Quick Disconnect Bushings

QD bushings are utilized throughout the industrial power transmission and agricultural industry for various sprockets, sheaves, pulleys, and synchronized drives. They are designed for easy installation and easy uninstallation; they are also commonly referred to as quick-disconnect bushings. QD bushings can help conventional mounting with the flange outboard and reverse mounting to where the flange is inboard and utilize a single split that extends through the entire bushing length. Our QD bushings interchange with other brands and are made from high-grade steel precision machined for perfect application fitment. QD bushings' benefits over different styles include; ease of installation/ uninstall, superior holding power, and extreme strengths. We stock all the standard sizes of QD bushings and supply custom QD bushings upon request.

Bushing Type	(A)	(B)	(D)	(E)	(F)	(G)	(L)	Bolt Circle	Cap Screws Required	Min. Stock Bore	Max. Bore W/ KW	Max Bore W/ Shallow KW	Set Screw Size	Avg. Weight (LBS)
F	0.813"	4.437"	6.625"	2.813"	2.500"	0.423"	3.625"	5.625"	3 - 0.563X3.625	1.000"	3.313"	3.938"	0.5 - 13	11.5
J	1.000"	5.148"	7.250"	3.500"	3.188"	0.423"	4.500"	6.250"	3 - 0.625X4.5	1.438"	3.750"	4.500"	0.625 - 11	18.0
M	1.250"	6.500"	9.000"	5.500"	5.188"	0.423"	6.750"	7.875"	4 - 0.75X6.75	1.938"	4.750"	5.500"	0.75 - 10	37.0

V-belt Pulley American Stanard -- D Series

The American standard pulley is manufactured according to the American ANSI standard. Its primary material is gray iron, which is suitable for 2L, 3L, 4L, 5L, A, B, C, D, 3V, 5V, 8V belts, J, L, and M multi-ribbed belts. American standard pulley product types: AK, BK, TA, TB, TC, B, C, D, 3V, 5V, 8V, J, L, M, VP, VL, VM. Taper bushing pulleys are used with STB, QD, or TB taper bushings.

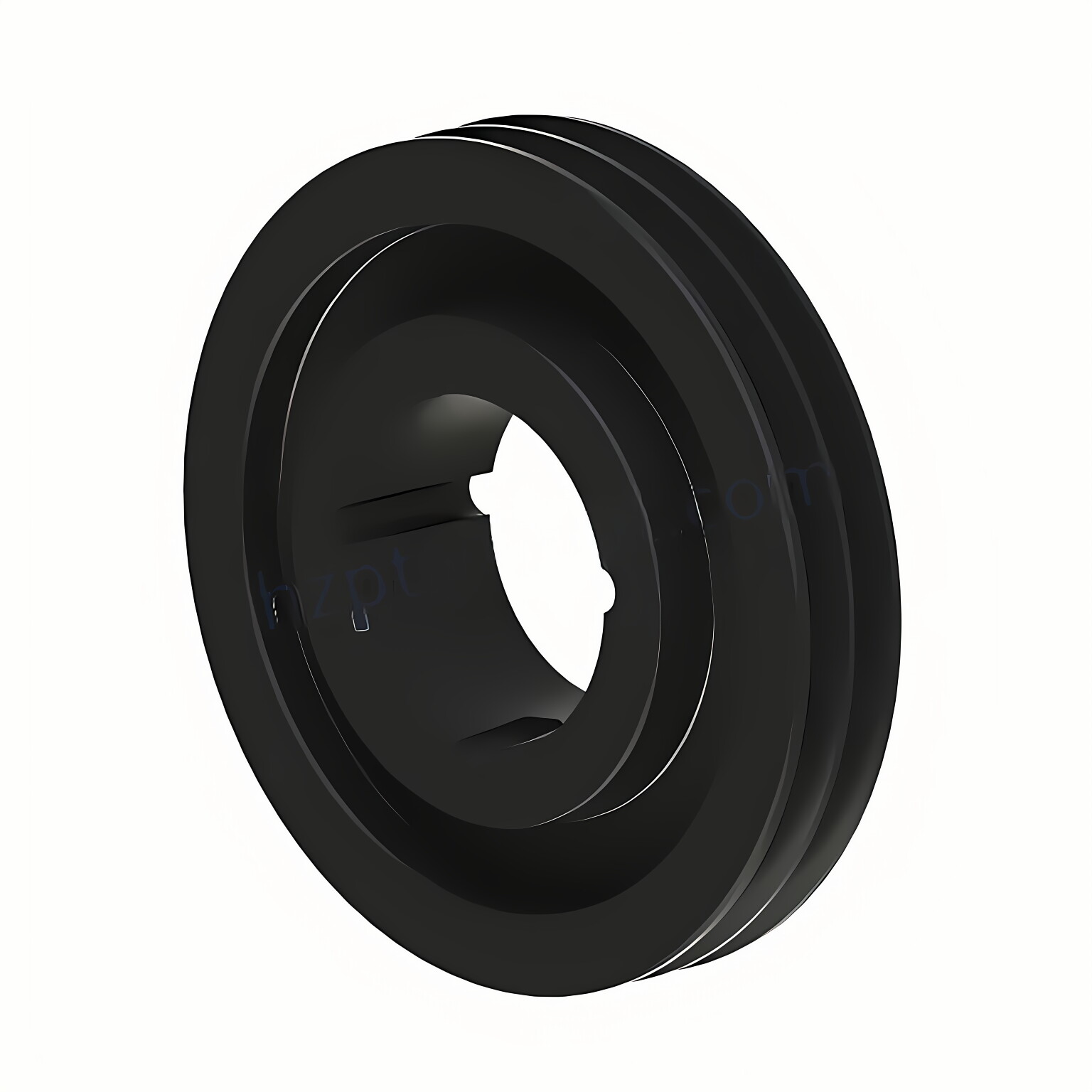

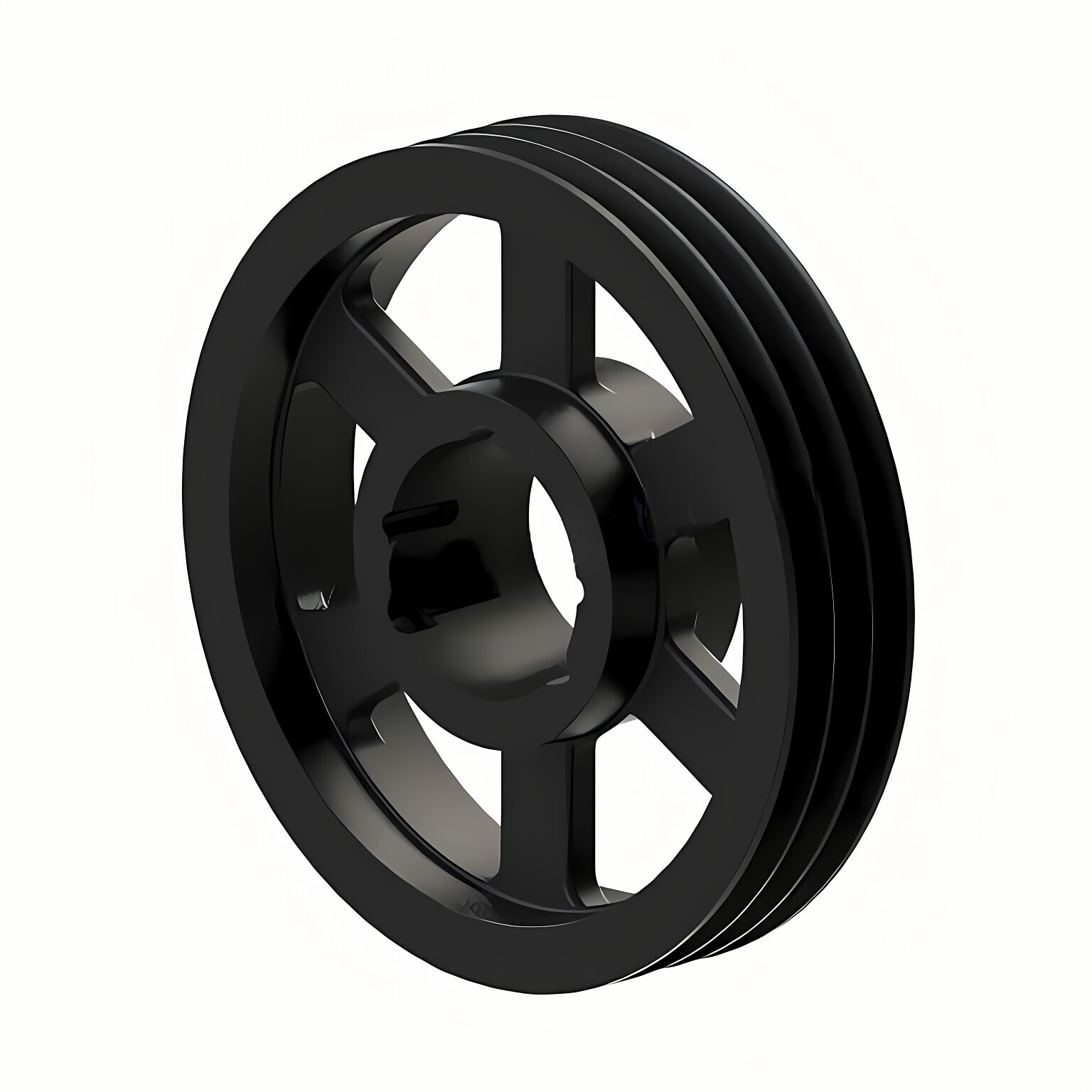

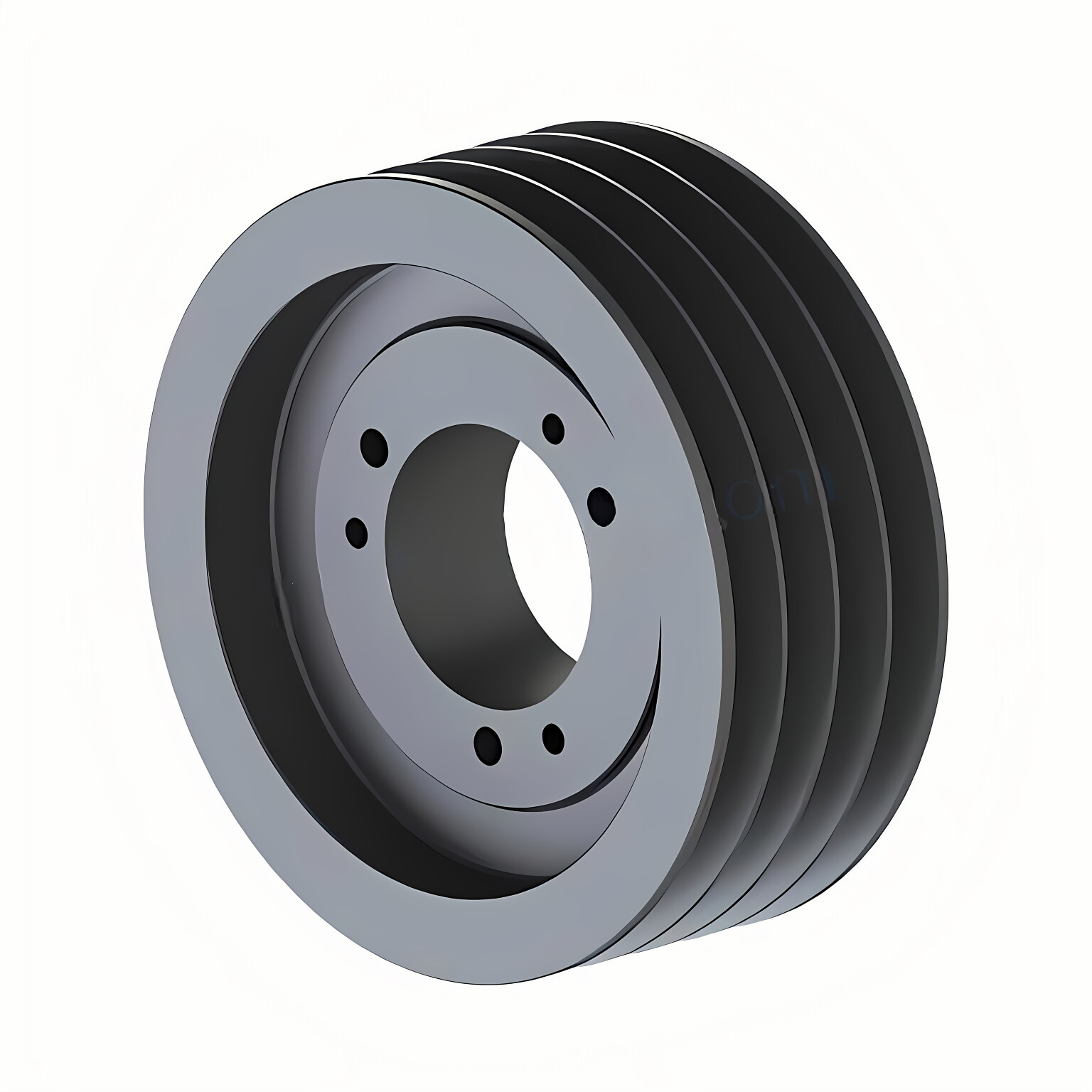

D Series Sheaves with QD bushing	D Series Sheaves with TB bushing	D Series Sheaves with TB bushing

Features and Benefits

(1) The belt is an elastomer that can mitigate load impact and run smoothly without noise.(2) Overload will cause the belt to slip on the wheel, thus playing the role of protecting the whole machine.(3) The grooves of most American standard pulleys are suitable for several different belt types, and the belt design and application are relatively flexible.(4) There are many types of American standard pulley grooves and taper bushings. Some pulleys and bushings are allowed to be installed on the front and back, which has become a solution for harsh conditions on different occasions.(5) American standard pulleys and taper bushings can achieve precise balance control and perform well in transmission.

Technological Processing

Company Profile

Raydafon is a professional manufacturer of mechanical parts. Our main products are v belt pulleys, sprockets, taper sleeves, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.

FAQ

Q1. Are you a manufacturer or a trading company?A: We are a manufacturer and trading company.Q2. What is your sample policy?A: We can supply the sample if we have finished parts in stock, but customers need to pay for the sample cost and shipping fee.Q3. Can you produce according to the samples?A: We can produce power transmission parts according to your samples or technical drawings. We can build the molds and fixtures.Q4. Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.Q5. Can you customize pulleys?A: Yes, please send us your drawing for an accurate quotation.Q6. How long is your delivery time and shipment?A: 1. Sample Lead-times: 10-20 days.2. Production Lead-times: 30-45 days after the order is confirmed.Q7. How do you make our business a long-term and good relationship?A: 1. We keep good quality and competitive price to ensure our customers' benefits ;2. We respect every customer as our friend and sincerely do business and make friends with them, no matter where they come from.Q8: What are your advantages?1. The most competitive price and good quality.2. Perfect technical engineers give you the best support.3. OEM is available.
