Experience the power of precision with Raydafon Group's 5 ton electric worm gear screw jack. This robust lifting solution is ideal for industrial automation, machinery leveling, and construction needs, offering a durable design with quiet operation and easy installation. Its unique worm gear mechanism ensures stable, high-load handling, providing users with reliable performance that saves time and effort. Stand out from the crowd with enhanced safety features and smooth control—unlock efficiency today.
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works, Energy & Mining Weight (KG): 25 KG Customized support: OEM, ODM, OBM Gearing Arrangement: Worm Output Torque: 20nm Input Speed: Max. 1500RPM Output Speed: Max. 160RPM Load Capacity: 5 ton Mounting Type: Upright Travel Length: 915mm Stroke Screw Design: Rotating screw Gear Ratio: 6:1 Screw End Fitting: Plain end Accessories: Bronze travel nut, motor flange Motor voltage: 380V AC 50HZ 3PHASE Motor Power: 550W 3/4HP Gear Reducer Type: helical bevel gear reducer Gearing Arrangement: Worm Output Torque: 20nm Input Speed: Max. 1500RPM Output Speed: Max. 160RPM Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works, Energy & Mining Weight (KG): 25 KG Customized support: OEM, ODM, OBM Load Capacity: 5 ton Mounting Type: Upright Travel Length: 915mm Stroke Screw Design: Rotating screw Gear Ratio: 6:1 Screw End Fitting: Plain end Accessories: Bronze travel nut, motor flange Motor voltage: 380V AC 50HZ 3PHASE Motor Power: 550W 3/4HP Gear Reducer Type: helical bevel gear reducer Packaging Details: Strong Exporting Plywood Cases (International Exporting Standard Wooden Material with Free Fumigation). Port: Ningbo
Features
5 ton electric worm gear screw jack features

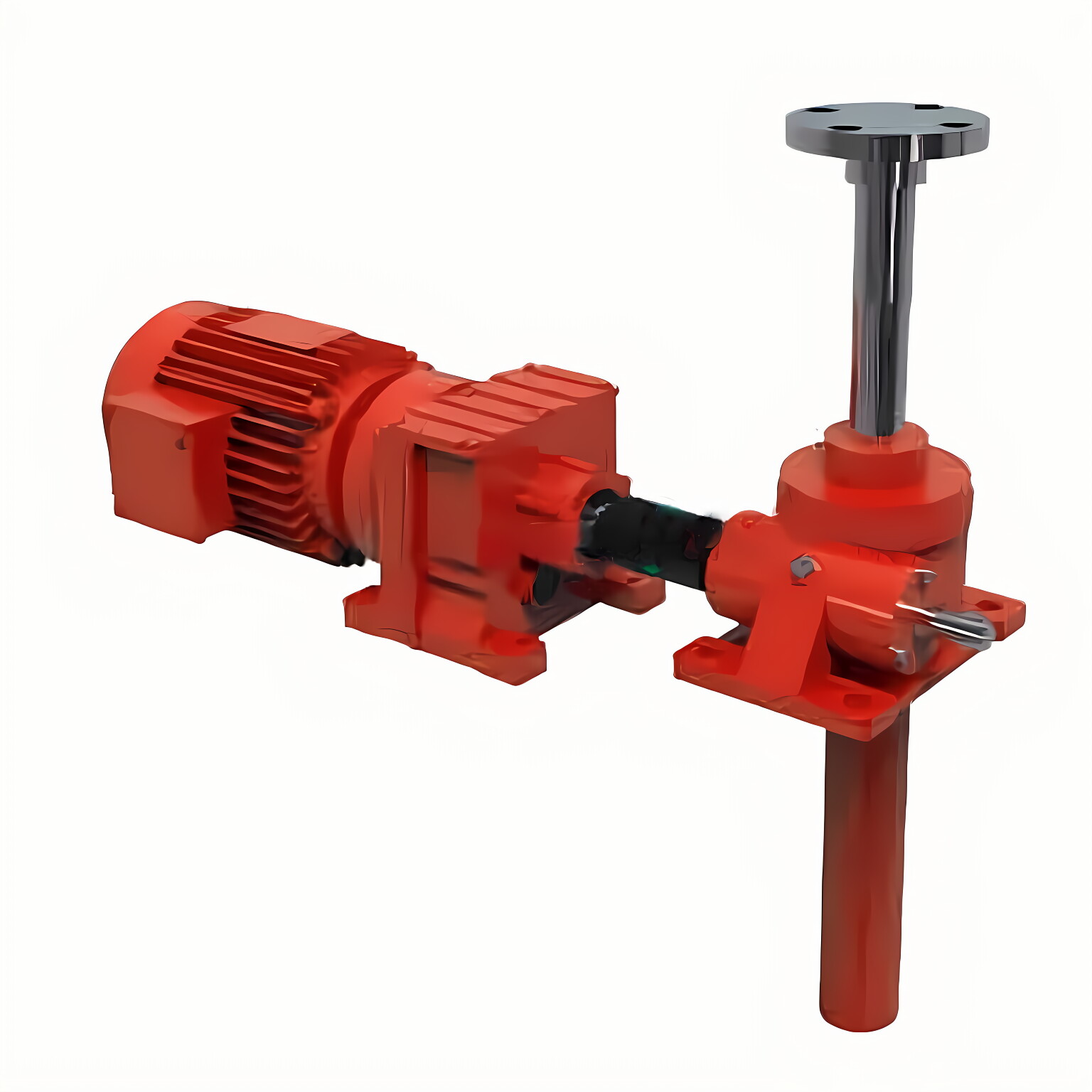

5 ton electric worm gear screw jack with lifting nut for heavy duty screw jack lift systems. Strong electrically screw jack load capacity 5 ton, self locking ACME screw diameter 38mm, pitch 6mm, inverted mount, rotating screw design, stroke 900mm, ratio 1/24 (one rpm input travel length 0.25mm), plain end, right input shaft and left motor adapter. Attached 3-phase electric motor with bevel-helical gearbox, and copper travel nut.
Packaging & ShippingShipping:1. Ocean freight: seaport to seaport, price terms CIF, FOB, EXW, CFR etc.2. Air freight: airport to airport, price terms EXW, CRF etc.3. Air courier: DHL, FEDEX, UPS, TNT door to door shipment, price terms DDU, CPT etc.Packing: 100% standard exporting plywood cases. Note: International Exporting Standard Wooden Material with Free Fumigation.
Hot Tags: 5 ton electric screw jack manufacturer, worm gear screw jack wholesale, heavy duty electric linear actuator supplier
