5040 Taper Lock Bushings

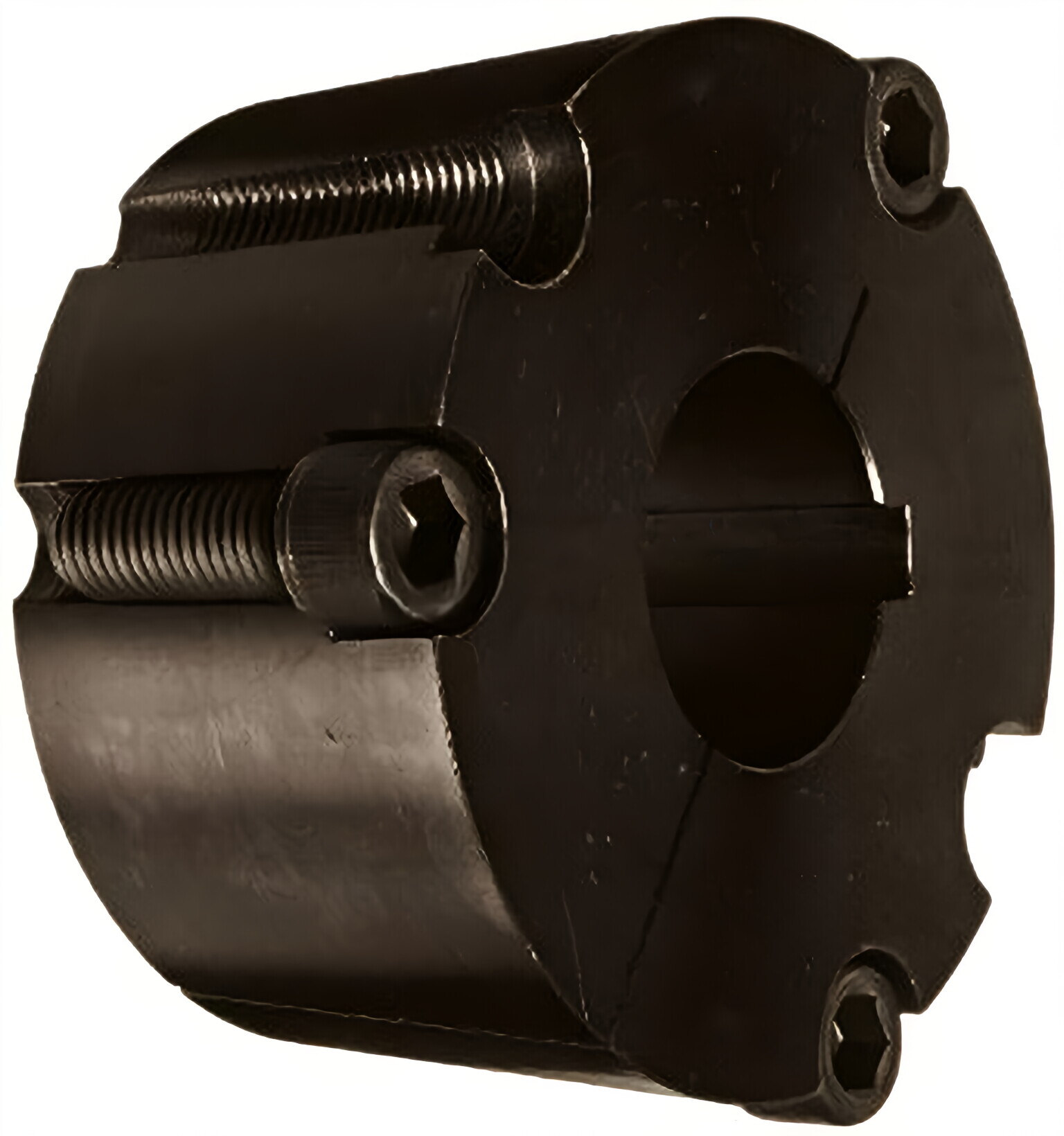

5040 Taper Lock BushingsWe offer a full line of high-quality, competitively priced 5040 Taper-Lock Bushings. 5040 Tapered Lock Bushings are often referred to as short bushings due to their compact design. These bushings are available in bores ranging from 2-7/16" to 5" and are usually supplied with 3-set screws for installation. 5040 Tapered Locking Bushings are used in a wide range of applications including Sprockets, Drums, Drive Wheels, Tail Wheels, Pulleys, and Gears, we also have them! For more information or to get a quote, please contact us and we will be happy to assist you!

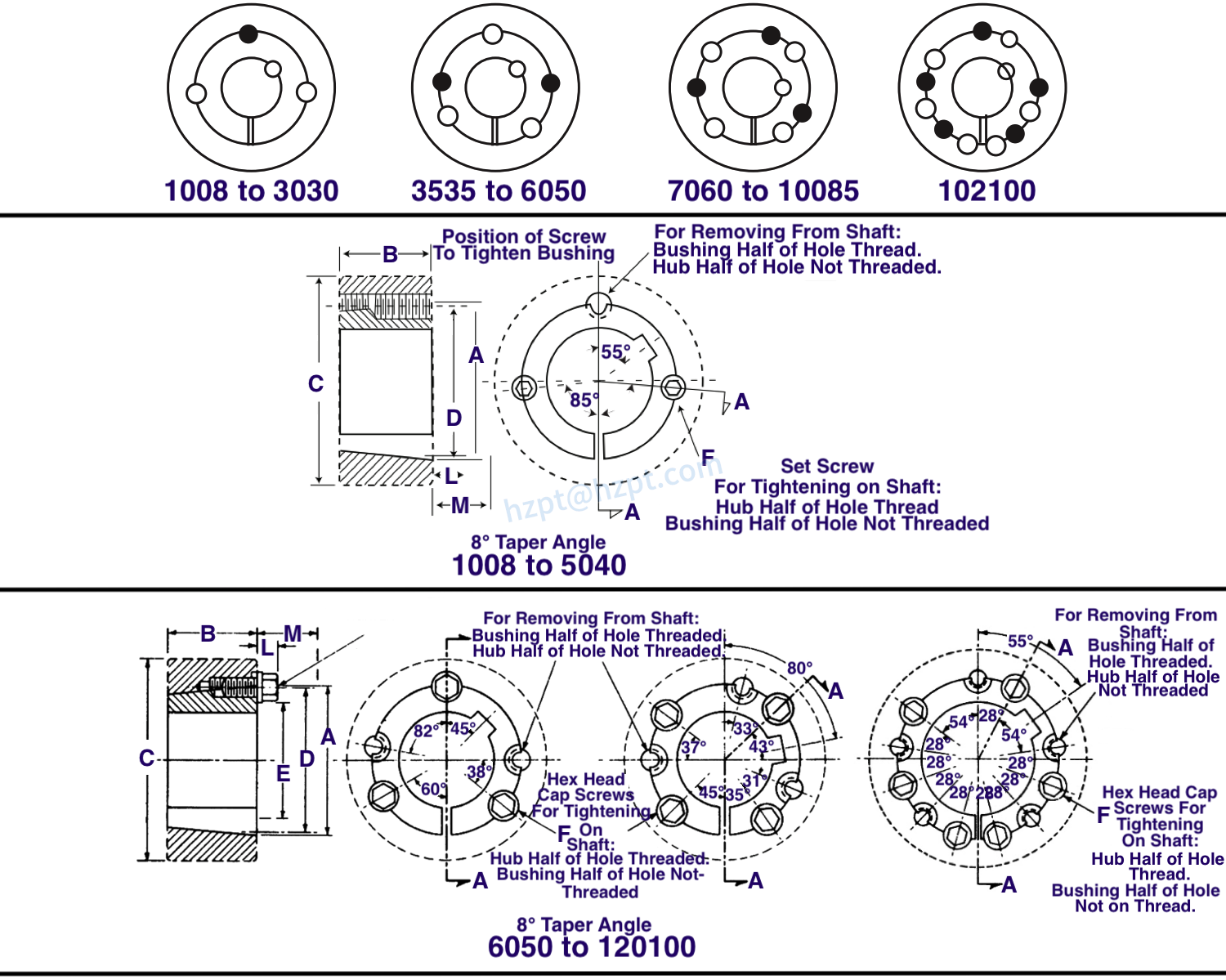

Taper Lock Bushing Size Chart

The dimension table below shows the standard dimensions of the taper lock bushing, please note that the following figure is the basic dimension required, the actual installation and removal of the bolt holes may vary.The Taper-Lock bushing system makes the sprocket hub narrower than ever, while the left-aligned hub design keeps the shaft closer to the bearing and eliminates issues associated with high overhung loads. The gradual taper of the bushing makes it a perfect fit and provides the equivalent of a shrink fit. However, the benefits don't stop there! In addition to low overhung load capacity, they also offer high precision.Another common application for tapered bushings is in power transmission components. The tapered shafts of these devices are attached to rollers or pulleys. Wedge-action tapered grips lock them in place without deforming the shaft. These tapered bushings are generally available in QD and Taper-Lock styles. While both styles are very effective, each should be used sparingly.Click and check out more products you're looking for.
