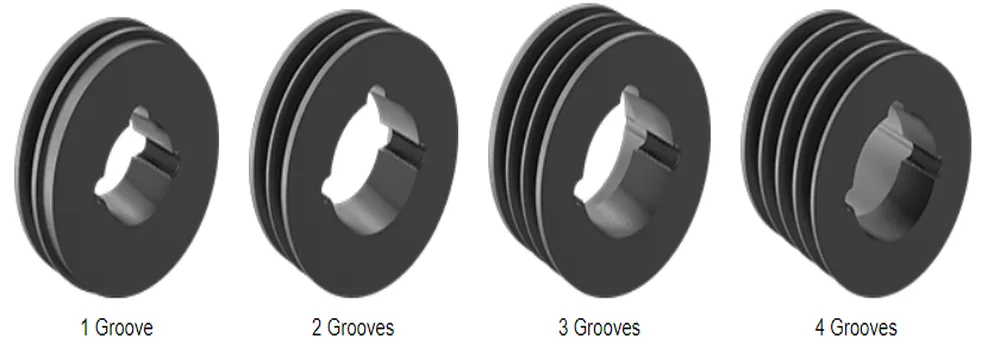

Taper Lock Bushing Bore V Belt Pulley

Mount these pulleys with a taper-lock bushing for a tight, wobble-free hold on your shaft. These pulleys transfer force from the shaft to a V-belt in a power transmission system and help misalign. Made of cast iron, these pulleys are durable and resist wear. Depending on your taper-lock bushing, the same pulley can be used with different shaft diameters.V-pulleys are available in various configurations and sizes to meet the requirements of many applications. These pulleys are typically cast iron and black phosphate and come with multiple diameters and groove combinations. Taper and pilot bore options are also available. To determine the correct part for your application, refer to the part number. The part number will contain the belt cross-section's three-letter designation, the pulley pitch's three-digit diameter, and the number of grooves or belts that need to be driven.This pulley type has different boreholes and is available in metric and imperial dimensions. It also comes with appropriate socket head screws for installation. The main benefit of a Taper Lock Bushing is that it is easy to install and does not require any shaft modifications. It is available from stock and is suitable for various V-belt pulley types.Taper lock bushing bore v belt pulleys are suitable for many applications. You can buy them ready-to-use, or you can choose to order them separately. You can also purchase more significant numbers of grooves if you need them urgently.Types of taper lock bushing bore v belt pulleys

Products Specification

Material	Carbon Steel	SAE1020, SAE1045, Cr12, 40Cr, Y15Pb, 1214Letc
	Alloy Steel	20CrMnTi, 16MnCr5, 20CrMnMo, 41CrMo, 17CrNiMo5etc
	Brass/Bronze	HPb59-1, H70, CuZn39Pb2, CuZn40Pb2, C38000, CuZn40etc
Tolerance Control	Outer Diameter	±0.005 mm
	Length Dimension	±0.05 mm
Machining Process	Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding, and Gear Lapping
Teeth Accuracy	DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0
Modules	1.0, 1.25, 1.5, 1.75, 2.0, 2.25, 2.5....8.0 etc
Heat Treatment	Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonize surface treatment
Surface Treatment	Blacking, Polishing, Anodizing, Chrome Plating, Zinc Plating, Nickel Plating, Power-coating, etc.
Standard	DIN, ISO/GB, AGMA, JIS

1) European standard:    a) V-belt pulleys for taper bushings: SPZ, SPA, SPB, SPC,2BKH; up to 10 groovesb) Adjustable speed V-belt pulleys and variable speed pulleysc) Flat belt pulleys and conveyor belt pulleys2) American standard:a) Sheaves for taper bushings: 3V, 5V, 8Vb) Sheaves for QD bushings: 3V, 5V, 8Vc) Sheaves for split taper bushings: 3V, 5V, 8Vd) Sheaves for 3L, 4L or A, and 5L or B belts: AK, AKH,2AK, 2AKH, BK,  BKH,2BK, 2BKH, 3BK        e) Adjustable sheaves: poly V-pulley, multi-pitch H, L, J, K and MParts can be made according to drawings and samplesOEM service is welcomed3) Bore: pilot bore, finished bore, taper bore, bore for QD bushing4) Surface finish: paint, phosphating, zinc plated5) Material: cast iron, ductile iron, nylon, aluminum

6) Made according to drawings and samples, OEM inquiries welcomed

Technological Processing

Company Profile

Raydafon is a professional manufacturer of mechanical parts. Our main products are belt pulleys, sprockets, taper sleeves, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million US dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
