5V Series Cast Iron Six-Groove Sheaves with Split Taper Bushings for “5V” Belts

5V Series Cast Iron Six-Groove Sheaves with Split Taper Bushings for "5V" Belts

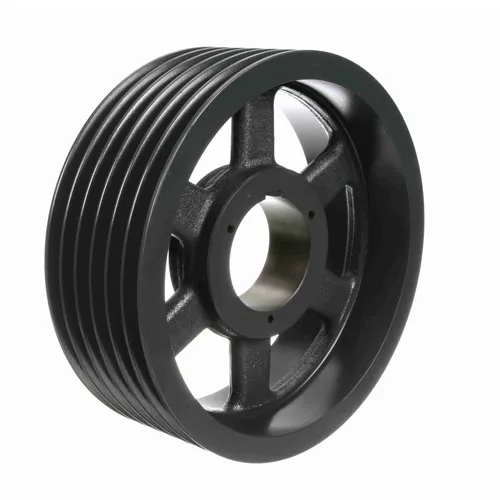

5V series six-groove taper bushed sheaves are manufactured for 5V, 5VX, banded 5V, and banded 5VX belts. They range from 7.10" to 50.0" in diameter. Depending on the sheave size, they are made to use Q2, R1, S1, or U0 split-taper bushings, which we also stock. Most of our six-groove 5V split taper sheaves are manufactured from a high-strength grade 35 cast iron and are phosphate-coated and painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

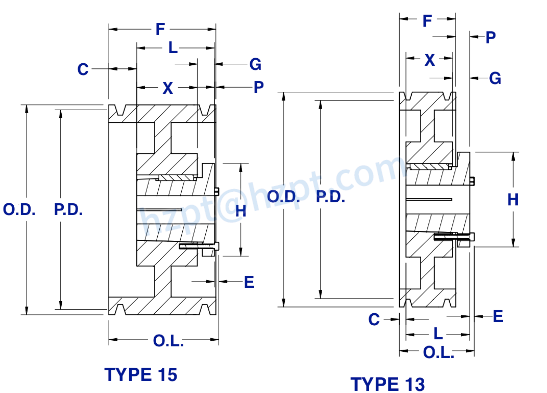

Six-Groove 5V Split Taper Sheave Size Chart

Size	Bushing Type	Pitch Diameter	Outside Diameter	Type	(O.L.)	(L)	(P)	(C)	(H)	(F)	(G)	(X)	(E)	Sheave Weight (LBS)
6Q5V71	Q2	7.00"	7.10"	15	4 7/16"	3 1/2"	1/2"	7/16"	4 1/8"	4 7/16"	3/4"	2 3/4"	9/32"	23.6
6Q5V75	Q2	7.40"	7.50"	15	4 7/16"	3 1/2"	1/2"	7/16"	4 1/8"	4 7/16"	3/4"	2 3/4"	9/32"	27.3
6R5V80	R1	7.90"	8.00"	15	4 7/16"	2 7/8"	11/32"	1 7/32"	5 3/8"	4 7/16"	7/8"	2"	9/32"	23.3
6R5V85	R1	8.40"	8.50"	15	4 7/16"	2 7/8"	11/32"	1 7/32"	5 3/8"	4 7/16"	7/8"	2"	9/32"	27.3
6R5V90	R1	8.90"	9.00"	15	4 7/16"	2 7/8"	11/32"	1 7/32"	5 3/8"	4 7/16"	7/8"	2"	9/32"	28.8
6R5V92	R1	9.15"	9.25"	15	4 7/16"	2 7/8"	11/32"	1 7/32"	5 3/8"	4 7/16"	7/8"	2"	9/32"	31.1
6R5V97	R1	9.65"	9.75"	15	4 7/16"	2 7/8"	11/32"	1 7/32"	5 3/8"	4 7/16"	7/8"	2"	9/32"	34.5
6R5V103	R1	10.20"	10.30"	15	4 7/16"	2 7/8"	11/32"	1 7/32"	5 3/8"	4 7/16"	7/8"	2"	9/32"	36.8
6R5V109	R1	10.80"	10.90"	15	4 7/16"	2 7/8"	11/32"	1 7/32"	5 3/8"	4 7/16"	7/8"	2"	9/32"	39.6
6R5V118	R1	11.70"	11.80"	15	4 7/16"	2 7/8"	11/32"	1 7/32"	5 3/8"	4 7/16"	7/8"	2"	9/32"	42.5
6S5V125	S1	12.40"	12.50"	13	5 5/16"	4 3/8"	1/2"	9/16"	6 3/8"	4 7/16"	1 1/16"	3 5/16"	3/8"	65.0
6S5V132	S1	13.10"	13.20"	13	5 5/16"	4 3/8"	1/2"	9/16"	6 3/8"	4 7/16"	1 1/16"	3 5/16"	3/8"	71.0
6S5V140	S1	13.90"	14.00"	13	5 5/16"	4 3/8"	1/2"	9/16"	6 3/8"	4 7/16"	1 1/16"	3 5/16"	3/8"	70.0
6S5V150	S1	14.90"	15.00"	13	5 5/16"	4 3/8"	1/2"	9/16"	6 3/8"	4 7/16"	1 1/16"	3 5/16"	3/8"	69.0
6S5V160	S1	15.90"	16.00"	13	5 5/16"	4 3/8"	1/2"	9/16"	6 3/8"	4 7/16"	1 1/16"	3 5/16"	3/8"	79.0
6S5V212	S1	21.10"	21.20"	13	5 5/16"	4 3/8"	1/2"	9/16"	6 3/8"	4 7/16"	1 1/16"	3 5/16"	3/8"	97.0
6S5V250	S1	24.90"	25.00"	13	5 5/16"	4 3/8"	1/2"	9/16"	6 3/8"	4 7/16"	1 1/16"	3 5/16"	3/8"	1130
6S5V280	S1	27.90"	28.00"	13	5 5/16"	4 3/8"	1/2"	9/16"	6 3/8"	4 7/16"	1 1/16"	3 5/16"	3/8"	128.0
6U5V375	U0	37.40"	37.50"	13	5 3/4"	4 15/16"	27/32"	11/32"	8 3/8"	4 7/16"	1 1/16"	15/32"	15/32"	206.0
6U5V500	U0	49.90"	50.00"	13	5 3/4"	4 15/16'	27/32"	11/32"	8 3/8"	4 7/16"	1 1/16"	15/32"	15/32'	271.0

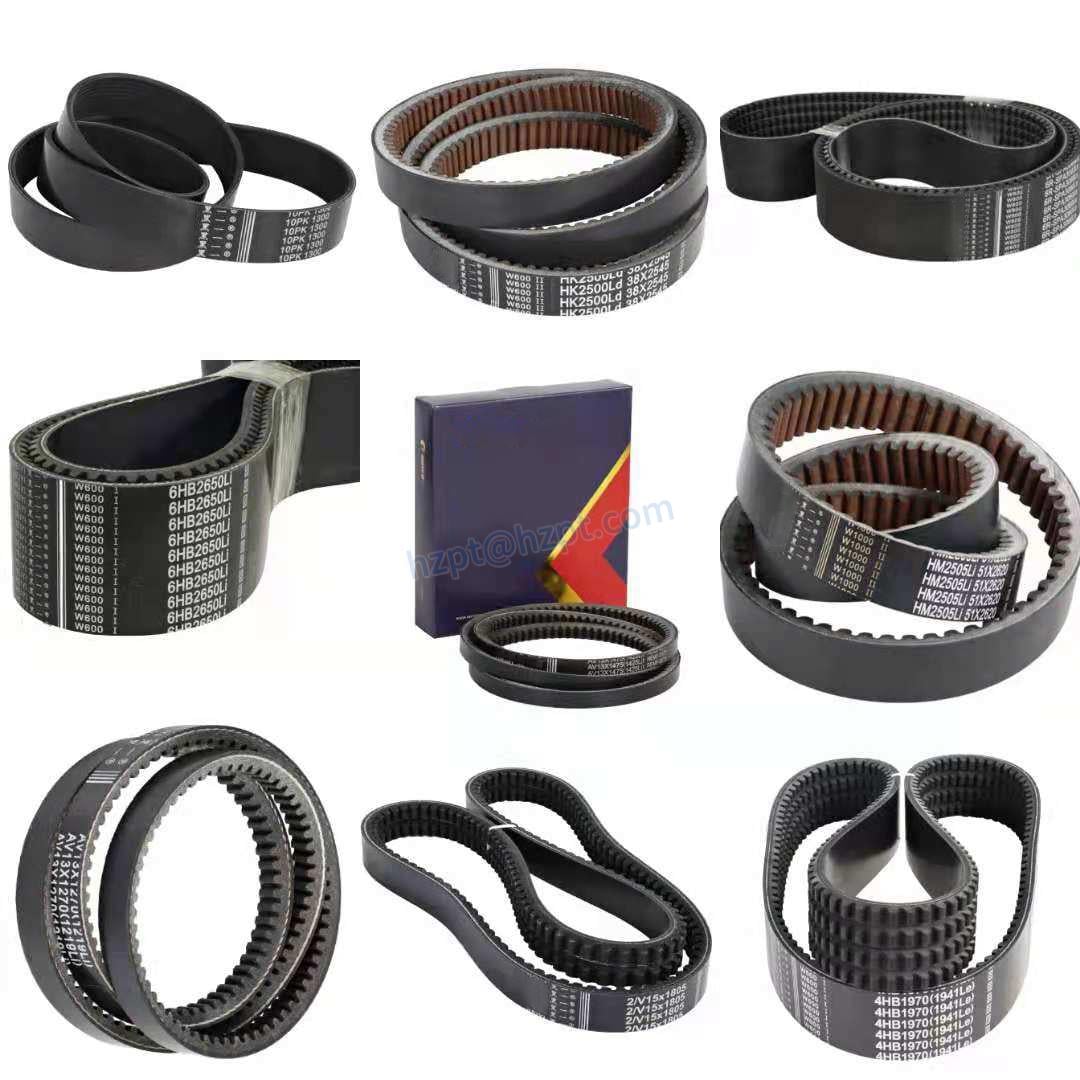

Matching 5V, 5VX Series V-Belt

(1) 5V-Series V-BeltsClassic 5V-Series V-Belts have a 0.63" top-width, 0.53" thickness, and a 38° angle. Additionally, 5V V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 5V-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.(2) 5V-Series Banded V-Belts5V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest and most common style belts. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 5V-series v-belts have a 0.63" top-width per belt (band/ rib).(3) 5VX Cogged V-Belts5VX cogged v-belts are designated by having a 0.53" top-width and 0.53" thickness. Our cogged 5VX v-belts are manufactured with raw-edge sidewalls to eliminate slippage and increase efficacy, saving operation costs. They are also manufactured by ARPM standards and are oil and heat-resistant. 5VX belts are constructed from a high-quality chloroprene compound with high-strength polyester chords and have a top fabric built from a cotton polyester blend. Besides the performance, durability, and energy savings benefits, our cogged v-belts will work with existing stand v belt pulleys/ sheaves.(4) 5VX Banded Cogged V-BeltsAll our v-belts are manufactured by ARPM specifications and offer superior performance and durability. Due to their design, banded 5VX cogged v-belts run smoother, more relaxed, and typically outlast a standard banded C v-belt. They also offer a higher efficiency than ordinary banded v-belts, which means fewer energy costs. We can also stock sheaves/ pulleys for 5VX banded belts. For more information or to get a quote, please get in touch with us, and we will be happy to assist you.

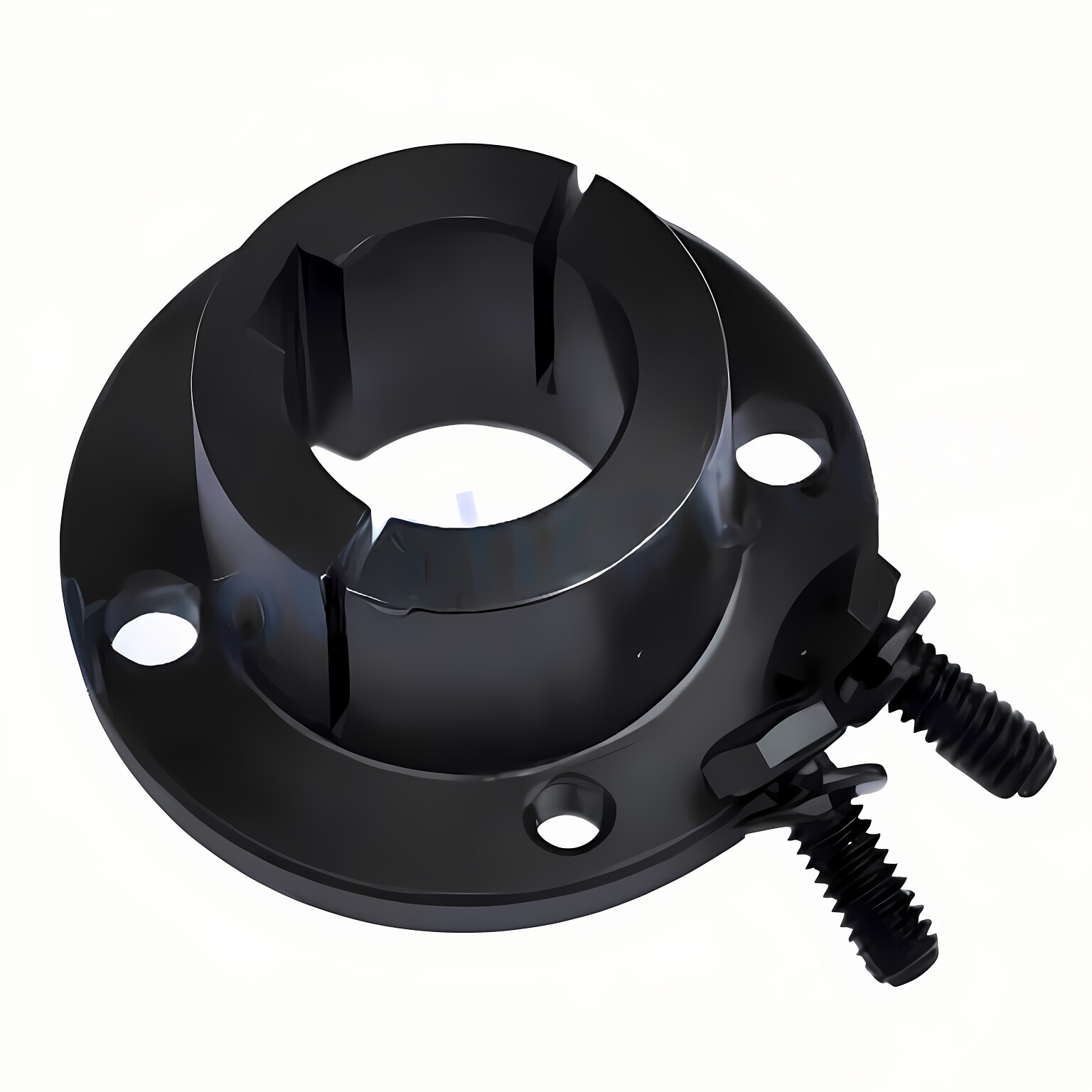

Split Taper Bushings

Split taper bushings are amongst the most typical bushings, resulting from their high integral strength and simplicity of setting up and uninstall. Large holding the energy for effectively coupling a shaft onto a drive or idler part split taper bushings. The most standard bushings are utilized for their sizeable integral power, simplicity up, and uninstall. High hold the energy for successfully coupling a shaft onto a drive or idler part. Split taper bushings are utilized inside a broad array of sheaves, conveyor pulleys, and sprockets. We stock split taper bushings ranging through the G-series to W2-series and in inch and metric bore sizes that assortment from 0.375" up to 7.438".

5V-Section Sheaves for V-Belts

5V-section sheaves are explicitly manufactured for 5V-series v-belts and banded 5V belts. Our 5V-section v-belt sheaves are dimensionally manufactured to ARPM specifications, so they directly interchange with other brands. 5V pulleys only are available in taper lock design and QD (speedy detachable) fashion for increased bore assortment versatility. What separates our sheaves from other individuals within the industry is that many of them are manufactured from a grade 35 cast iron rather than the standard grade 25. This produces a lot more powerful sheave with improved put-on resistance. Anything else to note is that these sheaves are already dynamically balanced for a smoother operation and diminished vibration, which succeed in a more extended bearing and machinery lifestyle. Moreover, they're phosphate and painted for extra protection against corrosion.

Split Taper Sheave Common Applications

• Machine tools
• Crushers, shredders, breakers, classifiers, shaker screens
• Material conveyor systems
• Fans, blowers, and exhausters
• Pumps and compressors
• Woodworking saws, mills, planers, lathes

Technological Processing
