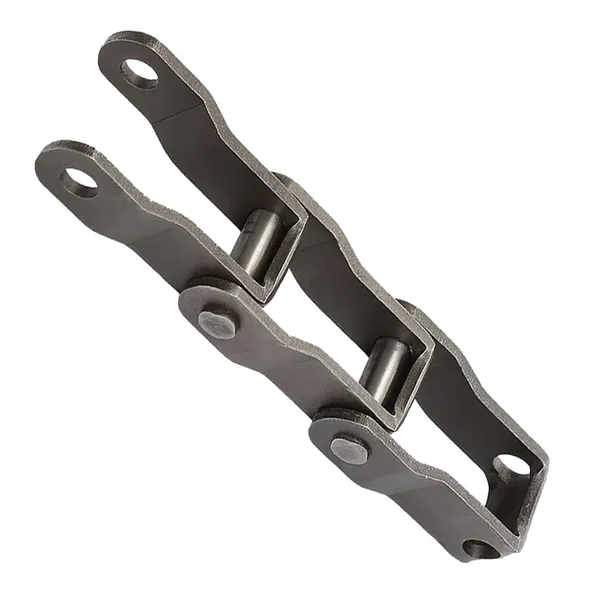

667J Steel Pintle Chain

667J Steel Pintle Chain

The 667J pintle chain is a high-strength, steel chain that is used in a variety of applications, including wastewater treatment, mining, and construction. It is known for its durability and resistance to corrosion, making it a good choice for use in harsh environments. The 667J pintle chain has a pitch of 2.25 inches, a pin diameter of 0.375 inches, and a link plate height of 1.075 inches. It is made of carbon/alloy steel and is heat-treated for added strength. The pins are through-hardened for added wear protection.The 667J pintle chain has a tensile strength of 20,600 pounds and a maximum working load of 2,800 pounds. It is available in lengths of up to 100 feet. Additionally, we offer a full line of high-quality 667J chain sprockets and attachments; as well as additional connecting links and pins. The 667J pintle chain is a versatile and reliable chain that can be used in a variety of applications. It is a good choice for use in harsh environments where durability and corrosion resistance are important.

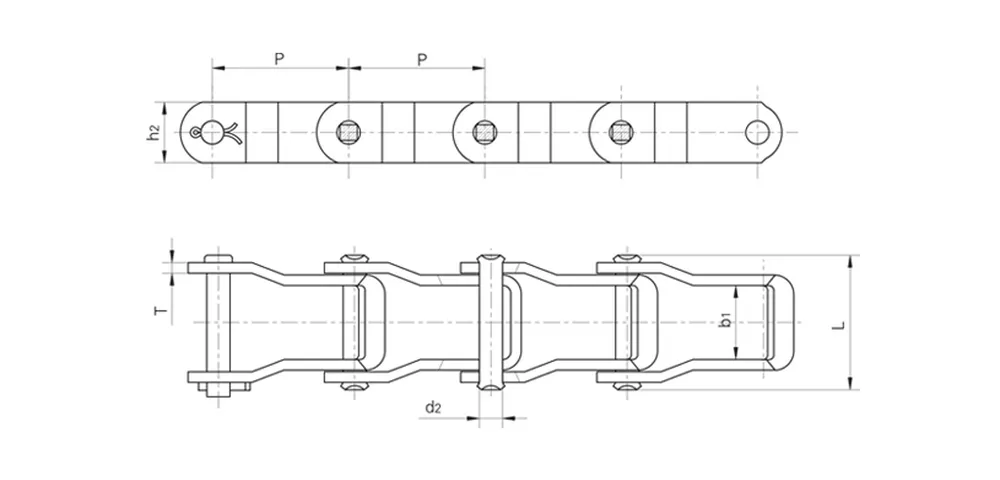

▍667J Pintle Chain (667J Chain) Dimensions:

Chain No:	667J Chain (667J Pintle Chain)
Pitch (P):	2.250"
Inner Width (b1):	1.079"
Overall Width (L):	1.976"
Pin Diameter (d2):	0.375"
Link Plate Height (h2):	1.075"
Link Plate Thickness (T):	0.169"
Average Tensile Strength:	20,600 lbs
Max Working Load:	2,800 lbs
No. Of Pitches/Links Per 10 Feet:	53
No. Of Connecting Pins Included:	1
Chain Material:	Carbon/Alloy Steel

▍667J Pintle Chain (667J Chain) Specifications:?

1. Chain Material:?Alloy steel & Stainless steel2. Chain Surface Treatment:?Shot peening & Blackening & Bluing3. Chain Size: 662 Chain, 667H Chain, 667X Chain, 667XH Chain, 667K Chain, 667J Chain, 88K Chain, 88C Chain

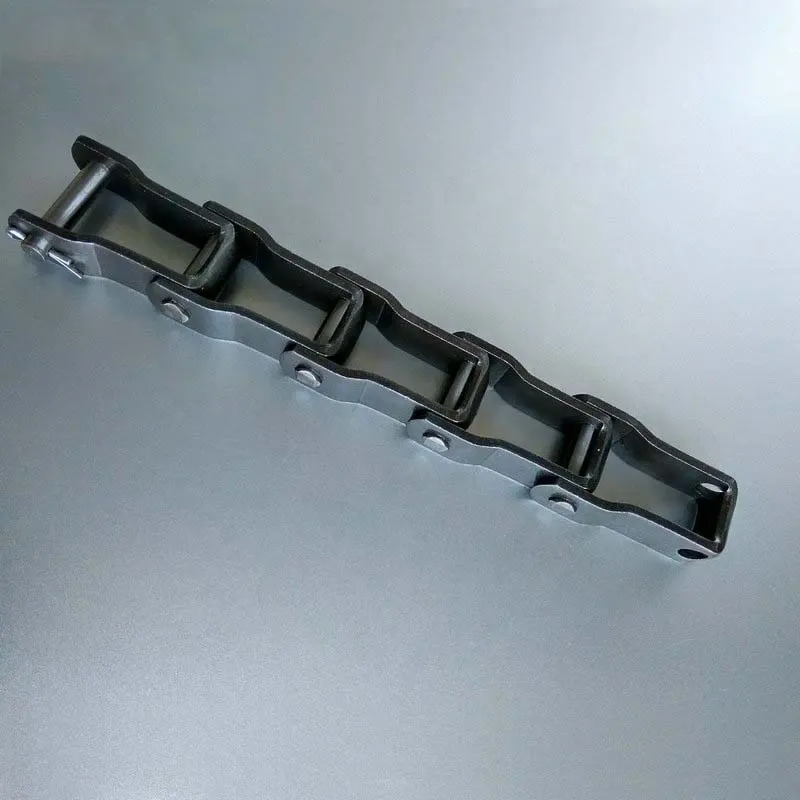

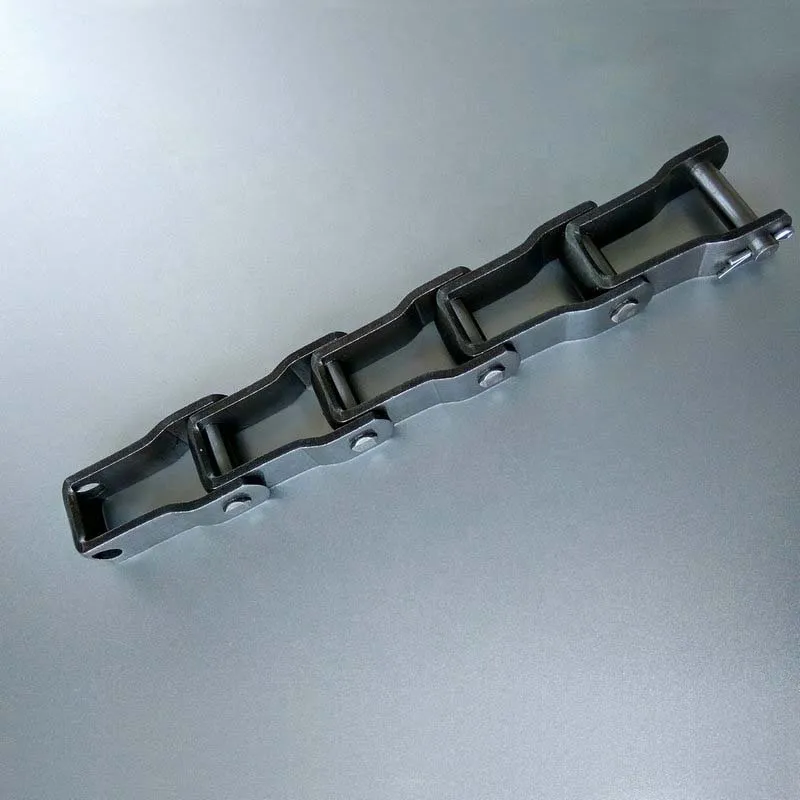

▍667J Pintle Chain (667J Chain) Design Features:

The 667J pintle chain is a high-strength, steel chain that is designed for use in harsh environments. It has a number of design features that make it durable and resistant to corrosion, including:

• Pitch of 2.25 inches: This pitch provides a good balance of strength and flexibility, making the 667J pintle chain suitable for a variety of applications.
• Pin diameter of 0.375 inches: The pin diameter is large enough to provide the 667J pintle chain with the strength it needs to handle heavy loads, but it is also small enough to allow the chain to move smoothly through sprockets.
• Link plate height of 1.075 inches: The link plate height is slightly larger than the pin diameter, which helps to provide the 667J pintle chain with additional strength and rigidity.
• Carbon/alloy steel construction: The 667J pintle chain is made of carbon/alloy steel, which is a strong and durable material that is resistant to corrosion.
• Heat-treated pins:?The pins are heat-treated to increase their strength and wear resistance.
• Quad staked pins:?The pins are quad staked, which helps to prevent them from coming loose.
• Open barrel design: The open barrel design helps to prevent the 667J pintle chain from freezing up in cold weather.

These design features make the 667J pintle chain a versatile and reliable chain that can be used in a variety of applications. It is a good choice for use in harsh environments where durability and corrosion resistance are important.

▍667J Pintle Chain (667J Chain) Application Scenarios:

The 667J pintle chain is a versatile chain that can be used in a variety of applications. Here are some specific examples of where the 667J pintle chain is used:(1) Wastewater treatment plants: The 667J pintle chain is used in wastewater treatment plants to move sludge and other materials. The chain's durability and corrosion resistance make it a good choice for this application.(2) Mining operations: The 667J pintle chain is used in mining operations to move ore and other materials. The chain's strength and durability make it a good choice for this application.(3) Construction sites: The 667J pintle chain is used on construction sites to move materials and equipment. The chain's strength and durability make it a good choice for this application.(4) Marine applications: The 667J pintle chain is used in marine applications to move anchors and other equipment. The chain's corrosion resistance makes it a good choice for this application.(5) Material handling: The 667J pintle chain is used in material handling applications to move heavy loads. The chain's strength and durability make it a good choice for this application.These are just a few examples of where the 667J pintle chain is used. The chain's versatility and durability make it a good choice for a wide variety of applications.

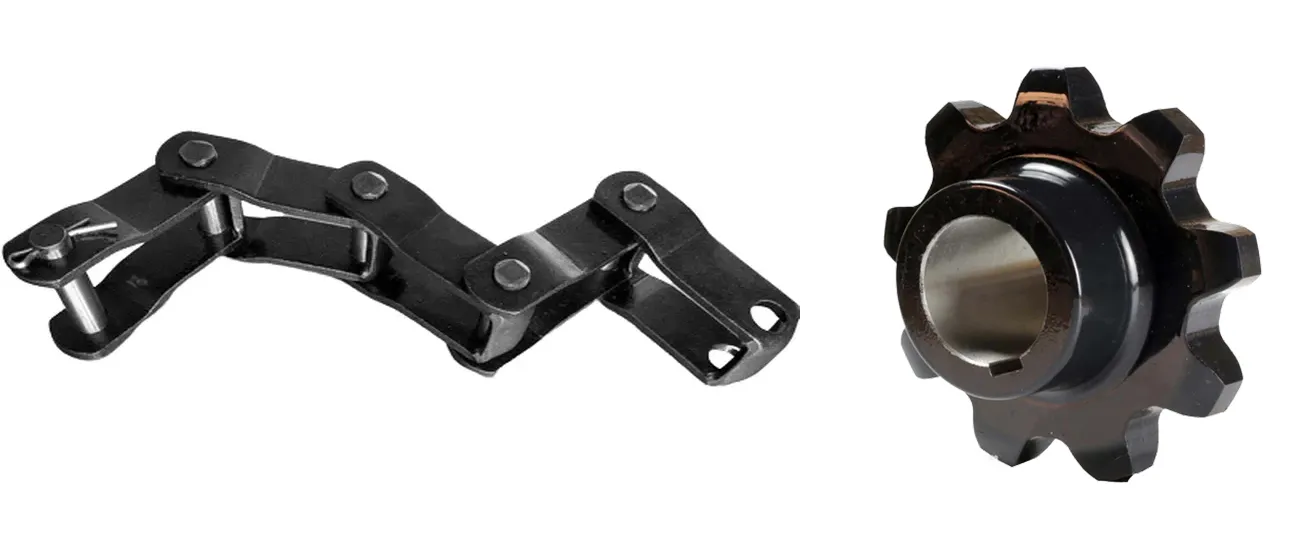

▍667J Pintle Chain Sprockets and 667J Pintle Chain

The 667J pintle chain is a type of conveyor chain commonly used in heavy-duty applications such as agriculture, mining, and forestry. The chain is designed with a series of steel pintle-shaped links that interlock with each other to form a continuous chain. The 667J designation refers to the chain's pitch, or the distance between the centers of two consecutive pins, which is 2.25 inches.To transfer the power and motion between the chain and the machine, the 667J pintle chain sprocket. A 667J pintle chain sprocket is a toothed wheel that meshes with the chain, allowing it to transmit rotational motion and power from one shaft to another. The sprocket for the 667J pintle chain has a pitch diameter of 27 inches and is designed with hardened teeth to resist wear and extend the life of the chain.The 667J pintle chain sprockets and 667J pintle chain are often used together in applications where a chain drive is needed. The sprocket provides a means for the chain to transmit power, while the chain provides the flexibility and strength to move loads.Here are some of the benefits of using 667J pintle chain sprockets and 667J pintle chain together:

• Durability:?Both the sprocket and the chain are made of high-strength steel, making them durable and resistant to wear and tear.
• Strength:?The sprocket and the chain are designed to work together to transmit power, making them a good choice for applications where high loads need to be moved.
• Flexibility:?The chain is flexible, allowing it to move around obstacles and adapt to changes in the load.
• Efficiency:?The sprocket and the chain work together to transmit power efficiently, minimizing losses due to friction.

If you are looking for a durable and efficient way to transmit power, 667J pintle chain sprockets and 667J pintle chain are good options. They are available from a variety of suppliers and can be purchased in sizes to suit your specific needs.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X chains, agricultural chains, CA550 roller chains,?S55 roller chains, silent chains, PIV chains, X458 conveyor chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
