705AL Slewing Drive Planetary Gearbox

705AL Slewing Drive Planetary Gearbox

Product Overview

The 705AL Slewing Drive Planetary Gearbox is a high-quality and reliable product designed for various applications. With its advanced design and superior structure, it offers exceptional performance and durability.

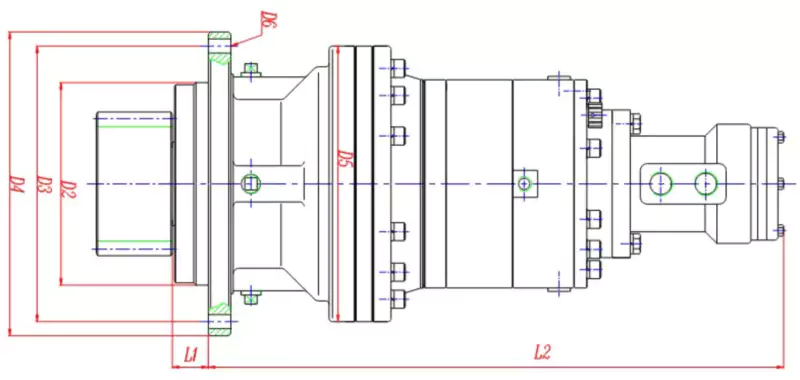

Dimension	Type
	EP700L	EP701L	EP703AL	EP705AL
D2	150	150	175	175
D3	195	195	245	245
D4	220	220	270	270
D5	185	185	245	245
D6	10-ф13	10-ф13	12-ф13	12-ф13
L1	31	31	32	32
L2	Size according to motor type
Pinion data	Pinion data according to customer

Technical specification

Type	Max.Output Torque		Ratio	RecommendHydraulicMotor	Max.inputspeed	Braketorque	Brake workpressure
	Excavator	Crane	(i)		(rpm)	(N.m)	(bar)
EP700L	1000	1200	3.4--32	SAE A adopt	3500	50-400	20-50
EP701L	1800	2400	3.4--32	SAE B adopt
EP703AL	2500	3500	12.4—174.5	SAE C adopt
EP705AL	5000	6500	12.4—174.5	A2FE 45·56·63

Input – output rotate same direction.Other ratio and other input type can be specially designed.

Model Naming and Positioning

The 705AL Slewing Drive Planetary Gearbox follows a systematic model naming convention that reflects its specifications and intended use. This ensures easy identification and compatibility with different systems.

Product Design and Structural Features

The 705AL Slewing Drive Planetary Gearbox incorporates several key design elements and structural features that enhance its functionality and efficiency. These include:

• Planetary gear design for optimal power transmission
• Precision bearing system for smooth and reliable rotation
• Effective sealing technology to prevent contamination
• Efficient lubrication system for extended lifespan

Core Technologies and Materials

Planetary Gear Design

The use of a planetary gear system allows for high torque density and efficient power transmission. This design ensures smooth operation and minimal energy loss.

Bearing System

Our advanced bearing system provides excellent load-bearing capacity and stability. It ensures precise movement and reduces friction, resulting in low noise and vibration.

Sealing Technology

The sealing technology employed in the 705AL Slewing Drive Planetary Gearbox effectively protects internal components from dust, moisture, and other contaminants. This prolongs the lifespan of the gearbox and ensures reliable performance in various environments.

Lubrication System

The lubrication system of the 705AL Slewing Drive Planetary Gearbox ensures proper distribution of lubricants to minimize friction and wear. This guarantees smooth operation and extends the maintenance intervals.

Performance Advantages

The 705AL Slewing Drive Planetary Gearbox offers several performance advantages:

• High torque density for increased power output
• Low noise and vibration levels for a quieter operation
• Excellent adaptability to different environmental conditions
• Intelligent monitoring system for efficient control and maintenance

Applications

The 705AL Slewing Drive Planetary Gearbox finds applications in various industries, including:

• Construction machinery such as tower cranes, excavators, and port machinery
• Solar tracking systems
• Marine engineering equipment
• Military equipment

Our Company's Advantages

Our company stands out in the industry for the following reasons:

• Extensive experience and expertise in producing high-quality gearboxes
• State-of-the-art manufacturing facilities
• A dedicated team of professionals committed to delivering customer satisfaction
• Customization options to meet specific client requirements

We welcome the opportunity to collaborate with you and provide reliable solutions for your gearbox needs.Author: Miya
