720 Wastewater Treatment Chain

720 Wastewater Treatment Chain

The 720 Wastewater Treatment Chain is a heavy-duty polymer chain designed for sludge collector systems in water and wastewater treatment plants. It is made from a high molecular weight acetal resin with wear resistant additives that provide superior wear resistance and toughness. The pins are easy to install and lock in securely. Every link is tested for voids and the chain is irregularly tested to ensure an ultimate strength exceeding 7,200 pounds of force.

The 720 Wastewater Treatment Chain is a significant improvement over traditional chains used in water and wastewater treatment plants. It is lighter, more durable, and more resistant to corrosion. It also has a lower coefficient of friction, which reduces energy consumption and wear on other components in the system.

The 720 Wastewater Treatment Chain is available in a variety of sizes and configurations to meet the needs of any application. It can be used with a wide range of attachments, including wooden flights, scrapers, and brushes. It is also compatible with a variety of sprockets.

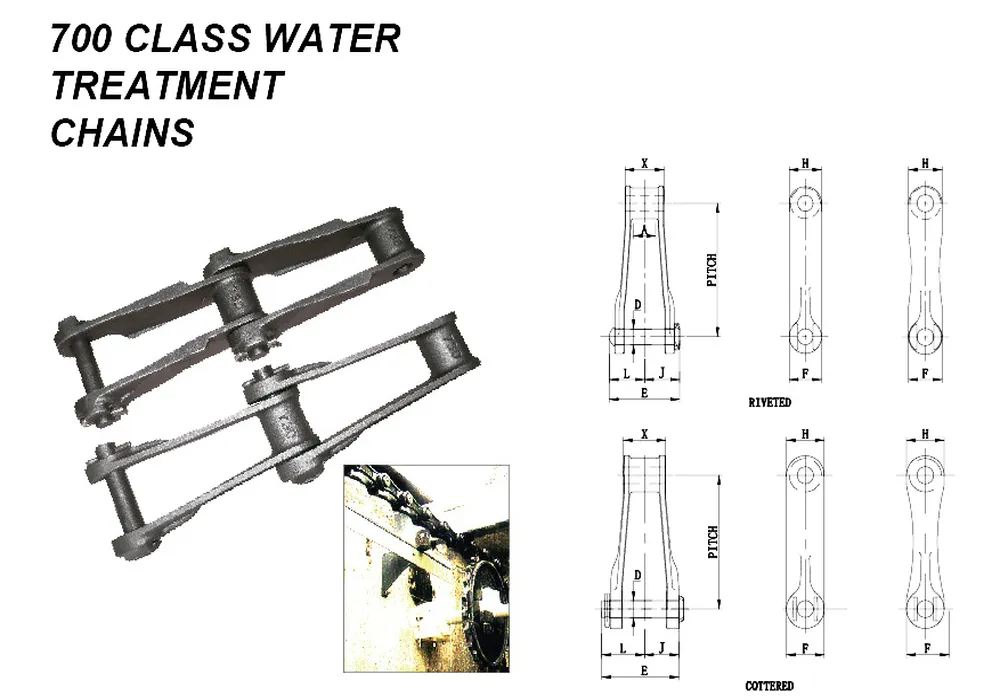

720 Wastewater Treatment Chain Dimensions:

Chain No.	Pitch in Inches	Weight Per Foot LBS.	Average Ultimate Strength LBS.	Maximum Working Load LBS.	A	C	D	E	F	H	X	Available Attachments
720	6.000	4.50	27500	3720	1.12	3.44	0.69	3.31	1.50	1.38	1.81	A2,A53,AM116,F2,F22-6,F22-8,K1,K2,M1,PDF2,PDF22-6,PDF22-8

720 Wastewater Treatment Chain Attachment:

720 Water Treatment Chain is manufactured with a full cast link and hardened carbon-steel pins for ultimate strength while maintaining a lightweight. Raydafon offers a premium 720 Water Treatment Chain in either riveted or cottered construction. This chain is primarily used in wastewater applications such as rectangular clarifiers, as well as other conveying applications. Attachments available for 720 Water Treatment Chain are: A2, A53, AM116, F2, F226, F228, K1, K2, M1, PDF2, PDF226, PDF228, as well as custom attachments upon request. We can supply the chain with attachments already assembled onto the chain in any configuration needed, and within a fast assembly time.

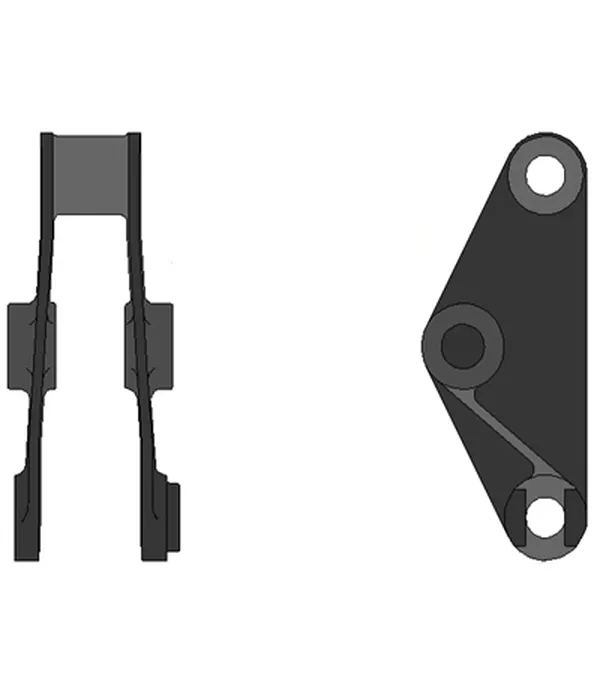

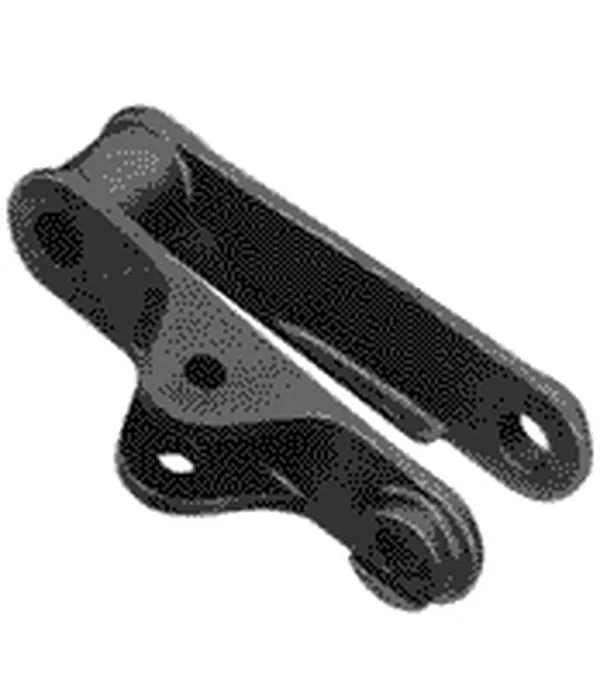

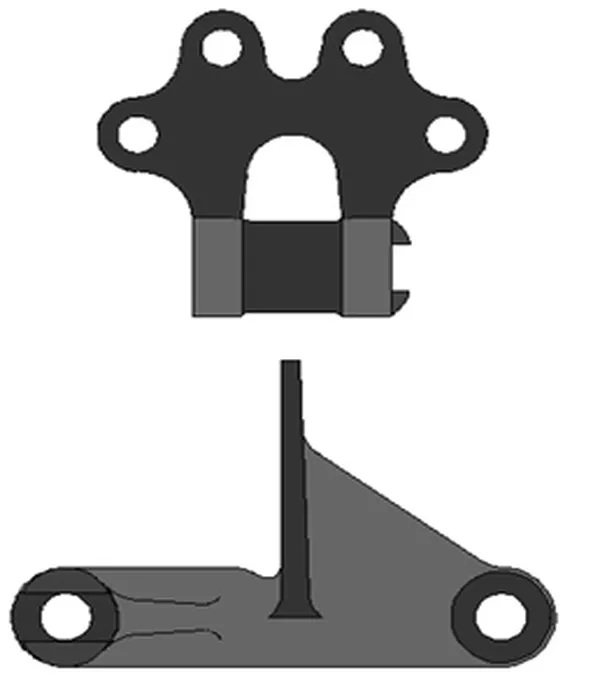

720 Wastewater Chain A53 Attachment	720 Wastewater Chain M1 Attachment	720 Wastewater Chain F2 Attachment

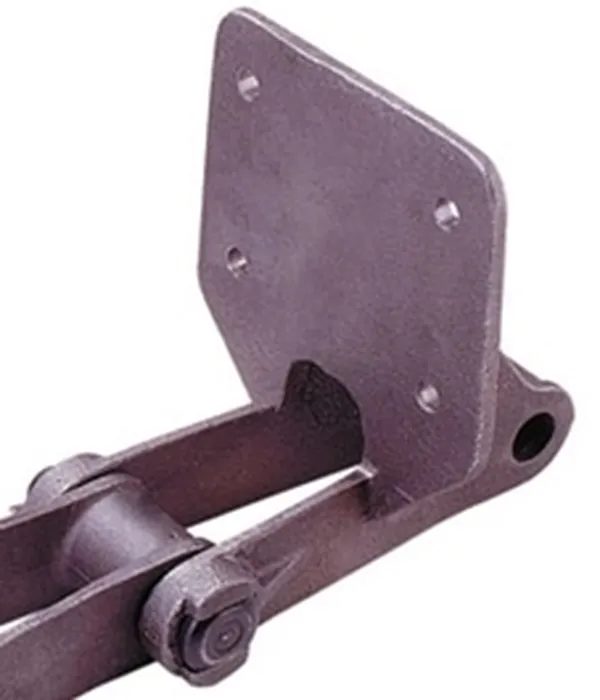

720 Wastewater Chain F228 Attachment	720 Wastewater Chain F226 Attachment

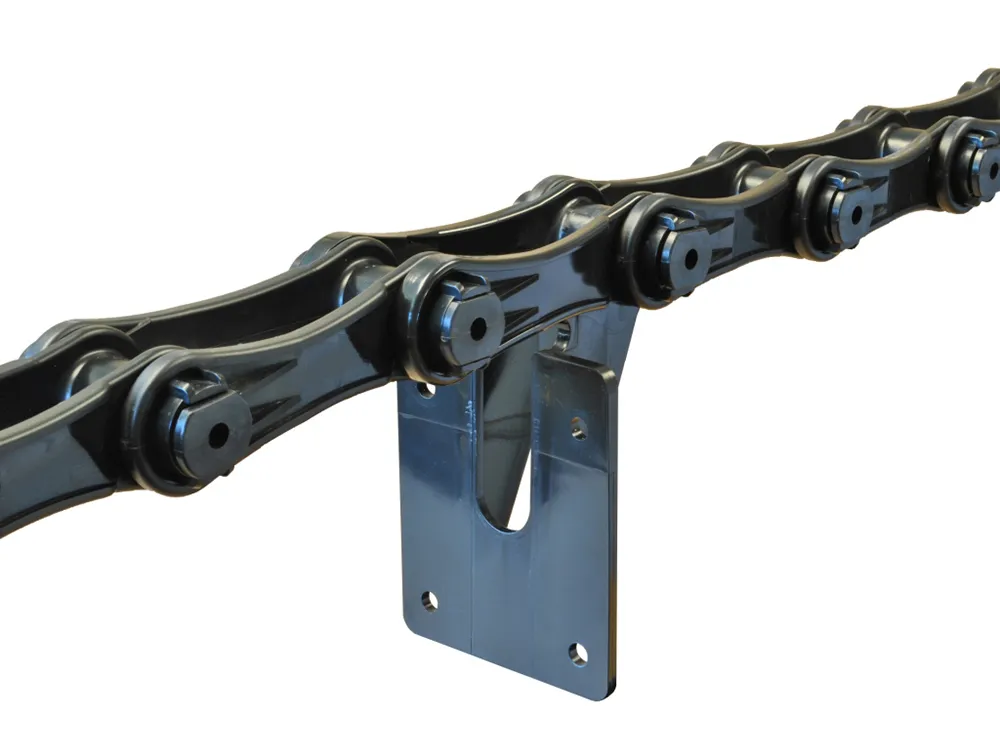

720 Wastewater Treatment Chain Advantages:

720 wastewater treatment chains are used in rectangular clarifiers, which are sedimentation tanks that remove suspended solids from wastewater. The chain drives a series of rakes that collect the solids and scrape them to the bottom of the tank, where they can be removed.

720 wastewater treatment chains have a number of advantages over other types of chains, including:

1. Strength and durability: 720 wastewater treatment chains are made with a full cast link and hardened carbon steel pins, making them extremely strong and durable. This is important in wastewater treatment applications, where the chains are exposed to harsh chemicals and abrasive solids.2. Corrosion resistance: 720 water treatment chains are also highly resistant to corrosion, thanks to their galvanized finish. This is important in wastewater treatment applications, where the chains are exposed to moisture and chemicals.3. Low maintenance: 720 wastewater treatment chains are very low maintenance, requiring only regular lubrication and inspection. This can help to reduce downtime and maintenance costs.4. Long service life: 720 water treatment chains have a long service life, even in demanding wastewater treatment applications. This can help to reduce replacement costs and downtime.

In addition to the above advantages, 720 wastewater treatment chains are also relatively lightweight and easy to install. This can make them a good choice for wastewater treatment facilities that are upgrading their existing clarifiers or building new ones.

700 Series Wastewater Chain Sprockets for 700 Class Wastewater Chain:

700 Series Wastewater Chain Sprockets are sprockets that are specifically designed to be used with 700 Class Wastewater Chain. They are typically made of heavy-duty materials such as stainless steel or cast iron, and they are designed to withstand the harsh conditions of wastewater treatment applications.

700 Series Wastewater Chain Sprockets are available in a variety of sizes and configurations to meet the needs of different applications. Some of the most common types of 700 Series Wastewater Chain Sprockets include:

(1) Drive sprockets: These sprockets are used to drive the wastewater chain conveyor system. They are typically larger than other types of sprockets and have a greater number of teeth.(2) Idler sprockets: These sprockets are used to support the wastewater chain and help to keep it running smoothly. They are typically smaller than drive sprockets and have a smaller number of teeth.(3) Tensioner sprockets: These sprockets are used to maintain the correct tension in the wastewater chain. They are typically adjustable so that the tension can be adjusted as needed.

700 Series Wastewater Chain Sprockets are an important component of wastewater treatment systems. They help to ensure that the wastewater chain conveyor system runs smoothly and efficiently, and they help to protect the wastewater chain from wear and tear.

700 Class Wastewater Treatment Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain,?drop forged chain, malleable iron chain,?"H" Class mill chain,?CC Class crate conveyor chain,??"H" Class refuse drag chain, 600 Class ley bushed chain, combination transfer chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
