730 Wastewater Treatment Chain

730 Wastewater Treatment Chain

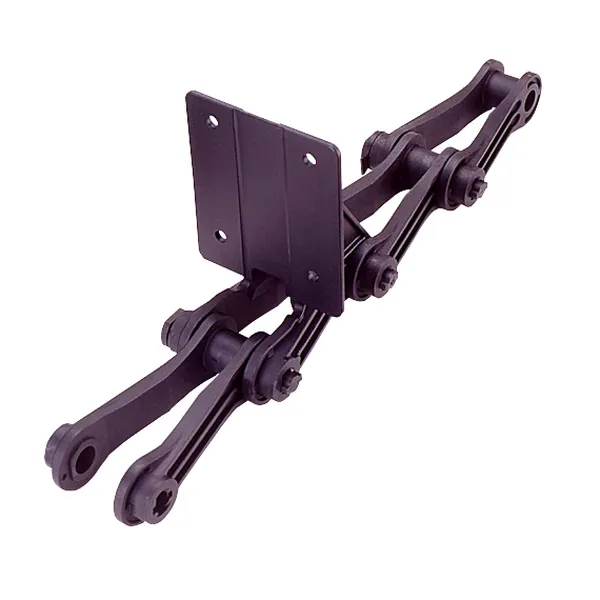

The 730 Wastewater Treatment Chain is a high-strength, durable chain designed for use in a variety of wastewater treatment applications. It is commonly used in rectangular clarifiers and collectors, where it is used to transport sludge and other solids. The 730 Wastewater Chain is also used in other wastewater treatment equipment, such as grit chambers and bar screens.

The 730 Water Treatment Chain is made from high-quality cast material and has a 6" pitch. It has a tensile strength rating of 37,500 pounds, making it one of the strongest wastewater treatment chains available. The chain's pins are heat-treated and hardened for added durability. The 730 Wastewater Treatment Chain is also easy to field assemble, making it a convenient choice for wastewater treatment facilities. It is available in a variety of lengths and configurations to meet the needs of any application.

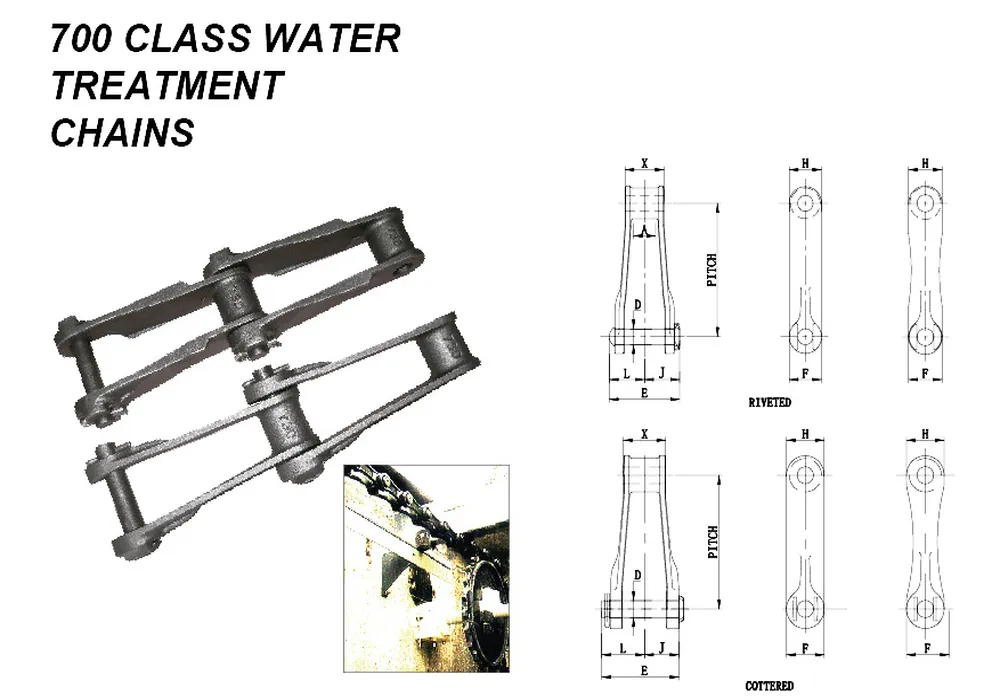

730 Wastewater Treatment Chain Dimensions:

Chain No.	Pitch in Inches	Weight Per Foot LBS.	Average Ultimate Strength LBS.	Maximum Working Load LBS.	A	C	D	E	F	H	X	Available Attachments
730	6.000	6.35	37500	4500	1.12	3.81	0.75	3.69	1.75	1.50	2.00	A2,A42,F2,F22-6,F22-8,K2,M1

730 Wastewater Treatment Chain Attachment:

730 Wastewater Treatment Chain is manufactured with a full cast link and hardened carbon-steel pins for ultimate strength while maintaining a lightweight and features an average ultimate strength of 40,000 LBS and a maximum recommended working load of 4,500 LBS. It is a part of the heavy-duty 700-Class series pintle chain and is a common in-stock item. Raydafon has a premium 730 chain in either riveted or cottered construction. Something special about this chain is the T-head pins that eliminate pin rotation while at the same time preventing the entrance of dirt and or grit. As a drive chain, the 730 chain is designed to travel in just one direction (the direction of their barrel ends). This chain is primarily used in wastewater applications such as rectangular clarifiers, as well as other conveying applications. Attachments available for 730 pintle chain are: A2, A42, F2, F226, F228, K2, M1, as well as custom attachments upon request. We can supply the chain with attachments already assembled onto the chain in any configuration needed, and within a fast assembly time.

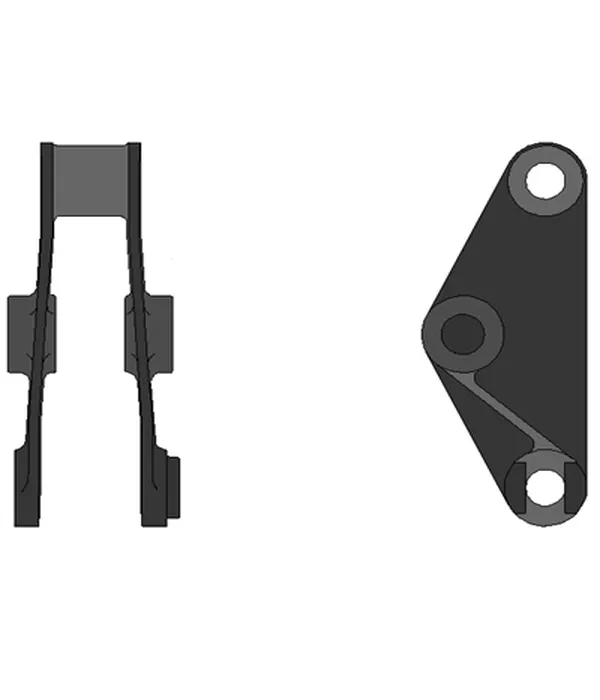

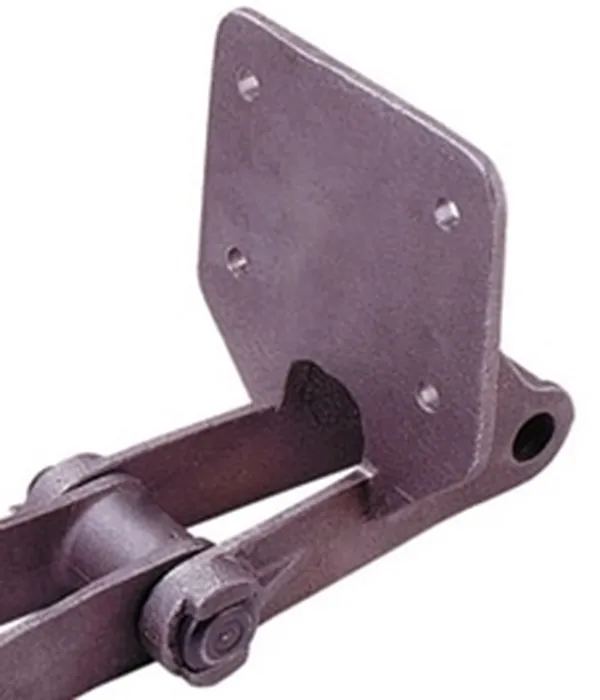

730 Wastewater Chain F228 Attachment	730 Wastewater Chain M1 Attachment	730 Wastewater Chain F226 Attachment

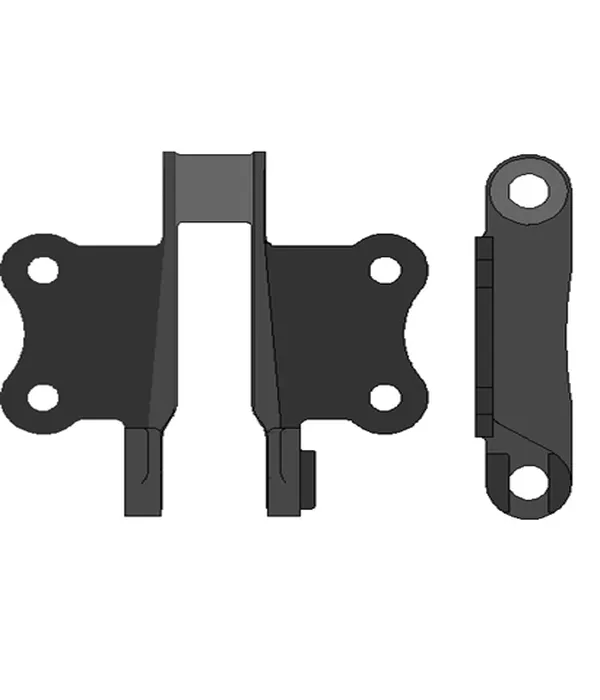

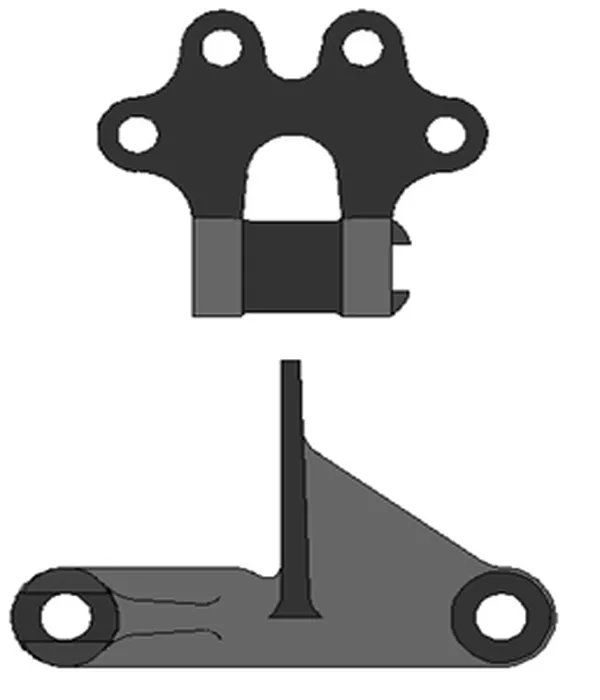

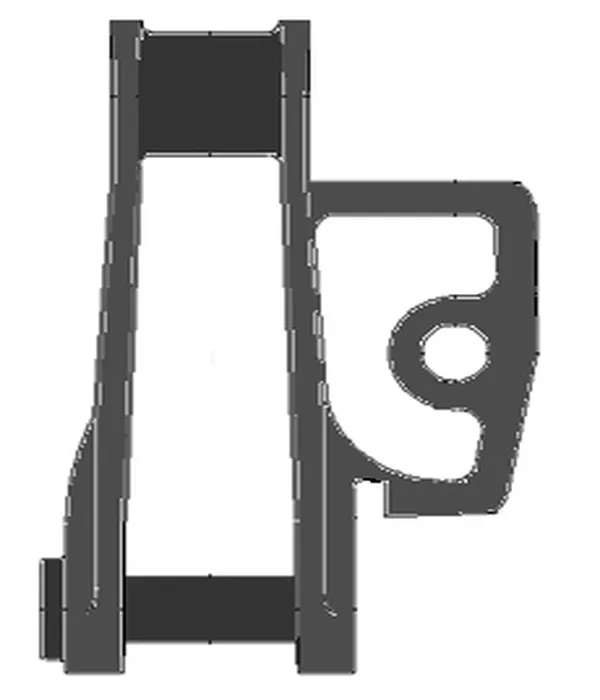

730 Wastewater Chain F2 Attachment	730 Wastewater Chain K2 Attachment	730 Wastewater Chain A42 Attachment

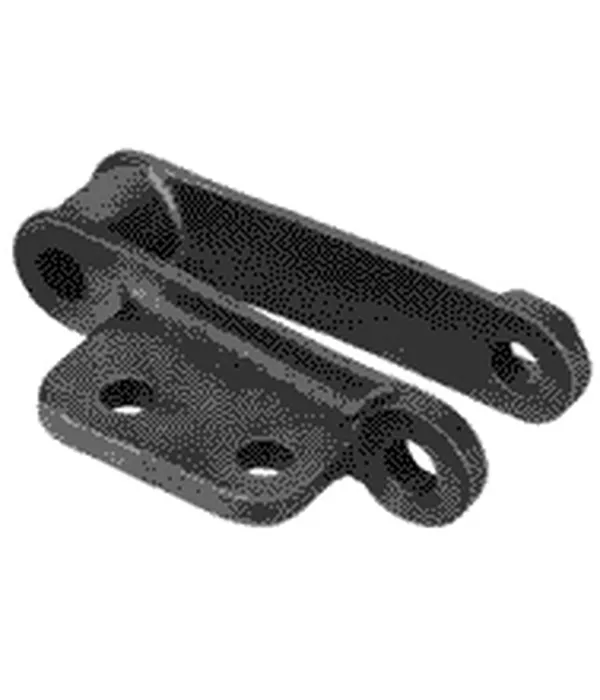

730 Wastewater Chain A2 Attachment

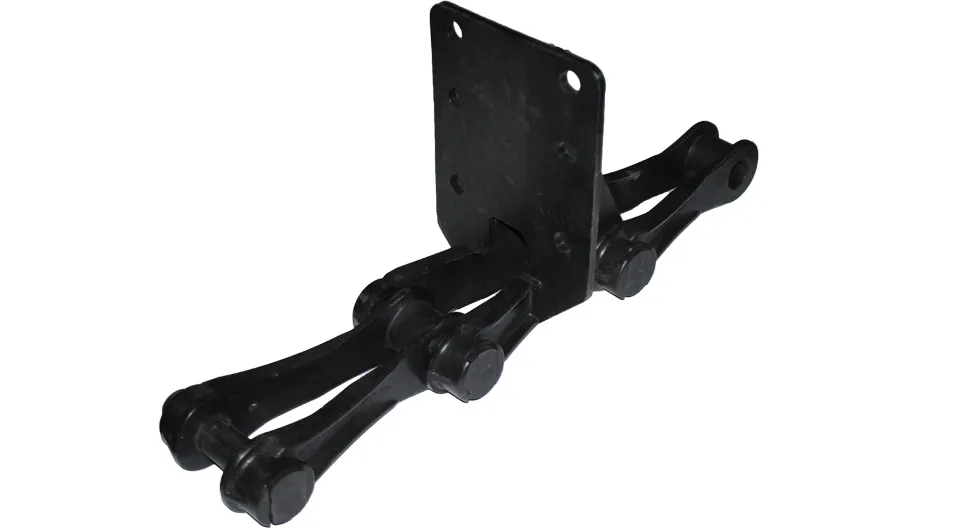

Benefits of the 730 Wastewater Treatment Chain:

• High strength: The 730 Wastewater Treatment Chain has a tensile strength rating of 37,500 pounds, making it one of the strongest wastewater treatment chains available.
• Durable: The 730 chain is made from high-quality cast material and has heat-treated and hardened pins for added durability.
• Easy to field assemble: The 730 Wastewater Chain is easy to assemble and disassemble in the field, making it a convenient choice for wastewater treatment facilities.
• Versatile: The 730 Wastewater Treatment Chain is available in a variety of lengths and configurations to meet the needs of any application.

Applications of the 730 Wastewater Treatment Chain:

• Rectangular clarifiers and collectors: The 730 Wastewater Treatment Chain is commonly used in rectangular clarifiers and collectors to transport sludge and other solids.
• Grit chambers: The 730 chain is also used in grit chambers to remove grit and sand from wastewater.
• Bar screens: The 730 Wastewater Chain is also used in bar screens to remove large objects from wastewater.
• Other wastewater treatment equipment: The 730 chain can also be used in other wastewater treatment equipment, such as thickeners, digesters, and dewatering presses.

The 730 Wastewater Treatment Chain is a reliable and durable chain that is well-suited for a variety of wastewater treatment applications. It is a popular choice for wastewater treatment facilities around the world.

700 Series Wastewater Chain Sprockets for 700 Class Wastewater Chain:

The 700 series wastewater chain sprockets are designed specifically for use with 700 class wastewater chains. These sprockets are commonly used in wastewater treatment plants and other industrial applications where reliable and efficient conveyance of wastewater is required.The 700 class wastewater chain refers to a specific size and type of chain used in wastewater treatment processes. It typically has a pitch of 2.609 inches (66.3 mm) and a roller diameter of 1.000 inches (25.4 mm). The sprockets for this chain are designed to match these specifications and provide smooth engagement and operation.The sprockets are made from durable materials such as stainless steel or cast iron to withstand the harsh conditions and corrosive environment of wastewater treatment. They are precision machined to ensure accurate tooth profiles and proper chain engagement, which is crucial for the efficient and reliable operation of the system.When selecting sprockets for the 700 class wastewater chain, it's important to consider factors such as the number of teeth, overall dimensions, and the specific application requirements. These sprockets are typically available in various tooth configurations, including single, double, and triple-strand options, depending on the application's demands.
