788 Wastewater Treatment Chain

788 Wastewater Treatment Chain

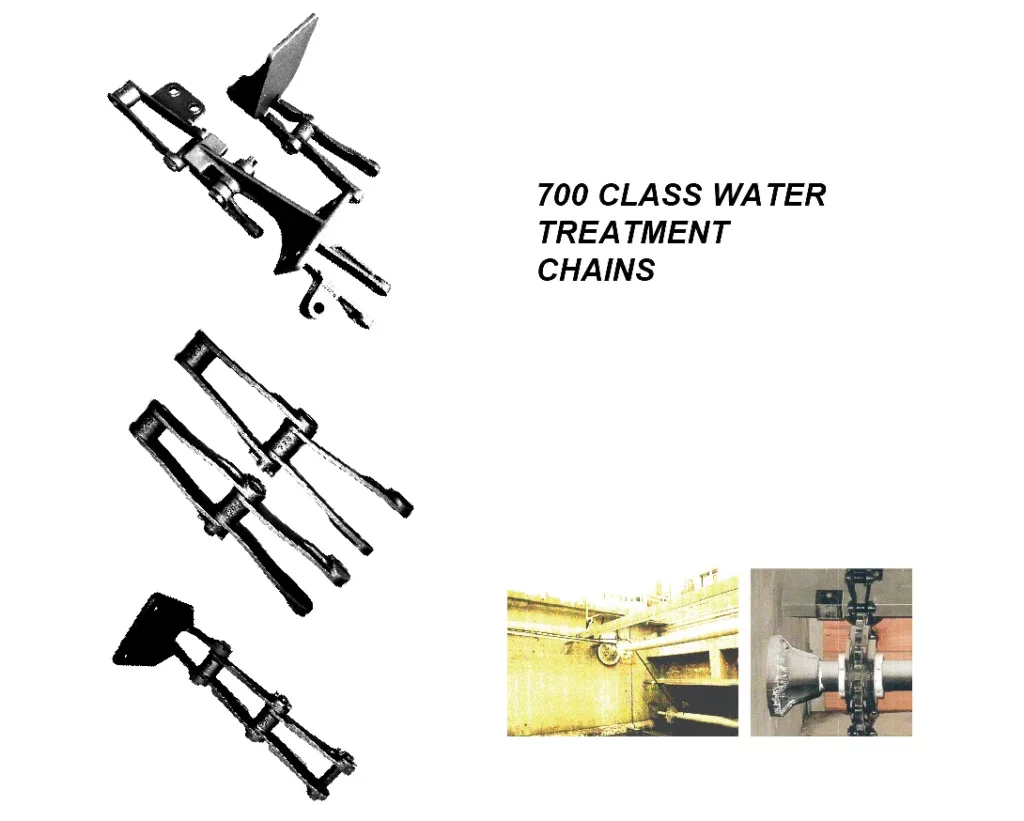

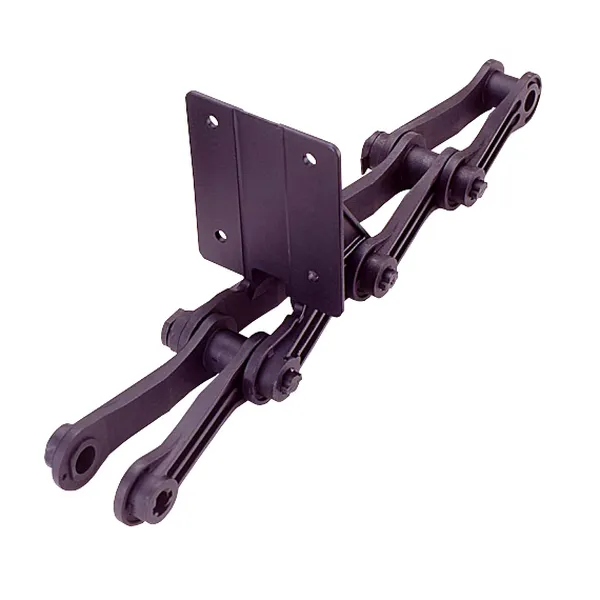

The 788 Wastewater Treatment Chain is a long-pitch, 700 Class Pintle Chain that is specifically designed for use in wastewater treatment plants. It offers maximum strength at minimum weight, making it ideal for the harsh and corrosive environments found in these facilities.

The 788 Wastewater Treatment Chain features a number of features that make it ideal for this application, including:

• Cast lugs on the sidebars for added strength and durability
• T-head pins that fit snugly to prevent pin rotation and the entrance of dirt and grit
• Closed bearing construction to keep the chain safe from pitch elongation due to abrasive wear
• Riveted chain construction for increased strength and reliability

The 788 Wastewater Treatment Chain is available in a variety of pitches and lengths to meet the specific needs of your application. It is also available with a variety of attachments, such as flights and buckets, to accommodate a wide range of wastewater treatment processes.

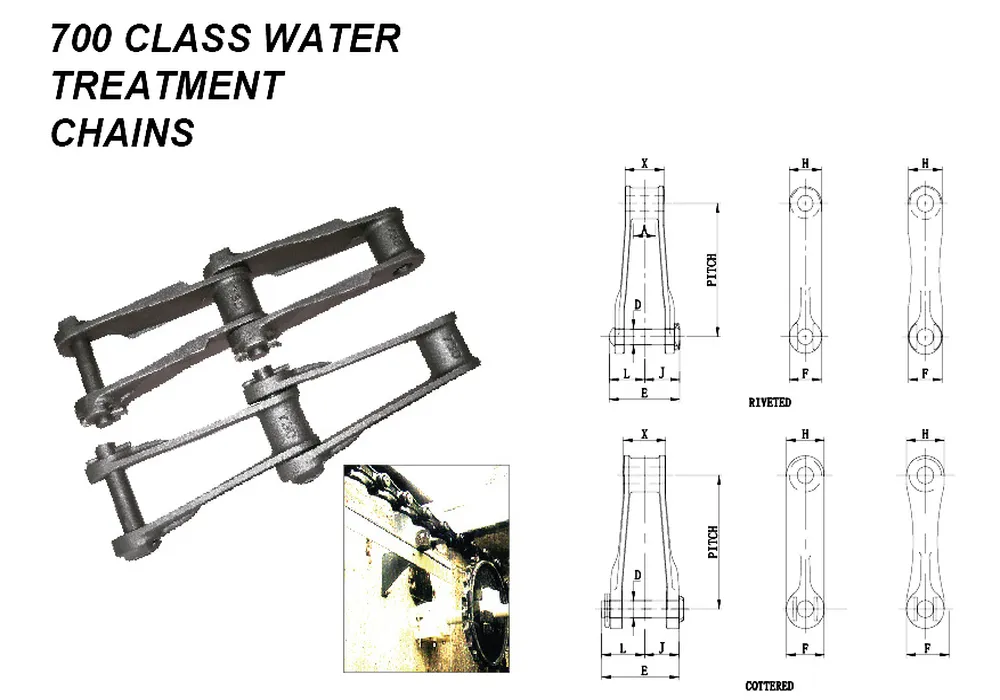

788 Wastewater Treatment Chain Dimensions:

Chain No.	Pitch in Inches	Weight Per Foot LBS.	Average Ultimate Strength LBS.	Maximum Working Load LBS.	A	C	D	E	F	H	X	Available Attachments
788	2.609	4.60	22000	2740	0.94	3.31	0.56	3.19	1.19	0.88	1.62	None

788 Wastewater Treatment Chain Features:

Here are some of the features of using the 788 Wastewater Treatment Chain:

1. Increased durability: The 788 Wastewater Treatment Chain is designed to withstand the harsh and corrosive environments found in wastewater treatment plants. Its cast lugs, T-head pins, closed-bearing construction, and riveted chain construction all contribute to its increased durability.2. Reduced maintenance: The 788 Wastewater Treatment Chain is designed to require minimal maintenance. Its closed-bearing construction and riveted chain construction help to reduce downtime and maintenance costs.3. Improved performance:?The 788 Wastewater Treatment Chain is designed to provide superior performance in wastewater treatment applications. Its long pitch and precision manufacturing ensure smooth operation and efficient power transfer.

If you are looking for a wastewater treatment chain that is durable, reliable, and efficient, then the 788 Wastewater Treatment Chain is the perfect choice for you.

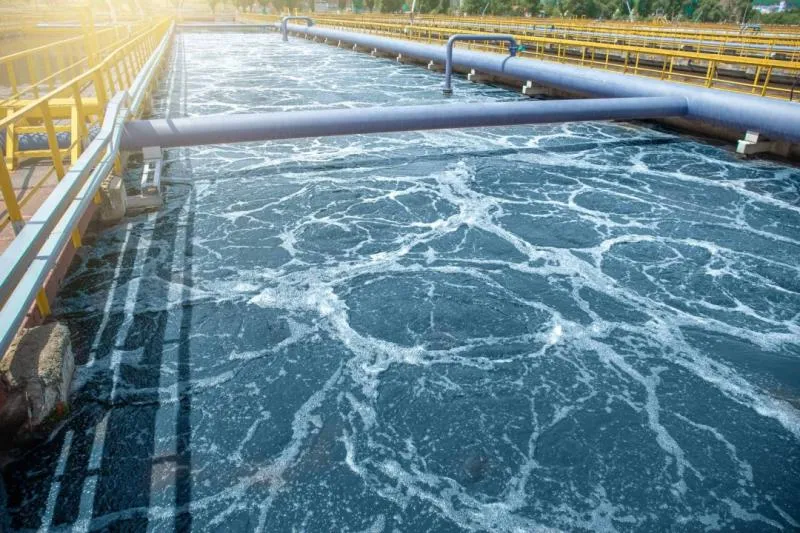

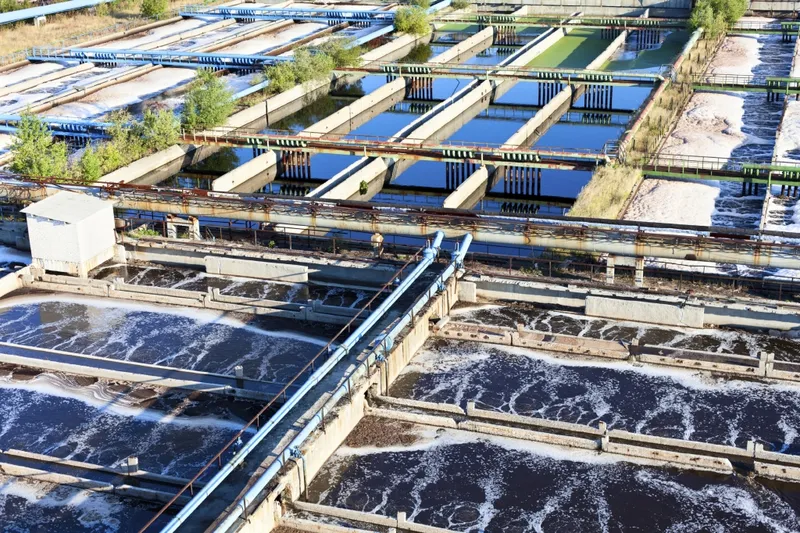

788 Wastewater Treatment Chain Application Scenarios:

788 Wastewater treatment chains are used in a wide variety of applications, including:

• Municipal wastewater treatment: 788 Wastewater treatment chains are used to treat wastewater from homes, businesses, and other sources in urban and suburban areas. The treated wastewater is then discharged back into the environment or reused.
• Industrial wastewater treatment:?788?Wastewater treatment chains are also used to treat wastewater from industrial facilities, such as food processing plants, paper mills, and chemical factories. The specific treatment process used will vary depending on the type of wastewater.
• Agricultural wastewater treatment: 788 Wastewater treatment chains are also used to treat wastewater from agricultural operations, such as livestock farms and dairies. The treated wastewater can be reused for irrigation or discharged back into the environment.
• On-site wastewater treatment: 788 Wastewater treatment chains can be used to treat wastewater from individual homes or businesses that are not connected to a municipal sewer system. This type of wastewater treatment is often used in rural areas.

Here are some specific examples of 788 wastewater treatment chain application scenarios:

• Removing pollutants from municipal wastewater:?A typical wastewater treatment chain for municipal wastewater will include primary treatment, secondary treatment, and tertiary treatment. Primary treatment removes large solids and floating materials from the wastewater. Secondary treatment removes dissolved organic matter and nutrients from the wastewater. Tertiary treatment removes additional pollutants, such as phosphorus and nitrogen, from the wastewater.
• Treating industrial wastewater:?The specific wastewater treatment chain used to treat industrial wastewater will vary depending on the type of wastewater. However, many industrial wastewater treatment chains include processes such as screening, grit removal, primary clarification, secondary treatment, and tertiary treatment.
• Treating agricultural wastewater:?Agricultural wastewater treatment chains often include processes such as lagoons, filters, and wetlands. These processes remove pollutants from the wastewater and allow it to be reused for irrigation or discharged back into the environment.
• Treating on-site wastewater:?On-site wastewater treatment chains often include septic tanks and drain fields. Septic tanks remove solids from the wastewater, and the drain field removes additional pollutants from the wastewater as it percolates through the soil.

In addition to these traditional wastewater treatment applications, wastewater treatment chains are also being used in new and innovative ways. For example, wastewater treatment chains are being used to produce renewable energy, such as biogas, and to recover valuable resources, such as phosphorus and nitrogen.

700 Series Wastewater Chain Sprockets for 700 Class Wastewater Chain:

The 700 series wastewater chain sprockets are specifically designed for use with the 700 class wastewater chain. These sprockets are an integral component of wastewater treatment systems and are used to drive and guide the movement of the chain.The 700 class wastewater chain is typically used in heavy-duty applications where high strength and durability are required. It is commonly employed in wastewater treatment plants, sewage treatment facilities, and industrial wastewater applications.The sprockets for the 700 class wastewater chain are designed to match the pitch and configuration of the chain, ensuring smooth and reliable operation. They are typically made from high-strength materials such as stainless steel or hardened steel, which can withstand the harsh and corrosive environments often found in wastewater treatment applications.It's important to select sprockets that are specifically designed for the 700 class wastewater chain to ensure compatibility and optimal performance. These sprockets can be sourced from specialized suppliers or manufacturers that cater to the wastewater treatment industry.When selecting sprockets for your wastewater treatment system, consider factors such as pitch, tooth profile, material, and overall design to ensure they meet the requirements of your specific application.

700 Class Wastewater Treatment Chain?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains,?agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains,?grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, "H" Class mill chain, CC Class crate conveyor chain,??"H" Class refuse drag chain,?600 Class ley bushed chain, combination transfer chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
