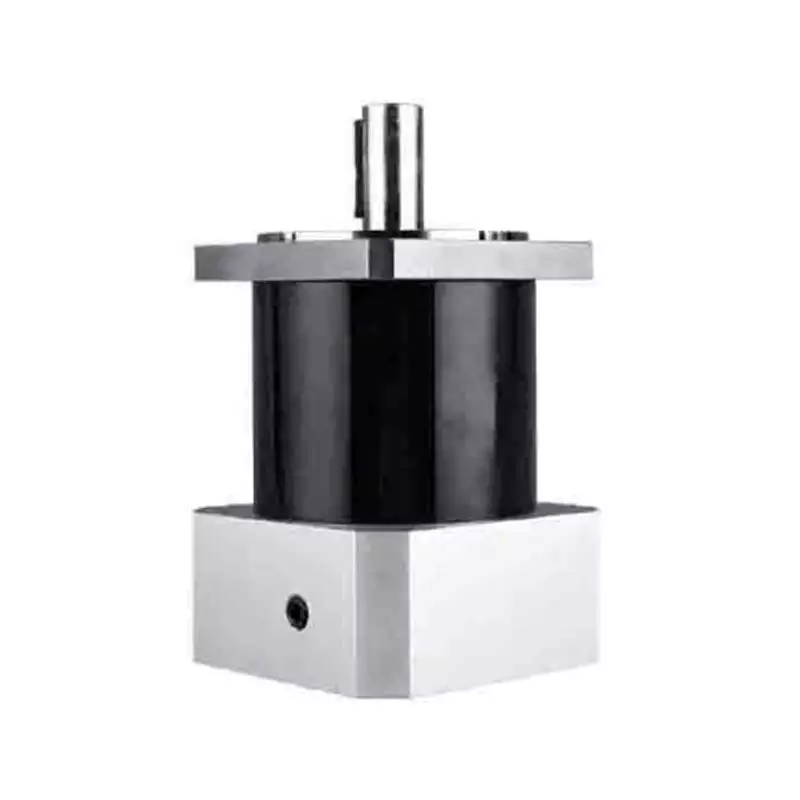

80PLF Series High Precision Planetary Gearbox

80PLF Series High Precision Planetary Gearbox

Overview

The 80PLF Series High Precision Planetary Gearbox is a type of gearbox that is known for its precision, efficiency, and durability. It is designed to provide high torque density and smooth operation, making it ideal for a wide range of applications. This gearbox is widely used in industrial machinery, automation equipment, and other high-precision systems.

Features

• Precise transmission: The gearbox is designed to provide precise transmission, allowing for smooth and accurate operation.
• High torque density: The gearbox has a high torque density, which means it can deliver a lot of power in a compact package.
• Smooth operation: The gearbox is designed to operate smoothly, with minimal noise and vibration.
• Reliability and durability: The gearbox is built to last, with high-quality materials and components that can withstand heavy use.
• Multiple installation options and configurations: The gearbox can be installed in a variety of ways, and it can be configured to meet the specific needs of different applications.
• Wide speed adjustment range: The gearbox can be adjusted to work at a wide range of speeds, making it suitable for many different applications.
• Strong adaptability: The gearbox is designed to work in a variety of environments, with high resistance to temperature, humidity, and other factors.
• High efficiency: The gearbox is highly efficient, with low power consumption and minimal energy waste.
• Protective measures: The gearbox is equipped with a range of protective measures, including overloading protection, temperature protection, and more.

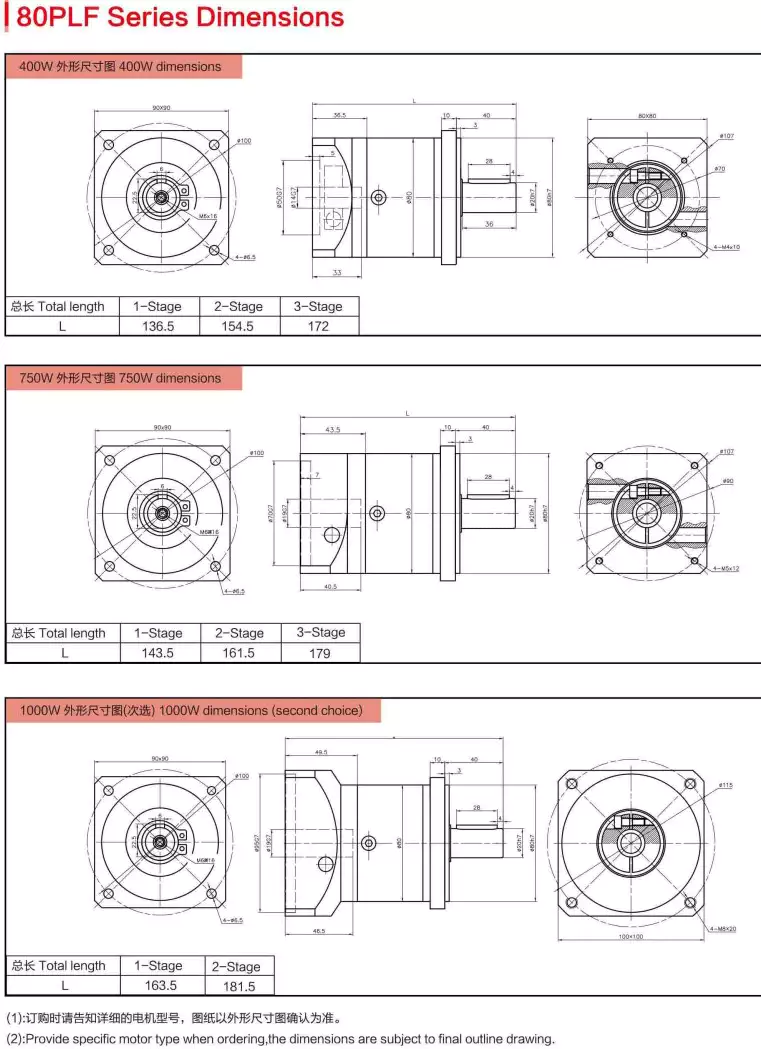

Technical Parameters

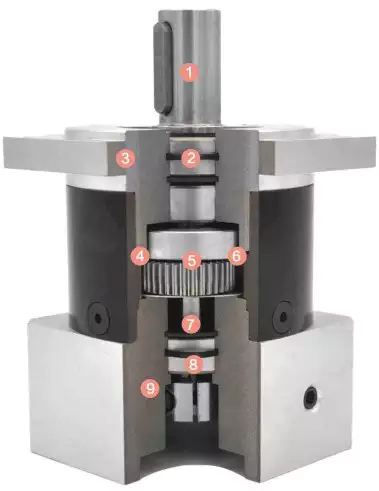

Internal Structure

The High Precision Planetary Gearbox has a complex internal structure that is designed to provide precise transmission and high torque density. The gearbox is made up of several key components, including:

• Integral double wall planet pinion carrier: This component is responsible for transferring power from the input shaft to the planetary gears.
• Bearing for the output shaft: This component supports the output shaft and ensures smooth operation.
• Steel output flange: This component is used to connect the gearbox to other machinery.
• Integral inner gear housing: This component houses the planetary gears and other key components.
• Planetary wheel: This component is responsible for transferring power from the input shaft to the output shaft.
• Sun wheel: This component is responsible for setting the gear ratio of the gearbox.
• Bearing for the input shaft: This component supports the input shaft and ensures smooth operation.
• Integral hoop clamp coupling: This component is used to connect the input shaft to the planetary gears.
• Back cover: This component provides protection for the internal components of the gearbox.

Material and Function of Each Part

• Integral double wall planet pinion carrier: Made of high-strength steel, this component provides a strong and durable connection between the input and output shafts.
• Bearing for the output shaft: Made of high-quality materials, this component provides smooth and reliable operation of the output shaft.
• Steel output flange: Made of high-strength steel, this component provides a secure connection between the gearbox and other machinery.
• Integral inner gear housing: Made of high-quality materials, this component provides a sturdy and protective housing for the internal components of the gearbox.
• Planetary wheel: Made of high-strength steel, this component provides a reliable connection between the input and output shafts.
• Sun wheel: Made of high-quality materials, this component is responsible for setting the gear ratio of the gearbox.
• Bearing for the input shaft: Made of high-quality materials, this component provides smooth and reliable operation of the input shaft.
• Integral hoop clamp coupling: Made of high-strength steel, this component provides a secure and durable connection between the input shaft and the planetary gears.
• Back cover: Made of high-quality materials, this component provides protection for the internal components of the gearbox.

Applications

The High Precision Planetary Gearbox is widely used in a variety of applications, including:

• Industrial machinery: The gearbox is commonly used in industrial machinery, such as conveyor belts, packaging machines, and assembly lines.
• Automation equipment: The gearbox is often used in automation equipment, such as robots, CNC machines, and assembly devices.
• Renewable energy: The gearbox is used in renewable energy systems, such as wind turbines and solar panels.
• Marine and offshore: The gearbox is used in marine and offshore applications, including ship propulsion systems and offshore drilling equipment.
• Mining and construction: The gearbox is used in mining and construction equipment, such as excavators, bulldozers, and cranes.
• Medical equipment: The gearbox is used in medical equipment, such as MRI machines and other high-precision systems.
