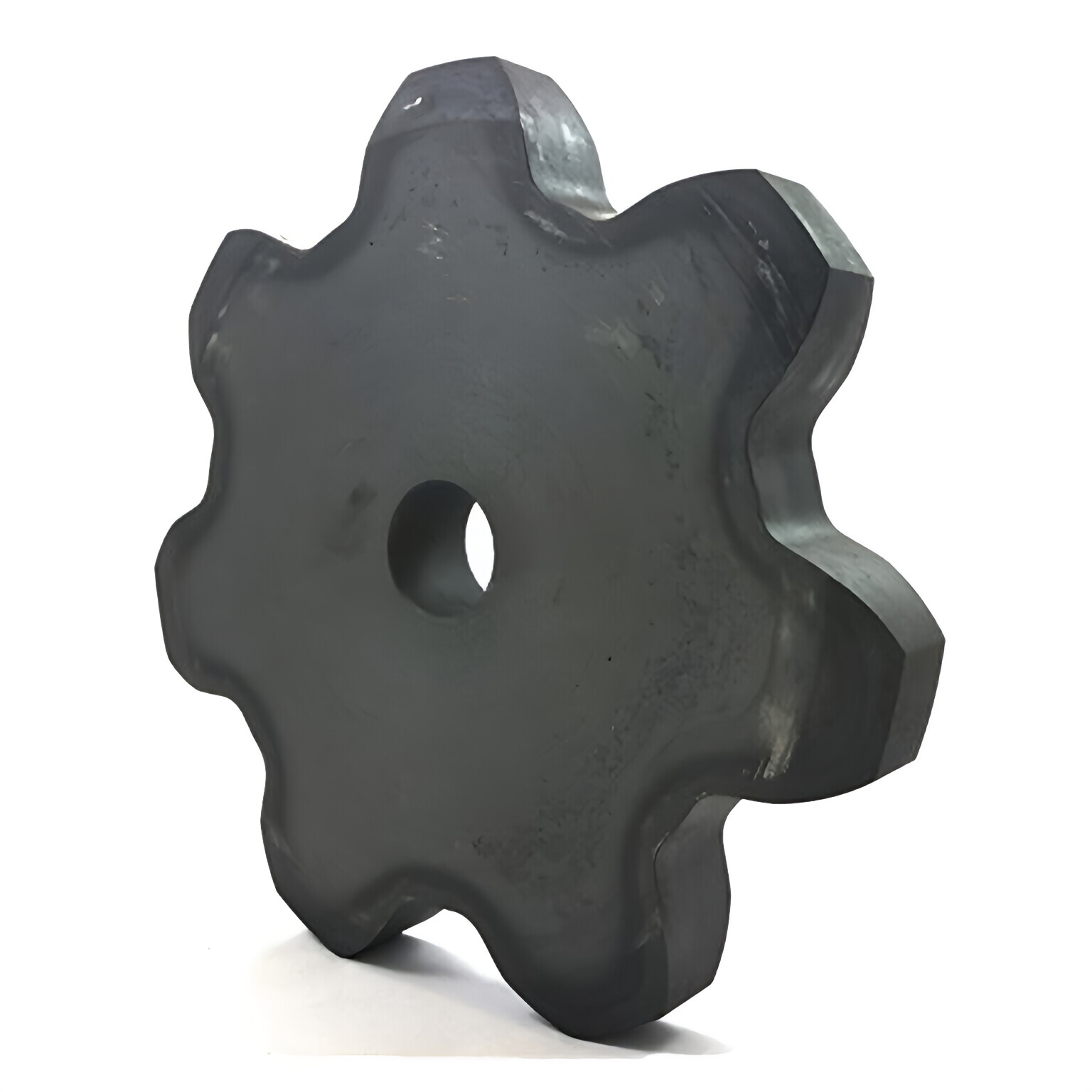

830-Series Sprockets

Discover Raydafon Group's 830-Series Sprockets, engineered for high-performance drives in industries like manufacturing and agriculture. With durable steel construction, precision design, and superior torque transmission, they ensure reliable operation in heavy-duty applications. Ideal for engineers and mechanics seeking efficiency, these sprockets reduce maintenance needs and enhance workflow, offering a robust solution that outlasts competitors. Experience seamless power transfer with Raydafon—your trusted partner in mechanical excellence.

Send Inquiry

Product Description

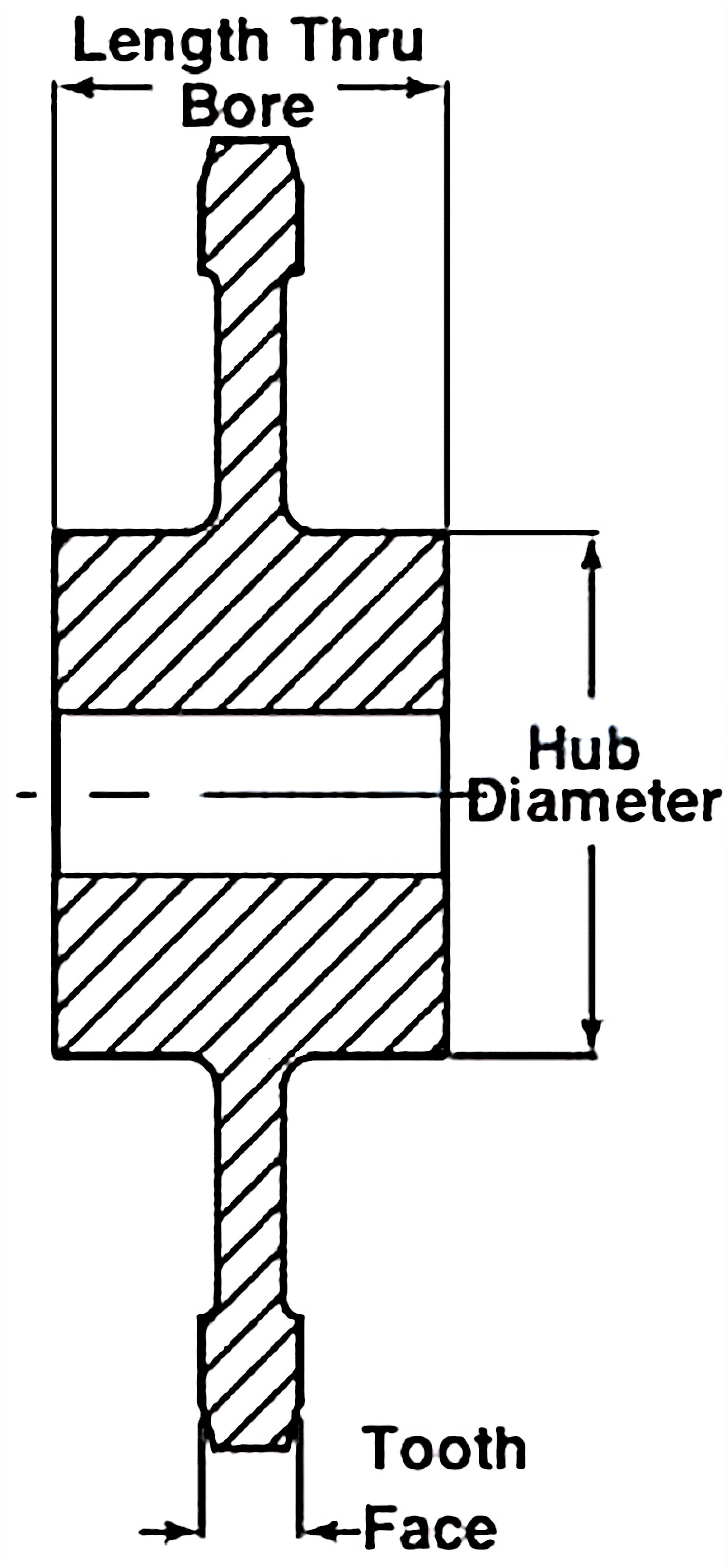

830 series engineer class sprocket is used for a wide verity of chain sizes. These sizes include 830, 6830, SR830, 830R, HSB830, and RR830 size chains. These sprockets are typically supplied as cast material but we can also supply them as steel for longer operation. The below chart shows the standard tooth counts as well as dimensions for each size.

Cast 830-Series Sprockets

Tooth Face at Pitch Line: 1.312" - Roller Diameter: 1.156"

Sprocket Size	Tooth Count	Pitch Diameter	Style	Hub Diameter	Length Thru Bore	Maximum Bore	Weight (LBS)
C830C6	6	12.00"	C	6.00"	4.00"	4.00"	58.5 LBS
C830C8	8	15.65"	C	7.00"	4.00"	5.00"	83.0 LBS
C830C9	9	17.54"	C	7.00"	4.00"	5.00"	95.0 LBS
C830C11CR	10	19.42"	C	7.00"	4.00"	5.00"	102.0 LBS
C830C12CR	11	21.20"	C	7.00"	4.00"	5.00"	105.0 LBS
C830C13CR	12	23.18"	C	7.50"	5.00"	5.50"	121.0 LBS
C830C14CR	13	25.07"	C	8.50"	5.00"	6.00"	142.0 LBS
C830C16CR	15	28.86"	C	8.50"	5.00"	6.00"	168.0 LBS
C830C17CR	16	30.75"	C	8.50"	5.00"	6.00"	180.0 LBS

We aslo offer a full range of both precision roller chain and engineered.Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
