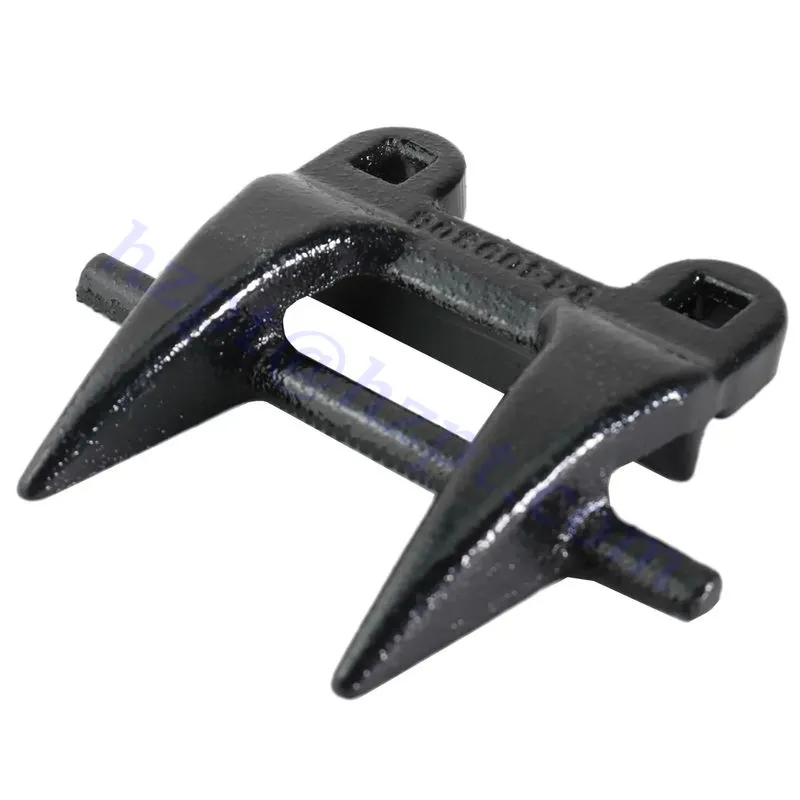

84409307 Double Knife Guard for Case-IH Combine Harvesters

Product Specifications

Application	CASE-IH Header: 3020-20, 3020-25, 3020-30, 3020-35, 3152, 3162
SKU	84409307
Reference Code	84126939, 84409307
Manufacturer	Raydafon Group
Brand	EP
Weight	0.9KG
Finishing	Painting Green Color or Red or Galvanize or OEM
Packing	Carton or Wooden box or Iron Box

Note: Our products are replacement parts and not original equipment. We provide perfect replacement products for original equipment. If you need to purchase the original equipment, please contact the original supplier.

Overview of 84409307 Double Knife Guard for Case-IH Combine Harvesters

The 84409307 Double Knife Guard is a versatile accessory designed for use with CASE-IH Combine Harvesters. This high-quality product, manufactured by Raydafon Group, offers exceptional performance and durability. With its precise engineering and reliable construction, this double knife guard ensures efficient and effective harvesting operations. Featuring a weight of 0.9KG, this double knife guard is lightweight yet robust. Its finishing options include painting in green color, red, galvanize, or OEM, allowing farmers to choose the most suitable option for their specific needs. The packaging options for this accessory include carton, wooden box, or iron box, providing convenience and protection during transportation. The 84409307 Double Knife Guard fits various CASE-IH Header models, including 3020-20, 3020-25, 3020-30, 3020-35, 3152, and 3162. It is a reliable component that enhances the performance and longevity of combine harvesters, ensuring smooth and efficient harvesting operations.

Function and Use of 84409307 Double Knife Guard for Case-IH Combine Harvesters

The 84409307 Double Knife Guard is a crucial component of Case-IH Combine Harvesters. Its main function is to protect the knife blade during harvesting operations. The knife blade is an important part of the combine harvester, as it is responsible for cutting the crops. However, during the harvesting process, the knife blade is exposed to a lot of wear and tear, which can result in damage and reduced efficiency. The 84409307 Double Knife Guard is designed to protect the knife blade from damage caused by rocks, debris, and other obstacles that may be present in the field. It is made of high-quality materials that are durable and long-lasting, ensuring that it can withstand the rigorous demands of the harvesting process. Additionally, it is designed to be easy to install and replace, which makes it a convenient and cost-effective solution for farmers. One of the key benefits of the 84409307 Double Knife Guard is that it helps to improve the efficiency of the harvest. By protecting the knife blade from damage, it helps to ensure that the combine harvester can continue to operate at peak performance. This means that farmers can harvest their crops more quickly and efficiently, which can help to increase their yields and reduce their operating costs. Overall, the 84409307 Double Knife Guard is an essential component of Case-IH Combine Harvesters. Its ability to protect the knife blade from damage and improve the efficiency of the harvest makes it an indispensable tool for farmers around the world.

Advantages of 84409307 Double Knife Guard for Case-IH Combine Harvesters

The 84409307 Double Knife Guard is a crucial component in agricultural combine harvesters, specifically designed for Case-IH models. This knife guard offers several advantages that enhance the performance and efficiency of the combine harvester in the field. Below are some detailed descriptions of the main advantages of this component:

1. Durable Construction: The 84409307 Double Knife Guard is fabricated using high-quality materials, ensuring its durability and longevity even in harsh agricultural conditions. Its robust construction guarantees resistance to wear and tear, providing a reliable and long-lasting solution for Case-IH combine harvesters.
2. Enhanced Cutting Efficiency: With its precision design, the 84409307 Double Knife Guard optimizes the cutting process in combine harvesters. It effectively slices through the crops, maximizing harvesting efficiency and minimizing the chances of crop damage. This results in a higher yield and improved overall productivity.
3. Easy Installation: The knife guard is specifically designed for Case-IH combine harvesters, ensuring a hassle-free installation process. Its user-friendly design allows for quick and straightforward replacement, minimizing downtime and maximizing the time spent on harvesting.
4. Improved Safety: The 84409307 Double Knife Guard prioritizes safety in agricultural operations. Its design reduces the risk of accidents by providing secure coverage for the cutting components, preventing any potential harm to the operator or the surroundings.
5. Compatibility: This knife guard is specifically engineered to fit Case-IH combine harvesters, ensuring perfect compatibility and seamless integration with the existing machinery. Its precise dimensions and accurate alignment make it an ideal choice for Case-IH models.
6. Cost-Effective Solution: By investing in the 84409307 Double Knife Guard, farmers benefit from a cost-effective solution. Its durability and efficient performance result in fewer maintenance requirements and lower replacement costs in the long run.

Overall, the 84409307 Double Knife Guard for Case-IH Combine Harvesters offers numerous advantages that contribute to the successful operation of agricultural combine harvesters. Its durable construction, enhanced cutting efficiency, easy installation, improved safety, compatibility, and cost-effectiveness make it an essential component for farmers seeking optimal performance and productivity.

How to Replace a Damaged 84409307 Double Knife Guard for Case-IH Combine Harvesters

Replacing a damaged 84409307 Double Knife Guard for Case-IH Combine Harvesters is a crucial maintenance task that ensures the efficient operation of the machinery. Here are the step-by-step instructions to guide you through the replacement process:

1. Start by turning off the combine harvester and engaging the parking brake to ensure your safety.
2. Locate the damaged knife guard on the combine harvester. It is usually found near the cutting mechanism.
3. Using the appropriate tools, carefully remove the bolts or screws that hold the damaged knife guard in place. Take note of the exact positioning and arrangement of these fasteners as they will need to be reinstalled correctly.
4. Gently separate the damaged knife guard from the combine harvester, being mindful not to cause any additional damage to the surrounding components.
5. Inspect the area where the damaged knife guard was attached. Clean any debris or dirt to ensure a proper fit for the replacement part.
6. Take the new 84409307 Double Knife Guard and align it with the mounting holes on the combine harvester. Ensure that it is positioned correctly and snugly fit before proceeding.
7. Secure the replacement knife guard by reattaching the bolts or screws. Tighten them according to the manufacturer's specifications to prevent any potential issues during operation.
8. Finally, double-check all the connections and make sure everything is properly tightened. Once you have confirmed the replacement is secure, you can remove the parking brake and start the combine harvester to test its functionality.

Following these steps will help you successfully replace a damaged 84409307 Double Knife Guard for Case-IH Combine Harvesters. Remember to prioritize safety during the process and refer to the equipment's manual if you encounter any difficulties.

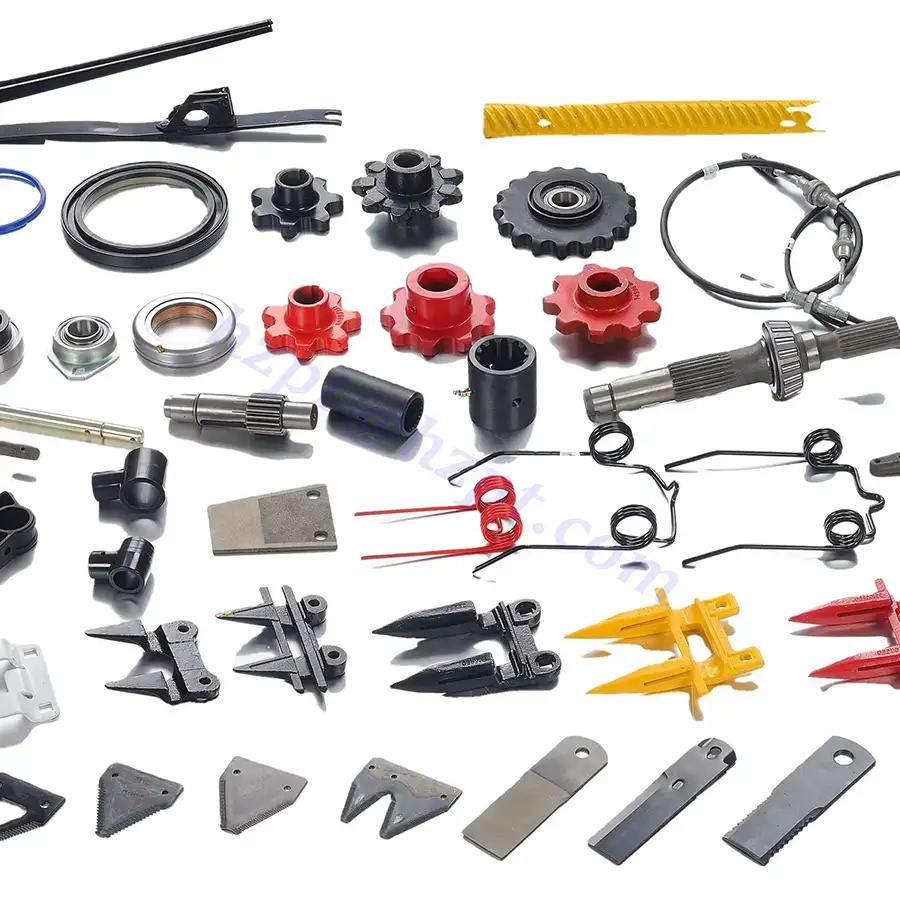

Other Replacement Combine Harvester Parts for Case-IH

1. Idler Pulley

The idler pulley is a critical component in the belt drive system of combine harvesters. It helps maintain proper tension and alignment of the belts, ensuring smooth power transmission to various parts of the machine. A worn or damaged idler pulley can lead to belt slippage, reduced efficiency, or machine downtime, making timely replacement essential for optimal performance.

2. Drive Pulley

The drive pulley is responsible for transmitting power from the engine to other mechanical systems within the combine harvester. It works in tandem with the belts, ensuring that the machine’s components operate efficiently. Over time, drive pulleys can wear down, causing reduced power transfer or belt misalignment, necessitating replacement to maintain smooth operation.

3. Gears

Gears are essential for transferring power within the drivetrain and cutting systems of combine harvesters. They are precision-engineered to handle high loads and ensure synchronized operation of various moving parts. Damaged or worn gears can lead to inefficient power transmission, increased wear on other components, and reduced machine reliability, requiring prompt replacement.

4. Drive Shaft

The drive shaft transmits rotational power from the engine to various parts of the combine harvester, such as the cutting platform or threshing mechanism. It is designed to handle heavy loads and continuous use. A failing drive shaft can cause vibrations, loss of power, or complete system failure, making it a key component that requires proper maintenance and replacement when needed.

5. Drive Hub

The drive hub connects the drive shaft to other rotating components, such as the cutting blades or threshing drum. It ensures smooth and reliable power transfer while maintaining alignment. A damaged drive hub can lead to misalignment, excessive wear on connected parts, or uneven operation, necessitating its timely replacement.

6. Knife Blade

Knife blades are crucial for cutting crops during harvesting. These sharp, durable components are mounted on the cutting platform and work in conjunction with knife guards. Over time, knife blades can dull or break due to contact with rocks or tough vegetation, requiring replacement to ensure clean, efficient cutting and prevent crop loss.

7. Drive Sprocket

The drive sprocket is a key component in the chain-driven systems of combines. It transmits power to chains that drive various mechanisms, such as the feeder or threshing system. Worn sprocket teeth can result in chain slippage or breakage, reducing operational efficiency and requiring replacement to maintain functionality.

8. Idler Sprocket

The idler sprocket maintains proper chain tension and alignment in chain-driven systems. It ensures that the drive chain operates smoothly without excessive slack or wear. A damaged or misaligned idler sprocket can lead to chain failure and downtime, making regular inspection and replacement critical for reliable operation of the combine harvester.

Why Choose Raydafon's Forged Knife Guard?

As one of the leading manufacturers and wholesale distributors of aftermarket replacement parts for combine harvesters, balers, tractors, and corn heads in domestic and global markets, Raydafon has a comprehensive range of agricultural spare parts. Our product range consists of best quality aftermarket spare parts for combine harvesters such as John Deere, New Holland, Case, Claas, Welger, KMC, Amadas, Gallignani, Kubota, Laverda, MTZ, Ford, Maschio, Goldoni, Howard, BCS; which are all the world’s leading brands in the agricultural machinery industry. You can view our entire product range in detail on our product page. Our company supplies products to its local customers in whole world. Over time, it has come a long way in this field, too. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. We continue to work with all our strengths to provide the best service to our business partners with our professional human resources, strong infrastructure and customer-oriented service approach. 1. Quality Products: Our products are crafted with precision and high-quality materials to ensure durability and performance. We adhere to stringent quality standards, ensuring each part meets the demands of rigorous agricultural operations. 2. Wide Range of Products: We offer an extensive selection of aftermarket spare parts for leading agricultural machinery brands. Our diverse product range meets the varied needs of farmers and businesses worldwide. 3. Competitive Prices: We provide top-quality products at competitive prices, offering exceptional value without compromising on quality. Our efficient manufacturing and strategic partnerships help keep costs low. 4. Excellent Customer Service: Customer satisfaction is our priority. Our dedicated team is ready to assist with inquiries, orders, and technical support. We focus on building long-term relationships through personalized service and expert advice. 5. Fast Delivery: We understand the importance of timely delivery in agriculture. Our efficient logistics network ensures that orders are delivered promptly, minimizing downtime during critical operations. 6. Customization Products: We offer tailored solutions by welcoming customer specifications and designs. Provide drawings or samples, and our expert team will create customized parts to meet your unique needs, ensuring optimal performance.
