Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings

Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings

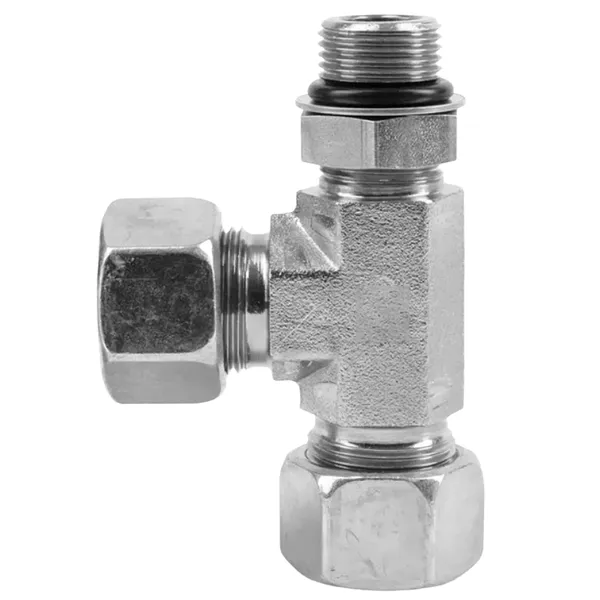

The Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings is a type of fitting used in hydraulic systems to connect and control the flow of fluid. It is designed with a run tee configuration, which means it has one input port and two output ports arranged in a T-shape.The distinguishing feature of the Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings is the inclusion of a lock nut mechanism. This mechanism allows for easy adjustment and tightening of the fitting to provide a secure and leak-free connection. The lock nut is typically made of metal and can be tightened using a wrench or other suitable tool.The LEE-UNF designation refers to the specific thread type and size of the fitting. LEE stands for "Locknut External Equal" and UNF stands for "Unified Fine Thread." UNF threads are a common type of thread used in hydraulic fittings, and they provide a reliable and secure connection.The Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings is commonly used in hydraulic systems where branching or splitting of fluid flow is required. It allows for the connection of multiple hoses or tubes to a single input port, enabling the distribution of fluid to different parts of the system.When installing the Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings, it is important to ensure a proper seal to prevent leaks. This is achieved by using compatible sealing materials, such as O-rings or gaskets, and by tightening the lock nut sufficiently.

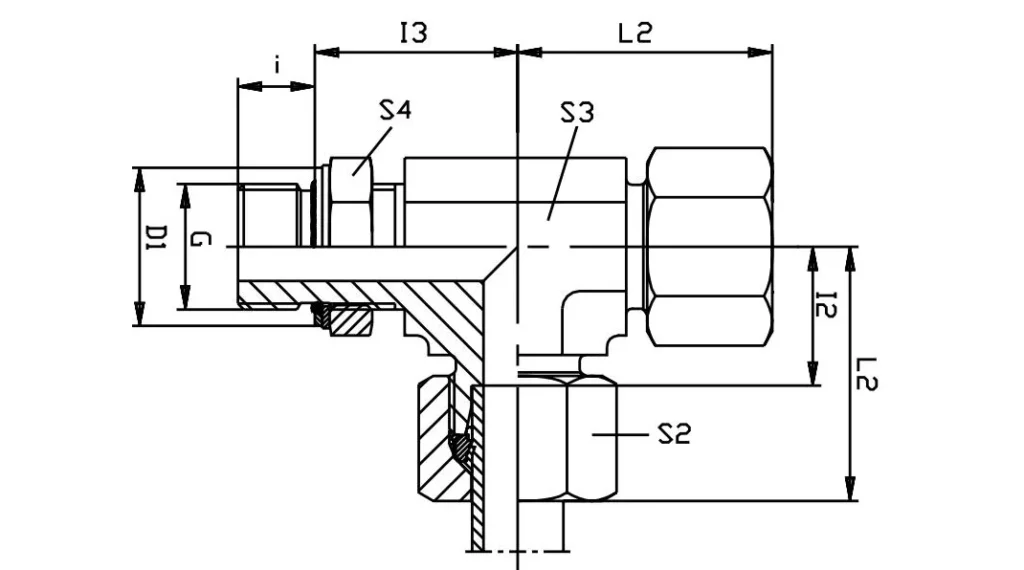

Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fitting Size Chart:

LEE-UNFPart NO.	Series Working Pressure(bar/psi)	Tube O.d	Gmale thread	L2	l2	l3	i	D1	S2	S3	S4
LEE06L7/16UNF	L light 315 bar 4560psi	6	7/16-20	29	14	19	10	17	14	14	14
LEE08L7/16UNF		8	7/16-20	31	16	19	10	18	17	14	14
LEE10L9/16UNF		10	9/16-18	32	17	24	10	20	19	19	17
LEE12L9/16UNF		12	9/16-18	34	19	25	11	26	22	19	17
LEE12L3/4UNF		12	3/4-16	34	19	25	13	26	22	19	22
LEE15L3/4UNF		15	3/4-16	36	21	28	13	29	27	22	22
LEE15L7/8UNF		15	7/8-14	36	21	28	15	29	27	22	27
LEE18L7/8UNF		18	7/8-14	40	24	32	15	29	32	27	27
LEE18L11/16UN		18	1 1/16-12	40	24	32	17	29	32	30	32
LEE22L11/16UN	160 bar 2320psi	22	1 1/16-12	44	28	35	17	37	36	30	32
LEE28L15/16UN		28	1 5/16-12	47	31	42	17	44	41	36	41
LEE35L15/8UN		35	1 5/8-12	59	38	46	17	55	50	50	50
LEE42L17/8UN		42	1 7/8-12	61	38	47	17	55	60	50	55
LEE06S7/16UNF	S heavy 400 bar 5800psi	6	7/16-20	30	15	20	12	17	17	14	14
LEE08S9/16UNF		8	9/16-18	32	17	25	12	18	19	19	17
LEE10S9/16UNF		10	9/16-18	34	18	26	12	20	22	19	17
LEE12S3/4UNF		12	3/4-16	38	22	30	14	26	24	22	22
LEE16S7/8UNF		16	7/8-14	43	25	34	16	29	30	27	27
LEE20S11/16UN		20	1 1/16-12	49	28	37	19	37	36	30	32
LEE25S11/16UN		25	1 1/16-12	54	30	50	19	44	46	36	32
LEE30S15/8UN	250bar 3625psi	30	1 5/8-12	62	36	50	19	55	50	50	50
LEE38S17/8UN		38	1 7/8-12	65	34	51	19	55	60	50	55

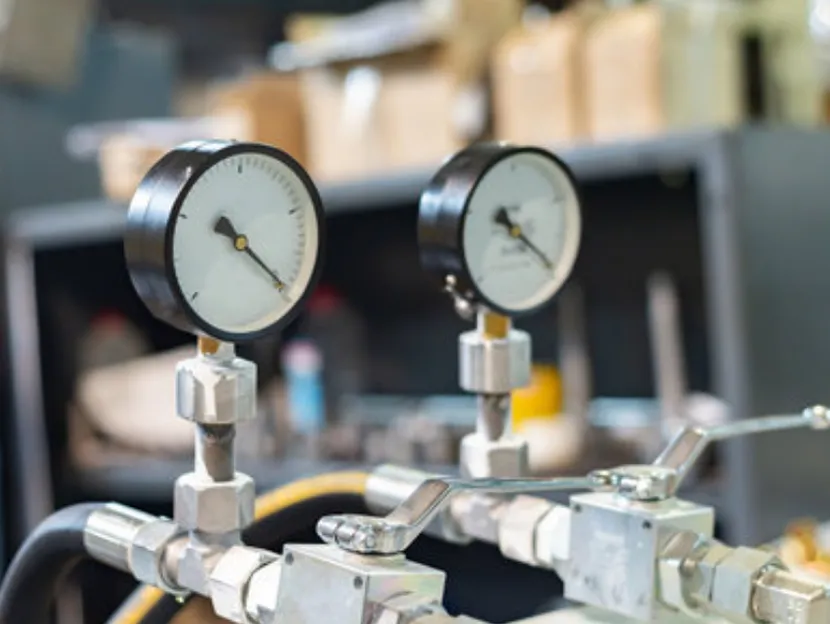

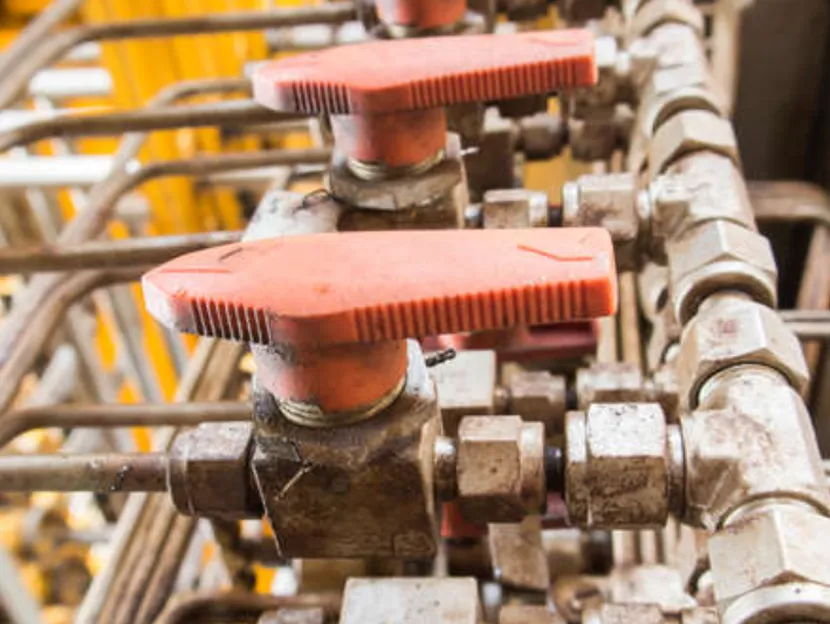

Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings Applications:

The Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings find various applications in hydraulic systems across different industries. Here are some common applications:1. Hydraulic Machinery: These Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings are used in hydraulic machinery, such as industrial equipment, construction machinery, and agricultural machinery. They facilitate the connection of hydraulic hoses or tubes to control the flow of hydraulic fluid in different parts of the machinery.2. Hydraulic Power Units: Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings are employed in hydraulic power units to distribute hydraulic fluid to various components, such as cylinders, motors, valves, and actuators. They enable the branching or splitting of fluid flow to control the movement and operation of different parts of the hydraulic system.3. Hydraulic Control Systems: These Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings are used in hydraulic control systems, which are found in a wide range of applications, including manufacturing, automation, and transportation. They allow for the connection of control valves, pressure regulators, and other hydraulic components to direct and regulate fluid flow.4. Hydraulic Test Equipment: Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings are utilized in hydraulic test equipment and systems. They enable the connection of pressure gauges, flow meters, and other measurement devices to monitor and test the performance of hydraulic systems.5. Mobile Hydraulics: These Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings are commonly employed in mobile hydraulic applications, such as mobile cranes, excavators, forklifts, and agricultural machinery. They provide a reliable and adjustable connection for fluid distribution and control in dynamic and rugged environments.6. Industrial Hydraulics: Adjustable Lock Nut Run Tee-LEE-UNF Hydraulic Fittings are widely used in various industrial applications, including manufacturing, material handling, and processing equipment. They play a crucial role in controlling fluid flow and ensuring the efficient operation of hydraulic systems.
