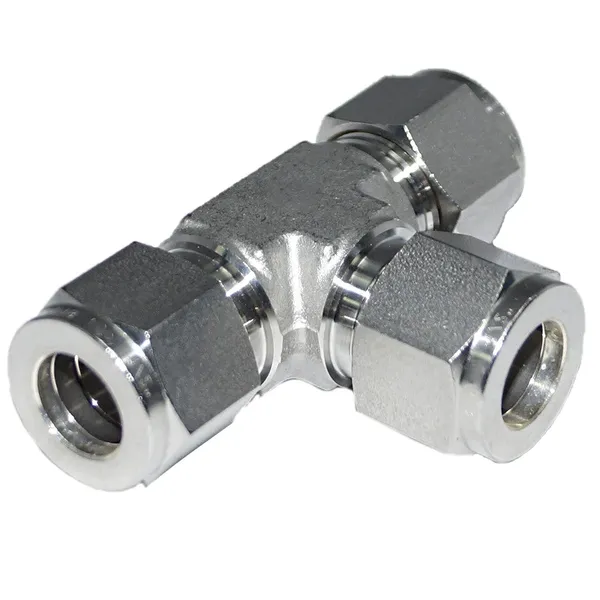

A Union Tee - T hydraulic fitting is a type of fitting used in hydraulic systems to connect three tubes or hoses together at a right angle. It is shaped like a "T" with three openings, allowing fluid to flow in three directions simultaneously. The Union Tee fitting is commonly used in hydraulic systems to distribute or combine fluid flow, control pressure, or redirect fluid to different components.The Union Tee fitting is typically made of durable materials such as steel, stainless steel, or brass to withstand high pressure and provide long-lasting performance. It is designed with threaded ends or compression fittings to ensure a secure and leak-free connection.One of the key advantages of the Union Tee hydraulic fitting is its versatility. It allows for easy installation and disassembly, making it suitable for various hydraulic applications. It can be used in hydraulic systems for industrial machinery, construction equipment, agricultural machinery, automotive applications, and more.When using a Union Tee hydraulic fitting, it is important to ensure that the tubes or hoses being connected have compatible sizes and fitting types. Proper assembly and tightening of the fittings are crucial to prevent leaks and ensure the integrity of the hydraulic system.

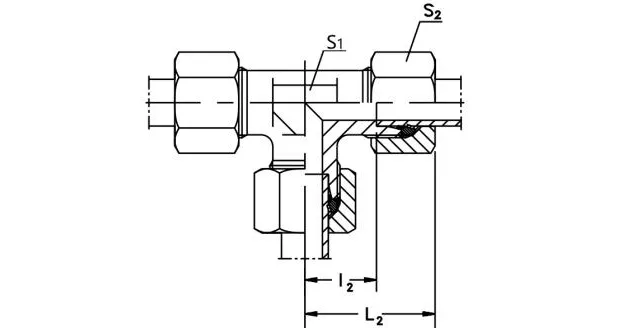

Union Tee - T Hydraulic Fitting Size Chart:

TPart NO.	Series Working Pressure(bar/psi)	TubeO.d.	l2	L2	S1	S2
-T04LL	LL very light 100 bar 1450psi	4	11	21	9	10
-T06LL		6	9.5	21	11	12
-T08LL		8	11.5	23	12	14
-T10LL		10	12.5	24	14	17
-T12LL		12	15	27	14	19
-T06L	L light 315 bar 4560psi	6	12	27	12	14
-T08L		8	14	29	14	17
-T10L		10	15	30	17	19
-T12L		12	17	32	17	22
-T15L		15	21	36	19	27
-T18L		18	23.5	40	24	32
-T22L	160 bar 2320psi	22	27.5	44	27	36
-T28L		28	30.5	47	36	41
-T35L		35	34.5	56	41	50
-T42L		42	40	63	50	60
-T06S	S heavy 630 bar 9130psi	6	16	31	14	17
-T08S		8	17	32	14	19
-T10S		10	17.5	34	17	22
-T12S		12	21.5	38	17	24
-T14S		14	22	40	19	27
-T16S	400 bar 5800psi	16	24.5	43	24	30
-T20S		20	26.5	48	27	36
-T25S		25	30	54	36	46
-T30S		30	35.5	62	41	50
-T38S	315 bar 4560psi	38	41	72	50	60

Advantages of Union Tee - T Hydraulic Fittings:

Union Tee - T hydraulic fittings are a type of pipe fitting that combines the features of a union and a tee fitting. They have three openings, two of which are on the same side and one of which is on a perpendicular side. This allows them to be used to connect three pipes together, one of which is at a right angle to the other two.

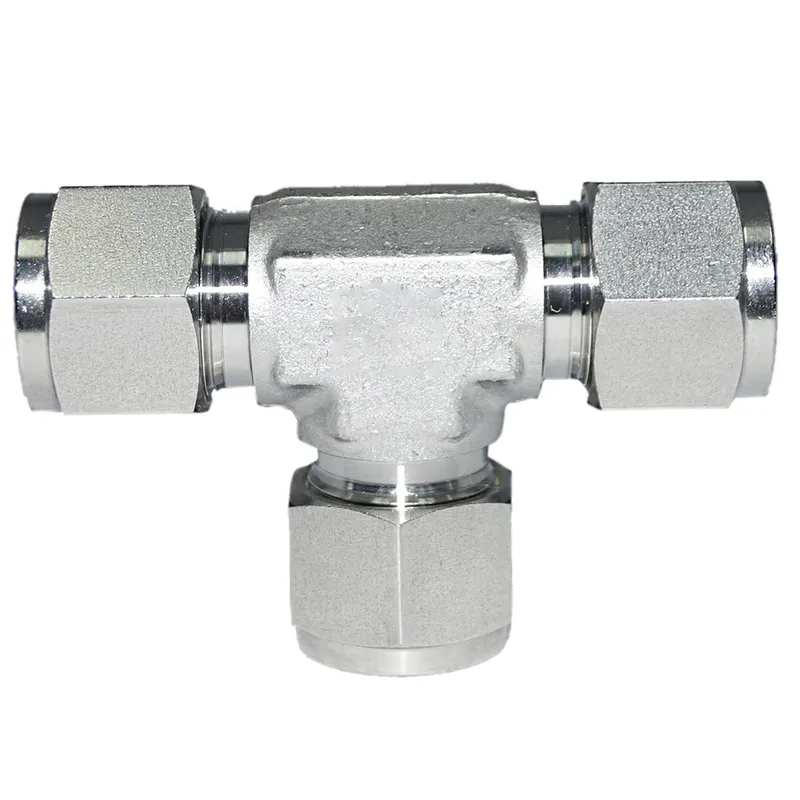

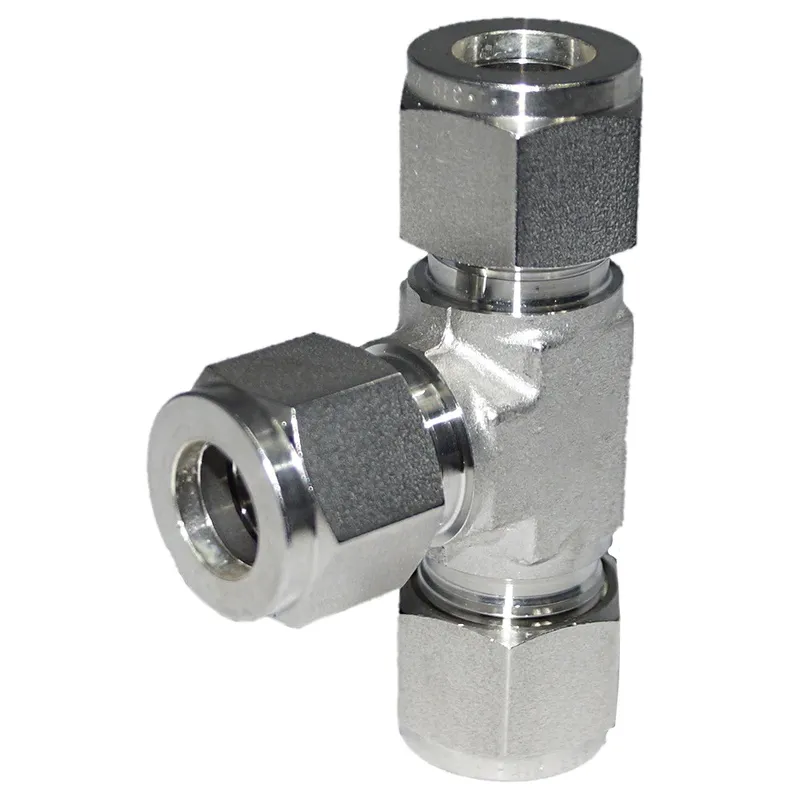

Union Tee - T hydraulic fittings offer several advantages that make them a popular choice in hydraulic systems. Here are some key advantages:1. Versatility: Union Tee fittings provide a versatile solution for connecting three tubes or hoses at a right angle. They allow fluid to flow in three directions simultaneously, making them suitable for distributing or combining fluid flow, controlling pressure, or redirecting fluid to different components within a hydraulic system.2. Easy Installation: Union Tee - T hydraulic fittings are designed for easy installation and disassembly. They typically feature threaded ends or compression fittings that enable quick and secure connections. This ease of installation saves time during assembly or maintenance tasks.3. Leak-Free Connections: Properly assembled Union Tee fittings provide reliable and leak-free connections. The threaded or compression design, when tightened correctly, ensures a tight seal, preventing fluid leakage and maintaining the integrity of the hydraulic system.4. Durable Construction: Union Tee - T hydraulic fittings are constructed from durable materials such as steel, stainless steel, or brass. These materials offer excellent resistance to high pressures, corrosion, and wear, ensuring long-term performance and reliability in demanding hydraulic applications.5. Compatibility: Union Tee fittings are available in various sizes and fitting types to accommodate different hydraulic systems. This compatibility allows for easy integration into existing systems or the creation of custom hydraulic setups.6. Cost-Effective: Union Tee - T hydraulic fittings are generally cost-effective compared to more complex hydraulic components. Their simplicity and ease of installation reduce labor costs, and their long-lasting performance minimizes the need for frequent replacements or repairs.7. Wide Range of Applications: Union Tee fittings find applications in a wide range of industries and hydraulic systems. They are commonly used in industrial machinery, construction equipment, agricultural machinery, automotive systems, and more.

How to Install Union Tee - T Hydraulic Fitting?

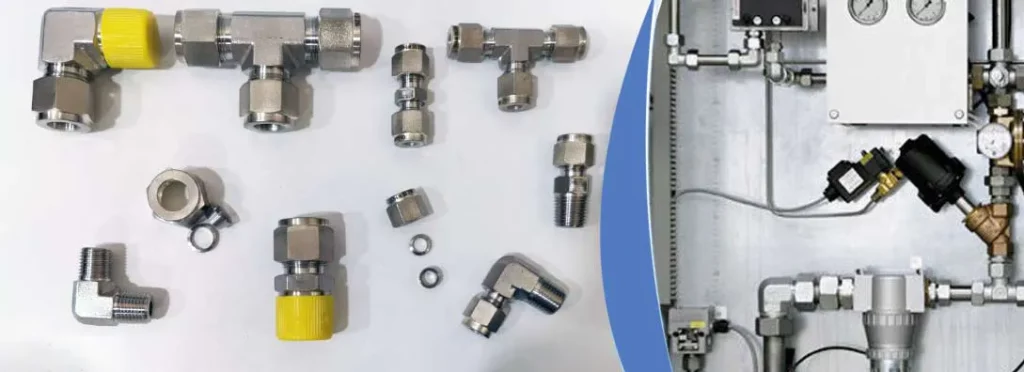

To install a Union Tee - T hydraulic fitting, follow these general steps:Gather the necessary tools and materials: You will need the Union Tee fitting, appropriate hydraulic tubing or hoses, and any required fittings or adapters. Additionally, have a wrench or appropriate tool for tightening the fittings.Prepare the tubing or hoses: Cut the hydraulic tubing or hoses to the desired length, ensuring clean and square cuts. Remove any burrs or debris from the cut ends.Inspect the fitting: Check the Union Tee fitting for any damage or defects before installation. Ensure that the fitting is the correct size and type for your hydraulic system.Assemble the fittings: Insert one end of the tubing or hose into each opening of the Union Tee fitting. If using compression fittings, make sure the ferrules or compression rings are in place. Ensure a snug fit but avoid overtightening.Tighten the fittings: Use a wrench or appropriate tool to tighten the fittings securely. Take care not to overtighten, as it may damage the fitting or cause leaks. Follow the manufacturer's recommendations for the recommended torque.Check for leaks: After tightening the fittings, inspect the connections for any signs of leakage. You can perform a pressure test or visually inspect for any fluid seepage. If leaks are detected, adjust the fitting or retighten as necessary.Test the hydraulic system: Once the Union Tee fitting is installed and there are no leaks, test the hydraulic system by operating the equipment or applying the appropriate pressure. Monitor the connections for any signs of leaks or issues during operation.

China Hydraulic Fitting Manufacturers

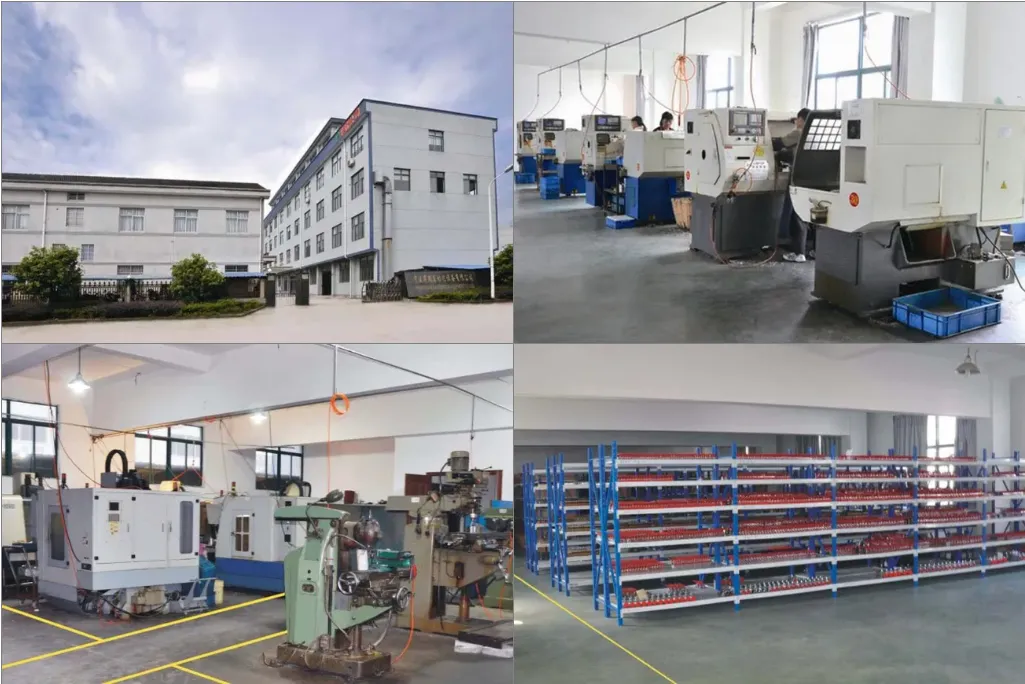

We're well-known as one of the leading hydraulic fitting manufacturers and suppliers, specializing in providing different kinds of fittings, instrument valves, and flanges. We warmly welcome you to buy high-quality hydraulic fittings in stock from our factory. Union - G Hydraulic Fittings, Elbow Union - W Hydraulic Fittings, Union Tee - T Hydraulic Fittings, Union Cross - K Hydraulic Fittings, Male Connector - GE-R Hydraulic Fittings, Male Connector - GE-NPT Hydraulic Fittings, Male Connector - GE-R-ED Hydraulic Fittings, Male Connector - GE-M-ED Hydraulic Fittings, Male Connector - GEO Hydraulic Fittings, Male Elbow - WE-R Hydraulic Fittings, Male Elbow - WE-M Hydraulic Fittings, Male Elbow - WE-NPT Hydraulic Fittings, Bulkhead Union - SV Hydraulic Fittings.1. We established in July 2008.2. We are a professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Hydraulic Ball Valves, Needle valves, Ball Valves, Check Valves, Valve Manifolds, DIN 2353 Fittings, SAE Flanges, Sampling systems, and Water Heater Accessories.3. Products are available in a variety of different materials, such as Carbon Steel, Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, and Titanium.4. We are located in Ningbo City, 2 two-hour drive to Shanghai, with convenient transportation access worldwide.5. Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, and Shipbuilding.6. Always available to discuss your requirements and ensure full customer satisfaction.7. We have more than 50 CNC machines, 3D measurement equipment, Raw Material chemical composition inspection equipment, High-pressure test equipment, etc.8. We have obtained ISO9001 and CE certificates and more than twenty utility model patents.9. Our products are exported to the United States, Japan, Germany, South America, South Africa, Southeast Asia, and many other countries.10. We also welcome OEM and ODM orders. Please feel free to contact and visit us.
