Male Connector-GE-R Hydraulic Fittings

Male Connector-GE-R Hydraulic Fittings

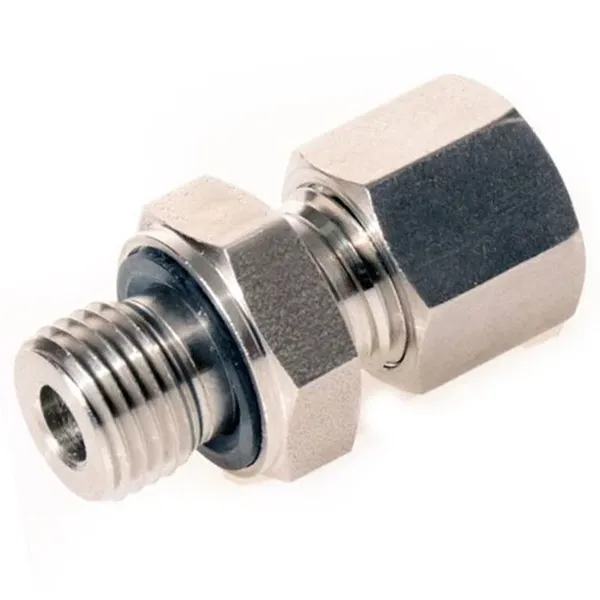

GE-R hydraulic fittings are male connectors that are used to connect hydraulic hoses to hydraulic components. They are made of brass and are available in a variety of sizes and configurations. GE-R hydraulic fittings are known for their durability and reliability, and they are widely used in a variety of industries, including construction, agriculture, and manufacturing.

Male Connector GE-R hydraulic fittings are designed to withstand high pressures and temperatures, and they are also resistant to corrosion. They are easy to install and can be reused multiple times. GE-R hydraulic fittings are available in a variety of sizes and configurations to meet the needs of any application.

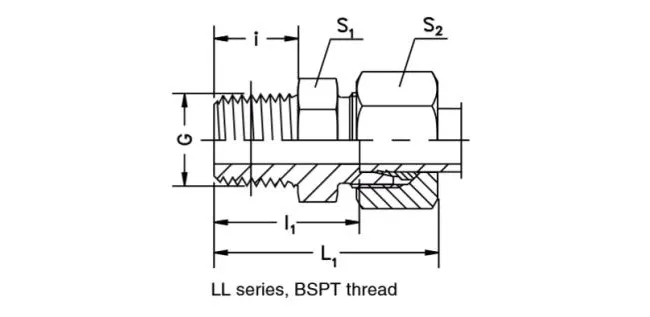

Male Connector-GE-R Hydraulic Fitting Size Chart:

GE-RPart NO.	Series WorkingPressure(bar/psi)	TubeO.d.	GMale BSPT	i	l1	L1	S1	S2
-GE04LLR1/8	LL Very light 100 bar1450 psi	4	R1/8	10	18.5	28	11	10
-GE06LLR1/8		6	R 1/8	10	16.5	28	11	12
-GE08LLR1/8		8	R 1/8	10	18.5	30	12	14
-GE06LR1/8	L Light 315 bar 4560psi	6	R 1/8	10	17	32	12	14
-GE06LR1/4		6	R 1/4	15	23	38	14	14
-GE08LR1/4		8	R 1/4	15	23	38	14	17
-GE10LR1/4		10	R 1/4	15	24	39	17	19
-GE10LR3/8		10	R 3/8	15.3	25	40	19	19
-GE12LR1/4		12	R 1/4	15	25	40	19	22
-GE12LR3/8		12	R 3/8	15.3	25	40	19	22
-GE12LR1/2		12	R 1/2	20	30	45	22	22
-GE15LR1/2		15	R 1/2	20	31	46	24	27
-GE18LR1/2		18	R 1/2	20	31.5	48	27	32
-GE22LR3/4	160bar 2320psi	22	R 3/4	20	33.5	50	32	36
-GE28LR1		28	R 1	25	39.5	56	41	41
-GE35LR11/4		35	R 1 1/4	25.5	40.5	62	46	50
-GE42LR11/2		42	R 1 1/2	26	42	65	55	60
-GE06SR1/4	S heavy 630bar 9130psi	6	R 1/4	15	28	43	17	17
-GE08SR1/4		8	R 1/4	15	28	43	17	19
-GE10SR1/4		10	R 1/4	15	27.5	44	19	22
-GE10SR3/8		10	R 3/8	15.3	27.5	44	19	22
-GE12SR1/4		12	R 1/4	15	29.5	46	22	24
-GE12SR3/8		12	R 3/8	15.3	29.5	46	22	24
-GE12SR1/2		12	R 1/2	20	34.5	51	22	24
-GE14SR1/2		14	R 1/2	20	36	54	24	27
-GE16SR1/2	400bar 5800psi	16	R 1/2	20	35.5	54	27	30
-GE20SR3/4		20	R 3/4	20	37.5	59	32	36
-GE25SR1		25	R 1	25	45	69	41	46
-GE30SR11/4		30	R 1 1/4	25.5	46.5	73	46	50
-GE38SR11/2	315bar4560psi	38	R 1 1/2	26	49	80	55	56

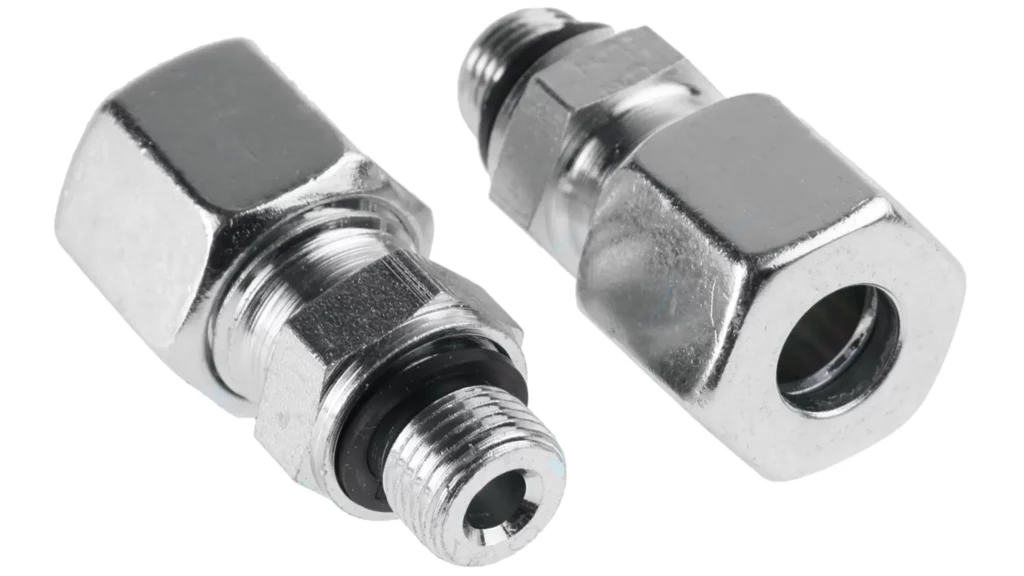

Benefits of Using Male Connector-GE-R Hydraulic Fittings:

Here are some of the benefits of using Male Connector-GE-R hydraulic fittings:

1. Easy to install and remove: Male Connector-GE-R fittings are push-to-connect, so no tools are required for installation or removal. This makes them ideal for use in tight spaces or where access is limited.2. Secure and leak-proof connection: Male Connector-GE-R hydraulic fittings have a rubber O-ring seal to prevent leakage. This ensures a secure and reliable connection, even under high pressure and vibration.3. Variety of sizes and configurations: Male Connector-GE-R fittings are available in a variety of sizes and configurations to meet the needs of any hydraulic system. This makes them a versatile and adaptable solution for a wide range of applications.

Male Connector-GE-R hydraulic fittings are a popular choice for a variety of applications, including:

4. Hydraulic systems in construction equipment: Male Connector-GE-R hydraulic fittings are commonly used in hydraulic systems in construction equipment, such as excavators, bulldozers, and backhoes.5. Hydraulic systems in agricultural equipment: Male Connector-GE-R hydraulic fittings are also commonly used in hydraulic systems in agricultural equipment, such as tractors, combines, and harvesters.6. Hydraulic systems in industrial equipment: Male Connector-GE-R hydraulic fittings can be used in a variety of hydraulic systems in industrial equipment, such as machine tools, presses, and conveyors.

If you are looking for a convenient, reliable, and versatile way to connect hydraulic hoses and tubes, Male Connector-GE-R hydraulic fittings are a great option. They are easy to install and remove, provide a secure and leak-proof connection, and are available in a variety of sizes and configurations to meet the needs of any hydraulic system.

How to Install the Male Connector-GE-R Hydraulic Fitting?

When installing a Male Connector GE-R hydraulic fitting, it is important to follow proper procedures to ensure a secure and leak-free connection. Here are some general installation instructions:(1) Gather the Required Tools and Equipment: Before starting the installation, gather the necessary tools and equipment, which may include an appropriate wrench, thread sealant (if required), and any other specific tools recommended by the fitting manufacturer.(2) Prepare the Components: Ensure that the male and female components, including the Male Connector GE-R fitting and the corresponding female fitting or port, are clean and free from dirt, debris, or damage. Inspect the threads and sealing surfaces for any signs of wear or defects.(3) Apply Thread Sealant (if required): Depending on the specific application and manufacturer's recommendations, you may need to apply thread sealant to the male threads of the Male Connector GE-R fitting. This helps improve the sealing properties and prevent leakage. Follow the instructions provided by the thread sealant manufacturer for proper application.(4) Thread the Male Connector GE-R Fitting: Start by threading the Male Connector GE-R hydraulic fitting into the female fitting or port. Use your hand to start the threading process to ensure it aligns properly. Once the threads are engaged, use an appropriate wrench to tighten the fitting. Be careful not to overtighten, as this can damage the fitting or the female component. Refer to the manufacturer's recommended torque specifications, if available.(5) Check for Proper Alignment: Ensure that the Male Connector GE-R fitting is properly aligned with the female fitting or port. Misalignment can lead to leaks or damage to the fittings. Make any necessary adjustments to ensure a proper fit.(6) Inspect the Connection: After tightening the Male Connector GE-R fitting, visually inspect the connection for any gaps, misalignment, or signs of leakage. If any issues are identified, disassemble the connection and address the problem before proceeding.(7) Conduct a Pressure Test: Once the Male Connector GE-R hydraulic fitting is installed, it is recommended to conduct a pressure test to ensure the integrity of the hydraulic system. Gradually increase the system pressure to the maximum operating pressure, and carefully inspect the connection for any leaks. If any leaks are detected, address them immediately by tightening the fitting or replacing any damaged components.Note: It is important to refer to the specific installation instructions provided by the hydraulic fitting manufacturer, as different manufacturers may have slight variations in their recommended procedures. Additionally, ensure that you follow any relevant safety guidelines and regulations when working with hydraulic systems.
