Elbow Union - W Hydraulic Fittings

Elbow Union - W Hydraulic Fittings

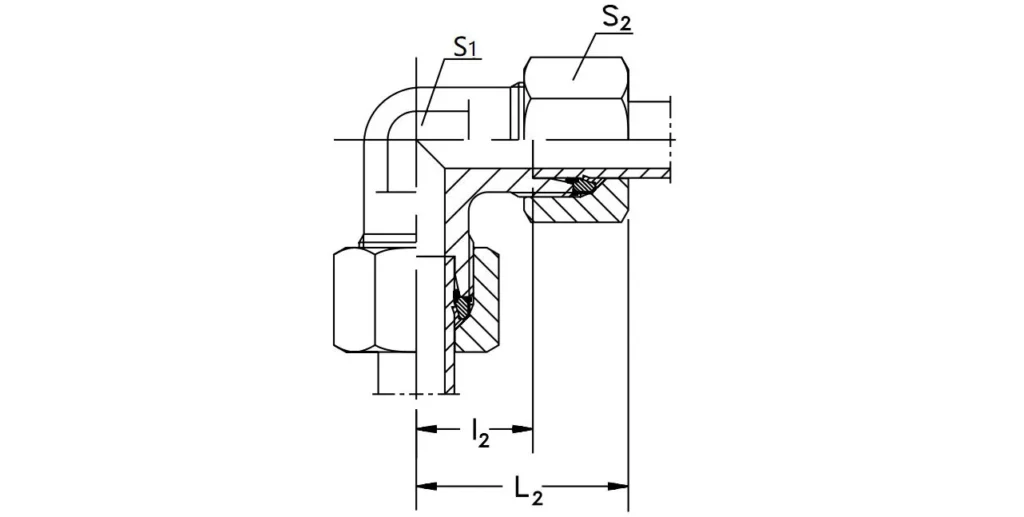

Elbow Union - W Hydraulic Fitting Size Chart:

WPart NO.	Series Working Pressure(bar/psi)	Tube O.d.	l2	L2	S1	S2
-W04LL	LL very light 100 bar 1450psi	4	11	21	9	10
-W06LL		6	9.5	21	11	12
-W08LL		8	11.5	23	12	14
-W10LL		10	12.5	24	14	17
-W12LL		12	13	25	17	19
-W06L	L light 315 bar 4560psi	6	12	27	12	14
-W08L		8	14	29	14	17
-W10L		10	15	30	17	19
-W12L		12	17	32	19	22
-W15L		15	21	36	19	27
-W18L		18	23.5	40	24	32
-W22L	160 bar 2320psi	22	27.5	44	27	36
-W28L		28	30.5	47	36	41
-W35L		35	34.5	56	41	50
-W42L		42	40	63	50	60
-W06S	S heavy 630 bar 9130psi	6	16	31	14	17
-W08S		8	17	32	17	19
-W10S		10	17.5	34	19	22
-W12S		12	21.5	38	22	24
-W14S		14	22	40	19	27
-W16S	400 bar 5800psi	16	24.5	43	24	30
-W20S		20	26.5	48	27	36
-W25S		25	30	54	36	46
-W30S		30	35.5	62	41	50
-W38S	315 bar 4560psi	38	41	72	50	60

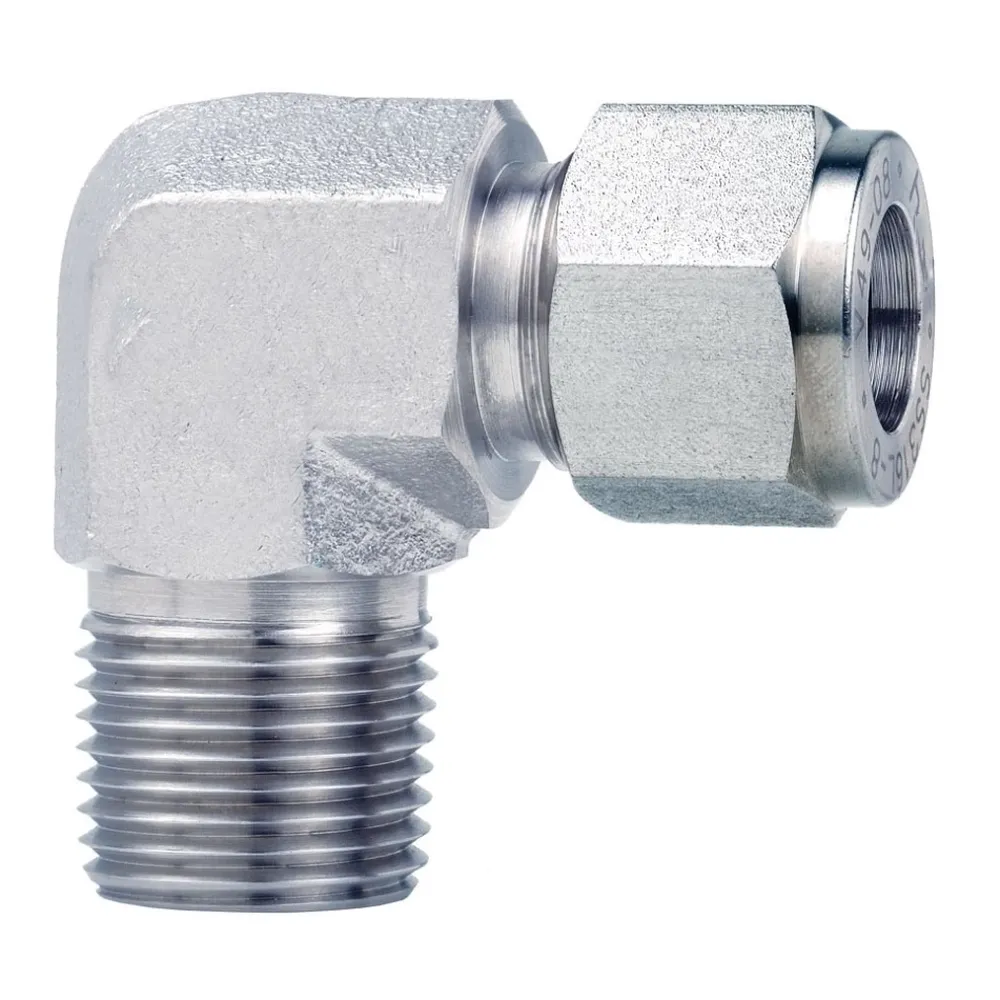

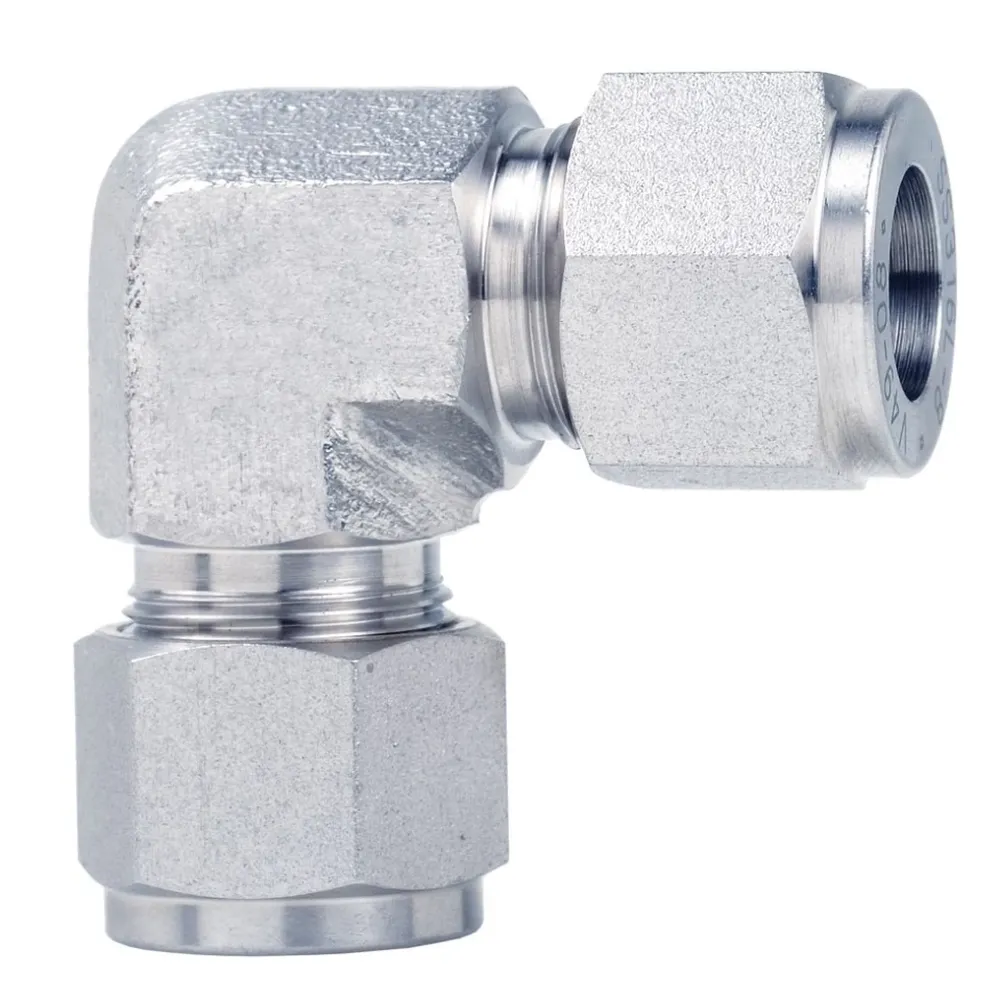

Benefits of Using Elbow Union - W Hydraulic Fittings:

There are several benefits to using Elbow Union - W Hydraulic Fittings in hydraulic systems. Here are some of the key advantages:1. Space-saving design: Elbow unions allow for a change in flow direction at a right angle, making them ideal for applications where space is limited or where pipes need to navigate around obstacles. By using an elbow union, you can route hydraulic lines more efficiently and effectively utilize the available space.2. Easy installation and disconnection: Elbow Union - W Hydraulic Fittings are relatively easy to install and disconnect, as they typically feature threaded or flanged ends that can be connected or disconnected without the need for additional tools. This ease of installation saves time and effort during system assembly or when repairs and maintenance are required.3. Versatility: Elbow unions come in various sizes, materials, and configurations, allowing for versatility in hydraulic system design. They can be used with different types of pipes or hoses, and the choice of materials (such as stainless steel, brass, or carbon steel) can be tailored to suit specific application requirements, including fluid compatibility and environmental conditions.4. Smooth flow transition: The 90-degree bend in an Elbow Union - W Hydraulic Fittings provides a smooth transition for fluid flow, minimizing pressure drop and flow restriction. This ensures efficient and uninterrupted fluid flow within the hydraulic system, improving overall system performance.5. Leak-free connections: Elbow unions, when properly installed and tightened, create secure and leak-free connections between hydraulic pipes or hoses. This is crucial for maintaining the integrity of the system, preventing fluid leaks, and ensuring optimal efficiency and safety.6. Durability: Elbow Union - W Hydraulic Fittings are designed to withstand high-pressure hydraulic systems and harsh operating conditions. The materials used in their construction are often corrosion-resistant and durable, ensuring long-lasting performance and reliability.7. Flexibility in system design: Elbow unions provide greater flexibility in hydraulic system design by allowing for changes in flow direction. This flexibility enables engineers to design complex systems that can efficiently route fluid flow and adapt to specific application requirements.

How Does the Single Ferrule Elbow Union Work?

A single ferrule elbow union is a type of compression fitting that uses a single ferrule to create a leak-proof seal between the tube and the fitting body. The ferrule is a metal ring that is placed over the end of the tube and then compressed by the nut of the fitting. This compression creates a tight seal that prevents fluid from leaking out.

Single ferrule elbow unions are typically used in low-pressure applications, such as instrumentation and process control systems. They are also commonly used in hydraulic and pneumatic systems.

Here is a step-by-step guide on how to install a single ferrule elbow union:

1. Cut the tube to the desired length and deburr the ends.
2. Slide the ferrule onto the end of the tube.
3. Insert the tube into the fitting body until the ferrule bottoms out.
4. Tighten the nut of the fitting until the ferrule is compressed.

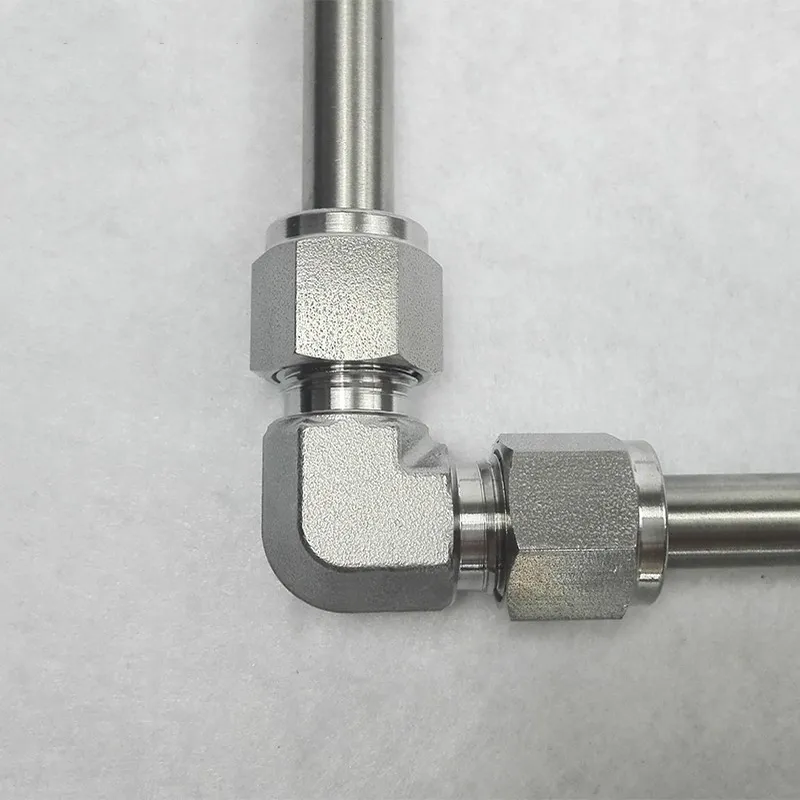

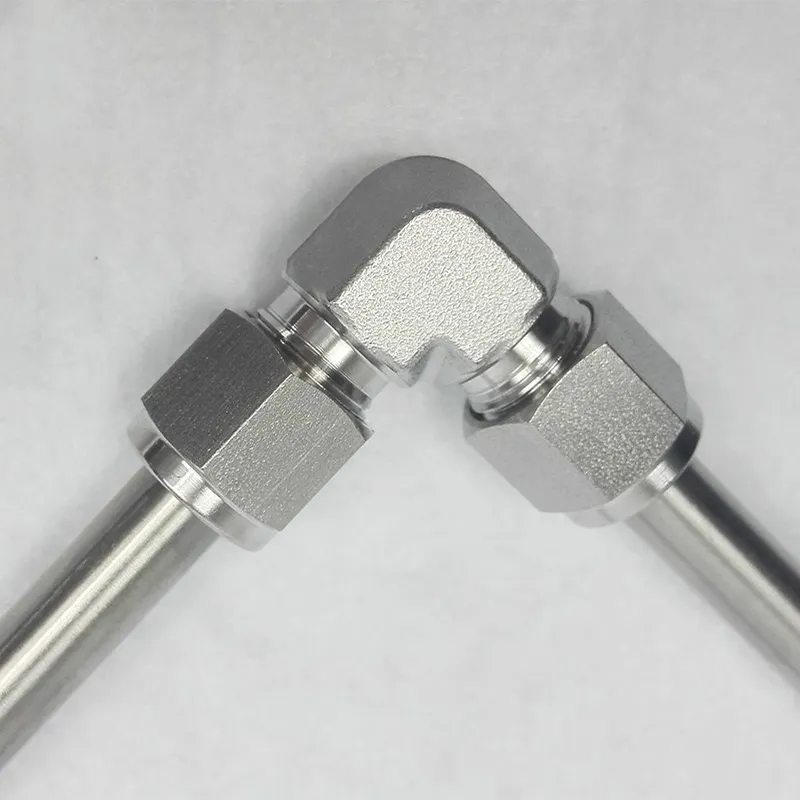

90 degree stainless steel tube elbow unions are pipe fittings that are used to connect two tubes or pipes at a 90 degree angle. They are typically made of stainless steel, which is a durable and corrosion-resistant material. Stainless steel tube elbow unions are available in a variety of sizes and can be used in a wide range of applications, including:

• Food and beverage processing: Stainless steel tube elbow unions are commonly used in food and beverage processing applications because they are sanitary and easy to clean. They are also resistant to corrosion from acids and other chemicals.
• Pharmaceutical manufacturing: Stainless steel tube elbow unions are also used in pharmaceutical manufacturing applications because they are sterile and meet strict sanitary requirements.
• Chemical processing: Stainless steel tube elbow unions are used in chemical processing applications because they are resistant to corrosion from a variety of chemicals.
• Oil and gas: Stainless steel tube elbow unions are used in oil and gas applications because they are durable and can withstand high pressures and temperatures.
• Power generation: Stainless steel tube elbow unions are used in power generation applications because they are durable and can withstand high temperatures and pressures.
