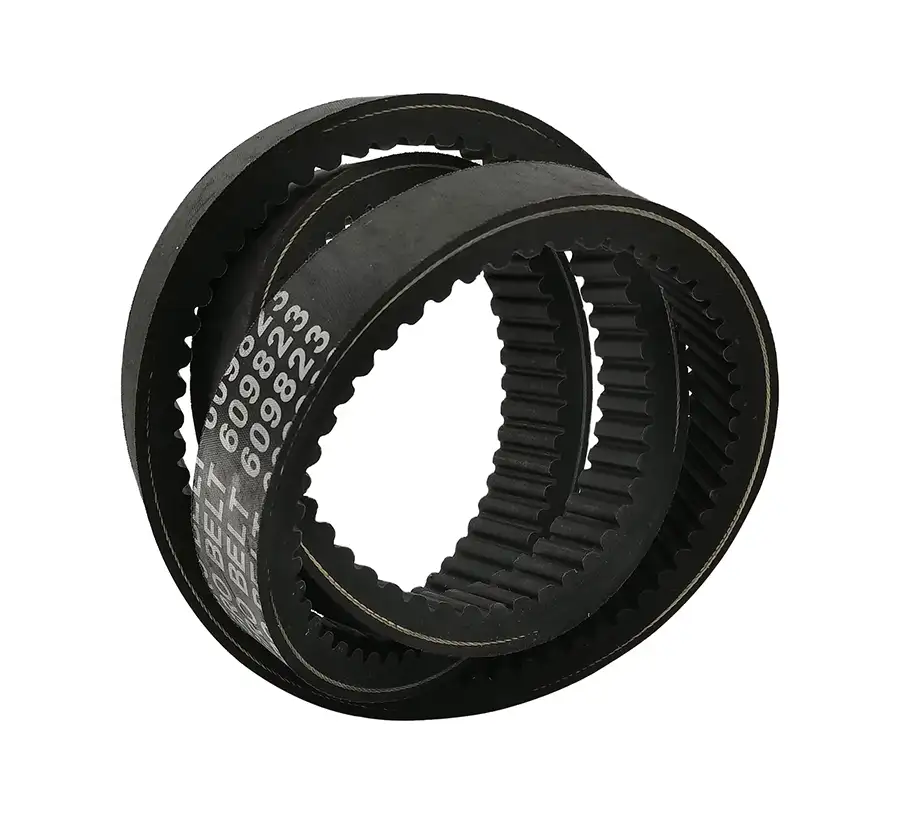

Agricultural belt with Aramid fibre cord replacement for JD Drive Belts

Agricultural Belt with Aramid Fibre Cord Replacement for JD Drive Belts

Introduction

Agricultural belts are an essential component of agricultural machinery. They transmit power from the engine to various agricultural implements such as plows, seeders, reapers, crushers, water pumps, and more. The Agricultural Belt with Aramid Fibre Cord Replacement for JD Drive Belts is a high-quality replacement belt that can withstand the demanding conditions of agriculture.

Applications

1. Tractor Transmission System

The Agricultural Belt is mainly used in the PTO (Power Take-Off) area of tractors, connecting the tractor with external agricultural equipment such as plows, seeders, reapers, crushers, water pumps, etc.

2. Combine Harvester

The Agricultural Belt is used in the main transmission system of combine harvesters, transmitting power from the engine to the threshing drum, cutting platform, cleaning system, and other moving parts.

3. Tillage Machinery

The Agricultural Belt is used in tillage machinery such as cultivators, plows, deep tillage machines, etc., transmitting power from the tractor to the working parts of the tillage machinery.

4. Irrigation Equipment

In power-driven pumping systems and rotating sprinkler systems, the Agricultural Belt transmits power from the tractor to the water pump or other driving components.

5. Feed Processing Machinery

The Agricultural Belt is used in feed mixers, silage cutters, and other equipment to drive mixing, cutting, and other functional modules.

Compatible Brands and Models

The Agricultural Belt with Aramid Fibre Cord Replacement for JD Drive Belts is compatible with various agricultural machinery brands and models, including John Deere, Case IH, New Holland, and more. Please refer to the product specifications for detailed information.

Other Agricultural Machinery Parts

In addition to the Agricultural Belt, we also offer a wide range of other agricultural machinery parts, including agricultural chains, agricultural gearboxes, pulleys, sprockets, couplings, PTO shafts, concaves, and more. Whatever agricultural machinery parts you need, you can find them here.

Signs that it's Time to Replace the Agricultural Belt

1. Obvious Signs of Wear and Tear

Check the surface of the Agricultural Belt for cracks, fraying, thinning, rubber block shedding, or exposed fabric layers. These signs indicate that the belt is severely worn and its strength and stability are greatly reduced.

2. Slackness

The Agricultural Belt should run under appropriate tension. If it is too loose and sags more than the specified value when pressed by hand, or if the belt length cannot maintain its original tension due to stretching after continuous use, it means that the belt has lost elasticity and tension and needs to be replaced.

3. Slippage

When working on agricultural machinery, if you hear a sharp whistling sound from the belt area, or feel that the power output of the machine is insufficient and the speed is decreasing, it is likely that the Agricultural Belt is slipping. In this case, not only the tension should be checked, but also the friction force of the belt should be checked. If necessary, the belt should be replaced.

4. Overheating

The Agricultural Belt that works normally will have a slight temperature rise, but if it feels very hot to the touch, or even hot, it may be due to excessive fatigue of the belt, internal structural damage, or excessive tightening resulting in heat accumulation. This situation can accelerate the aging and damage of the belt and should be stopped immediately to check and replace.

5. Odor or Burning Marks

If you smell the odor of burnt rubber or see melting and scorched marks on the Agricultural Belt, it means that the belt is under serious overload and may have partial or total damage. A new Agricultural Belt should be replaced immediately.

6. Abnormal Vibration or Noise

When the Agricultural Belt fails or is about to fail, it sometimes causes additional vibration or noise during machine operation, due to the uneven transmission. It should be stopped for inspection, the cause should be identified, and the problematic Agricultural Belt should be replaced promptly.

How to Choose the Right Agricultural Belt

1. Belt Type

The V-belt (also known as the triangular belt) is commonly used in agricultural machinery, with different models such as A, B, C, D, etc., according to width and thickness. When choosing, the belt type should be consistent with the original equipment, or refer to the specifications provided by the agricultural machinery manufacturer.

2. Length

Measure or calculate the accurate length of the required Agricultural Belt according to the agricultural machinery manual, to ensure that the new belt can be installed smoothly and maintain the appropriate tension.

3. Horsepower/Power Requirements

The Agricultural Belt needs to bear the engine output power of the agricultural machinery, so the rated power of the new belt must be greater than or equal to the power requirement of the transmission system.

4. Material

The Agricultural Belt made of high-quality rubber blends has better wear resistance, high-temperature resistance, oil resistance, and aging resistance.

5. Belt Pulley Groove Size

The Agricultural Belt must be compatible with the groove width and depth of the belt pulley, to ensure good engagement and to avoid slipping or premature wearing. Author: Miya
