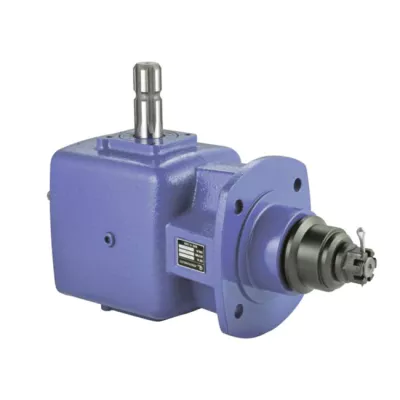

Agricultural Lawn Mower Gearbox RDF-55

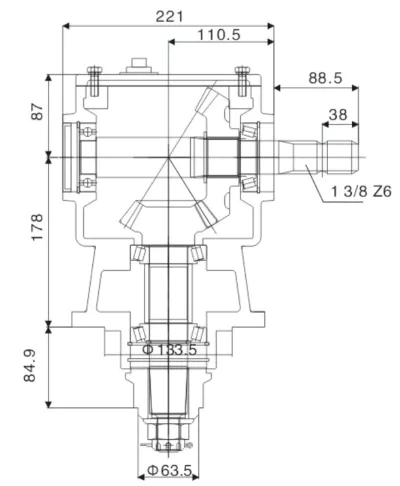

Agricultural Lawn Mower Gearbox RDF-55

Lawn Mower Gearbox Description

ITEM	RDF-55
Ratio	1:1.6
Teeth	15/24
Module	6.0
Power(HP)	50
Rated Input	540rpm
Input/Output Description	1-3/8 Z6Cone base adequilate spline shaft
Weight(N.W)	28.7KG

Raydafon lawn mower gearbox is used for lawn mower transmission, our normal standard from 30HP-90HP, we accept custom-made.We are professionals in the agricultural gearbox field with more than 20 years of experience. We can offer you not only gearboxes but also designing solutions.

Material	HT250 for housing
	20CrMnTi for gear shaft
	Aluminum for plate

We Also Supply PTO Shafts

Raydafon, a reliable PTO shaft manufacturer and factory in China, offers various series options and several choices for bearing diameter. If you need a universal joint PTO shaft for your agricultural gearbox and other farm machinery, contact us now!

Customized service of agricultural gearbox

Our agricultural gearbox has many items for your choice and we can produce as per your drawing or sample to meet your special request1. Large output torque2. Safe, reliable, economical, and durable3. Stable transmission, quiet operation4. High carrying ability5. High modularization design, may equip with various outer power inputs conveniently. The same machine type may equip with various power motors. It is easy to realize the combination and junction between every machine type6. Transmission ratio: Fine division, wide scope. The combined machine type may form a very large transmission ratio, i. E. Output very low rotary speed.7. Form of installation: The position to be installed is not limited.8. High strength, compact the box body of high strength cast iron, gear and gear shaft adopt the gas carbonization, quenching, and fine grinding process, therefore the bearing capacity of unit volume is high.9. Long life: Under the condition of the correct type chosen(including choosing suitable operation parament ) normal operation and maintenance, the life of the main parts speed reducer(except wearing parts)should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal, and bearing.10. Low noise: Because the main parts of the speed reducer are processed, and tested critically, therefore the noise of the speed reducer is low.11. Our gearbox has reached the advanced international level and can replace the same kind of products imported.

• Durable Protection: Fits most light-duty rotary cutters that require shear pin protection, and includes 5 replacement shear bolts to add to your rotary kit.
• Fits Models: RD5, RD6, RZ160, RZ60 – Gearbox Assembly P/N 00786192. Razorback Series BH4, BH5, BH6, BH4-2, BH5-2, BH6-2. BMB 1080, BMB 10300, Hardee C1378, Mohawk 14-500, Rhino 0711050100, Rhino 71105, Omni 250123, Omni 250001, SE Big Ox 1970, Sidewinder 26272, and Others
• Industry-standard 1-3/8" smooth diameter input shaft with 1/2" shear bolt hole and retaining ring groove and 1.57" diameter 12 tapered spline output shaft allow fitment to most light, standard, and medium-duty rotary cutters.
• 1:1.47 Ratio for use on 5' and larger diameter rotary cutters
• Each gearbox features high-speed ball bearing units and heat-treated gears and shafts to ensure long life. Four-bolt mounting matches industry standards. Each gearbox includes a blade carrier mounting nut and cotter pin. Gearboxes are shipped dry and require 16 ounces of 90W or 85w140 gearlube or equivalent.
