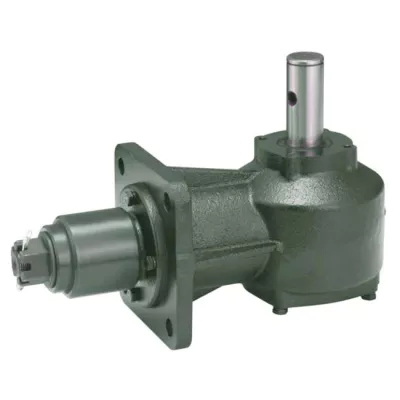

Agricultural Lawn Mower Gearbox RDF-GS4RC

Agricultural Lawn Mower Gearbox RDF-GS4RC

The GS4RC lawnmower gearbox is used for lawn mower transmission, our normal standard from 30 HP-90 HP, we accept custom-made. This series of agricultural lawn mower gearboxes is self-developed. With its characteristics of high universality, simple structure, good performance, etc., it is widely used in garden machines and other agricultural machines. We are professionals in the agricultural gearbox field with more than 15 years of experience. Advanced technics, strong self-development power, ability to produce new type agricultural gearbox according to customer's design drawings.

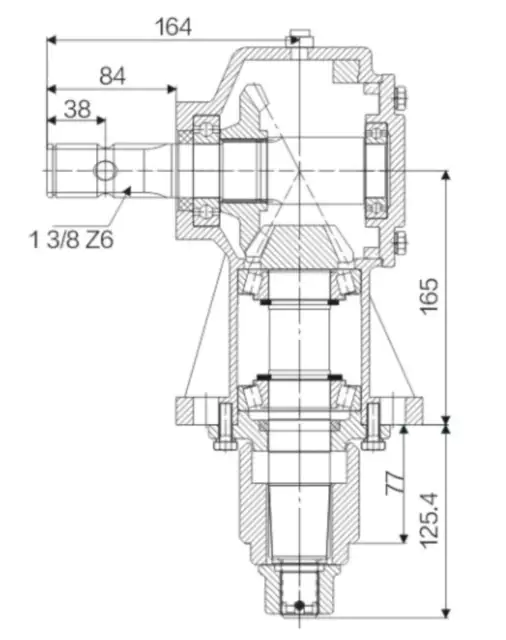

Agricultural Lawnmower Gearbox Specification

ITEM	RDF-GS4RC
Ratio	1:1.46/1:1.93
Teeth	22/15 23/12
Module	5.08 /5.0
Power(HP)	30
Rated Input	540rpm
Input/Output Description	1-3/8 Z6 Taper spline
Weight(N.W)	19KG

Agricultural Lawn Mower Gearbox Material

Material
Housing	QT450
Gear shaft	20CrMnTi
Plate	Aluminum

Agricultural Lawn Mower Gearbox Features

*The gear and shaft are quenched with high surface hardness.*Use high-quality oil seals and bearings.*Each lawn mower gearbox can be delivered after passing the inspection.*The lawn mower gearbox has low noise and stable operation.*It is made of ductile iron with strong toughness and long service life.

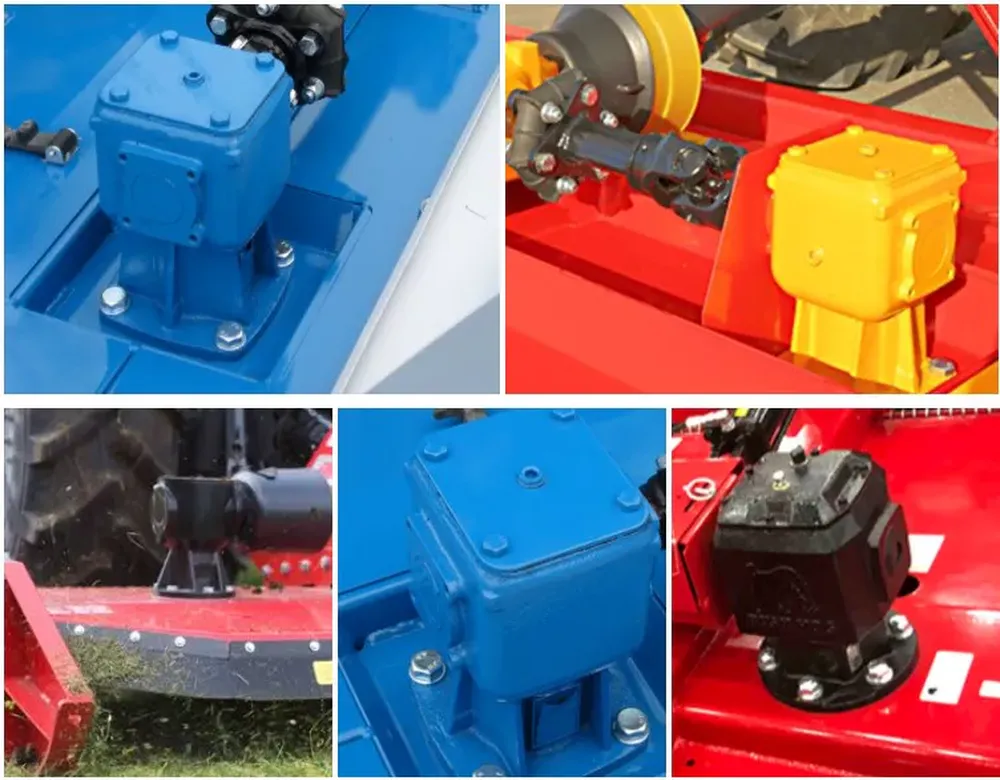

Agricultural Lawnmower Gearbox Applications

We offer a range of gearboxes suitable for use on agricultural and industrial machinery, including:-  Rotary Slashers.-  Rotary Cutters.-  Cotton choppers.-  Tree Cutters.-  Field bins

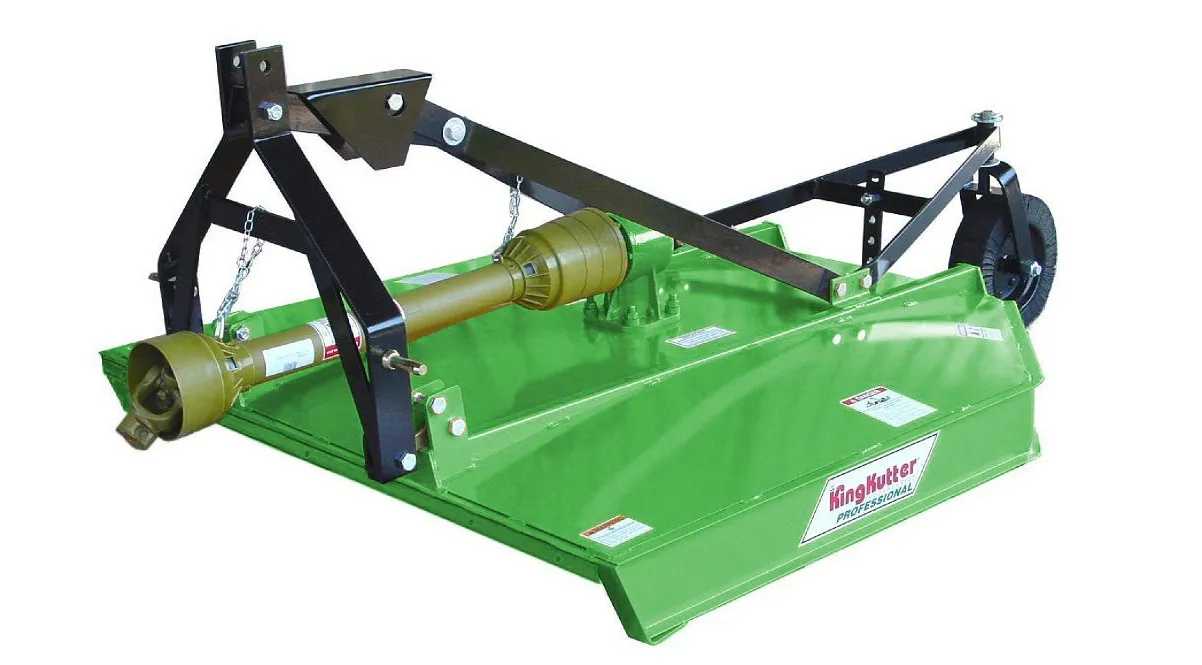

Agricultural Lawnmower Gearbox Precautions for Use

1, ensure the assembly quality: agricultural lawn mower gearbox installation or disassembly parts should avoid hammering. When replacing the gearbox of the farm mower, the parts corresponding to the original factory should be selected as far as possible. In addition, use an anti-stick agent on the hollow shaft to prevent friction and rust.2. Choose the installation position: When we install the lawnmower gearbox of the agricultural lawn mower, do not use vertical installation. If we choose vertical installation, we need to add enough oil, which can easily cause the gearbox heating, oil leakage, and other problems.3, choose lubricating oil and additives: under normal circumstances, we can use lubricating oil additives so that when the agricultural lawn mower gearbox stops running, the gear oil can still be attached to the gear surface, forming a layer of strong protective film, to prevent direct contact under the condition of low speed, heavy load, and high torque.

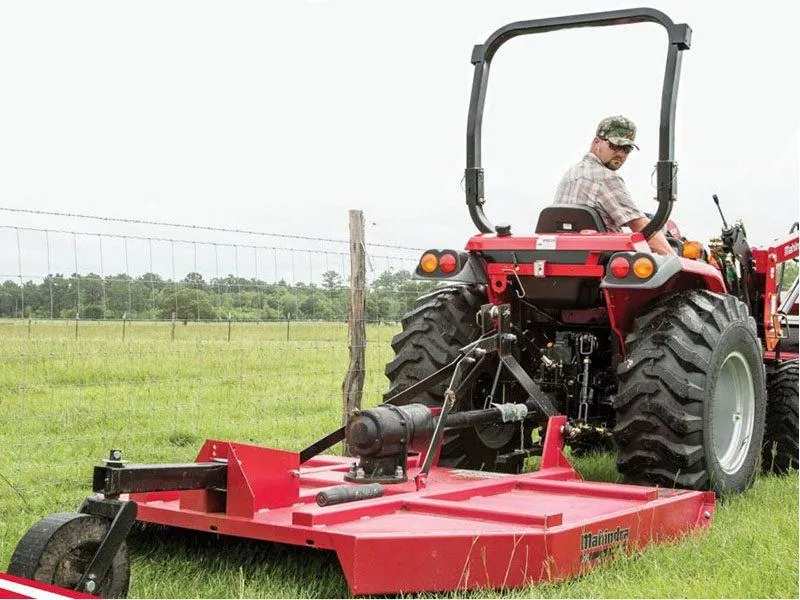

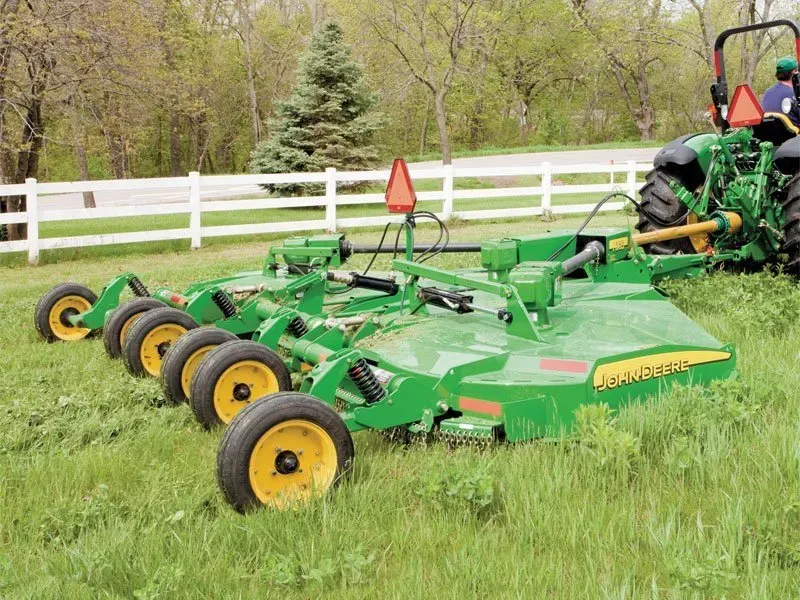

Agricultural Lawn Mower Gearbox Repair and Maintenance

Most problems with agricultural lawn mower gearbox drive equipment are caused by a lack of service and maintenance. Operators can check a few things before using their equipment.Always maintain proper oil levels. The bearing will not be fully lubricated if the mower gearbox speed is low. If the agricultural lawnmower gearbox is too full, it will generate heat, causing the box to heat up and possibly damage the seals.Check the free clearance of the input and output shafts. If there is any free space, it may be a sign of bearing wear or a change in bearing preload Settings. Excessive clearance will result in oil seal failure, resulting in lubricant loss and bearing and gear damage. Generally, bearing preload can be reset to eliminate all radial clearance by rehashing or tightening the bearing adjustment nut.Most agricultural lawn mower gearboxes require an air vent to prevent pressure from building inside the housing. Check regularly to make sure the respirator is working correctly. If the pressure in the box increases, the oil seal will break, and lubricant loss will occur.

Agricultural Lawn Mower Gearbox Oil Lubrication

After running the agricultural lawn mower gearbox for 50 hours, the primary oil should be changed under running load. Additional oil changes should be made every 1000 hours or annually, whichever comes first. Shorter oil change intervals may be required if the equipment operates under high temperatures or maximum load conditions. Depending on load conditions and unit environment, longer oil change cycles may be used. However, if longer oil change intervals are used, oil samples should be used to confirm the actual characteristics and condition of the oil. During the oil change process, care should be taken to ensure that oil is properly retained during the discharge of oil from the agricultural lawnmower gearbox. Waste oil should be properly disposed of according to local requirements.

PTO Shafts and Agricultural Gearboxes

Agricultural gearbox and PTO shaft: These components work together to transfer mechanical power between farm tractors. A PTO shaft converts engine energy into hydraulic pressure. This is what allows the tractor to pull heavy loads. When properly functioning, it reduces the risk of damage to the tractor and the operator. When used properly, it is an essential component of a tractor but can also become defective. When choosing an agricultural gearbox, consider the durability and mechanism of the product, as well as its materials. A durable gearbox will last for many years, avoiding repeated replacements. A high-quality agricultural gearbox will be durable for many years to come, and you don't want to replace it for a while. This can be costly, so consider your needs when purchasing an agricultural gearbox and PTO shaft.Raydafon offers a wide range of PTO shafts too. Contact us now!

Other Agricultural Gearboxes

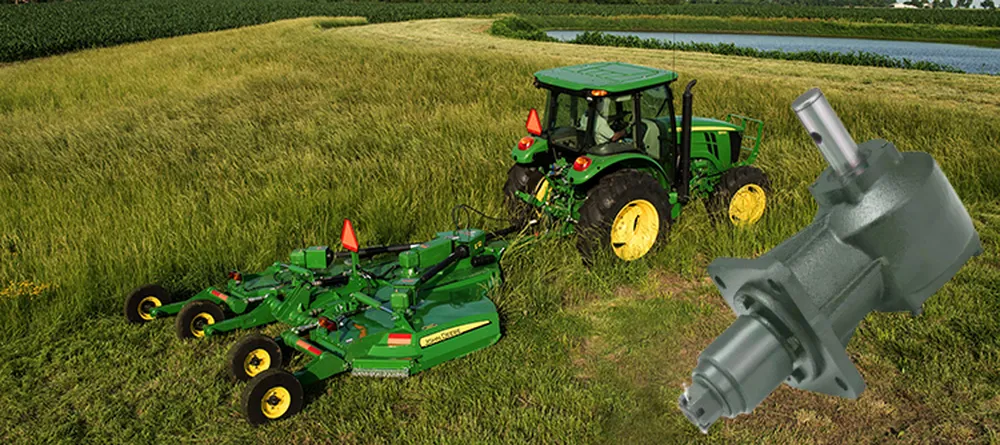

Lawn Mower Gearbox Suppliers

Raydafon is a professional in gearbox development and manufacturing. RG and RC series lawn mower gearboxes are used for lawn mower transmission. Our gearboxes have been exported to America, Canada, Australia, Thailand, Germany, etc.

Why Choose Our Agricultural gearboxes?

1) Customization: With a strong R&D team, we can develop products as required. It only takes 7 days for us to design a set of drawings. The production time for new products is usually 50 days or less.2) Quality: We have our complete inspection and testing equipment, which can ensure the quality of the products.3) Capacity: Our annual production capacity is over 500,000 sets. We also accept small quantity orders to meet the needs of different customers' purchase quantities.4) Service: We focus on offering high-quality products. Our products are in line with international standards and are mainly exported to Europe, Australia, and other countries and regions.5) Shipment: We are close to Ningbo and Shanghai ports to provide the fastest shipping service.

Agricultural Gearbox Production Workshop

Ningbo Raydafon Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Ningbo, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearboxes, spur gearboxes, worm gearboxes, and cylindrical gearboxes. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and hydraulic engineering components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy, and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.
