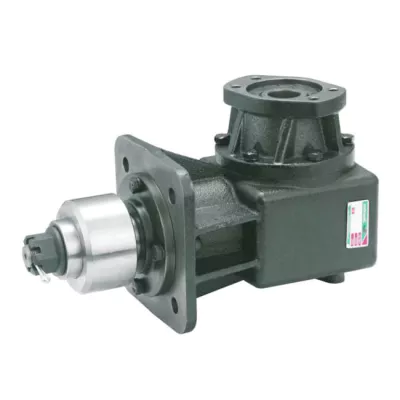

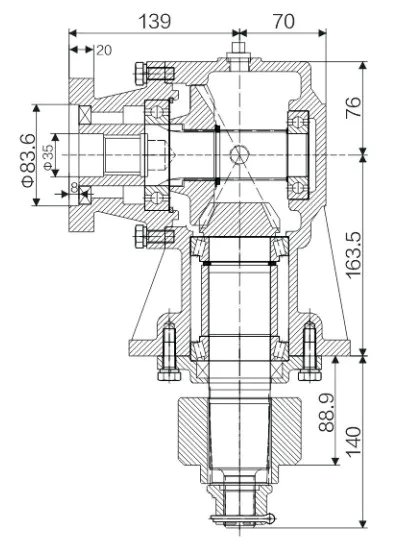

Agricultural Lawn Mower Gearbox RDF-RC51

Agricultural Lawn Mower Gearbox RDF-RC51

ITEM	RDF-rc51
Ratio	1:1.47/1:1.93
Teeth	22/15 29/15
Module	5.08 /4.0
Power(HP)	30
Rated Input	540rpm
Input/Output Description	Spline /Taper spline
Weight(N.W)	29KG

 Equipping your rotary cutter with a quality gearbox ensures smooth operation and improved performance. Our mission is to provide you with the durable transmissions you need to optimize your working time! Each gearbox is equipped with high-speed ball bearing units, as well as heat-treated gears and shafts to ensure long service life. Our gearboxes are sized to industry standards. All our gearboxes are shipped dry and require lubricating oils that meet the manufacturer's standards. Additionally, each gearbox includes a turret mounting nut.The gearbox of a mower driven by a hydraulic motor is a new type of gearbox independently developed by the Raydafon machinery factory according to the requirements of customers. This mower is suitable for various hydraulic motors. The input end face and input shaft can select the corresponding hydraulic motor according to the customization of customers. The shape of the input surface is diamond four threaded hole connection, double threaded hole connection, square four threaded hole connection, rectangular spline, involute spline, single key, and so on.The gearbox is connected to the body of the mower with diameters of 133 mm, 17 mm, and 171.2 mmThe gearbox and the cutter holder of the mower are connected by the number of teeth of the conical involute spline, and the diameter pitch is 5 / 10 and 4 / 8 according to the user's requirements.

We Also Supply PTO Shafts

A PTO shaft is an extremely sophisticated mechanism that allows implements to draw energy from an engine. It works with a mechanical agricultural gearbox. A PTO shaft can be mounted on a vehicle's transmission, and is an essential part of the system. A high-quality PTO shaft should be durable enough to withstand torsion and minimize vibration. Raydafon manufactures a wide range of durable PTO shafts to meet all your requirements.

Customized service of agricultural gearbox

Our agricultural gearbox has many items for your choice and we can produce as per your drawing or sample to meet your special request

• Durable Protection: Fits most light-duty rotary cutters that require shear pin protection, and includes 5 replacement shear bolts to add to your rotary kit.
• Fits Models: RD5, RD6, RZ160, RZ60 – Gearbox Assembly P/N 00786192. Razorback Series BH4, BH5, BH6, BH4-2, BH5-2, BH6-2. BMB 1080, BMB 10300, Hardee C1378, Mohawk 14-500, Rhino 0711050100, Rhino 71105, Omni 250123, Omni 250001, SE Big Ox 1970, Sidewinder 26272, and Others
• Industry-standard 1-3/8" smooth diameter input shaft with 1/2" shear bolt hole and retaining ring groove and 1.57" diameter 12 tapered spline output shaft allow fitment to most light, standard, and medium-duty rotary cutters.
• 1:1.47 Ratio for use on 5' and larger diameter rotary cutters
• Each gearbox features high-speed ball bearing units and heat-treated gears and shafts to ensure long life. Four-bolt mounting matches industry standards. Each gearbox includes a blade carrier mounting nut and cotter pin. Gearboxes are shipped dry and require 16 ounces of 90W or 85w140 gearlube or equivalent.

Other Agricultural Gearboxes

Agricultural Gearbox Production Workshop

Ningbo Raydafon Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Ningbo, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.
