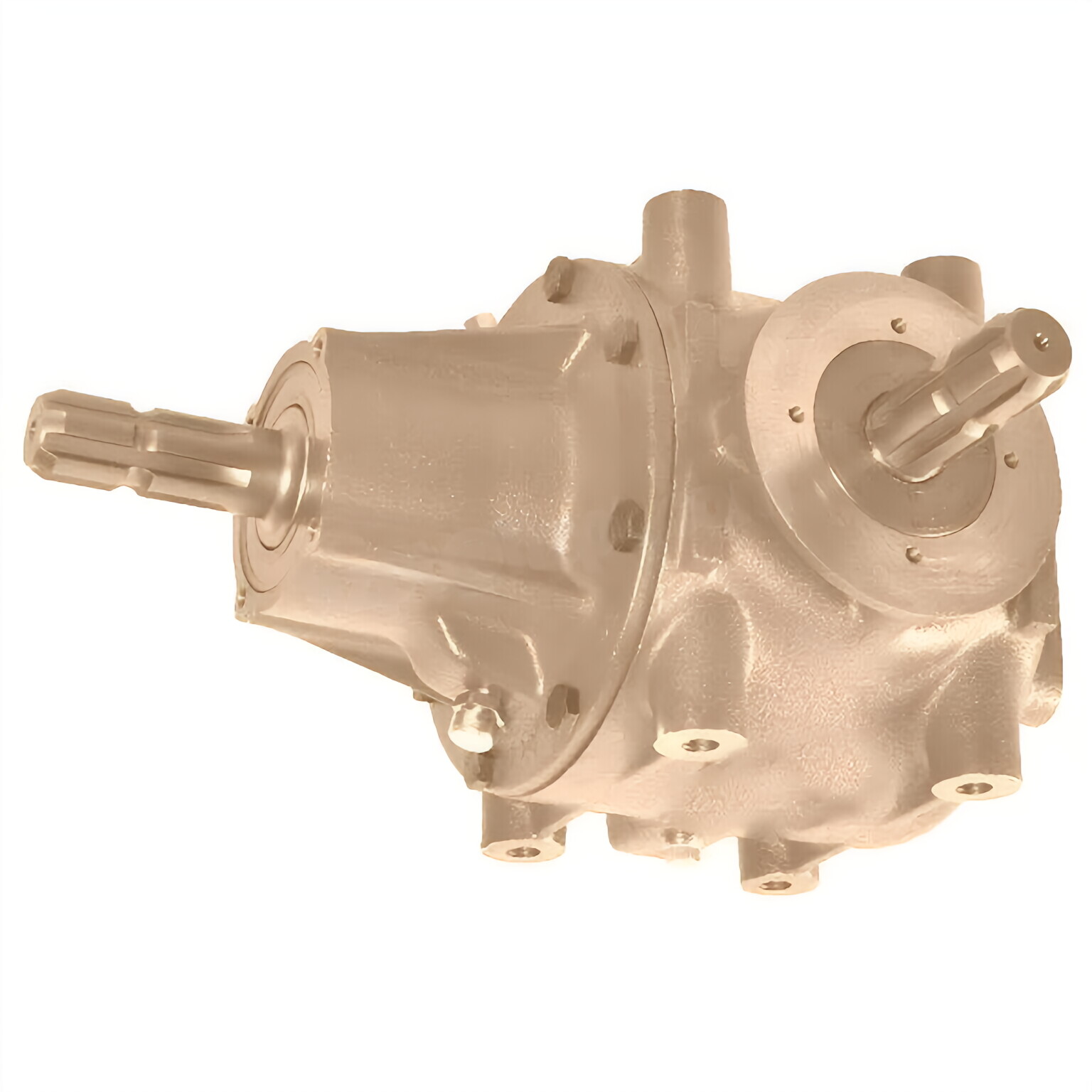

Angular Gearboxes - Replacement of Comer Code T-292B 1:1

Upgrade your machinery with the Raydafon Group Angular Gearboxes, a seamless replacement for the Comer Code T-292B 1:1. Engineered for precision, durability, and smooth operation, this product is ideal for industrial users needing reliable gear solutions. Its innovative design ensures enhanced performance, solving alignment issues and boosting efficiency. Experience hassle-free maintenance and superior quality that sets it apart from competitors. Invest in Raydafon Group — elevate your equipment’s potential today!

Send Inquiry

Product Description

Angular Gearboxes - Replacement of Comer Code T-292B 1:1

Description	Angular Gearboxes - Replacement of Comer Code T-292B 1:1
Application	Various (agricultural) applications
Consists of	Gearbox Without oil
Technical information	If you have any questions regarding performance at different speeds, please do not hesitate to contact us When using for the first time, replace the oil after 50 operating hours
Max. input power	61.8 kW
Max. output torque	1059 nm
Contains oil	No
Max. oil capacity	2.5 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GGG40
Weight	33 kg
Gear arrangement	33 - 34
Ratio	1 : 1
Input shaft	Z
Shaft X	1 3/8" (6)
Shaft Y	1 3/8" (6) (B)
Shaft Z	1 3/8" (6) (A)
