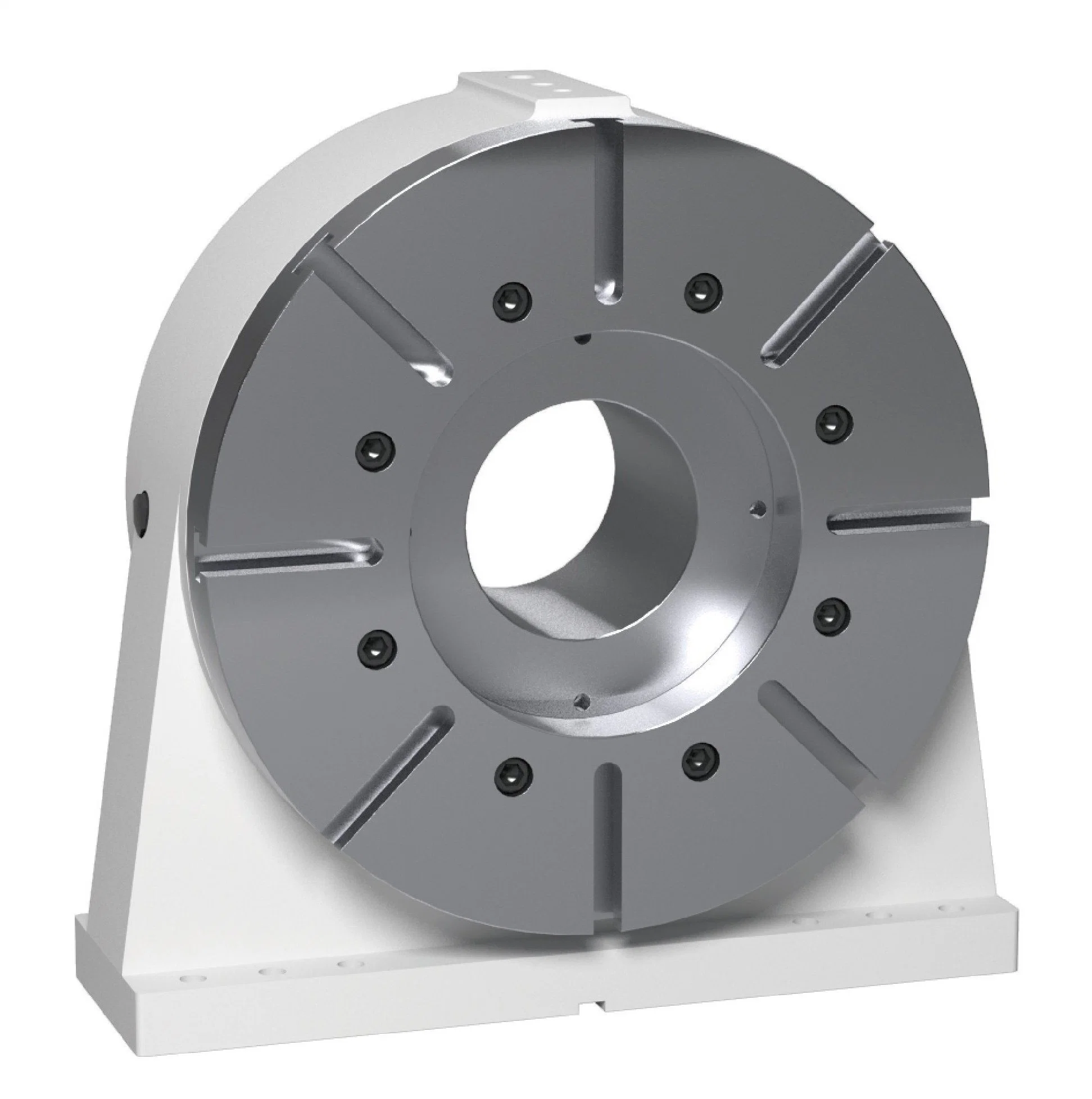

AR-500 Hot Sales 4 Axis Rotary Table Tailstock and Rotary Table 4th Axis for CNC Milling Machine

Introduction to CNC Rotary Table Tailstock

The CNC rotary table tailstock, a vital component of a CNC milling machine, serves as a supportive and stabilizing accessory for the workpiece during machining. The combination of the tailstock and the CNC rotary table expands the machining capacity and precision, thus enhancing the efficiency and quality of production.

Structure of the Tailstock

Primarily, a tailstock consists of elements such as a pressure adjustment device, a fixture, and a supportive device. The pressure adjustment device aids in the regulation of force exerted on the workpiece. Simultaneously, the fixture aids in securing the workpiece in the correct position, while the support device provides stability during the machining process.

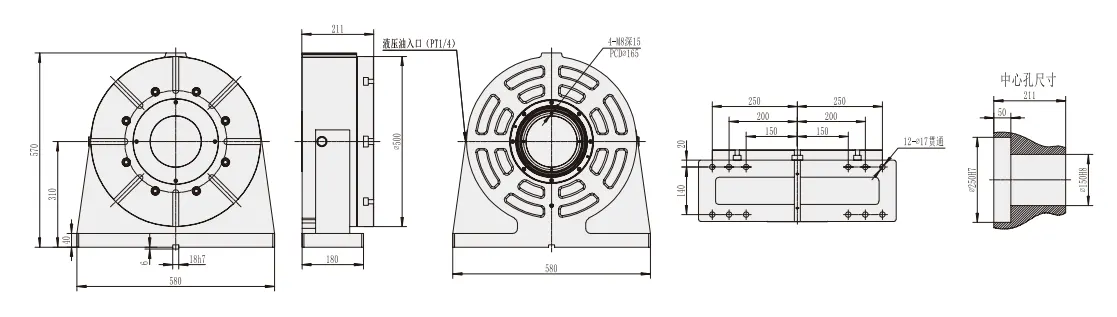

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Width of bottom guide key	Weight
AR-500	φ500mm	φ250H7mm	φ150mm	310mm	14H7mm	18H7mm	200Kg

Working Principle of the Tailstock on CNC Rotary Table

The tailstock works by securing the workpiece and adjusting its position for optimal machining. It collaborates with other mechanical components to ensure a smooth, efficient, and precise machining process.

Materials and Manufacturing Techniques

Tailstocks, typically made of durable stainless steel, undergo rigorous processes such as casting, machining, and heat treatment to ensure their robustness and longevity.

Applications and Advantages

Tailstocks find use in various industrial production scenarios, offering advantages such as increased machining precision, enhanced operational efficiency, and versatility in handling workpieces of different sizes and shapes.

How to Choose a Tailstock

Considerations when choosing a tailstock include the size and shape of the workpiece, the material of the workpiece, the technical requirements of the machining process, and the budget for the purchase.

Why Choose Raydafon

Raydafon, renowned for its R&D innovation and production technology, designs CNC rotary tables that meet the diverse needs of customers. The company adheres to the business philosophy of "honesty based, harmony based, technology-based, industry competitive" and has developed high-precision 4-axis and 5-axis rotary tables in cooperation with domestic and foreign machine tool manufacturers. Raydafon's products, including 4-axis, 5-axis CNC turntable and horizontal 4-axis turntable for tool machine tools, are widely used in various processing equipment across fields such as 3C, automotive, energy, military, and aerospace.We strongly encourage customers to explore our products and contact us for purchases. We guarantee quality products, competitive prices, and excellent service.CNC rotary table factory">

Frequently Asked Questions

1. What is the quality guarantee for your products?

Raydafon offers a one-year quality guarantee for all its products.

2. Are your products customizable?

Yes, Raydafon accepts OEM orders and can design and produce products according to your requirements.

3. What are your payment terms?

For small orders, payment should be made 100% in advance. For large orders, payment terms can be negotiated.Edited by Zqq.
