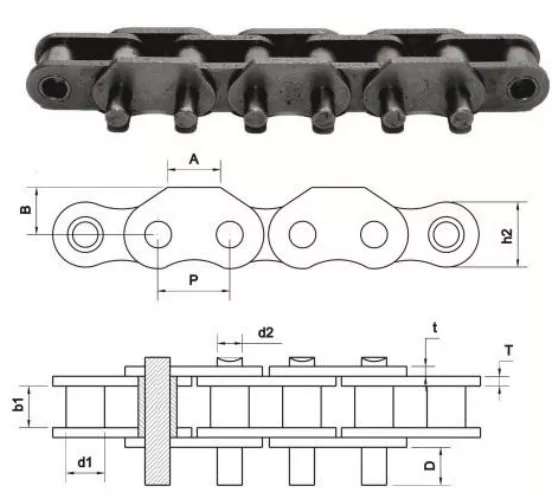

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Attachment size | |
| P | d1 max | b1? min | d2 max | D | h2 max | t/T max | A | B | |
| 06B-F1 | 9.525 | 6.35 | 5.72 | 3.28 | X | 8.2 | 1.3 | 8 | 6 |
| 06B-F2 | 9.525 | 6.35 | 5.72 | 3.28 | X | 8.2 | 1.3 | 10 | 6 |
| 06C | 9.525 | 5.08 | 4.77 | 3.58 | X | 8.2 | 1.3 | 8 | 6 |
| 06C-F1 | 9.525 | 5.08 | 4.77 | 3.58 | X | 8.2 | 1.3 | 7 | 9 |
| 08B | 12.7 | 8.51 | 7.75 | 4.45 | X | 11.8 | 1.5 | 13 | 8 |
| 16A | 25.4 | 15.88 | 15.75 | 7.92 | X | 24 | 3 | 20 | 13.2 |
