Bevel Gear 194194C1/87375653 for Case-IH Combine Straw Chopper Parts

Raydafon Group's Bevel Gear 194194C1/87375653 for Case-IH Combine Straw Chopper Parts ensures reliable performance and durability for demanding agricultural equipment, helping farmers minimize downtime and maximize harvest efficiency with precision-engineered quality.

Send Inquiry

Product Description

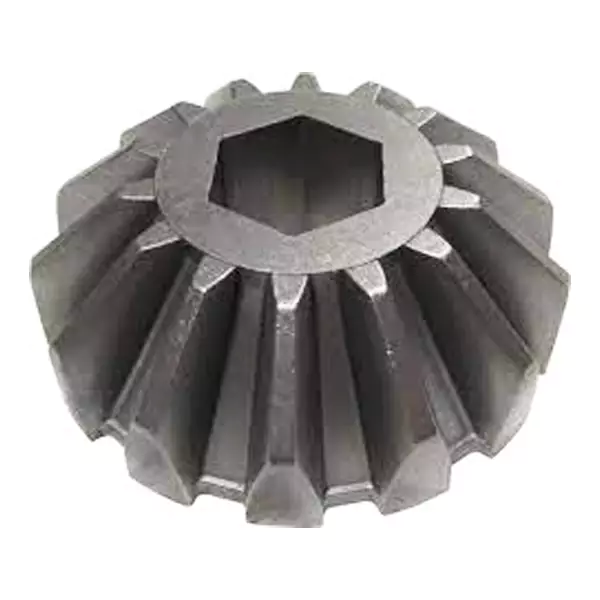

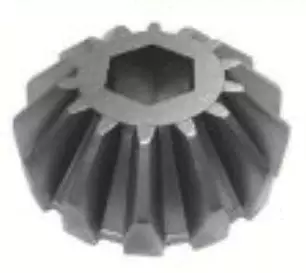

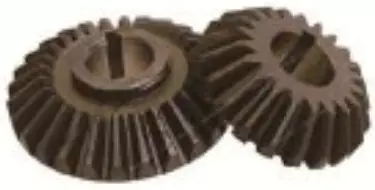

Bevel Gear 194194C1/87375653 for Case-IH Combine Straw Chopper Parts

▍Bevel Gear Fits the following makes and models:

Case-IH COMBINE: 1420, 1440, 1460, 1470, 1480, 1482, 1620, 1640, 1660, 1670, 1680, 1682, 2144, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588, 5088, 6088, 7088

Bevel gears are gears designed to transmit motion between intersecting shafts. Vertical alignment is the most common, but bevel gears can be made at almost any angle. The tooth-bearing surface or tooth pitch of the gear is tapered or tapered. Miter gear is a bevel gear manufactured in a ratio of 1:1. The number of teeth on the mating gear is the same, and the shaft is vertical.

▍Bevel Gear Application Requirements

Application requirements should be considered with the workload and environment of the gear set in mind.

Power, velocity and torque consistency, and output peaks of the gear drive so the gear meets mechanical requirements.
The inertia of the gear through acceleration and deceleration. Heavier gears can be harder to stop or reverse.
Precision requirement of gear, including gear pitch, shaft diameter, pressure angle, and tooth layout.
Handedness (left or right teeth angles) for spiral and hypoid bevel gears.
Gear lubrication requirements. Some gears require lubrication for smooth, temperate operation.
Mounting requirements. Application may limit the gear's shaft positioning.
Noise limitation. Commercial applications may value smooth, quietly meshing gear.
Corrosive environments. Gears exposed to weather or chemicals should be specially hardened or protected.
Temperature exposure. Some gears may warp or become brittle in the face of extreme temperatures.
Vibration and shock resistance. Heavy machine loads or backlash, the deliberate surplus space in the circular pitch, may jostle gearing.
Operation disruption resistance. It may be necessary for some gear sets to function despite missing teeth or misalignment.

▍Materials of Bevel Gears

Gear composition is determined by the application, including the gear's service, rotation speed, accuracy, and more.

Cast iron provides durability and ease of manufacture.
Alloy steel provides superior durability and corrosion resistance. Minerals may be added to the alloy to further harden the gear.
Cast steel provides easier fabrication, strong working loads, and vibration resistance.
Carbon steels are inexpensive and strong but are susceptible to corrosion.
Aluminum is used when low gear inertia with some resiliency is required.
Brass is inexpensive, easy to mold, and corrosion-resistant.
Copper is easily shaped, conductive, and corrosion-resistant. The gear's strength would increase if bronzed.
Plastic is inexpensive, corrosion-resistant, quiet operationally, and can overcome missing teeth or misalignment. Plastic is less robust than metal and is vulnerable to temperature changes and chemicals. Acetal, Delrin, nylon, and polycarbonate plastics are common.
Other material types like wood may be suitable for individual applications.


194194C1/87375653	191677C1	186517C1
Weight: 0.53kg	Weight: 0.48kg	Weight: 2.52kg
For Case-IH Combine straw Chopper Parts	For Case-IH Combine Separator	For Case-IH Combine Auger Related Parts

▍Parts by equipment type

We can supply the following repair replacement parts for John Deere agricultural machinery equipment and accept customization Our products are widely applicable for that tractors and engines such as Massey Ferguson, John Deere, UTB, Fiat, Ford, New Holland, Perkins, Deutz, and so on. Our products have covered more than 6000 kinds of parts. Bevel Gear 194194C1/87375653 for Case-IH Combine Straw Chopper Parts

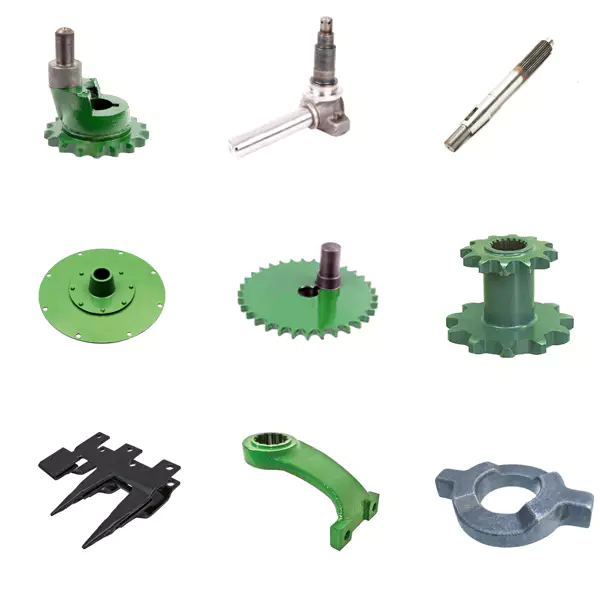

▍Related Products

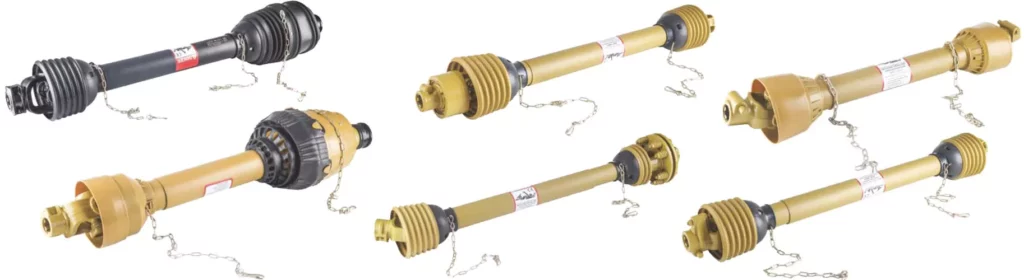

▍We Also Supply PTO Shafts & Agricultural Gearboxes

If you also need the PTO shafts, click here：https://hzpt.com/agricultural-pto-shaft/ Bevel Gear 194194C1/87375653 for Case-IH Combine Straw Chopper Parts

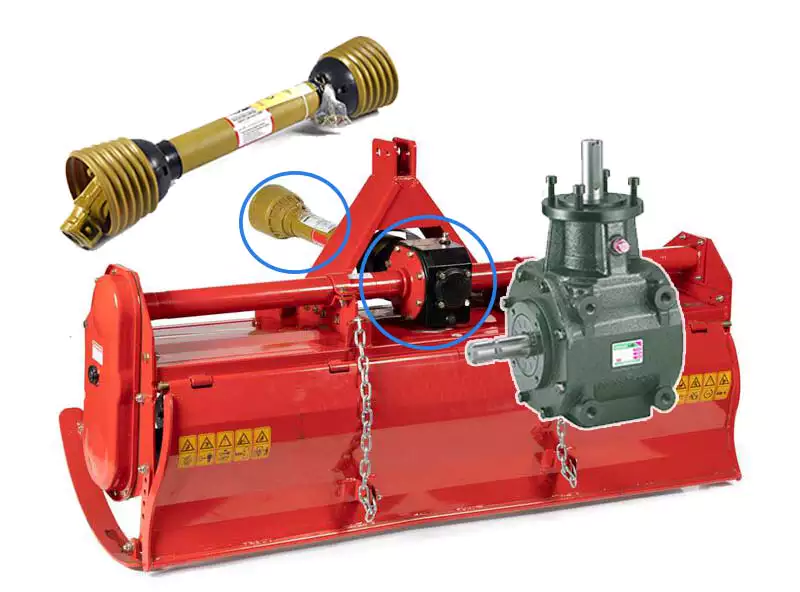

We Also Supply Agricultural Gearboxes Bevel Gear 194194C1/87375653 for Case-IH Combine Straw Chopper Parts

▍Company Information

We supply spare parts for combined harvesters. These products are exported all over the world. Our annual sales exceed $ 7 million. Our product line Our main products include knife section, knife rest, file bar, agricultural belt, agricultural chain, gear, shaft, rake disc, spring tooth, sprocket, belt pulley, ball head, knife head, agricultural bearing, etc. They are mainly used for John Deere, New Holland, Claas and MF combine harvesters. All kinds of ball and roller bearings are our second major business. EMQ bearing, linear bearing, and ceramic bearing are our advantages. Why choose us We reject low-quality products. This is the key to our success. Customer satisfaction is our goal. To ensure this, we have implemented a sound quality control policy at each stage of the transaction. The sealed samples of the goods are well preserved for further tracking. However, we are not only committed to meeting the needs of customers, but also propose ways to improve product functions. With this excellence and excellent service, we have developed well with our customers. Expertise and know-how ensure that we always gain the trust of our customers in our business activities. "Quality", "honesty" and "service" are our purposes. Our loyalty and commitment will serve you respectfully. Contact us now For more information, please contact us now.

Hot Tags: Bevel Gear 194194C1/87375653, Case-IH Combine Straw Chopper Parts, Custom Bevel Gear Supplier
