BLD XLD Series Cycloidal Gearbox Single Stage Flange-mounted with Motor

BLD XLD Series Cycloidal Gearbox

Cycloidal reducer is a new type of transmission machinery based on JB/T2982, which adopts the principle of planetary transmission with small tooth difference and cycloidal pin wheel meshing. It is widely used in the fields of textile printing and dyeing, light industrial food, metallurgy, mining, petrochemical, lifting and transportation, and engineering machinery.Features:

• Low noise and smooth operation.
• High load capacity, low temperature rise and long service life.
• Compact structure, small volume and convenient maintenance.
• Specifications: single and double
• Transmission ratio: single stage 6~87, double stage 99~7569
• Structure: double shaft and direct joint
• Installation: foot and flange

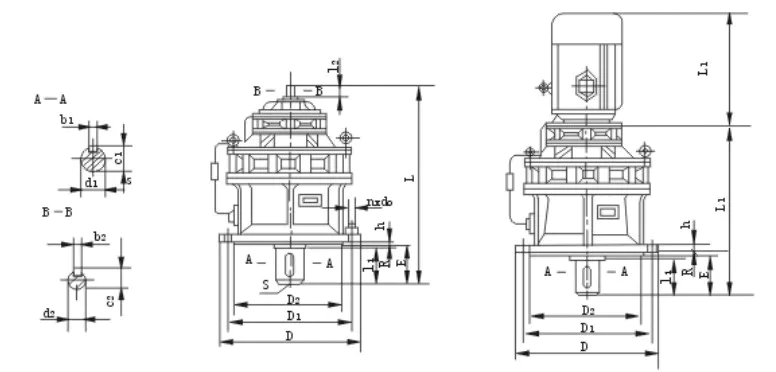

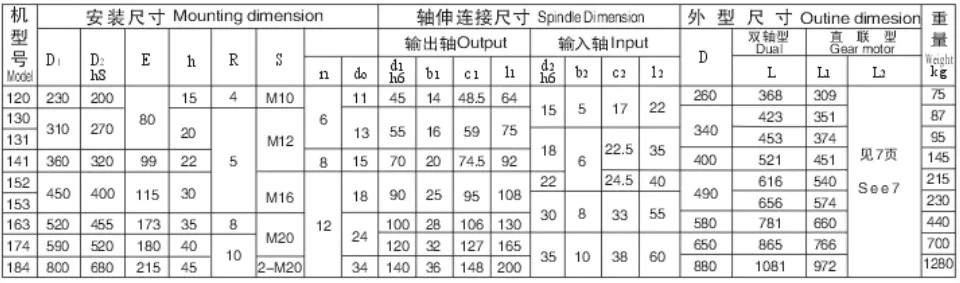

Dimension of Cycloidal reducer

 XLD Series Cycloidal Gearbox

BLD Series Cycloidal Gearbox

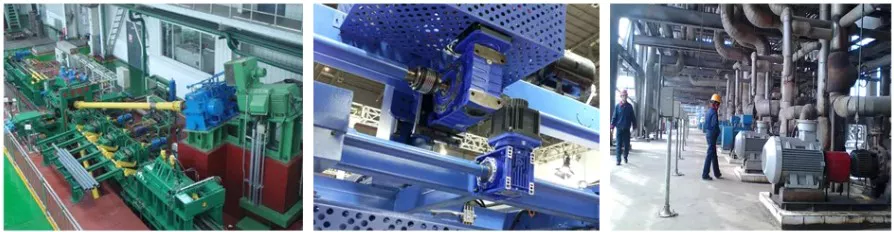

Application of Cyclo Gearbox

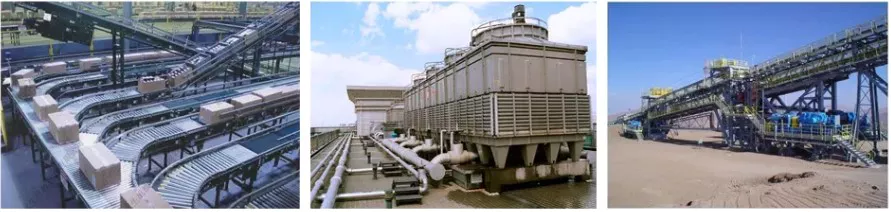

Cycloidal pin wheel reducer has many specifications and models. For example, there are B series, X series and 8000 series. There are many kinds of cycloidal reducers. Therefore, it also has many applications that can meet different requirements. It can be widely used as a driver or reducer in many industries, such as petroleum, environmental protection, chemical industry, cement, transportation, textile, pharmaceutical, food, printing, lifting, mining, metallurgy, construction, power generation and many other industries.

Lifting machinery industry	Transportation industry	Metallurgical industry
Belt conveyor	Chemical mixing industry	Mining machinery industry

Structural of cycloidal pin gear reducer

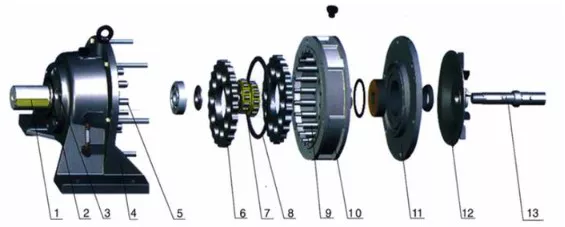

1.output shaft	2.Dead ring of output shaft	3.Small end cap	4.Frame
5.Pin shaft and Pin Bush	6.Cycloidal gear	7.Eccentric bearing	8.Spacer ring
9.Gear pin and pin gear bush	10.Pin gear housing	11.Big end cap	12.Fan blade and cover
13.Input shaft

It is mainly composed of four parts:

1. Planetary carrier H, also known as rotary arm, is composed of input shaft 10 and eccentric wheel 9. The eccentric wheels form a mutual click in the two eccentric directions to browse the next page.
2. Planetary gear C, namely cycloidal gear 6, its tooth profile is usually an equidistant curve on the inside of a short epicycloid In order to achieve static balance of the input shaft and improve the bearing capacity, two identical cycloidal gears with odd teeth are used to install them on the double eccentric sleeve. The two positions are staggered and click to browse the next page. A rolling bearing, called the rotary arm bearing, is installed between the cycloidal gear and the eccentric sleeve. Generally, the roller bearing without outer race is used, and the inner surface of the cycloidal gear is directly used as the raceway. In recent years, the structure of optimized design often makes the eccentric sleeve and bearing into a whole, which is called integral double eccentric bearing.
3. The center wheel b, also known as the needle wheel, is composed of a group of needle teeth pins 5 (usually a needle sleeve 7 is also installed on the needle teeth pin) evenly distributed along the circumference of the center circle of the needle teeth on the needle teeth housing 3.
4. The output mechanism W, like the involute planetary gear transmission with small tooth difference, usually adopts the pin shaft output mechanism.

Precautions for Installation of Cycloidal Pin Gear Reducer

1. When installing coupling, belt pulley, sprocket and other connecting parts on the output shaft of the cycloidal reducer, it is not allowed to use the direct hammering method. Because the output shaft structure of the reducer cannot bear the axial hammering force, the connecting parts can be pressed by screwing in the screw hole at the shaft end.
2. The diameter of output shaft and input shaft shall be matched with GB1568-79.3. The eyebolts on the reducer are only for lifting the reducer.
3. When installing the reducer on the foundation, calibrate the elevation of the installation center line, levelness and relevant dimensions of the connected parts of the reducer. The concentricity of the calibrated installed shaft shall not exceed the allowable range of the coupling.
4. When the reducer is calibrated, steel or cast iron cushion blocks can be used. The height of the cushion blocks shall not exceed three, or the wedge iron can be used. However, the flat cushion blocks shall be replaced after the reducer is calibrated.
5. The cushion blocks shall be arranged symmetrically on both sides of the foundation bolts to avoid deformation of the machine body, and their mutual distance shall be sufficient to allow free flow of water slurry during irrigation.
6. The irrigation of cement slurry shall be dense and free from bubbles, voids and other defects.

Cyclo Gearbox Manufacturer

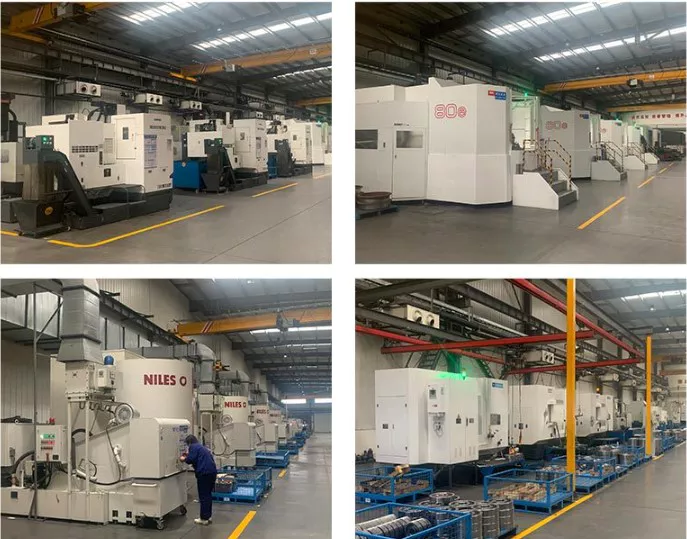

Ningbo ever power cycloidal reducer manufacturing Co., Ltd., a member of the China Gear Professional Association, is a professional manufacturer of cycloidal pin gear reducers in Asia.The main products are: X series, B series, 8000 series cycloidal pin gear reducers, ZQ, ZD, ZL, ZS, ZSC series reducer of various models, YCJ, YTC series reduction motors, oil cooled electric rollers, K, F, S, R series helical gear reducers, WD, WXJ, WS, WHT series worm reducers, ZDY, ZLY, ZSY series hard tooth surface reducers, DBY, DCY series hard tooth surface bevel cylindrical gear grinding reducers, The above products have passed the ISO9002 international quality system certification, and are widely used in metallurgy, mining, cement, building materials, chemical industry, plastics, paper making, hoisting and other industries, and can manufacture various non-standard products and accessories according to the needs of appliances.The company is always committed to the progress of science and technology and the improvement of quality. Adhering to the tenet of "sincere cooperation for ever", the factory is equipped with advanced processing equipment, strong technical force and perfect detection means, and the technical quality level is in the leading position of the industry.
