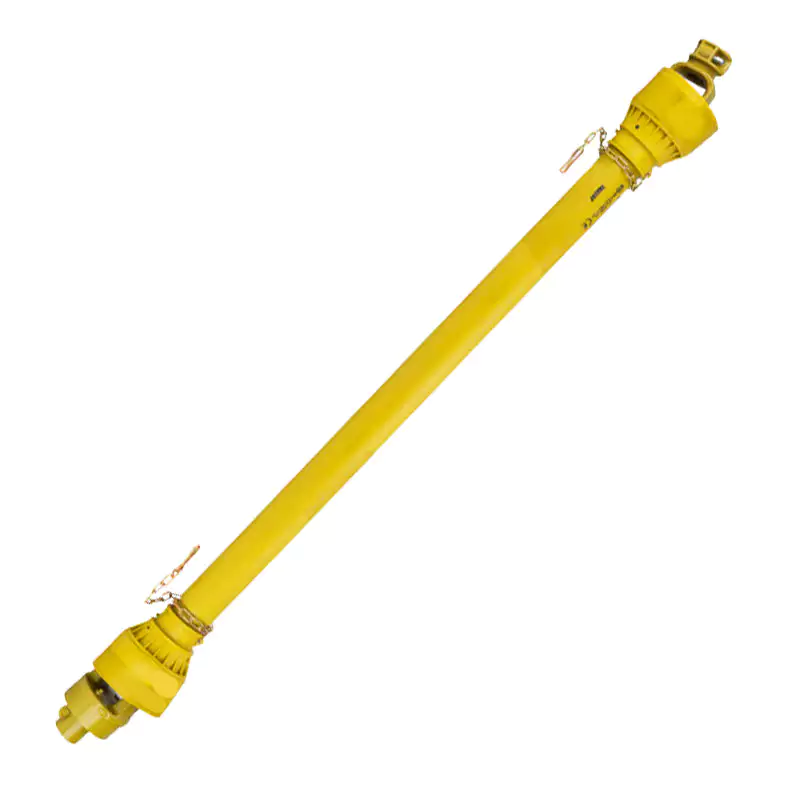

Blueline PTO Shaft Replacement with Overload Clutch B4 710mm P6/P5

BLUELINE pto shaft

Further information

universal joint size A profile (mm):

27 x 74,6

Universal joint size B profile (mm):

27 x 74,6

Size:

B4

Tractor version:

1 3/8" 6 splines

Implement version:

1 3/8" 6 splines

Lz (mm):

710

Torque (Nm):

1700

Connection:

Shear bolt clutch

Profile:

Italian system

Profile pair:

P6/P5

A (profile):

1 3/8" 6 Z?hne

B (profile):

1 3/8" 6 Z?hne

Locking system:

Quick-release pin/clamping bolt

Additional information:

Operating instructions included

Weight:

10.50 kg

EAN codes:

4059139175796

To be found in category:

PTO shafts & drive technologySearch filters: PTO shaftsPTO shafts with overload clutches

Introduction to the PTO Shaft

The PTO (Power Take-Off) shaft is an essential component that transfers the power from your tractor to the implement. Here are five key features of the PTO shaft:

• Universal joint size A and B profile of 27 x 74.6 mm
• Size B4
• Tractor and Implement version: 1 3/8" 6 splines
• Lz of 710 mm
• Torque of 1700 Nm

Understanding the Overload Clutch

The overload clutch serves as a protective device for the PTO shaft and the associated equipment. Its role is crucial in situations of abnormal load or overload. Here are some of its functions:

• Protects the transmission system: The overload clutch shields the transmission system by reducing torque transfer when the system encounters an abnormal load or overload, thereby preventing damage to transmission parts.
• Prevents accidents: The presence of an overload clutch can avert accidents. In cases of excessive load, the transmission system may lose control, leading to equipment damage, unstable operation, or even endangering operator safety.
• Adapts to load fluctuations: The overload clutch can flexibly adapt to these load fluctuations, maintaining the smooth operation of the transmission system and avoiding instability or damage due to sudden load increases.
• Adjusts and protects power sources: The overload clutch not only protects the transmission system but also adjusts and protects power sources. When the load suddenly increases, the torque transferred to the power source may exceed its bearing range.

Our PTO Shaft with Overload Clutch

We manufacture PTO shafts with overload clutches. Our PTO shafts are of the same size and installation mode as those of Blueline, and they can perfectly replace them for use.

How to Choose the Right PTO Shaft

When selecting a PTO shaft, it is important to take note of several parameters:

• Length: The distance between the drive device and the receiving device.
• Rated power.
• Type and connection mode of the shaft.
• Torque transmission capacity.
• Environmental requirements: Protection cover, sealing performance, and durability, etc.
• Safety features: Reliable anti-card sleeve device, anti-card pin, etc.
• Adaptability.
• Certification: CE certification.

Importance of CE Certification

The CE certification is crucial for several reasons:

• It ensures that the PTO shaft complies with the regulations and standards of the European Union, ensuring that the design, manufacture, and use of the PTO shaft meet the requirements of the European market, providing basic safety guarantees.
• The CE certification is a necessary condition for entering the market when selling PTO shafts in the European market.
• The CE certification provides a reliable guarantee for the safety performance of the PTO shaft.
• A PTO shaft with a CE certification conveys confidence in product quality and safety.

Our Certifications

Our company's PTO shafts have CE, TS/16949, ISO 9001 certifications. Here is a glimpse of our certificates:

Structure of the PTO Shaft

The PTO shaft comprises the Housing, Drive Shaft, Universal Joint, Protective Cover, and Connectors. Each part is made from high-quality materials. We also sell individual parts. Here is a look at the structure:

Applications of the PTO Shaft

The PTO shaft is widely used in various scenarios:

• Agricultural machinery: It is commonly used to connect tractors and agricultural equipment, such as mowers, harvesters, straw crushers, sprayers, mixers, etc.
• Industrial equipment: The PTO shaft is used to drive various rotating equipment, such as pumps, generators, centrifuges, mixers, etc.
• Transportation equipment: The PTO shaft is also used to drive certain transportation equipment, such as trailers, semi-trailers, and trailers, etc.
• Solar system: The PTO shaft is often used to achieve the rotation and adjustment of tracker photovoltaic panels.

How to Adjust the Length of the PTO Shaft

Here is a guide on how to adjust the length of the PTO shaft:

• Remove the plastic protective cover.
• Shorten the inner and outer pipes according to the required length, shortening the inner and outer pipes by the same length at a time.
• Remove burrs with a file.
• Shorten the inner and outer plastic pipes according to the required length, shortening the inner and outer tubes by the same length at a time.
• Oil the inner tube of the steel pipe, then reinstall the drive shaft plastic protective cover.

About Raydafon Group

Raydafon Group is a leading player in the PTO Shaft market in China, engaged in the development, manufacture, and marketing of power output shafts, industrial universal joints, and automotive drive shafts. Our products enjoy high reputation among customers in Europe, the US, Asia, Australia, and North America. We support custom-made and processing services, laser printing of logos. We are among the top three professional OEM suppliers for numerous agricultural machinery factories and have obtained CE, TS/16949, ISO 9001 certifications. We possess systematic production equipment and teams, ensuring our quality and delivery. In addition, we also supply the following related products: agricultural gearboxes, chains, sprockets, pulleys, couplings, and other transmission parts and agricultural machinery parts.

Customers are welcome to customize based on drawings or samples. Partner with us for a journey towards success!
