Boom Aerial Work Vehicle Steering Hydraulic Cylinder

Boom Aerial Work Vehicle Steering Hydraulic Cylinder

A boom aerial work vehicle steering hydraulic cylinder is a type of hydraulic cylinder that is used to provide the steering force for boom aerial work vehicles. It is a double-acting cylinder, which means that it can extend and retract. The steering cylinder is typically mounted on the front axle of the vehicle, and it is connected to the steering linkage.

When the operator turns the steering wheel, it activates a hydraulic pump, which sends fluid to the steering cylinder. The fluid pressure causes the piston in the cylinder to move, which in turn moves the steering linkage and turns the wheels.

Boom aerial work vehicle steering hydraulic cylinders are typically made of high-strength steel and are designed to withstand the harsh operating conditions of these vehicles. They are also equipped with a number of safety features, such as pressure relief valves and guards, to prevent accidents.

The following are some of the key features of a boom aerial work vehicle steering hydraulic cylinder:

• Double-acting
• Made of high-strength steel
• Equipped with safety features
• Designed to withstand harsh operating conditions

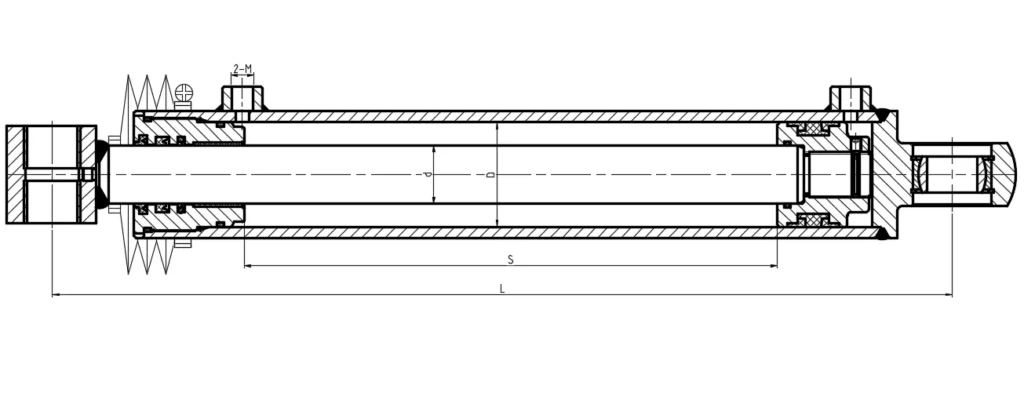

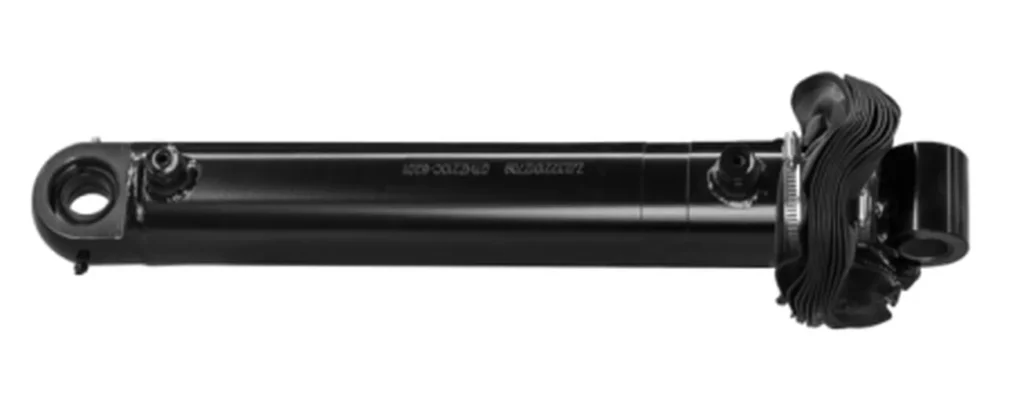

Boom Aerial Work Vehicle Steering Hydraulic Cylinder Dimensions:

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Steering cylinder	GTHZ210C-620100-000	Φ63	Φ35	320	540	21MPa	2-M14*1.5	13kg

Boom Aerial Work Vehicle Steering Hydraulic Cylinder Parameter:

Item	Description
Product Name	Steering Hydraulic Cylinder
Application	Boom Aerial Work Vehicle
Material	20#/45#, Q345B, 40Cr Steel
Acting type	Double Acting Single Acting
Core Components	Piston rod, Piston
Certificate:	ISO9001, ISO4001, ISO 45003
Production Capacity:	1200,000 pcs per year
Sample Time	Based actual type
Brand	EPT or customer's logo
Service	OEM & ODM
Seal  brand	Parker, NOK, BUSAK SHAMBAN
Delivery Time	Based on order quantity.
Business Type	Manufacturer & Exporter

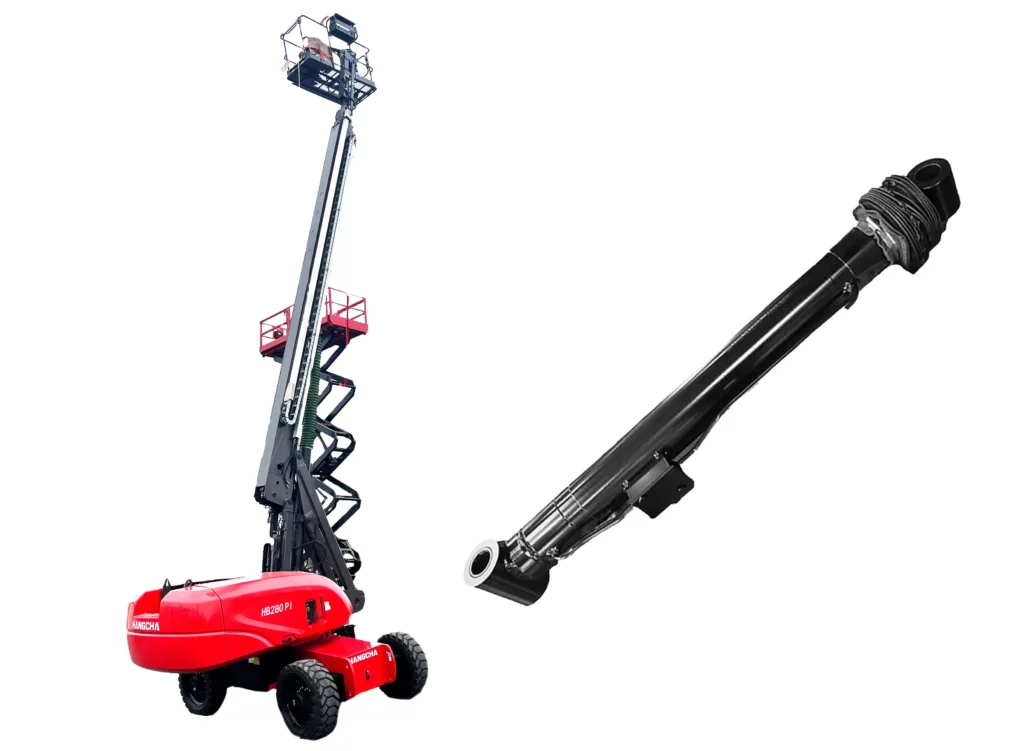

Benefits of Using the Boom Aerial Work Vehicle Steering Hydraulic Cylinder:

Here are some of the benefits of using a boom aerial work vehicle steering hydraulic cylinder:

1. Smooth and precise steering: Steering hydraulic cylinders provide smooth and precise steering, which is essential for operating boom aerial work vehicles in a safe and efficient manner.2. Requires less operator effort:  Steering hydraulic cylinders require less operator effort to operate than mechanical steering systems. This can be especially beneficial in applications where the operator needs to make frequent steering adjustments, such as when working in tight spaces.3. Can be used in a variety of applications:  Steering hydraulic cylinders can be used in a variety of applications, including construction, maintenance, and rescue. This makes them a versatile and cost-effective choice for a variety of boom aerial work vehicles.4. Durable and long-lasting:  Steering hydraulic cylinders are made of durable materials and are designed to last for many years. This makes them a wise investment for businesses that use boom aerial work vehicles.

Here are some additional benefits of using a boom aerial work vehicle steering hydraulic cylinder:

• Increased safety: Hydraulic cylinders are less likely to fail than mechanical steering systems, which can help to prevent accidents.
• Reduced maintenance costs: Hydraulic cylinders require less maintenance than mechanical steering systems, which can save businesses money in the long run.
• Improved fuel efficiency: Hydraulic cylinders can help to improve the fuel efficiency of boom aerial work vehicles by reducing the amount of effort required to steer.

Overall, a boom aerial work vehicle steering hydraulic cylinder is a reliable and efficient way to steer these vehicles. It offers a number of benefits over mechanical steering systems, including smooth and precise steering, less operator effort, and increased safety.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.

Hydraulic Cylinder Available Brand & Models:

KOMATSU (PC)	PC30,PC40,PC50,PC56,PC60,PC78,PC100,PC110,PC120,PC130,PC160,PC200-3/5/6/7/8/8MO,PC210,PC220-5/6/7/8/8MO,PC240,PC300/350/360-5/6/7/8/8MO,PC400/450-5/6/7/8/8MO,PC800,PC850
CATERPILLAR (E)	E301.5,E302,E305.5,E306,E307V1/V2/B/C/D/E/F,E308B/C,E120B,E312V1/V2/B/C/D,E313D2,E312D2,E315D,E200B,E320V1/V2/A/B/C/D,E324D,E325C/D,E329D,E330/336C/D,E345C,E349D,E365C,E374,E390
KOBELCO (SK)	SK60-3/5/8,SK75-8/SR, SK100 ,SK120-3/5, SK135-8/SR, SK140-8, SK200-3/5/6/6E, SK210-3/5/6/6E,SK230/250-6E,SK250-8,SK260-8,SK350-8/S8,SK460/480-8
HYUNDAI (R)	R55-5/7, R60-5/7, R80, R110,R130, R200-5, R210-5, R215-5/7,R220-5/7/9, R225-5/7/9, R250,R260,R265,R290,R305,R445,R485, R505
HITACHI (EX.ZX)	EX60,EX100-1/2/3,EX120-1/3/5/6,EX200-1/3/5,EX230-5,EX300-1,EX400ZAX60,ZAX70,ZA120-6,ZAX200/210-1/3/5/5K,ZAX240,ZAX250,ZAX260,ZAX330-3/5/6,ZAX450/470,ZAX650/670,ZAX850/870
DOOSAN (DH/DX)	DH55, DH60, DH80,DH150, DH215-5/7,DH220-5,DH225-5/7,DH258,DH300-5/7, DH370,DH420,DH500DX55,DX60,DX75,DX130,DX225-9,DX300,DX380,DX420,DX500
VOLVO (EC)	EC55 ,EC60,EC75,EC80,EC140 ,EC210B/D,EC220D,EC240 ,EC250,EC290,EC300, EC360 EC380,EC460,EC480,EC700,EC750,EC950
KATO (HD)	HD307/308,HD450,HD512,HD700-5/7,HD820-1/2/3/5/R,HD1023-1/3,HD1430-1/3
OTHER BRAND	XCMG,LIUGONG,KUBOTA,CASE,YANMAR,SUNWARD,ZOOMLION,LISHIDE,LIEHERR
