Forklift Steering Hydraulic Cylinder

Forklift Steering Hydraulic Cylinder

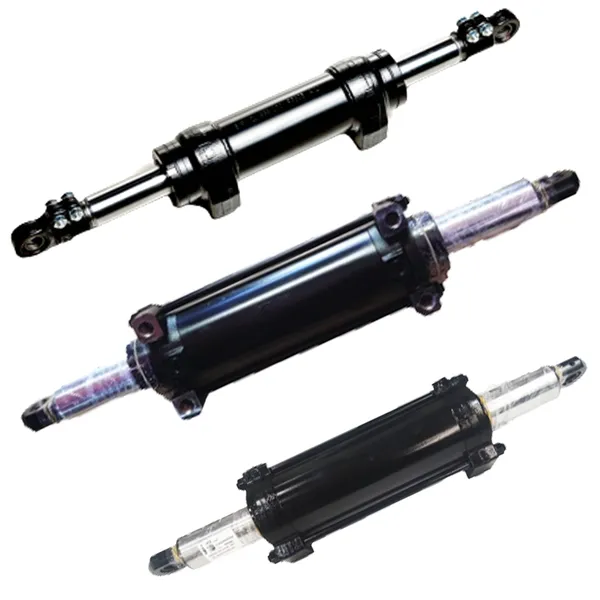

A forklift steering hydraulic cylinder is a hydraulic cylinder that is used to provide power steering for a forklift. It is a critical component of the forklift's steering system, and it allows the operator to easily steer the forklift, even when it is carrying a heavy load.

The forklift steering hydraulic cylinder is typically located in the front of the forklift, and it is connected to the steering linkage. When the operator turns the steering wheel, the hydraulic fluid is pumped into the cylinder, which causes the piston to extend. This movement of the piston turns the steering linkage, which in turn causes the wheels to turn.

There are two main types of forklift steering hydraulic cylinders: single-acting and double-acting. Single-acting cylinders only extend when hydraulic fluid is pumped into them. Double-acting cylinders extend when hydraulic fluid is pumped into them, and they also retract when hydraulic fluid is pumped out of them.

Forklift steering hydraulic cylinders are typically made of high-quality steel and other materials that can withstand the harsh operating conditions of a forklift. They are also designed to be very durable and long-lasting.

The benefits of using a forklift steering hydraulic cylinder include:

• Increased steering power: A forklift steering cylinder provides much more steering power than a manual steering system. This makes it easier for the operator to steer the forklift, even when it is carrying a heavy load.
• Reduced operator fatigue: A forklift steering cylinder reduces the amount of physical effort required to steer the forklift. This can help to reduce operator fatigue, especially during long shifts.
• Improved safety: A forklift steering cylinder can help to improve the safety of the forklift by making it easier to steer and control. This can help to prevent accidents.

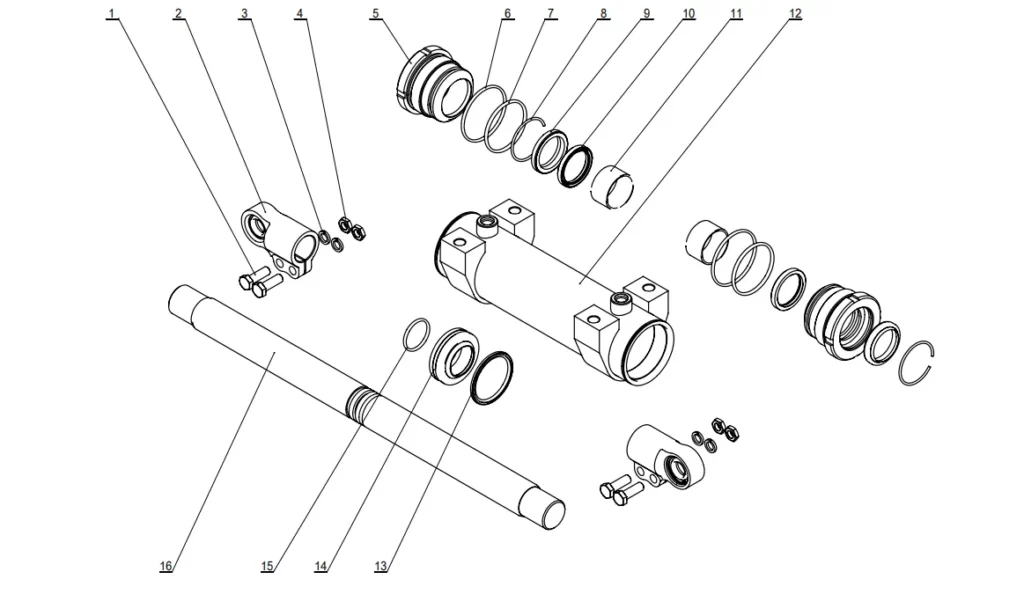

Forklift Steering Hydraulic Cylinder Parts:

1	Hex Bolt	9	Dust Wiper
2	Clevis	10	Rod Seal
3	Spring Washers	11	Du Bush
4	Hex Nut	12	Cylinder Housing assy
5	Guide Bush	13	Hole Seal
6	O-Ring	14	Piston
7	O-Ring	15	O-Ring
8	Round Wire	16	Piston Rod

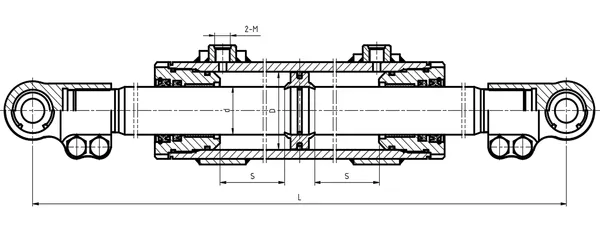

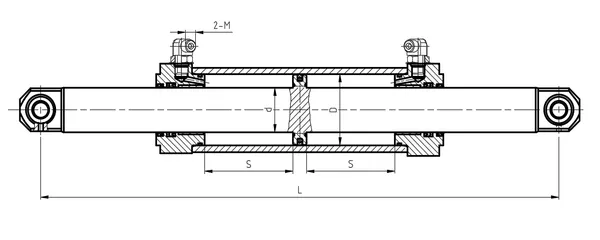

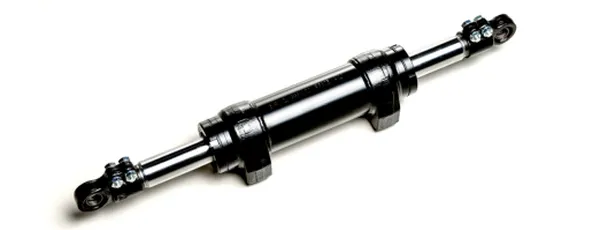

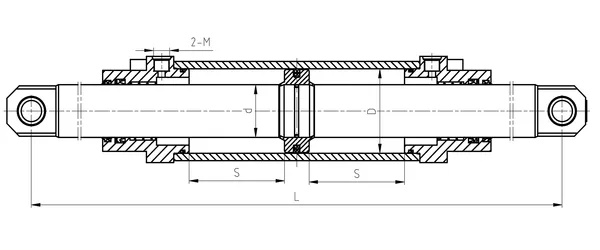

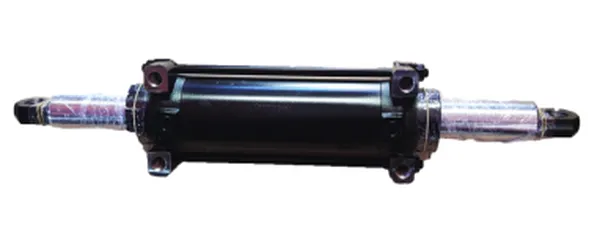

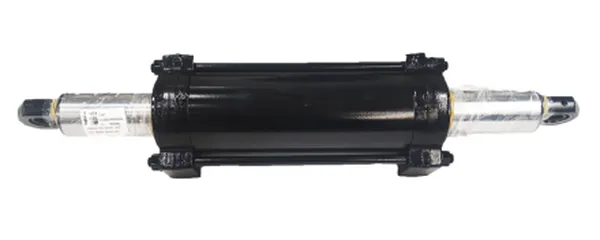

Forklift Steering Hydraulic Cylinder Dimensions:

Cylinder Name	drawing number	bore diameter (D)	rod diameter (d)	stroke (S)	Installation distance (L)	working pressure	Interface dimensions (M)	weight
Steering cylinder	R960-224000-001	Φ65	Φ40	2*98	672	10.5MPa	2-G1/4	15kg

Cylinder Name	drawing number	bore diameter (D)	rod diameter (d)	stroke (S)	Installation distance (L)	working pressure	Interface dimensions (M)	weight
Steering cylinder	A2A300-223000-000	Φ80	Φ50	2*103	652.2	10MPa	2-M16*1.5	18kg

Cylinder Name	drawing number	bore diameter (D)	rod diameter (d)	stroke (S)	Installation distance (L)	working pressure	Interface dimensions (M)	weight
Steering cylinder	XF250-223000-500T	Φ80	Φ50	2*94	654	16MPa	2-M16*1.5	20kg

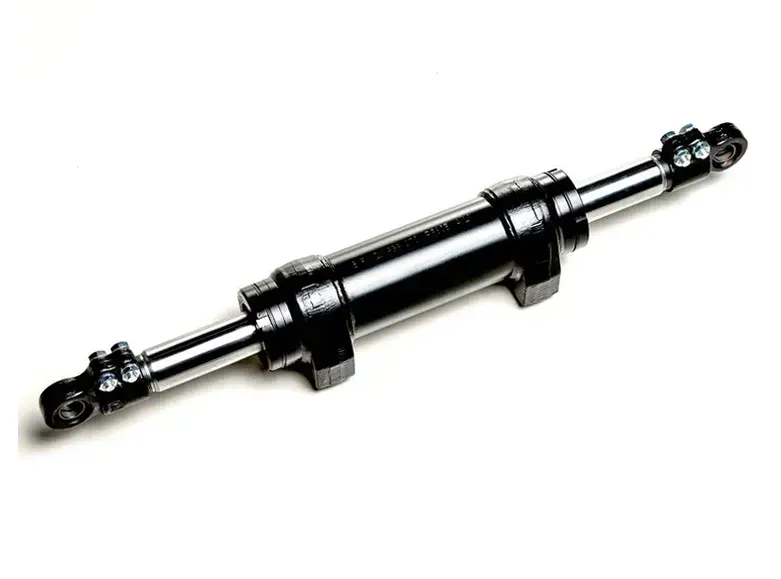

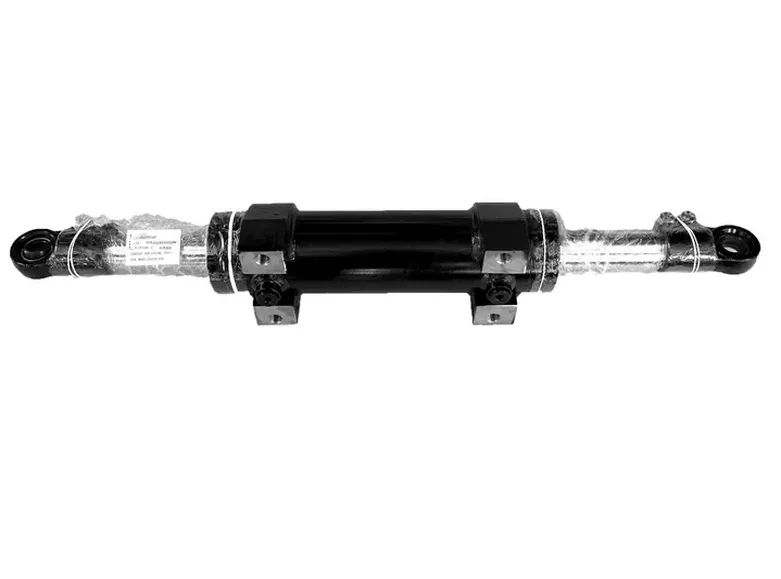

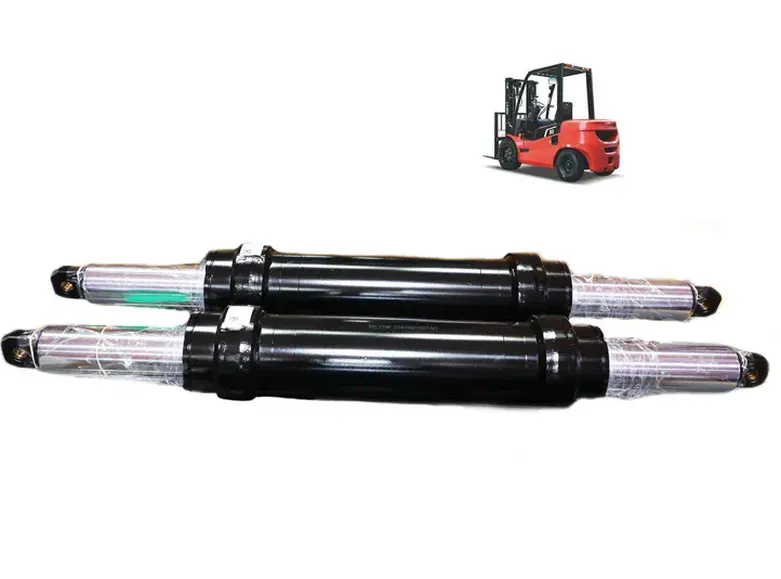

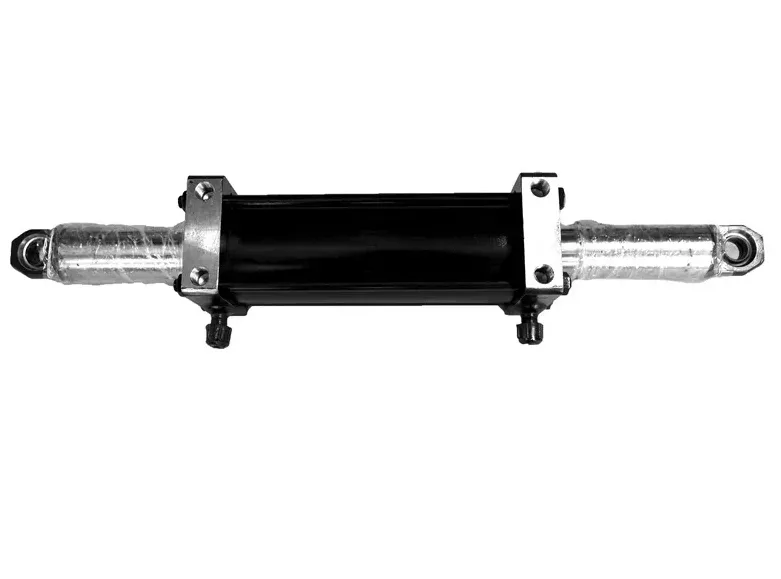

Forklift Steering Hydraulic Cylinder Applications:

Forklift steering hydraulic cylinders are used to steer the wheels of a forklift. They are a type of hydraulic cylinder that can both push and pull its load. This is necessary to push the wheels in two directions for left or right turns.

Forklift steering hydraulic cylinders are typically made of steel and have a piston rod that is connected to the wheels of the forklift. The cylinder is filled with hydraulic fluid, and when the fluid is pressurized, it pushes the piston rod, which in turn moves the wheels.

Forklift steering hydraulic cylinders are used in a variety of forklifts, including counterbalance forklifts, reach trucks, and order pickers. They are essential for the safe and efficient operation of these vehicles.

Here are some of the specific applications of forklift steering hydraulic cylinders:

1. To allow the driver to steer the forklift with minimal effort, even when the vehicle is heavily loaded. This is especially important in warehouses and other industrial settings where forklifts are often used to move heavy loads.2. To provide precise control of the forklift's steering, even at low speeds. This is important for maneuvering the forklift in tight spaces or when making sharp turns.3. To help prevent the forklift from tipping over during turns. This is a safety hazard that can be prevented by using a properly functioning forklift steering hydraulic cylinder.4. To extend the life of the forklift's steering system by reducing wear and tear. A well-maintained forklift steering hydraulic cylinder will help to keep the forklift's steering system running smoothly and prevent premature wear and tear.

Forklift steering hydraulic cylinders are an important safety feature that helps to keep operators and others safe. They are also essential for the efficient operation of forklifts.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
