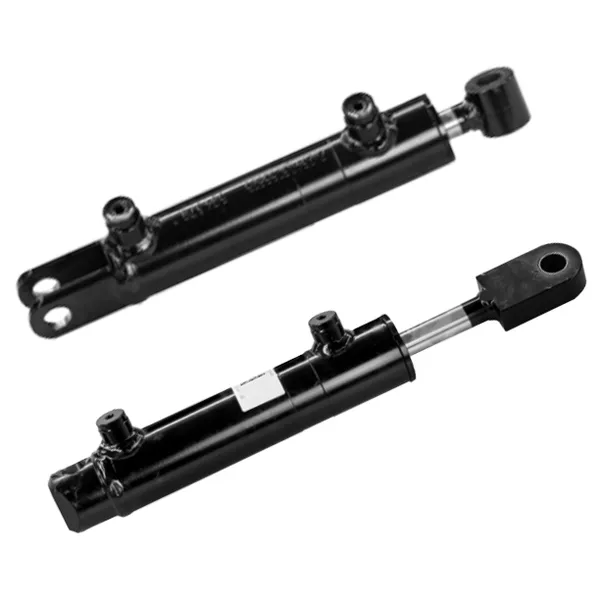

Scissor Fork Aerial Work Vehicle Steering Hydraulic Cylinder

Scissor Fork Aerial Work Vehicle Steering Hydraulic Cylinder

A scissor fork aerial work vehicle steering hydraulic cylinder is a type of hydraulic cylinder that is used to control the steering of a scissor fork aerial work vehicle. It is a double-acting cylinder, which means that it can extend and retract. The cylinder is typically mounted on the frame of the vehicle and is connected to the steering linkage.

The scissor fork aerial work vehicle steering hydraulic cylinder works by using hydraulic fluid to move the piston. When hydraulic fluid is pumped into the cylinder, it pushes the piston, which in turn moves the steering linkage. When the fluid is released, the piston returns to its original position.

The scissor fork aerial work vehicle steering hydraulic cylinder is an important component of the steering system. It allows the operator to control the direction of the vehicle by turning the steering wheel. The cylinder must be able to provide the necessary force to move the steering linkage, and it must also be able to withstand the high pressures and temperatures that are encountered in these applications.

Here are some of the features of a scissor fork aerial work vehicle steering hydraulic cylinder:

• Double-acting: Can extend and retract
• High-pressure: Can withstand high pressures
• Temperature resistant: Can withstand high temperatures
• Durable: Can withstand harsh operating conditions
• Reliable: Can provide smooth and controlled steering

If you are looking for a reliable and efficient way to control the steering of a scissor fork aerial work vehicle, then a scissor fork aerial work vehicle steering hydraulic cylinder is a good option.

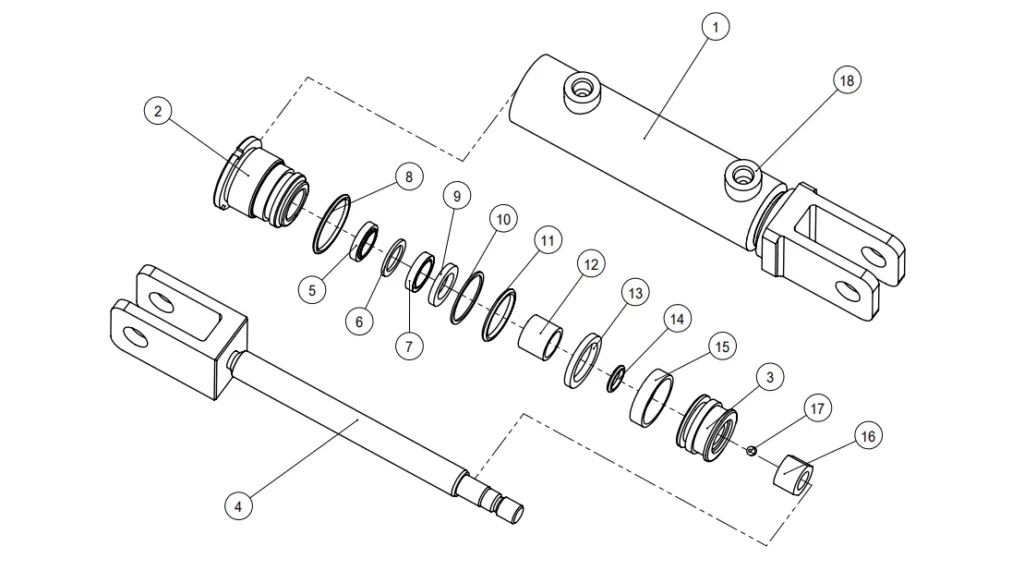

Scissor Fork Aerial Work Vehicle Steering Hydraulic Cylinder Parts:

1	Cylinder Housing assy	10	Back-Ring
2	Guide Bush	11	O-Ring
3	Piston	12	Du Bush
4	Piston Rod	13	Hole Seal
5	Dust Wiper	14	O-Ring
6	Back-Ring	15	Wear-Ring
7	U-Ring	16	Nut
8	O-Ring	17	Set Screws
9	Rod Seal	18	Plug

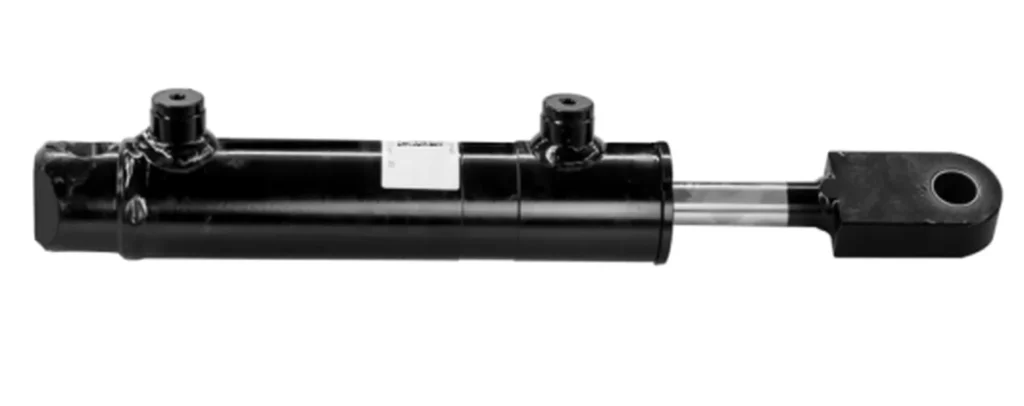

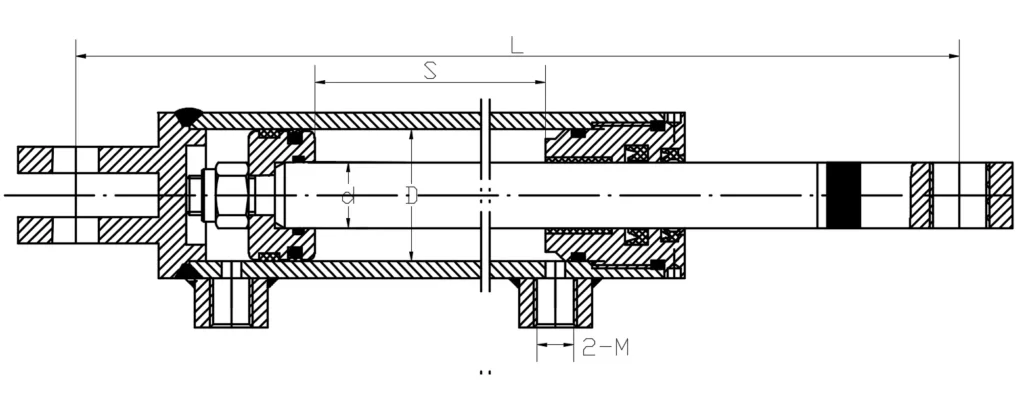

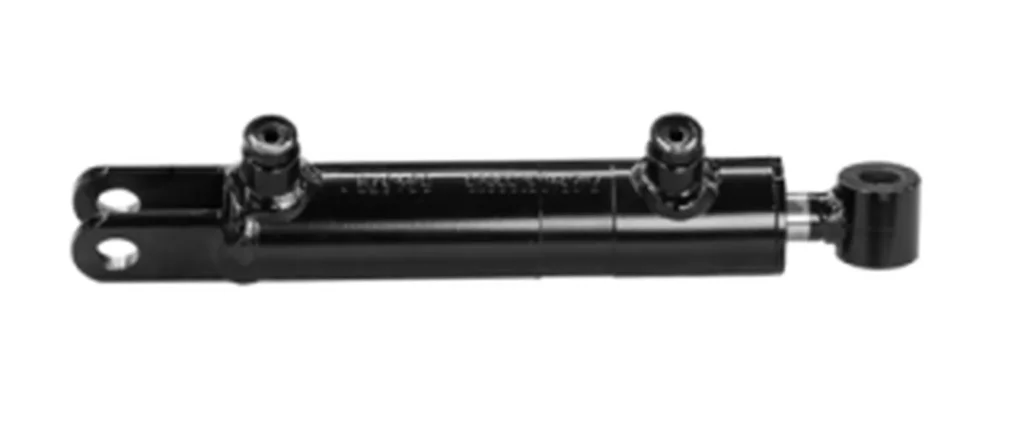

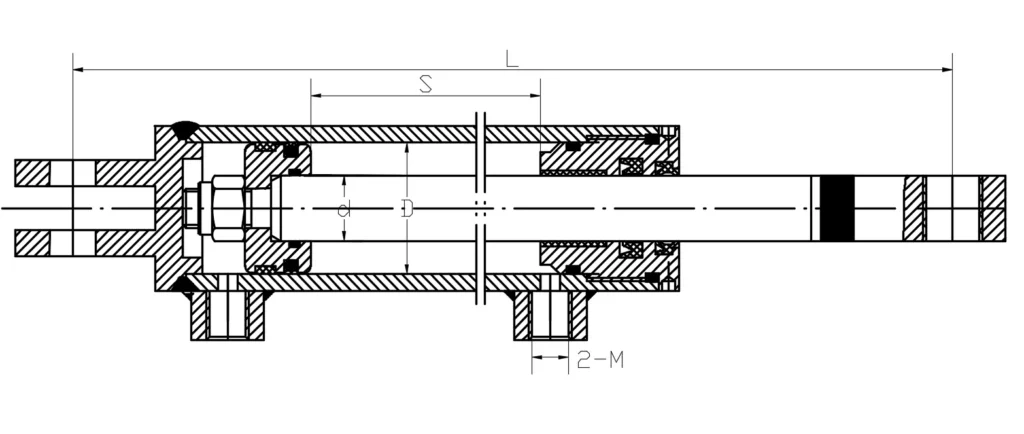

Scissor Fork Aerial Work Vehicle Steering Hydraulic Cylinder Dimensions:

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Steering cylinder	140XEN-620300-001	Φ40	Φ20	125	400	20MPa	2-G1/4	3kg

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Steering cylinder	DL4020-00A	Φ40	Φ20	150	400	12MPa	2-M14*1.5	4kg

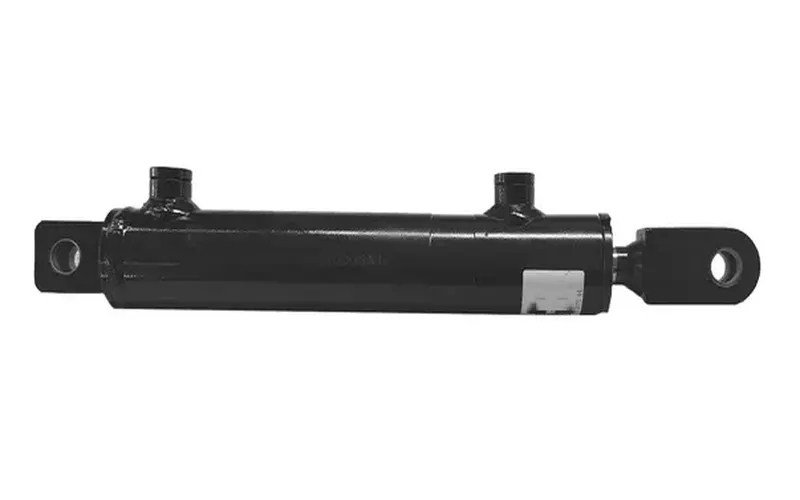

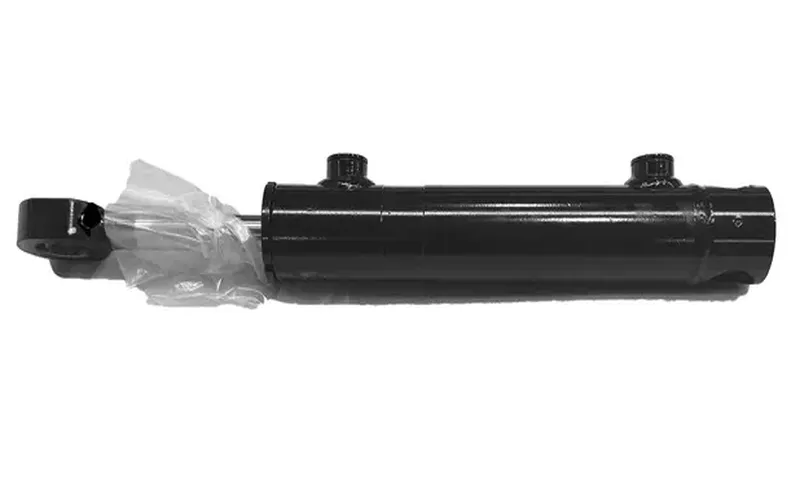

Scissor Fork Aerial Work Vehicle Steering Cylinder Advantages:

Here are the advantages of a scissor fork aerial work vehicle steering hydraulic cylinder:

• Smooth and controlled steering: The cylinder provides a smooth and controlled steering action, which is important for safety and efficiency.
• Capable of withstanding harsh operating conditions: The cylinder is designed to withstand the harsh operating conditions that aerial work vehicles are exposed to, such as high pressures, temperatures, and vibrations.
• Relatively easy to maintain: The cylinder is relatively easy to maintain, which can save you time and money in the long run.

Here are some of the specific features that contribute to these advantages:

• Double-acting: The cylinder is double-acting, which means that it can extend and retract. This allows for smooth and controlled steering.
• High-pressure: The cylinder is designed to withstand high pressures, which is necessary for the operation of aerial work vehicles.
• Temperature resistant: The cylinder is temperature resistant, which allows it to operate in a wide range of temperatures.
• Durable: The cylinder is made from durable materials, which can withstand the harsh operating conditions that aerial work vehicles are exposed to.
• Reliable: The cylinder is designed to be reliable and provide years of service.

If you are looking for a reliable and efficient way to control the steering of a scissor fork aerial work vehicle, then a scissor fork aerial work vehicle steering hydraulic cylinder is a good option. It offers a number of advantages over other types of steering systems, making it a wise choice for many applications.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.

Hydraulic Cylinder Available Brand & Models:

KOMATSU (PC)	PC30,PC40,PC50,PC56,PC60,PC78,PC100,PC110,PC120,PC130,PC160,PC200-3/5/6/7/8/8MO,PC210,PC220-5/6/7/8/8MO,PC240,PC300/350/360-5/6/7/8/8MO,PC400/450-5/6/7/8/8MO,PC800,PC850
CATERPILLAR (E)	E301.5,E302,E305.5,E306,E307V1/V2/B/C/D/E/F,E308B/C,E120B,E312V1/V2/B/C/D,E313D2,E312D2,E315D,E200B,E320V1/V2/A/B/C/D,E324D,E325C/D,E329D,E330/336C/D,E345C,E349D,E365C,E374,E390
KOBELCO (SK)	SK60-3/5/8,SK75-8/SR, SK100 ,SK120-3/5, SK135-8/SR, SK140-8, SK200-3/5/6/6E, SK210-3/5/6/6E,SK230/250-6E,SK250-8,SK260-8,SK350-8/S8,SK460/480-8
HYUNDAI (R)	R55-5/7, R60-5/7, R80, R110,R130, R200-5, R210-5, R215-5/7,R220-5/7/9, R225-5/7/9, R250,R260,R265,R290,R305,R445,R485, R505
HITACHI (EX.ZX)	EX60,EX100-1/2/3,EX120-1/3/5/6,EX200-1/3/5,EX230-5,EX300-1,EX400ZAX60,ZAX70,ZA120-6,ZAX200/210-1/3/5/5K,ZAX240,ZAX250,ZAX260,ZAX330-3/5/6,ZAX450/470,ZAX650/670,ZAX850/870
DOOSAN (DH/DX)	DH55, DH60, DH80,DH150, DH215-5/7,DH220-5,DH225-5/7,DH258,DH300-5/7, DH370,DH420,DH500DX55,DX60,DX75,DX130,DX225-9,DX300,DX380,DX420,DX500
VOLVO (EC)	EC55 ,EC60,EC75,EC80,EC140 ,EC210B/D,EC220D,EC240 ,EC250,EC290,EC300, EC360 EC380,EC460,EC480,EC700,EC750,EC950
KATO (HD)	HD307/308,HD450,HD512,HD700-5/7,HD820-1/2/3/5/R,HD1023-1/3,HD1430-1/3
OTHER BRAND	XCMG,LIUGONG,KUBOTA,CASE,YANMAR,SUNWARD,ZOOMLION,LISHIDE,LIEHERR
