Brushless 135mm width 36V Disc-brake Electric Bicycle Motor: A Comprehensive Review

The Brushless 135mm width 36V Disc-brake electric bicycle motor is a highly efficient, compact and reliable choice for e-bike enthusiasts. Available in silver or black, it boasts two rounds design and is modelled under the number S100SWXRDC. This motor is conveniently packaged in sets of five per carton, ready for worldwide shipping from the port of Shanghai. Let's delve deeper into the features, advantages and applications of this remarkable product.

Advantages of the S100SWXRDC Motor

The S100SWXRDC motor offers several advantages that make it stand out from other e-bike motors in the market. Here are six noteworthy features:

1. Built-in controller and sensor: This feature allows for seamless integration and enhanced functionality.
2. Lightweight: The motor's reduced weight minimizes the overall weight of the e-bike, contributing to its agility and manoeuvrability.
3. Small size: Despite its powerful performance, the motor maintains a compact size, making it perfect for e-bikes where space is at a premium.
4. Super-silent: The motor operates with minimal noise, providing a calm and peaceful riding experience.
5. High efficiency and long life: The motor's advanced design and quality construction ensure high energy efficiency and durability, promising a long-lasting performance.
6. Optional wireless communication: This modern feature presents an added layer of convenience and functionality.

With these advantages, it is clear that the S100SWXRDC motor is a top-tier choice for e-bike systems. It is also worth noting that the product can be customized to meet specific requirements.

Applications of the S100SWXRDC Motor

The S100SWXRDC motor is versatile and can be used in a variety of applications. Here are some common uses:

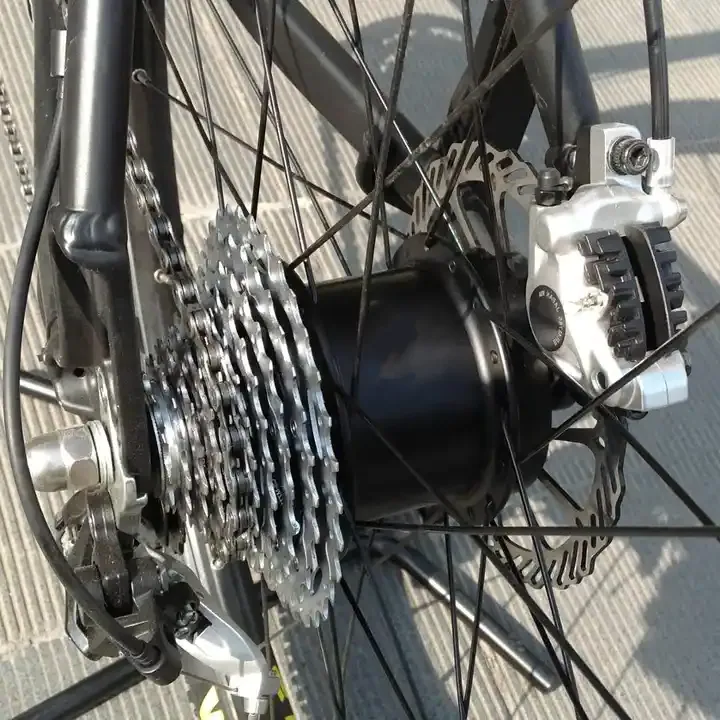

1. Electric Bicycles: The motor can be easily integrated into the rear wheel hub of a bicycle, offering a seamless and efficient electric riding experience.
2. Commuting: The motor provides additional power to assist riders in reaching their destinations quickly and effortlessly, especially when dealing with hilly terrain or long distances.
3. City Riding: The motor is well-suited for navigating city streets. Its quiet operation ensures a smooth and unobtrusive riding experience in urban environments.
4. Cargo Bikes: The motor's high torque output allows riders to transport groceries, equipment, or other bulky items without exerting excessive physical effort.
5. Recreational Riding: The motor provides the necessary power and assistance to make recreational riding enjoyable and less strenuous.
6. Touring and Long-Distance Riding: For riders embarking on long-distance tours or bikepacking adventures, the S100SWXRDC rear hub motor is a reliable choice. It provides consistent power to assist riders during extended rides, enabling them to cover greater distances with less fatigue.

Being versatile and reliable, the S100SWXRDC motor is indeed a valuable addition to any e-bike system.

How Does the S100SWXRDC Rear Hub Motor for E-bike System Work?

The S100SWXRDC rear hub motor operates on the principle of a brushless direct current (BLDC) motor. Here's a step-by-step explanation of its working mechanism:

1. Motor Construction: The motor is housed within the rear wheel hub of an e-bike. It consists of a stator, rotor, magnets, and coils. The stator contains the copper windings or coils, while the rotor is the rotating part of the motor.
2. Magnetic Field Creation: The stator is connected to the e-bike's battery and controller. When electric current flows through the coils, it creates a magnetic field. The magnets on the rotor generate their own magnetic field, which interacts with the magnetic field of the stator.
3. Electromagnetic Forces: The interaction of the magnetic fields generates electromagnetic forces, causing the rotor to rotate, which, in turn, spins the rear wheel of the e-bike.
4. Power and Control: The e-bike's controller regulates the power to the motor by adjusting the current flowing through the coils. It receives input from the rider and determines the level of assistance or power required.
5. Pedal-Assist and Throttle Modes: The motor can operate in different modes. In pedal-assist mode, the motor provides assistance based on the rider's pedaling effort. In throttle mode, the motor is activated by a hand-operated throttle, allowing the rider to control the speed of the e-bike without pedaling.
6. Regenerative Braking: Some e-bike systems with this motor may feature regenerative braking. When the brakes are applied, some of the kinetic energy is converted back into electrical energy, which is then fed back into the battery, helping to extend the e-bike's range.

Understanding its mechanism of operation can help users to better utilize and maintain the S100SWXRDC motor for optimal performance.

Choosing the Right S100SWXRDC Rear Hub Motor for Electric Bicycle

When choosing the right S100SWXRDC rear hub motor for an electric bicycle, there are several factors to consider:

1. Power and Torque: Consider your riding needs and preferences. If you anticipate riding on hilly terrain or carrying heavy loads, you may want a motor with higher torque and power capabilities.
2. Voltage and Battery Compatibility: Ensure that the motor you choose is compatible with the voltage of your e-bike's battery.
3. Wheel Size and Compatibility: Make sure the motor you select matches the size of your e-bike's rear wheel. Additionally, consider the compatibility of the motor with your bike's dropout width and axle type.
4. Efficiency and Range: Look for a motor that offers good efficiency, as this will affect the e-bike's overall range.
5. Noise and Smoothness: Consider the noise level and smoothness of the motor's operation.

Choosing the right motor can significantly enhance your e-bike's performance and your overall riding experience.

Maintenance of the S100SWXRDC Motor

Proper maintenance of the S100SWXRDC rear hub motor can help ensure its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Keep the motor and surrounding areas clean by regularly wiping off dirt, dust, and debris.
2. Inspect and Tighten Fasteners: Periodically check and tighten all fasteners, such as bolts and screws, to ensure they are secure.
3. Check Wiring Connections: Examine the wiring connections between the motor, battery, and controller. Look for any loose or frayed wires and ensure all connections are secure.
4. Lubrication: Some rear hub motors may require lubrication for smooth operation. Consult the manufacturer's guidelines or user manual to determine if lubrication is necessary and the recommended lubricant to use.
5. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance, including proper charging procedures, storage guidelines, and regular checks for any signs of damage or deterioration.
6. Wheel Truing: If you notice any wheel wobbling or unevenness, it may indicate that the wheel needs truing.
7. Regular Inspections: Periodically inspect the motor for signs of wear, damage, or unusual noise during operation.

Effective maintenance can help to extend the life of your S100SWXRDC motor and keep it running smoothly.

Why Choose Raydafon's S100SWXRDC Rear Hub Motor for Electric Bicycle?

Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights.

Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. At present, our main products include super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, ALL-IN-ONE rear hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes.

Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly. If you are seeking the high-end electrical components of electric bicycles. If you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.

In conclusion, the S100SWXRDC rear hub motor is a top-of-the-line product that offers numerous advantages for e-bike enthusiasts. Its compact size, high efficiency, and silent operation make it a desirable choice. The wide range of applications and easy maintenance add to its appeal. The backing of a reputable manufacturer like Raydafon further ensures its quality and reliability. So, if you're looking for a high-performance, durable motor for your e-bike, the S100SWXRDC rear hub motor is definitely worth considering.

Video Introduction of S100SWXRDC Rear Hub Motor

For a more detailed understanding of the S100SWXRDC rear hub motor, check out this video:

Author: Yjx
