BTD260 E Bike Display Screen Electric Bike Led Wireless Display

BTD260 E-Bike Led Wireless Display

The BTD260 E-Bike LED Wireless Display combines a high-definition colorful screen, touch switch controls, slide-to-shift support level adjustment, long standby time, wireless Bluetooth connectivity, and clear display even in strong sunlight. These features contribute to an enhanced riding experience, allowing riders to stay informed, adjust settings, and enjoy the benefits of their electric bike with ease and convenience.

Key Features of BTD260 E-Bike Led Wireless Display

1. 2.6-inch HD Colorful Screen: The BTD260 features a high-definition colorful screen that delivers clear and vibrant visuals. This allows riders to easily read the displayed information, such as speed, distance, battery level, and more, providing a comprehensive overview of the ride.Touch Switch: The touch switch feature enables intuitive and effortless navigation through the display's options and settings. With a simple touch, riders can access different menus, adjust settings, and control various functions of their electric bike.Slide to Shift Support Level: The BTD260 offers a slide-to-shift support level feature, allowing riders to easily adjust the level of assistance provided by the electric motor. With a simple slide gesture on the display screen, users can switch between different power levels, customizing the riding experience to their preference and terrain conditions.Long Standby Time: The BTD260 is designed with a long standby time, ensuring extended usage without frequent charging. This feature is particularly beneficial for longer rides or multi-day trips, providing reliable performance throughout the journey.Wireless Bluetooth Connection: The BTD260 supports wireless Bluetooth connectivity, enabling seamless communication between the display screen and other compatible devices. This feature opens up possibilities for additional functionalities like syncing with smartphone applications, receiving notifications, or even tracking ride data.Clear Display in Strong Sunlight: The BTD260 is optimized to offer a clear display even under strong sunlight. This ensures that riders can easily view the screen's information, regardless of the environmental conditions. The display's visibility is enhanced, providing legibility and reducing glare for improved readability.

BTD260 E-Bike Led Wireless Display Specifications

Specification	BTD260
Size (L×W×H mm)	67mm×48mm×8mm
Support Level	0-5
Applicable Handlebar Diameter (mm)	Φ25.4mm / Φ31.8mm
Speed Display	YES
Power Display	YES
Mileage Display	YES
Average Speed	YES
Riding Time	YES
Motor Temperature	YES
Voltage Setting	YES
Power Settings	YES
Speed Limit	YES
Weight (g)	51g

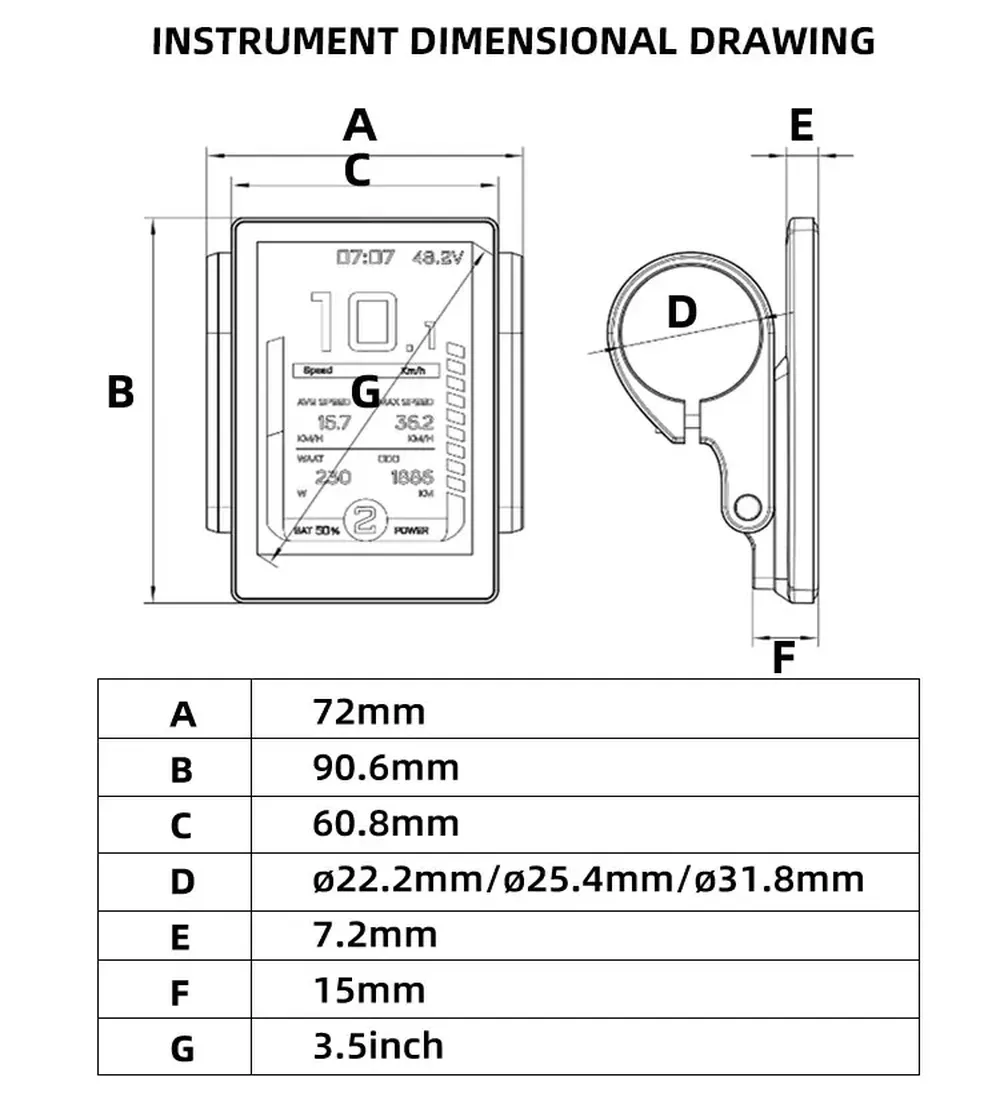

BTD260 E-Bike Led Wireless Display Instrument Dimension

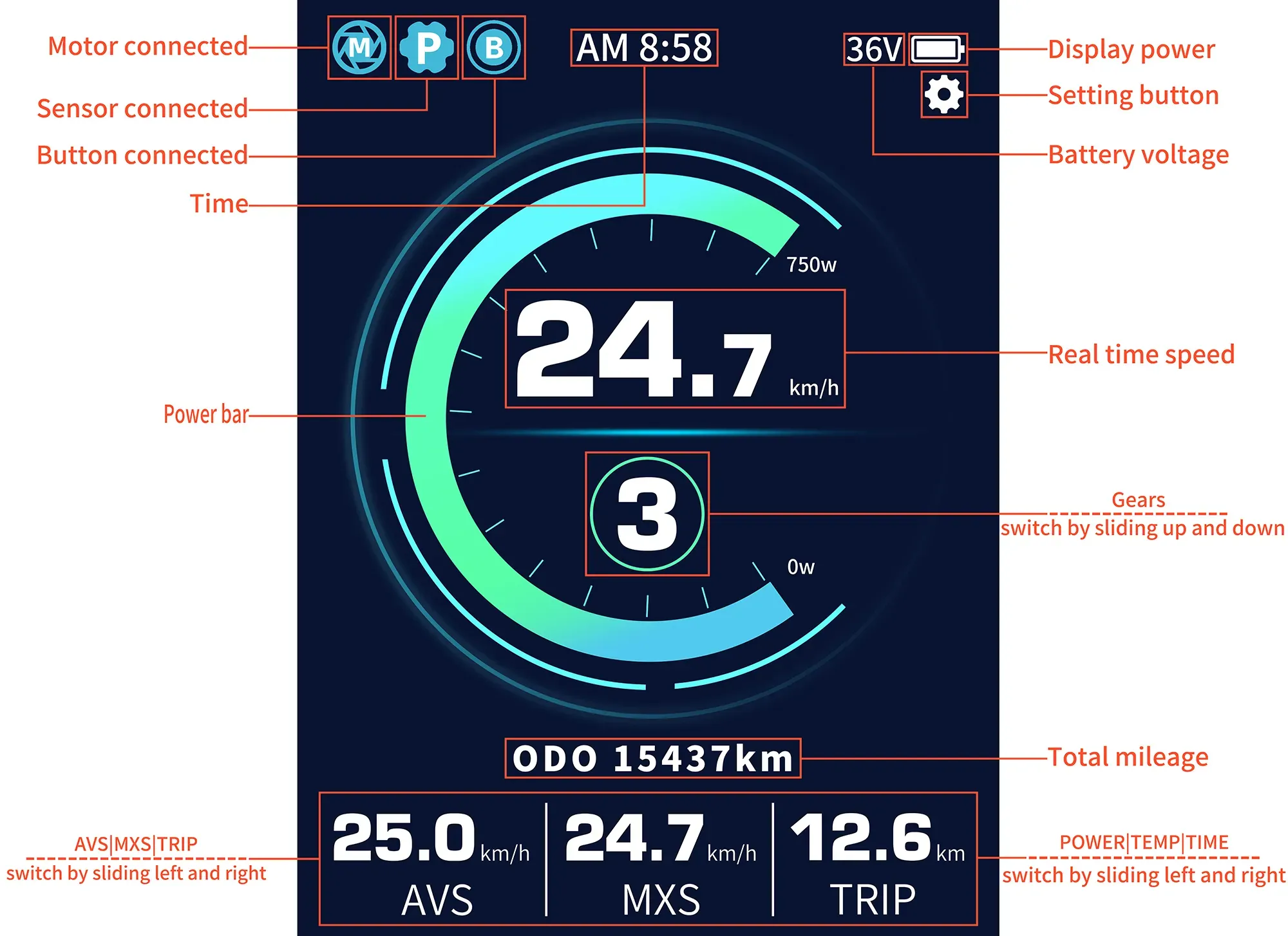

BTD260 E-Bike Led Wireless Display UI Instruction

BTD260 E-Bike Led Wireless Display Functions

1. High-definition screen, the stronger the sun, the clearer the display.2. Ultra-wide temperature range, the lowest operating temperature is - 20 ℃.3. Touch screen control, comfortable operation.4. Speed display: including real-time speed, maximum speed and average speed.5. Km/mile selection: km/mile display can be set according to customer habits.6. Voltage display: real-time display of battery voltage7. Five-level adjustment of backlight brightness: set the backlight brightness according to the customer's usage habits. Level 1 is the darkest and level 5 is the brightest.8. Gear control: 0-5 gears, 6 gears in total.9. Mileage display: it can display the accumulated mileage ODO, single mileage trip and cycling time.10. Clock display: built-in battery, shutdown time retention.11. Output power indication: real-time display of output power.12. Fault prompt with text description.13. Type-C charging port.14. Program upgrade: The program can be upgraded through Type-C interface. Please refer to the instruction document for details.

Applications of BTD260 E-Bike Led Wireless Display

The BTD260 E-Bike LED Wireless Display offers various applications that enhance the functionality and user experience of electric bicycles. Here are some key applications of the BTD260:(1) Real-time Ride Information: The display provides riders with real-time information about their electric bike, including speed, distance traveled, battery level, assist level, and more. This data allows riders to monitor their ride and make informed decisions based on the information displayed.(2) Control and Customization: The BTD260 allows users to control and customize various aspects of their electric bike directly from the display screen. Riders can adjust the pedal assist level, activate lights, control integrated features like turn signals or horns, and even customize the display layout and settings according to their preferences.(3) Navigation Assistance: Some wireless display screens, including the BTD260, may offer navigation features. Riders can access turn-by-turn directions or map overlays, helping them find their way and explore new routes. This feature is particularly useful for riders who frequently venture into unfamiliar areas or enjoy exploring new cycling routes.(4) Fitness Tracking and Data Logging: The BTD260 display can serve as a platform for fitness tracking and data logging. It can record and display ride statistics such as distance covered, average speed, calories burned, and more. This feature enables riders to track their fitness progress over time and set personal goals for their rides.(5) Bluetooth Connectivity and Smartphone Integration: With wireless Bluetooth connectivity, the BTD260 can sync with compatible devices such as smartphones. This integration opens up possibilities for additional functionalities, such as receiving notifications, accessing smartphone apps related to cycling or fitness, and even syncing ride data with fitness tracking apps.(6) Battery Monitoring and Management: The display screen typically includes a battery indicator, allowing riders to monitor the electric bike's power level. This feature helps riders plan their rides more effectively, ensuring they have sufficient battery charge for their intended distance or duration.

Maintainance of BTD260 E-Bike Led Wireless Display

To ensure optimal performance and longevity of the BTD260 E-Bike LED Wireless Display, regular maintenance is recommended. Here are some maintenance tips to keep in mind:1. Keep it Clean: Regularly clean the display screen using a soft, lint-free cloth. Gently wipe the screen to remove dust, dirt, or smudges. Avoid using harsh chemicals or abrasive materials that could damage the screen.2. Protect from Moisture: While the BTD260 may be designed to withstand some level of water exposure, it's best to avoid direct exposure to heavy rain or submerging the display in water. If the display gets wet, dry it thoroughly before use.3. Check Mounting and Connections: Periodically inspect the mounting bracket and screws to ensure they are secure. Loose connections could lead to vibrations or malfunctions. Check the cable connection between the display screen and the electric bike's main control unit to ensure a proper and secure connection.4. Battery Management: If the BTD260 has a built-in battery, follow the manufacturer's guidelines for battery management. This may include proper charging techniques, avoiding overcharging, and storing the display in a cool and dry place when not in use for an extended period.5. Firmware Updates: Check for firmware updates provided by the manufacturer. These updates may include bug fixes, performance enhancements, and new features. Follow the instructions provided by the manufacturer to update the firmware if necessary.6. Handle with Care: When operating or handling the BTD260 display screen, do so with care. Avoid excessive force or impact that could damage the screen or components. If the display screen is removable, store it in a safe and protected place when not in use.

Why Choose Raydafon's E-Bike Led Wireless Display?

Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. At present, our main products include super-mini wireless motors, super-mini intelligent motors, water bottle batteries, ALL-IN-ONE rear hub motors, P100/P110 rear hub motors, S100/S110 rear hub motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, ALL-IN-ONE rear hub motors, down tube battery, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes.Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly. If you are seeking the high-end electrical components of electric bicycles. If you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.

FAQ

Q: Are you a manufacturer?A: Yes. Established in 1993, our company is keeping dedicated to the R&D, manufacturing and worldwide marketing of high-end electric bicycle parts. We provide ODM & OEM services as per your requests. Welcome to our company.Q: Can I get a sample and how long will it take?A: Yes. We'd like to submit a sample for checking at the beginning of our business. Usually it needs take about 2 weeks to produce sample order.Q: What is your MOQ and delivery time?A: Our MOQ is 1 pcs normally. It takes about 30 days to complete an order. The specific delivery time depends on the items and the quantity of your order.Q: How to control the quality of the products?A: We have independent quality inspection department for products quality. The parts are inspected in every production process to prevent bad parts from entering the next process. 100% products are inspected before shipment. Third party detection is welcomed.Q: Do you have customized service?A: Yes, the technical specifications and logo of Motor, and the Raydafon APP both can be customized.Q: What is the warranty period for your products?A: Motor: 2 years. Battery: 1.5 - 2 years. Other Accessories: 1 year.Q: Where is your after-sales service location?A: Germany or China. You can choose a suitable after-sales location according to your convenience.Q: How do I pay for my order?A: We accept your payment through T/T, L/C, D/C, Paypal, Western Union, etc.
