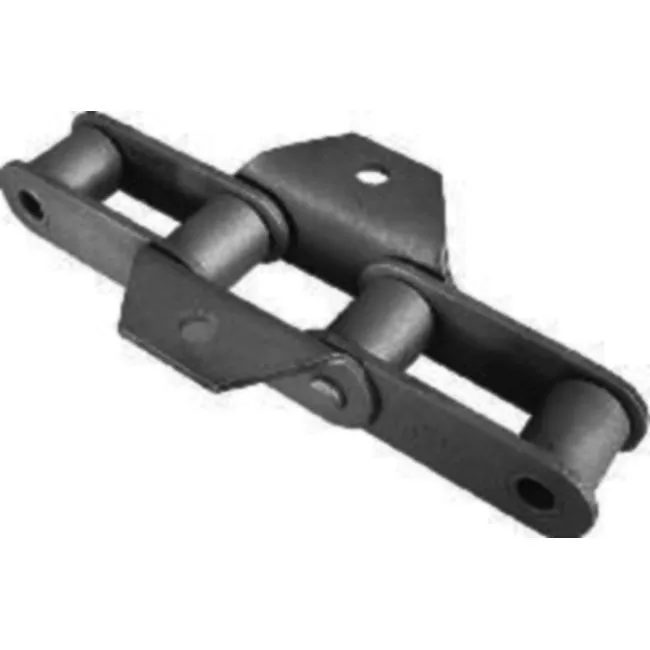

C Type Steel Agricultural Chain Attachments CA550K19 CA550K19F1 CA550K19F2

The agricultural roller chain of Raydafon has a drive series and conveyor series. It is made of hardened steel parts with precise tolerances. The chain is made of high-quality materials, which can increase its strength and prolong the service life within its range.Raydafon's agricultural roller chain meets the needs of today's large-scale equipment and exceeds industry standards. For over 50 years, our agricultural chain has been trusted in many applications, such as corn harvesting, lifting feed stations, feed processing, and grain processing.Our agricultural roller chains are carefully designed and manufactured, with long service life and reduced wear.

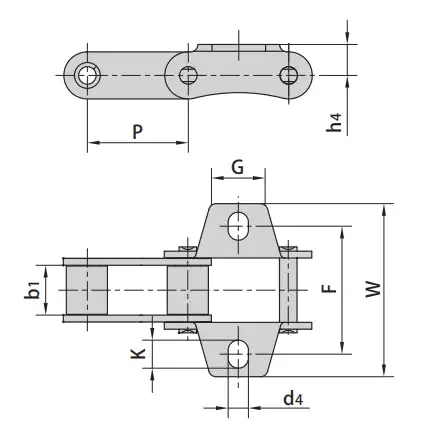

Chain No.	P	b1	G	F	W	h4	d4	K
	mm	mm	mm	mm	mm	mm	mm	mm
CA550K19	41.4	19.81	22.0	50.8	71.0	12.7	8.3	11.0
CA550K19F1	41.4	19.81	22.0	54.0	71.0	12.7	8.3	11.0
CA550K19F2	41.4	19.81	25.4	50.8	71.0	12.7	8.4	11.5

Related Agricultural Chains

Walking Tractor chain: 08B-2; 12A-2; 12AH-2Combine chain: 08B1,08B3,10A1,10A2,12A1,16A1,16AH1,ZGS38 and attachment.S-type Steel Agricultural chain: S32,S42,S45,S52,S55,S62,S77,S88 and with K1,F1,SD,C6E attachment.A-type steel Agricultural chain: A550,A555,A557,A620 and with attachment.CA-type steel agricultural chain: CA550, CA555,CA557,CA620,CA2060H,38.4R,38.4V,CA39,CA624 and attachment.
