CA550 CA555 CA557 CA620 Roller Chain CA Type Steel Agricultural Chains

Discover the Raydafon Group CA550, CA555, CA557, and CA620 Roller Chains – CA Type Steel Agricultural Chains engineered for superior durability and performance in demanding farming and industrial applications. Built with high-strength steel and precision design, these chains ensure reliable power transmission for tractors, harvesters, and equipment, reducing downtime and enhancing efficiency. Ideal for farmers and agricultural professionals seeking robust solutions, they deliver smooth operation and long-lasting resilience. Raydafon Group's commitment to quality sets these chains apart with advanced manufacturing and proven reliability. Elevate your machinery's performance today and experience unmatched strength and dependability.

Send Inquiry

Product Description

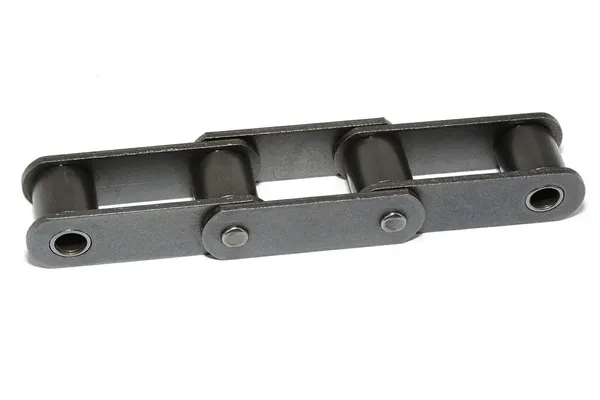

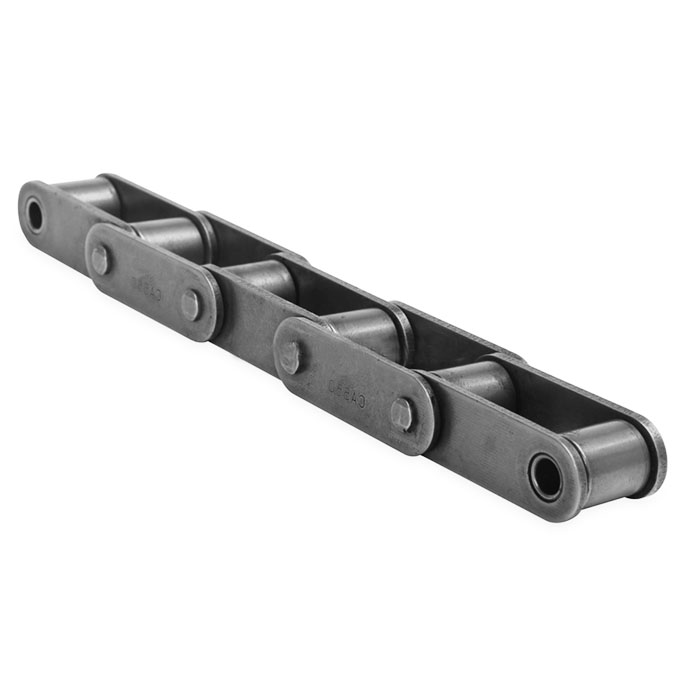

CA550 CA555 CA557 CA620 Roller Chain CA Type Steel Agricultural Chains

CA Type Steel Agricultural Chain is primarily used as a part of the mechanical driving of agricultural machines, which has a high-quality requirement and using environment is relatively worse, humid, with corrosion and dust. The agricultural chain consists of an inner plate, outer plate, pin, bush, roller, and attachment. This chain can be used for wheat, rice, corn, and coconut harvesters and tractors.CA-type steel agricultural chain is one of the agricultural chains. It is strictly built according to ISO487. These chains are typically applied in combine harvesters, round balers, feed wagon lifts, etc. Attachments are also available (A1, ATT, C5E, C6E, C11E, C13E, C17E, C30E, CPE, A19, F14,F4,K1,K19,K25,K27,). The main specification includes CA550 chain, CA555 chain, CA557 chain, and CA620 chain.

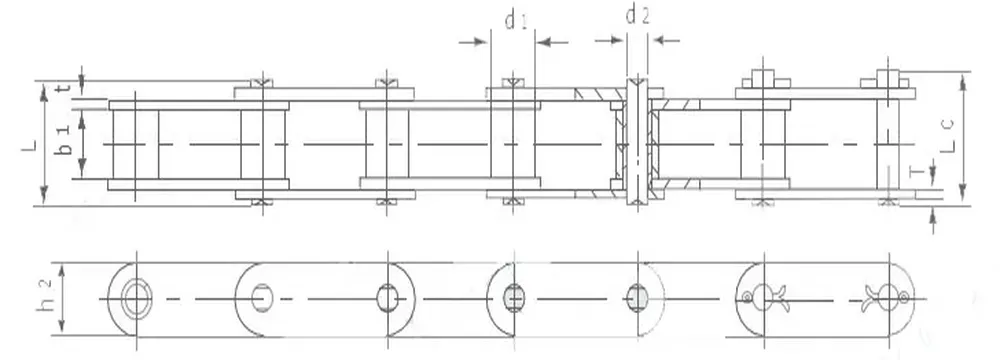

CA Type Agricultural Chain Sizes Chart:

Chain NO.	? Pitch	Roller Diameter	? Width Between Inner Plates	Pin Diameter	Pin Length	? Inner Plate Depth	? Plate Thick- -ness	? Ultimate Tensile Strength	? Average Tensile Strength
	P	d1 max	b1 min	d2 max	Lmax	Lc max	h2 max	t/T max	Qmin
	mm	mm	mm	mm	mm	mm	mm	mm	kN
CA550 chain	41.40	16.87	19.81	7.19	35.00	38.00	19.30	2.80	39.10
CA555 chain	41.40	16.87	12.70	7.19	29.70	33.10	19.30	3.10	39.10
CA557 chain	41.40	17.78	20.24	8.00	37.40	40.60	23.10	3.10	55.61
CA620 chain	42.01	17.91	24.51	7.19	41.80	45.20	20.20	3.25	39.10

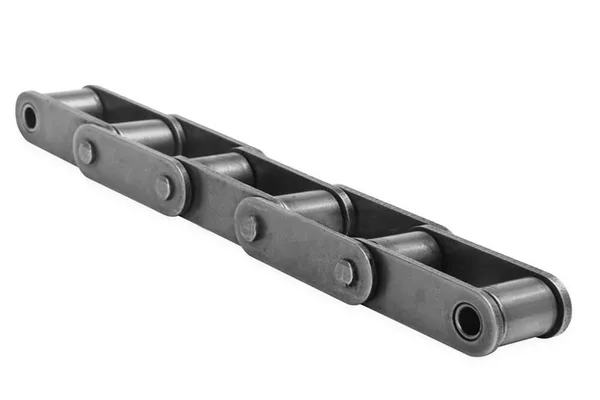

Characteristics of CA Type Agricultural Chain:

All our agricultural roller chain is manufactured using the latest manufacturing technology and techniques. With fully punched and shot-peened link plates, CNC machined components, precision component fits, in-house heat treatment, fully ground round parts, and heavy-duty spin riveting, our standard is designed and proven to outperform other leading brands.(1) Cropped links from medium carbon steelOur link plates are precision punched from cold-drawn steel. Not only does this limit internal stress, but it also provides a precision hole pitch and increased tensile strength due to grain alignment.(2) Shouldered or flatted case-hardened bushesInserted with a press fit to prevent rotation and produced from the on-size chromium-molybdenum seamless tube for minimum distortion, superior concentricity, and maximum strength.(3)Shouldered or flatted case-hardened pinsSecured with a press fit and spin riveting. Selective in-house induction hardening allows deep case depth on wearing surfaces without stressing/cracking the pin ends during assembly and riveting.(4) Hardened and ground Precision RollersHardening and a light grind after heat treatment ensures a dimensionally accurate roller with a good hardness even after wearing during operation.

CA Type Agricultural Chain Applications:??

CA type agricultural chain is a versatile type of chain that can be used in a variety of agricultural applications. Some of the most common applications for CA type agricultural chain include:(1) Grain conveying: CA type agricultural chains are often used in grain conveying systems to transport grain from one location to another. The straight sidebars of CA type agricultural chains provide increased strength and better conveying ability, making them ideal for this application.(2) Baling: CA type agricultural chains are also used in baling machines to help compress hay or straw into bales. The heat treatment and pre-loading of CA type agricultural chains help to extend their lifespan, making them a good choice for this demanding application.(3) Forage harvesting: CA type agricultural chains are also used in forage harvesters to help cut and transport forage crops. The strength and durability of CA type agricultural chains make them a good choice for this application.(4) Seeding: CA type agricultural chains are also used in seeding machines to help distribute seeds evenly over a field. The straight sidebars of CA type agricultural chains help to prevent seeds from getting caught in the chain, which can improve the accuracy of seeding.(5) Planting: CA type agricultural chains are also used in planting machines to help plant seeds in the ground. The strength and durability of CA type agricultural chains make them a good choice for this application.(6) Irrigation: CA type agricultural chains are also used in irrigation systems to help move water from one location to another. The heat treatment and pre-loading of CA type agricultural chains help to extend their lifespan, making them a good choice for this demanding application.These are just a few of the many applications for CA type agricultural chains. If you are looking for a durable and reliable type of chain for your agricultural applications, CA type agricultural chain is a good option to consider.

Agricultural Chain Sprockets for Agricultural Chain

Agricultural chains and sprockets have a wide range of applications. They are used in various industries, including the agricultural, automobile, and steel industries. The chains are manufactured from durable materials and are available in different sizes, styles, and applications. These products are designed to meet the needs of agricultural machinery users.The agricultural chain and sprockets are manufactured from high-quality materials designed to withstand heavy loads. A good quality chain is an important part of an agricultural machine, and it is important to ensure that it is durable and sturdy. The types of chains and sprockets used in the agricultural industry have several applications, and each type has its advantages and disadvantages.Raydafon is a leading China chain manufacturer?and sprocket supplier. Not only do we offer high-quality agricultural chains, but also we provide low-price?agricultural sprockets for sale. Contact us now to get more info.

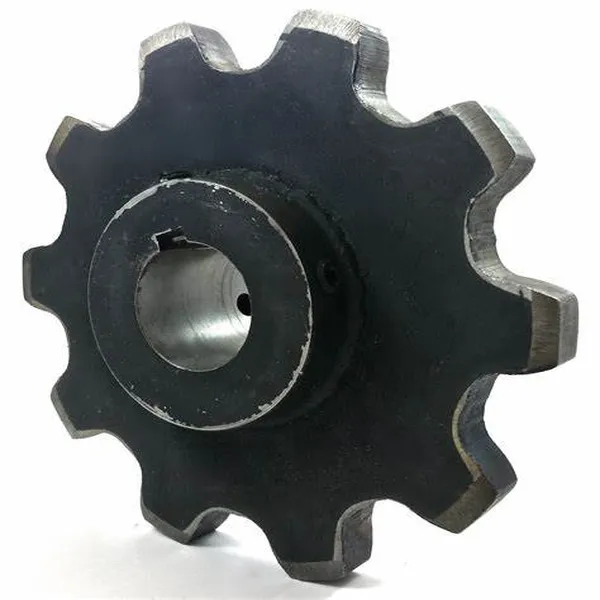

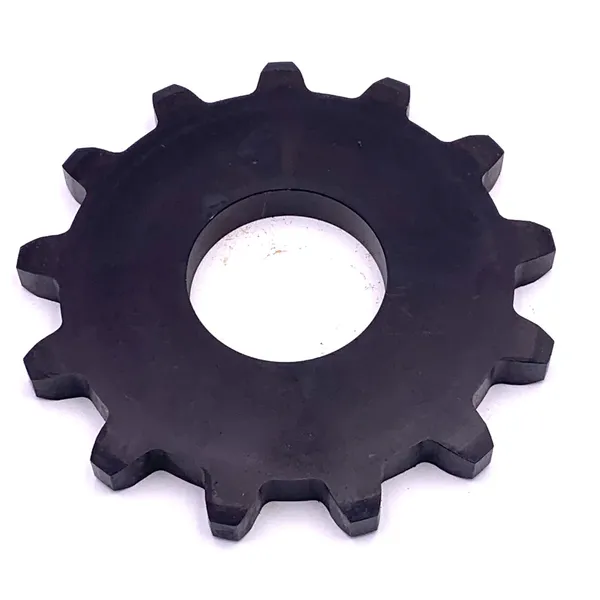

Cast 55-Series Sprockets	Cast 62-Series Sprockets

China Agricultural Chain Manufacturers

Our agricultural machinery chains are available to fit every possible need, with a wide variety of sizes and specifications. However, the one thing that all of our chains have in common is our professional commitment to quality. Knowing you have access to a chain you can trust can make all the difference and give you peace of mind. We know you desire dependable and quality agricultural chains versus chains that stretch out and could cause downtime, and we strive to ensure that our customers always know our precision chains will work — guaranteed. While no agricultural operation can expect to go without some downtime, our goal is to reduce the lost time as much as possible by providing the parts that farmers need to keep all of their equipment in top shape. Routine wear and tear is expected and can be planned for, but we seek to reduce the possibility of unexpected downtime by maintaining an extensive inventory of agricultural chains.Whether you’re looking for an agricultural chain for a large harvester or a small tractor, Raydafon always has your chain in stock! We maintain agricultural chains with various attachments, roller chains, conveyor chains, engineering chains, leaf chains, and pintle chains for your convenience. Email us to learn more.

We Also Provide Other Chains Products

transmission chain (Driving Chain)	Short Pitch Precision Roller Chain (A Series)(1,2,3)	04C-1 06C-1-2-3 085-1-2-3 08A-1-2-3 10A-1-2-3 12A-1-2-3 16A-1-2-3 20A-1-2-3 24A-1-2-3 28A-1-2-3 32A-1-2-3 40A-1-2-3 48A-1-2-3
	Short Pitch Precision Roller Chain (A Series)(1,2,3)	25 35 35-2 35-3 41 40 40-2 40-3 50 50-2-50-3 60 60-2 60-3 80 80-2 80-3 100 100-2 100-3 120 120-2 120-3 140 140-2 160 160-2 180 200200-2 240
	Short Pitch Precision Roller Chain (B Series)(1,2,3)	06B-1-2-3 06B-1-2-3 08B-1-2-3 10B-1-2-3 12B-1-2-3 16B-1-2-3 20B-1-2-3 24B-1-2-3 28B-1-2-3 32B-1-2-3 40B-1-2-3 48B-1-2-3 56B-1-2-364B-1-2-3 72B-1-2-3
	Heavy Duty Series Roller Chain(1,2)	08AH-1 10AH-1 12AH-1-2-3 16AH-1-2-3 20AH-1-2-3 24AH-1-2-3 28AH-1-2-3 32AH-1-2-3 40AH-1-2-3
	Side Bow Chain	40SB 43SB 50SB 60SB 63SB 80SB 08BSB 08BSBY1 10BSB 12BSB C2050SB
	Motorcycle Chain	410 415 415H 420 420H 428 428H 520 520H 525 525H 530 530H 630 630H
	Engine Mechanism Chain (Timing Chain)	CL04
	Self-Lubrication Roller Chain	08BSLR 10BSLR 12BSLR 16BSLR 40SLR 50SLR 60SLR 80SLR
	Double Pitch Transmission Chain	208A 208B 210A 210B 212A 212B 216A 216B 220A 220B
	Double Pitch Transmission Chain	2040 2050 2060 2080 2100
	Bush Chain	P15F-B P20-B P25-B P25F1-B P30F2-B P36-B P40-B P45-B P50-B P55-B P60-B P70-B P80-B
Conveyor Chain	Roller Chain With Straight Side Plates (A Series)	C08A-1-2-3 C10A-1-2-3 C12-1-2-3 C24A-1-2-3 C32A-1-2-3
	Roller Chain With Straight Side Plates (A Series)	C35 C40-1-2-3 C50-1-2-3 C80-1-2-3 C100-1-2-3 C120-1-2-3 C140-1-2-3 C160-1-2-3
	Roller Chain With Straight Side Plates (B Series)	C08B-1-2-3 C10B-1-2-3 C12B-1-2-3 C16-1-2-3 C20B-1-2-3 C24B-1-2-3 C28B-1-2-3 C32B-1-2-3
	Double Pitch Conveyor Chain	C208A C208AH C208B C208BL C210A C210AL C212A C212AH C212AHL C216A C216AL C216AH C216AHL C220A C220AL C220AH C220AHL C224A C224ALC224AH C224AHL C232A C232AL C232AH C232AHL
	Double Pitch Conveyor Chain	C2050 C2052 C2060 C2062 C2060H C2080 C2080H C2082 C2082H C2100 C2100H C2102 C2102H C2120 C2120H C2122 C2122H C2160 C2160H C2162C2162H
	Double Pius Speed Chain	BS25-C206B BS25-C208A BS25-C210A BS25-C212A BS30-C206B BS30-C208B BS30-C210B BS30-C212B
	Conveyor Chain (M Series)	M20 M28 M40 M56 M80
	Hollow Pin Conveyor Chain (MC Series)	MC28 MC56 MC112 MC224
	Conveyor Chain (FV Series)	FV40 FV63 FV90 FV112 FV140
	Conveyor Chain (FVT Series)	FVT40 FVT63 FVT90 FVT112 FVT140 FVT180 FVT250 FVT315
	Hollow Pin Conveyor Chain (FVC Series)	FVC63 FVC90 FVC112 FVC140 FVC180 FVC250 FVC315
	Conveyor Chain (Z Series)	Z40 Z100 Z160 Z300
	Conveyor Chain (ZE Series)	ZE40 ZE100 ZE160 ZE300
	Hollow Pin Conveyor Chain (ZC Series)	ZC21 ZC40 ZC60 ZC150 ZC300
	Hollow Pin Chains	08BHPF 08BHPF5 08BHP9 10BHPF3 10BHPF4 12BHPF2 12BHPF3 16BHPF3 16BHPF4 40HP 08BHPF7 08BHP 50HP 50HPF4 50H-HP 60HP 60HPF1 80HP80HPF1 80HPF2 80H-HP 80HPF3 80HPF4 HB41.75F5 A2080HP
	Welded type cranked link chains	WR78 WH78 WR82 WH82 WR106 WH106 WR110 WH110 WR111 WH111 WR124 WH124 WR132 WH132 WR150 WH150 WR155 WH155 WR157 WH157 WR78F5 WH78F4WH124F1 WH111F1
	Palm oil Chains	P101.6F2 P152F14 P152F17 P152F29 90R-S P101.6F64 P76.7 P152F31
	Sugar mill chains	DH9063 DH2198 P152F93K2 P152F78K2 DH09060 DH1796 P152F77-AS2 P203.2F9
	Rubber gloves carrier chains	P100F155 P100F13 P100F139 P150/90
	Lumber conveyor chains	81X 81XH 81XHE 81XHH 81XHS 500R 441.100R
	Sharp top chains	08AF34 08BF21 10AF8 41F6 06BF1 06BF37 08AF41 08BF44 08AF8...
Stainless Steel Chain	Stainless Steel Short Pitch Precision Roller Chain(A Series)	25SS-1 35SS-1 41SS-1 40SS-1 50SS-1 60SS-1 80SS-1 100SS-1 120SS-1
	Stainless Steel Short Pitch Precision Roller Chain(B Series)	05BSS-1 06BSS-1 08BSS-1 10BSS-1 12BSS-1 16BSS-1 20BSS-1 24BSS-1
	Stainless Steel Roller Chain With Straight Side Plates	C40SS-1 C50SS-1 C60SS-1 C80SS-1 C100SS-1 C120SS-1 C08BSS-1 C10BSS-1 C12BSS-1 C16BSS-1 C20BSS-1 C24BSS-1
	Stainless Steel Double Pitch Transmission Chain	2040SS 2050SS 2060SS 2080SS 2100SS 2120SS 208BSS 210BSS 212BSS 216BSS 220BSS 224BSS
	Stainless Steel Double Pitch Conveyor Chain	C2040SS C2040HSS C208BSS C2050SS C2060SS C2060HSS C2080SS C2080HSS C2100SS C2100HSS C2120SS C2120HSS
	Stainless Steel Hollow Pin Chain	08BHFSS 40HPSS 50HPSS 60HPSS 12BHPSS 80HPSS C2040HPSS C2050HPSS C2060HPSS C2080HPSS HB50.8SS
