CA Type Agricultural Chain
  • CA Type Agricultural ChainCA Type Agricultural Chain

CA Type Agricultural Chain

Raydafon Group's CA Type Agricultural Chain is a durable, high-performance chain designed for heavy-duty farming machinery. Its premium steel construction and advanced heat treatment ensure superior strength and corrosion resistance, reducing maintenance costs. Ideal for farmers, agricultural contractors, and equipment manufacturers, it enhances efficiency in harvesting, plowing, and transportation. Users experience increased reliability, minimized downtime, and extended equipment lifespan. Unlike generic chains, it offers tailored engineering for specific agricultural applications, backed by a warranty for peace of mind. Boost your productivity with this trusted solution!
Send Inquiry
Product Description

CA627 CA550D CA555D CA557D CA620D CA2062H Steel Conveyor CA Type?Agricultural Chain

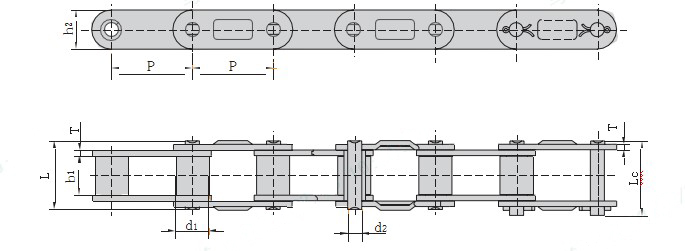

[caption id="" align="alignnone" width="700"]CA Type Agricultural Chain CA Type Agricultural Chain[/caption]
This corn head gathering chain assembly fits Fantini corn head gathers. What separates this chain assembly from others is that it uses an extreme-duty CA627 chain that is assembled using special high-strength heat-treated components and features a solid roller design for increased performance and durability. These chains are made with chrome pins which can make them last twice as long. It has seven (6) CPEF2 attachments/ gathering lugs that are spaced every 15.35" and it is 78 links long, which is 92.12" total.
Chain No
Pitch
Roller diameter
Width between inner plates
Pin diameter
Pin length
Plate dimension
Ultimate tensile strength
P
d1 max
b1 min
d2 max
Lmax
Lc max
h2 max
Tmax
Qmin
mm
mm
mm
mm
mm
mm
mm
mm
kN/lbf
CA627
30.00
15.88
19.05
8.28
36.1
39.4
20.5
3.00
50.00/11247
CA550D
41.40
16.87
19.81
7.19
35.0
38.0
19.3
2.80
39.10/8886
CA555D
41.40
16.87
12.70
7.19
29.1
32.0
19.3
3.10
39.10/8886
CA557D
41.40
17.78
20.24
8.00
37.4
40.6
23.1
3.10
55.61/12639
CA620D
42.01
17.91
24.51
7.19
41.8
45.2
20.2
3.25
39.10/8886
CA2062H
38.10
22.23
12.57
5.94
29.2
31.6
18.0
3.25
31.10/6992

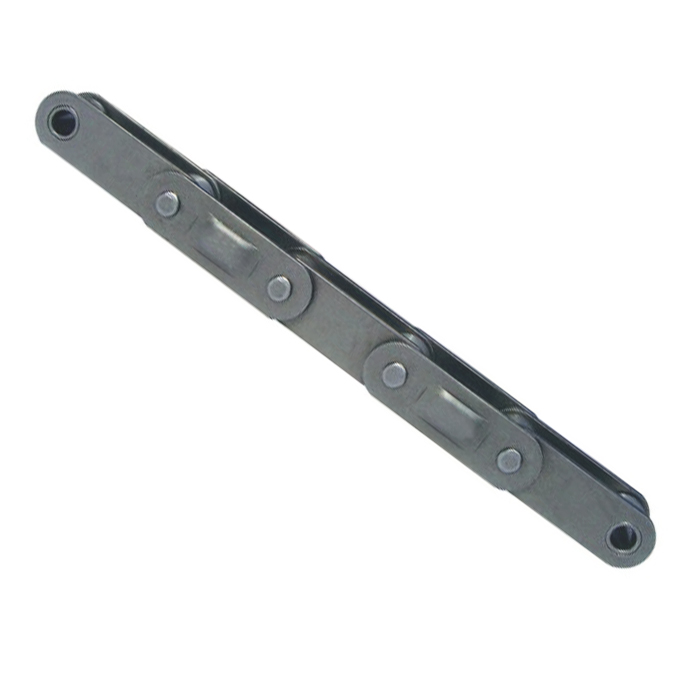

[caption id="" align="alignnone" width="685"]CA Type Agricultural Chain CA Type Agricultural Chains[/caption]
C80F3 OR Pitch: 25.4mm
Roller diameter: 15.88mm
Width between inner plates:15.78mm
Pin diameter: 7.92mm
Pin length: L36.6mm Lc 38.7mm Plate depth: 24.0mm Plate thickness: 3.25mm Ultimate tensile strength: 56.7/12886 kN/lbf Average tensile strength: 69.4kN
we are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!
Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.
For more types，Please click here！
