S Type Steel Agricultural Roller Chain S32 S42 S45 S52 S55 S55R S62 S77 S88

Raydafon Group's S Type Steel Agricultural Roller Chains (S32, S42, S45, S52, S55, S55R, S62, S77, S88) are engineered for durability and efficiency in farming and industrial applications. Their high-strength steel construction ensures reliable performance, reducing downtime and enhancing productivity. Ideal for farmers and machinery operators, these chains offer superior resistance to wear and tear, providing peace of mind and long-term cost savings. With precision design and proven reliability, choose Raydafon Group for trusted quality that drives your operations forward.

Send Inquiry

Product Description

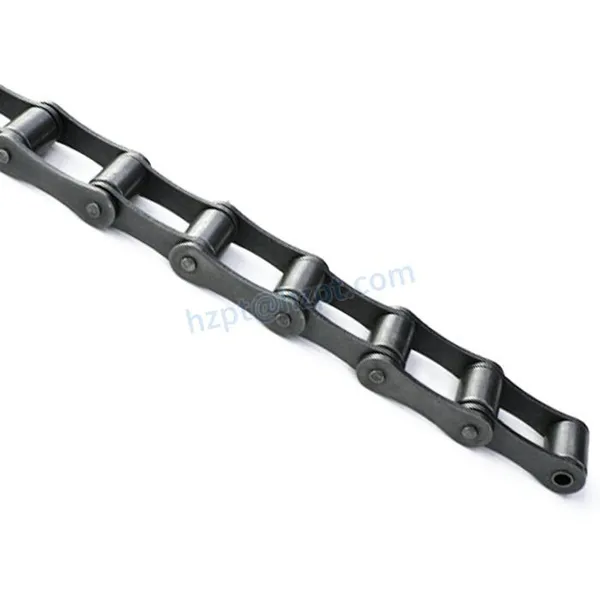

S Type Steel Agricultural Chain S32 S42 S45 S52 S55 S55R S62 S77 S88

The S-type steel agricultural roller chain is a type of roller chain that is commonly used in agricultural machinery. It is designed to transmit power between two rotating shafts in machinery such as combines, balers, and other agricultural equipment.The S-type steel agricultural roller chain is constructed with a series of metal links that are connected by pins and rollers. The links are usually made of steel and are designed to withstand the high loads and stresses that are common in agricultural machinery. The agricultural chain is also designed to resist wear and corrosion, which are common problems in agricultural environments.The "S" in the name of the S-type agricultural chain refers to the shape of the links, which are designed to provide a larger contact area with the sprocket teeth than other types of roller chains. This design helps to distribute the load more evenly across the teeth, which can help to reduce wear and increase the lifespan of both the chain and the sprocket.

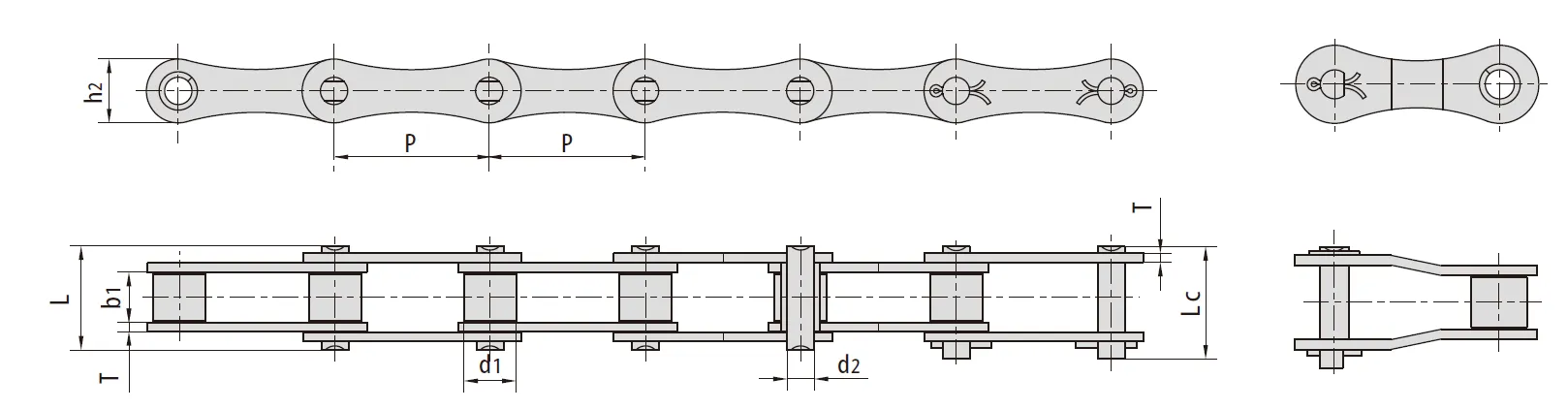

S Type Steel Agricultural Roller Chain Size Chart:

?Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Tensile strength	Average tensile strength	Weight per meter
	Pitch	Roller diameter	Width between inner plates	Pin diameter			Inner plate depth	Plate thickness	Tensile strength	Average tensile strength	Weight per meter
	P	d1?max	b1?min	d2?max	Lmax	Lc max	h2?max	t/T max	Qmin	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
S32 Chain	29.21	11.43	15.88	4.45	26.7	28.8	13.2	1.8	8.00/1818	21.6	0.86
S42 Chain	34.93	14.27	19.05	7.00	34.3	37.0	19.8	2.8	27.00/6136	50.8	1.60
S45 Chain	41.40	15.24	22.23	5.72	37.7	40.4	17.3	2.8	18.00/4091	36.1	1.66
S51 Chain	38.10	15.24	16.00	5.72	30.9	33.8	17.3	2.8	28.00/6364	30.8	1.48
S52 Chain	38.10	15.24	22.23	5.72	37.7	40.4	17.3	2.8	18.00/4091	36.1	1.68
S55 Chain	41.40	17.78	22.23	5.72	37.7	40.4	17.3	2.8	18.00/4091	36.1	1.80
S62 Chain	41.91	19.05	26.20	5.72	40.3	43.0	17.3	2.5	26.70/6067	36.1	1.87
S77 Chain	58.34	18.26	22.23	8.90	43.2	46.4	26.2	4.0	45.00/10227	73.1	2.66
S88 Chain	66.27	22.86	28.58	8.90	49.8	53.0	26.2	4.0	45.00/10227	73.1	3.25

S Type Steel Agricultural Roller Chain Specifications:

1. Material:?Alloy steel & Stainless steel2. Surface treatment:?Shot peening / Zinc-plated / Nickel-plated / Dracromet-plated3. Characteristic: The chain plate hole finally passed the ball extrusion to ensure maximum fatigue resistance; parts of the shot peening treatment make the chain and the sleeve have a higher fatigue strength.

Product?name?	S Type Steel Agricultural Chain
Materials?Available?	1.?Stainless?Steel:?SS304, SS316, etc
	2.?Alloy Steel: 45Mn, 42CrMo?etc
	3. OEM, according to your request
Surface Treatment	Shot peening, Polishing, Oxygenation, Blackening, Zinc-plated, Nickel-plated, Anodized etc.
Characteristic	Fire?Resistant,?Oil?Resistant,?Heat?Resistant
Application	Agricultural machine
Design criterion	ISO DIN ANSI?& Customer's Drawing
Size	Customer's Drawing & ISO Standard
Package	Wooden Case / Container and pallet, or made-to-order
Certificate	ISO9001: 2008
Advantage	First quality, best service, competitive price, fast delivery
Delivery Time	20 days for samples. Forty-five days for official order.

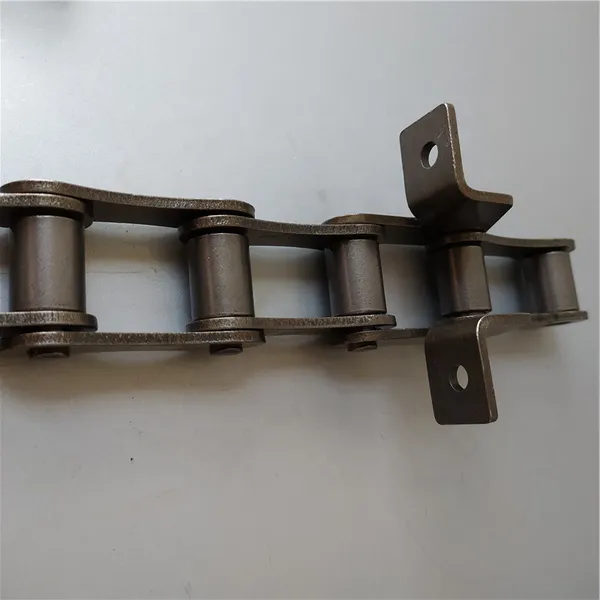

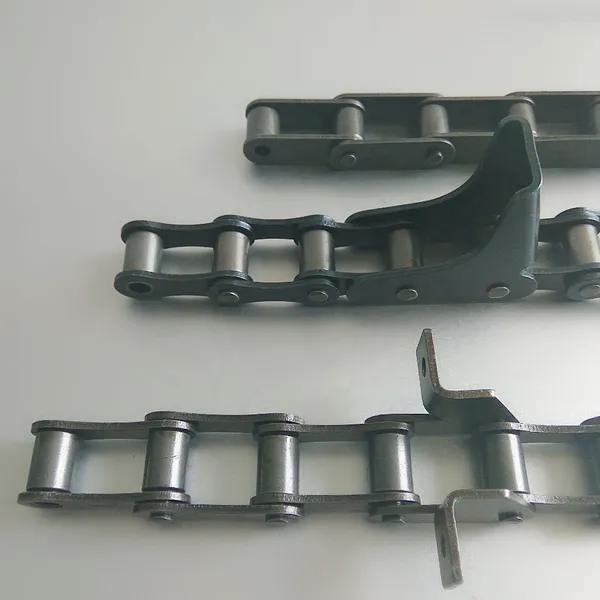

S Type Steel Agricultural Roller Chain Features:

Here are the features of S type agricultural roller chain:1. Solid rollers: The rollers on S-type agricultural roller chains are solid, rather than hollow. This makes them more durable and resistant to wear and tear.2. Heat-treated components: The components of S-type agricultural roller chain are heat-treated, which makes them stronger and more resistant to damage.3. Pre-stretched: S-type agricultural roller chain is pre-stretched, which reduces the amount of elongation that occurs over time. This helps to ensure that the chain remains tight and efficient.4. High tensile strength: S-type agricultural roller chain has a high tensile strength, which means that it can withstand a lot of force. This makes it a good choice for applications where there is a lot of stress on the chain, such as tractors and harvesters.5. Low maintenance: S-type agricultural roller chain is low-maintenance, which means that it does not require a lot of lubrication or cleaning. This makes it a good choice for applications where maintenance is difficult or inconvenient, such as in remote areas.6. Long service life: S-type agricultural roller chain has a long service life, which means that it can last for many years with proper care. This makes it a good value for money, as it will save you the cost of replacing the chain frequently.In addition to these features, S-type steel agricultural roller chains are also available in a variety of sizes and pitches. The size of the chain is determined by the width of the rollers, and the pitch is the distance between the centers of adjacent pins. The correct size and pitch of the chain should be selected for the application in order to ensure proper performance.

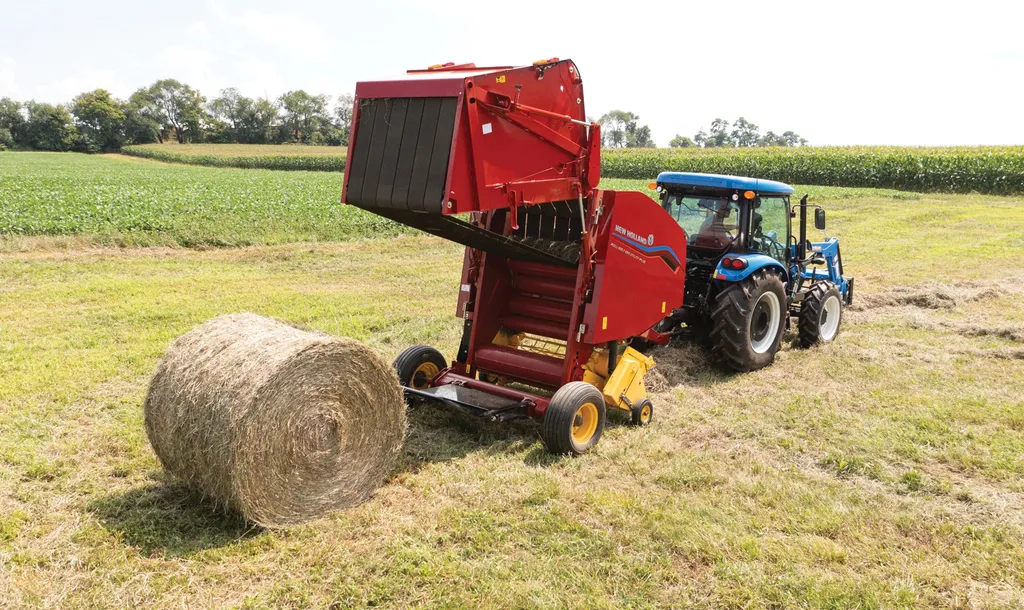

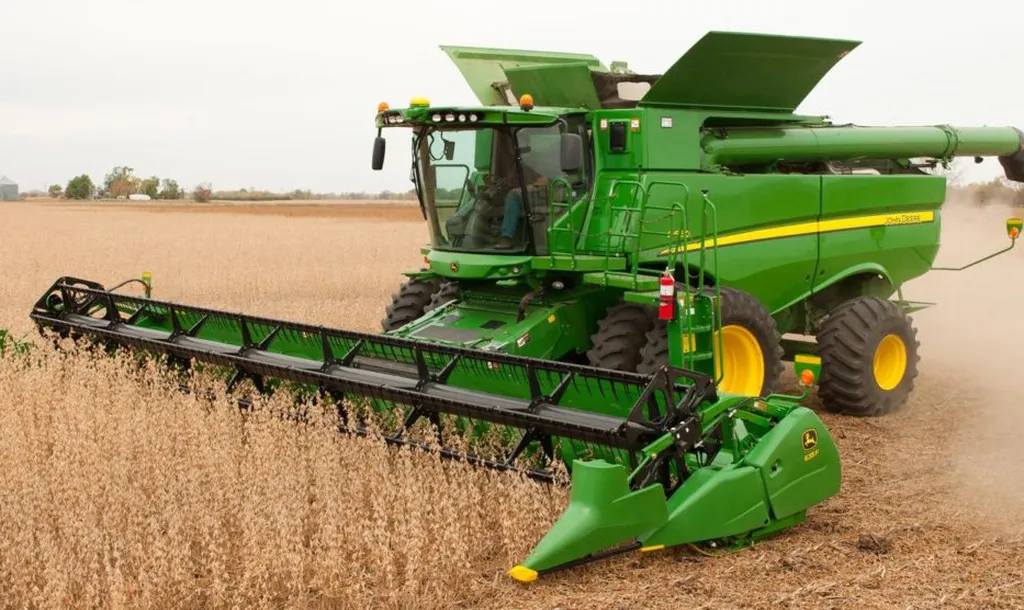

S Type Steel Agricultural Roller Chain Applications:

S-type steel agricultural roller chains are used in a variety of agricultural applications, including:(1) Combine harvesters: S-type agricultural roller chains are used to drive the conveyor belts that move grain through the combine harvester. They are also used to drive the blades that cut the grain.(2) Mowers: S-type agricultural roller chains are used to drive the blades that cut grass and weeds. They are also used to drive the wheels of the mower.(3) Balers: S-type agricultural roller chains are used to drive the rollers that compress hay or straw into bales. They are also used to drive the conveyor belts that move the bales out of the baler.(4) Tractors: S-type agricultural roller chains are used to drive the wheels of the tractor. They are also used to drive the implements that are attached to the tractor.(5) Irrigation systems: S-type agricultural roller chains are used to drive the pumps that move water through the irrigation system. They are also used to drive the valves that control the flow of water.(6) Harvesting Equipment: S-type agricultural roller chains are used to drive the conveyor belts that move harvested crops through the harvesting equipment. They are also used to drive the blades that cut the crops.(7) Hay balers: S-type agricultural roller chains are used to drive the rollers that compress hay or straw into bales. They are also used to drive the conveyor belts that move the bales out of the baler.(8) Feeders: S-type agricultural roller chains are used to drive the conveyor belts that move feed to livestock. They are also used to drive the feeders that dispense feed to the livestock.(9) Grain elevators: S-type agricultural roller chains are used to drive the conveyor belts that move grain through grain elevators. They are also used to drive the augers that lift grain through the grain elevators.(10) Feed mills: S-type agricultural roller chains are used to drive the conveyor belts that move feed through feed mills. They are also used to drive the augers that lift feed through the feed mills.

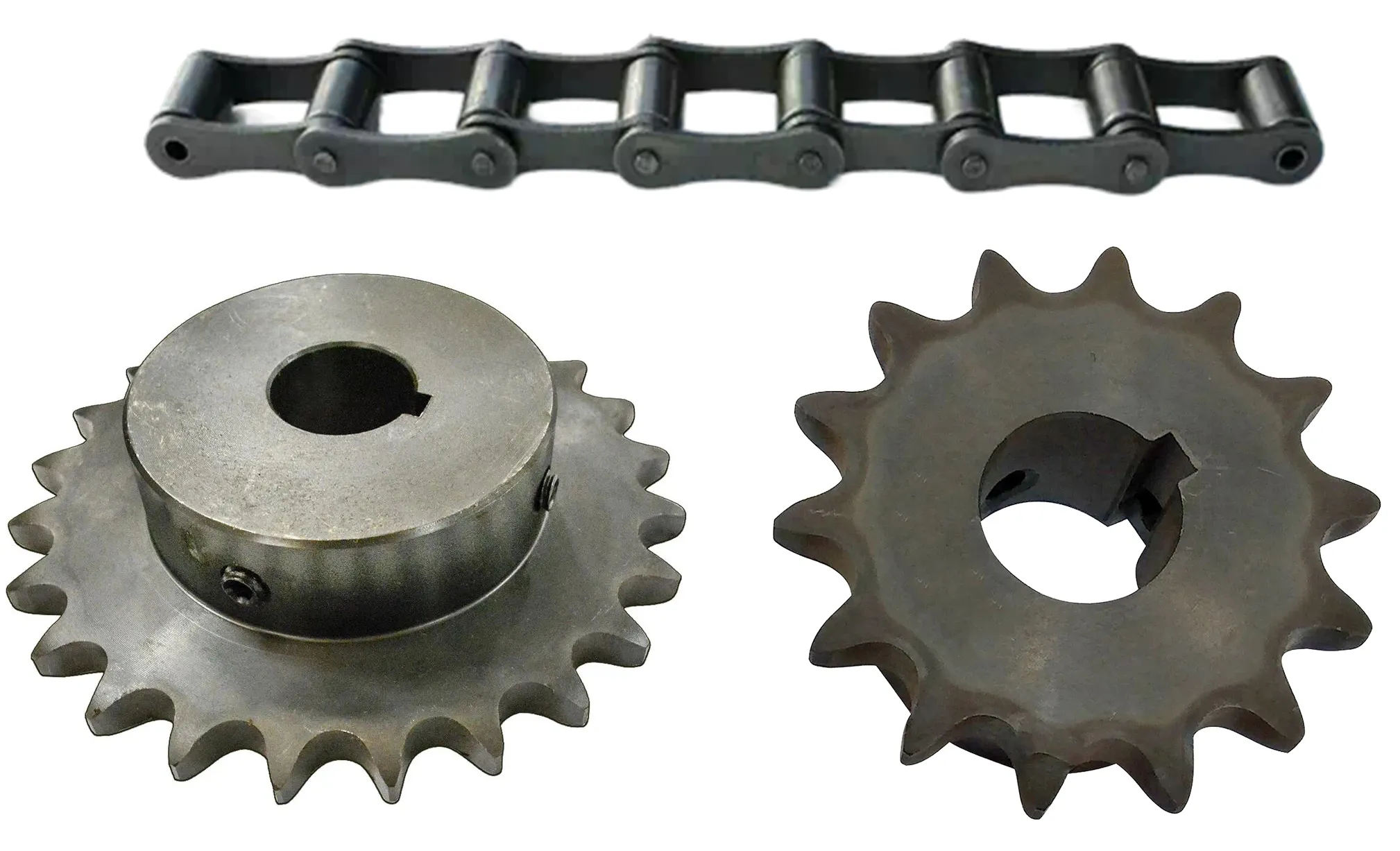

Agricultural Roller Chain Sprockets for Agricultural Roller Chain:

Agricultural roller chain sprockets and agricultural roller chains are used in a wide variety of agricultural machinery, including combines, balers, hay elevators, manure spreaders, and live trailers. They are also used in some construction equipment, such as excavators and backhoes.Agricultural roller chain sprockets are typically made of steel or cast iron. They have a number of different tooth profiles, depending on the application. The most common tooth profile is the ANSI roller chain sprocket. ANSI sprockets are used in a variety of agricultural machinery, including combines, balers, and hay elevators.Agricultural roller chains are also made of steel or cast iron. They come in a variety of sizes and strengths. The most common size of agricultural roller chain is the CA550 chain. The CA550 roller chains are used in a variety of agricultural machinery, including combines, balers, and hay elevators.Agricultural roller chain sprockets and agricultural roller chains are used to transmit power from one part of a machine to another. The sprockets are mounted on the shafts of the machine, and the chain runs over the sprockets. As the sprockets rotate, the chain moves, which in turn transmits power to the other parts of the machine.Agricultural roller chain sprockets and agricultural roller chains are a reliable and efficient way to transmit power in agricultural machinery. They are durable and can withstand the harsh conditions found in agricultural applications.Here are some of the benefits of using agricultural roller chain sprockets and agricultural roller chains:

They are durable and can withstand the harsh conditions found in agricultural applications.
They are efficient at transmitting power.
They are easy to maintain.
They are available in a variety of sizes and strengths.

If you are looking for a reliable and efficient way to transmit power in your agricultural machinery, then agricultural roller chain sprockets and agricultural roller chains are great options. S Type Steel Agricultural Roller Chain S32 S42 S45 S52 S55 S55R S62 S77 S88
