S Type Agricultural Conveyor Roller Chain With Attachment

Discover the Raydafon Group S Type Agricultural Conveyor Roller Chain With Attachment, engineered for robust and reliable performance in demanding farming applications. This premium chain features durable materials and a secure attachment design, ensuring smooth conveyor operation for grains, feed, and crops. Ideal for farmers and agricultural professionals, it enhances efficiency, reduces downtime, and delivers a seamless experience. Stand out with its superior build quality and precision engineering. Choose Raydafon Group for a lasting solution that boosts productivity on your farm.

Send Inquiry

Product Description

S Type Steel Agricultural Chain With Attachment

We offer a full and compete line of high-quality roller chain attachments and roller chain attachment assemblies right off the shelf. Our inventory of attachments range in quality, material, and type. We have Economy Plus, General Duty Plus, and Premier Series attachments in stock. As well as stainless steel, nickel-plated, carbon, and dacromet coated attachments all available in ANSI and Metric (ISO & DIN) standard sizes. We also keep pre-assembled chains in-stock for most standard roller chain sizes and configurations, but if we don't have it on the shelf we can build or assemble the attachment chain in the matter of a few days.

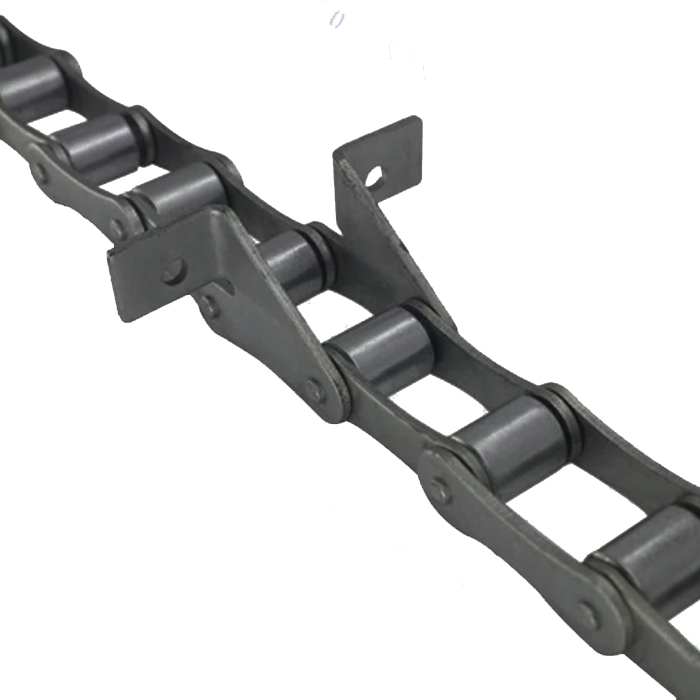

[caption id="" align="alignnone" width="700"] S Type Agricultural Conveyor Roller Chain With Attachment

Conveyor Roller Chain[/caption]

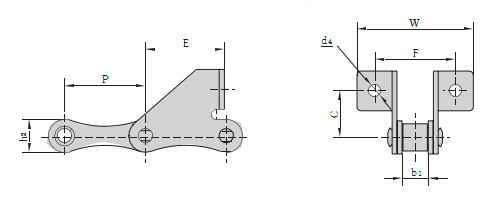

[caption id="" align="alignnone" width="497"] S Type Agricultural Conveyor Roller Chain With Attachment

Conveyor Roller Chain[/caption]

Standard roller chain attachments includes A-1, K-1, SA-1, and SK-1 style attachments. These can be assembled onto the pin link (outside link), roller link (inside link) or as individual unassembled attachment links.

Chain No.	P	b1	Ｃ	E	F	W	d4	h2
Chain No.	mm	mm	mm	mm	mm	mm	mm	mm
S32SD	29.21	15.88	20.00	19.2	58.0	78.0	6.4	13.2
S51SDF1	38.10	16.00	19.65	20.0	56.0	82.0	6.4	17.3
S52SDF1	38.10	15.80	19.56	20.0	56.0	82.0	6.4	17.3
S52SDF2	38.10	22.20	20.20	37.2	57.6	86.2	6.5	16.4
S52SD	38.10	22.23	20.00	19.2	62.0	88.5	6.4	17.3
S52F4	38.10	15.80	20.60	37.0	53.8	69.5	6.4	16.7
S52F8	38.10	22.23	20.60	37.0	60.7	76.4	6.4	17.3
S52F9	38.10	18.50	20.00	18.5	54.5	71.0	6.5	16.5
S52LSD	38.10	16.40	20.00	17.5	54.5	71.0	6.5	16.5
S52LF1SD	38.10	22.02	20.00	17.5	54.5	71.0	6.5	16.5
S52LF2SD	38.10	16.00	20.00	19.0	54.6	76.6	6.5	17.0
S52F12SD	38.10	13.00	20.00	30.0	47.5	83.4	6.4	17.3
S52LVSD	38.10	17.80	20.00	19.2	62.0	85.5	6.4	16.7
S45F1	41.40	22.23	21.00	25.0	62.4	83.4	8.5	17.3
S45SDF2	41.40	22.23	21.00	28.5	62.4	83.4	8.5	17.3
S45W-F1	41.40	22.23	20.00	37.0	58.0	87.0	6.6	17.3
S45W-F4	41.40	22.23	20.50	33.2	58.0	85.6	6.6	17.3
S45SD	41.40	22.23	17.00	28.6	58.0	81.2	8.5	17.3
S55F2	41.40	22.23	20.00	37.0	58.0	87.0	6.4	17.3
S55F3	41.40	22.23	20.50	33.2	58.0	85.6	6.6	17.3
S55F4	41.40	22.23	20.00	37.0	58.0	87.0	6.6	17.3
S55F6	41.40	22.23	20.00	30.0	58.0	87.0	6.4	17.3
S55F7	41.40	22.23	20.50	33.2	62.0	85.6	6.6	17.3
S55RSDF1	41.40	22.23	20.50	33.2	62.0	85.6	6.6	22.4
55VSDF1	41.40	22.23	20.50	33.2	62.0	85.6	6.6	20.0
55VSDF2	41.40	22.23	20.50	33.2	62.0	85.6	8.3	20.0
55VSDF4	41.40	22.23	23.40	28.5	57.5	83.4	6.5	20.0
S55SDF2	41.40	22.23	20.00	33.4	58.0	86.0	6.6	17.3
S55SDF4	41.40	22.23	25.00	36.0	58.0	85.0	6.5	17.3
S62SD	41.91	26.20	20.00	32.6	61.4	92.0	6.4	17.3

we are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!
