CA Series Check Valves

CA Series Check Valves

CA Series check valves are a type of flow control device designed to allow fluid or gas to flow in one direction while preventing backflow in the opposite direction. They are commonly used in various industries and applications, including plumbing, HVAC systems, oil and gas, water treatment, and more.The CA Series check valves are known for their reliability, durability, and high performance. They are typically made from high-quality materials such as stainless steel, brass, or PVC, depending on the specific application and the type of fluid or gas being controlled.These check valves feature a simple yet effective mechanism that allows fluid or gas to flow in one direction, while automatically closing to prevent reverse flow. The mechanism usually consists of a hinged or spring-loaded disc that opens when the forward flow reaches a certain pressure, allowing the fluid or gas to pass through. When the flow stops or reverses, the disc quickly closes under its own weight or with the help of a spring, effectively blocking the reverse flow.One of the key advantages of CA Series check valves is their low-pressure drop. They are designed to minimize resistance to flow, allowing for efficient operation and preventing unnecessary energy losses. This makes them suitable for applications where maintaining flow rates and system performance is crucial.CA Series check valves come in various sizes and configurations to accommodate different flow rates and installation requirements. They can be found in inline or straight-through designs, as well as angle or side-entry designs, depending on the specific application. Some models may also include additional features such as threaded or flanged connections, integral strainers, or pressure relief options.

CA Series Check Valve Features:

• Adjustable Cracking Pressures
• Variety of end connections and materials available
• Working pressure up to: 3000 psig (207 bar）
• Cracking pressure:3 to 600 psig (0.2 to 41.4 bar）
• Working temperature:-10 F to 375 F（-23 C to 190 C）

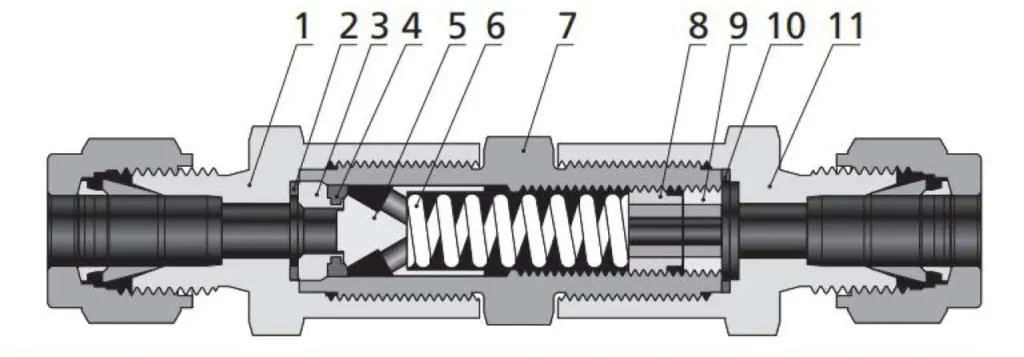

CA Series Check Valve Materials of Construction:

Component		Valve Material Grade/ASTM Specification
		316 SS5	Brass
1	Inlet Body	316 SS/A479	Brass C36000/B16
2	Inlet Gasket	PTFE-coated 316 SS/A240	PTFE-coated 316 SS/A240
3	Insert	316 SS/A479	Brass C36000/B16
4	O-ring	Fluorocarbon FKM	Buna l\l
5	Poppet	316SS/A479	Brass C36000/B16
6	Spring	302 SS/A313	302 SS/A313
7	Center Body	316 SS/A479	Brass C36000/B16
8	Adjusting Screw	316SS/A276	316 SS/A276
9	Locking Screw	316 SS/A276	316SS/A276
10	Outlet Gasket	PTFE-coated 316 SS/A240	PTFE-coated 316 SS/A240
11	Outlet Body	316 SS/A479	Brass C36000/B16

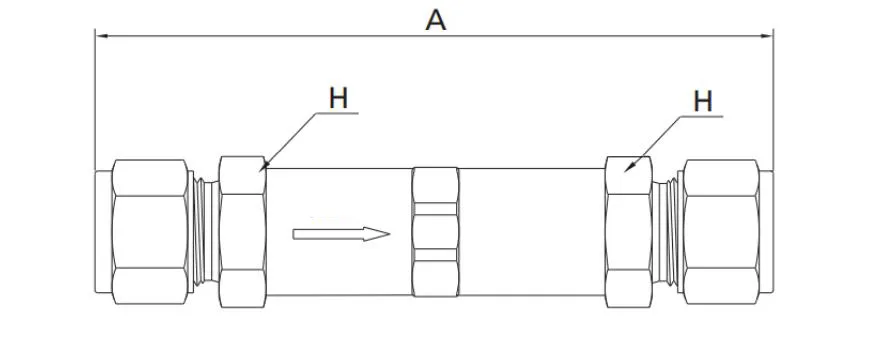

CA Series Check Valve Dimensions:

Basic Ordering Number	Connection Type and Size		CV	Dimension, in.(mm)
	Inlet	Outlet		A	H
-CA-FT4	1/4” Tube	1/4” Tube	0.4	3.23 (82.0)	5/8 (15.9)
-CA-MT6	6mm Tube	6mm Tube	0.4	3.23 (82.0)	5/8 (15.9)
-CA-MT8	8mm Tube	8mm Tube	0.4	3.32 (84.3)	5/8 (15.9)

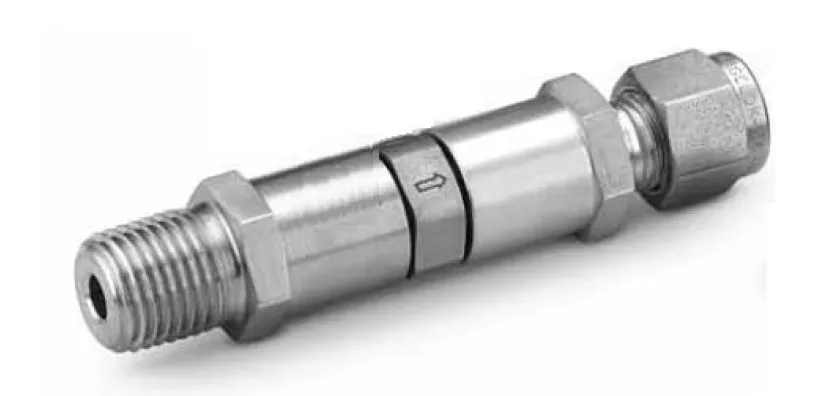

CA Series Check Valve Advantages:

The CA Series check valves offer several advantages that make them a preferred choice in various applications. Here are some key advantages of CA Series check valves:1. Reliable Backflow Prevention: CA Series check valves excel at preventing backflow in fluid or gas systems. They ensure that the flow moves in only one direction, preventing any reverse flow that could lead to system damage, contamination, or inefficiency.2. Low Pressure Drop: These check valves are designed to minimize pressure drop across the valve, meaning they offer low resistance to flow. This characteristic is particularly important in applications where maintaining flow rates and system performance is critical.3. Durability and Longevity: CA Series check valves are constructed from high-quality materials such as stainless steel, brass, or PVC, depending on the application requirements. These materials provide excellent durability, corrosion resistance, and longevity, ensuring the check valves can withstand the demands of various environments.4. Wide Range of Configurations: The CA Series check valves are available in a variety of sizes, configurations, and connection types, allowing for easy integration into different systems. Whether it's an inline, angle, or side-entry design, the range of options ensures compatibility with diverse installation requirements.5. Versatile Applications: CA Series check valves find application in numerous industries and systems, including plumbing, HVAC, oil and gas, water treatment, and more. Their versatility allows them to be used in both residential and commercial settings, making them suitable for a wide range of projects.6. Easy Installation and Maintenance: These check valves are designed for straightforward installation and maintenance. They often feature threaded or flanged connections, making them easy to connect to existing piping systems. Additionally, their simple design minimizes the need for regular maintenance, reducing downtime and associated costs.7. Cost-Effective Solution: CA Series check valves provide an affordable and cost-effective solution for ensuring flow control and preventing backflow. Their reliability, durability, and low maintenance requirements contribute to overall cost savings in the long run.
