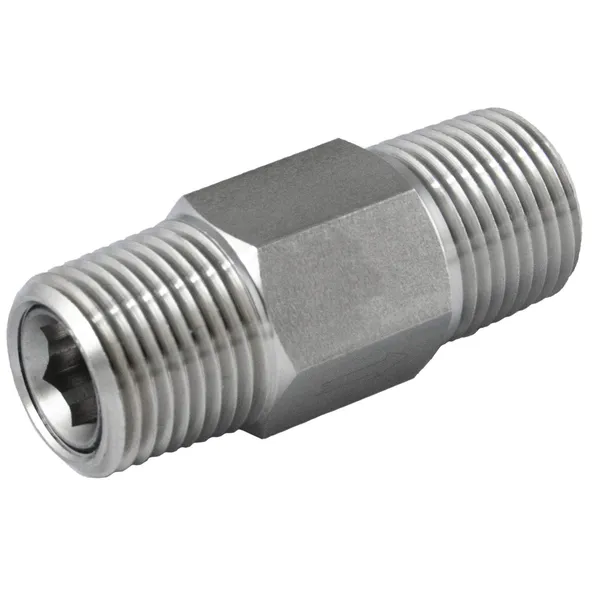

CP & CPA Series Check Valves

CP & CPA Series Check Valves

CP and CPA series check valves are types of valves commonly used in various industries to control the flow of fluids in a single direction. These valves are designed to prevent the backflow of fluids, ensuring that the flow only moves in the intended direction. The CP and CPA series check valves are manufactured by different companies and may vary slightly in design and features, but they generally serve the same purpose.CP Series Check Valves:The CP series check valves are typically made of durable materials such as stainless steel, carbon steel, or brass. They are available in various sizes and pressure ratings to accommodate different applications. These valves feature a simple design consisting of a body, a disc, and a spring. The disc is positioned inside the valve body and is held in place by the spring. When the fluid flows in the desired direction, the disc lifts, allowing the fluid to pass through. However, if there is a reverse flow or backpressure, the disc closes tightly against the valve seat, preventing the flow from reversing.CPA Series Check Valves:The CPA series check valves are similar in function to the CP series valves but may have some additional features and modifications. These valves are often used in applications where higher pressure ratings and more demanding conditions are encountered. They are commonly made of strong materials such as stainless steel or alloy steel to withstand the rigors of different industrial environments. The CPA series valves may incorporate advanced sealing mechanisms, such as metal-to-metal or soft-seated designs, to ensure tight closure and minimize leakage.Both the CP and CPA series check valves are known for their reliability, low maintenance requirements, and ease of installation. They find applications in a wide range of industries, including oil and gas, chemical processing, power generation, water treatment, and more. These valves are typically installed in pipelines, pump systems, compressors, and other equipment where preventing backflow is crucial for safe and efficient operation.

CP & CPA Series Check Valve Features:

• Compact one-piece body
• A variety of end connections and materials are available
• Working pressure up to 3000 psig （207 bar）
• Cracking pressure: 1/3 to 25 psig (0.02 to 1.7 bar）
• Working temperature:-10F to 375F（-23 Cto 190 C）

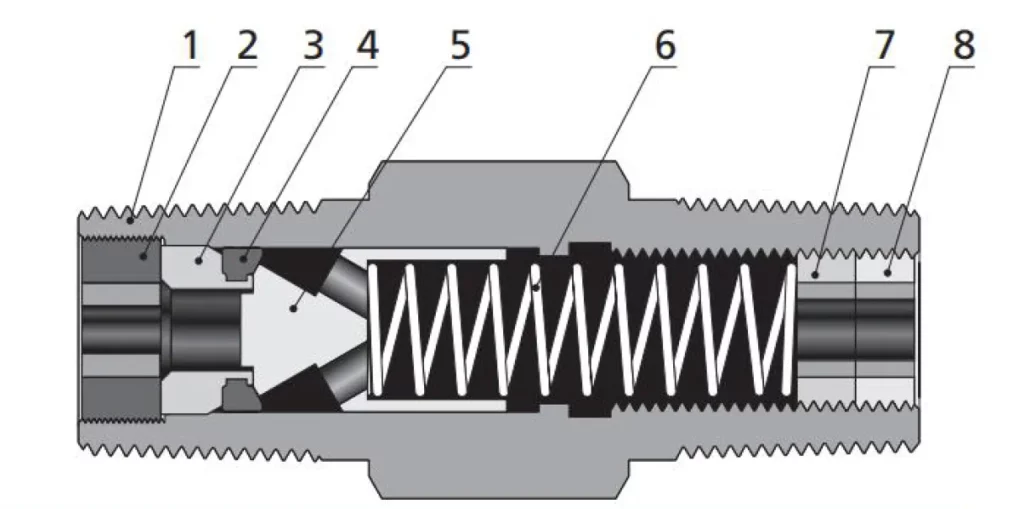

CP & CPA Series Check Valve Materials of Construction:

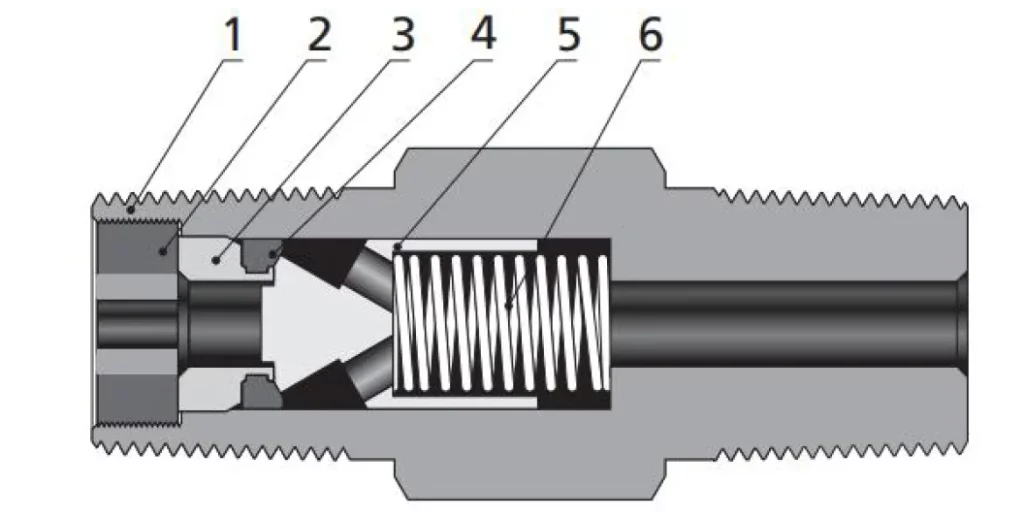

CP Series Check Valves

Component			Valve Material Grade/ASTM Specification
			316 SS	Brass
1		Body	316 SS/A479	Brass C36000/B16
2		Insert Locking Screw	316 SS/A276 or A479	Brass C36000/B16
3		Insert	316 SS/A479	Brass C36000/B16
4		O-ring	Fluorocarbon FKM	Buna N
5		Poppet	316 SS/A479	Brass C36000/B16
6		Spring	302 SS/A313	302 SS/A313

CPA Series Check Valves

Component		Valve Material Grade/ASTM Specification
		316 SS	Brass
1	Body	316 SS/A479	Brass C36000/B16
2	Insert Locking Screw	316 SS/A276 or A479	Brass C36000/B16
3	Insert	316 SS/A479	Brass C36000/B16
4	O-ring	Fluorocarbon FKM	Buna N
5	Poppet	316 SS/A479	Brass C36000/B16
6	Spring	302 SS/A313	302 SS/A313
7	Adjusting Screw	316 SS/A479	316 SS/A276
8	Locking Screw	302 SS/A313	316SS/A276

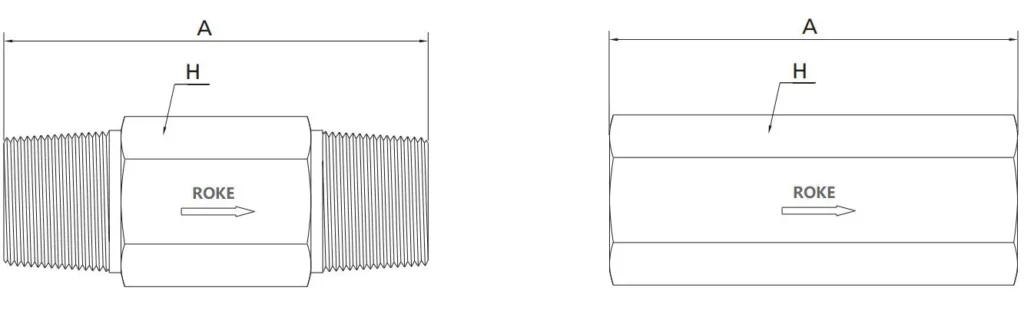

CP & CPA Series Check Valve Dimensions:

Basic Ordering Number	Connection Type and Size		CV	Dimension, in.(mm)
	Inlet	Outlet		A	H
-CP-FN4	1/4 Female NPT	1/4 Female NPT	0.35	2.41 (61.2)	3/4 (19.1)
-CP-FN8	1/2 Female NPT	1/2 Female NPT	1.2	3.71 (94.2)	11/16 (27.0)
-CP-MN4	1/4 Male NPT	1/4 Male NPT	0.35	1.62 (41.1)	9/16 (14.3)
-CP-MN8	1/2 Male NPT	1/2 Male NPT	1.2	2.28 (58.0)	7/8 (22.2)
-CPA-FN4	1/4 Female NPT	1/4 Female NPT	0.35	2.98 (75.7)	3/4 (19.1)
-CPA-MN4	1/4 Male NPT	1/4 Male NPT	0.35	1.62 (41.1)	9/16 (14.3)
-CPA-MN8	1/2 Male NPT	1/2 Male NPT	1.2	2.56 (65.0)	7/8 (22.2)

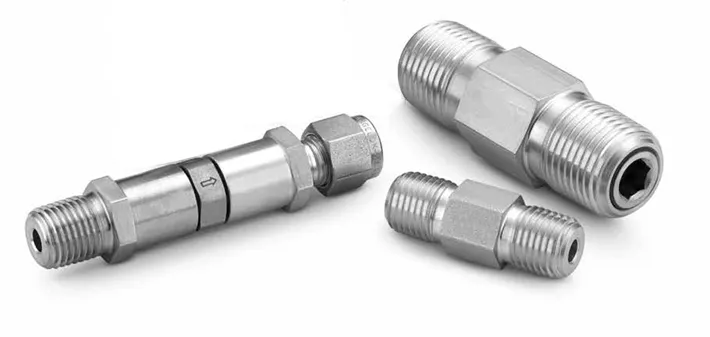

CP & CPA Series Check Valve Working Principle:

The CP and CPA Series Check Valves are poppet-style check valves that work by allowing flow in one direction and preventing flow in the opposite direction. They are typically used in medium-pressure applications up to 3000 psi (206 bar) and are available in 1/4" and 1/2" threaded connections.

The valve consists of a body, a poppet, a spring, and a seat. When the flow is in the forward direction, the pressure of the fluid forces the poppet off the seat, allowing the fluid to pass through the valve. When the flow stops or reverses, the spring forces the poppet back onto the seat, blocking the flow.

The CP and CPA Series Check Valves are available with either fixed or adjustable cracking pressures. The cracking pressure is the minimum pressure required to open the valve. Fixed cracking pressure valves are preset at a specific cracking pressure, while adjustable cracking pressure valves can be adjusted to meet the specific needs of the application.

Here is a step-by-step explanation of how the CP and CPA Series Check Valve works:

1. The fluid flows into the valve body through the inlet port.
2. The pressure of the fluid forces the poppet off the seat, allowing the fluid to pass through the valve and out the outlet port.
3. When the flow stops or reverses, the spring forces the poppet back onto the seat, blocking the flow.

The CP and CPA Series Check Valves are reliable and easy to maintain. They are also available in a variety of materials and configurations to meet the needs of a wide range of applications.

Here are some examples of typical applications for the CP and CPA Series Check Valves:

• Hydraulic systems
• Pneumatic systems
• Chemical processing systems
• Food and beverage processing systems
• Pharmaceutical processing systems
• Water and wastewater treatment systems

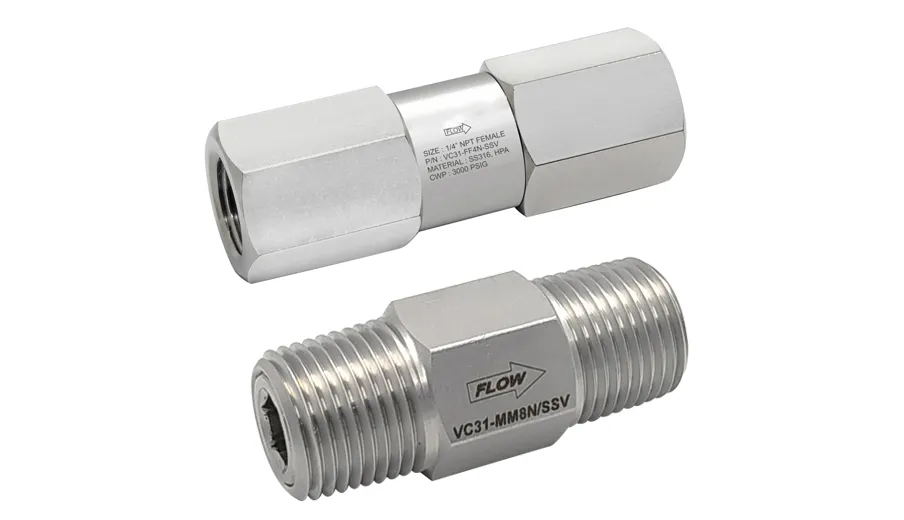

CP & CPA Series Check Valve Proper Maintenance:

CP and CPA Series check valves are poppet-style check valves that are designed for medium-pressure applications in a variety of industries. They are available in a variety of materials and end connections and can be used with a variety of fluids.

To ensure proper operation and extend the life of your CP or CPA series check valve, it is important to perform regular maintenance. This includes the following steps:

1. Inspect the valve for any signs of damage or wear. This includes checking the body, poppet, spring, and seals for cracks, scratches, or other defects.
2. Clean the valve. This can be done using a mild soap and water solution. Be sure to remove any dirt, debris, or grease from the valve body and seals.
3. Lubricate the valve seals. Use a light coating of lubricant that is compatible with the fluid being used in the system.
4. Test the valve. Once the valve has been cleaned and lubricated, it is important to test it to ensure that it is operating properly. To do this, connect the valve to a pressure source and apply pressure to the inlet side of the valve. The valve should open and allow flow to pass through. Then, reduce the pressure on the inlet side of the valve. The valve should close and prevent flow from passing through.

If the valve does not operate properly, it may need to be repaired or replaced.

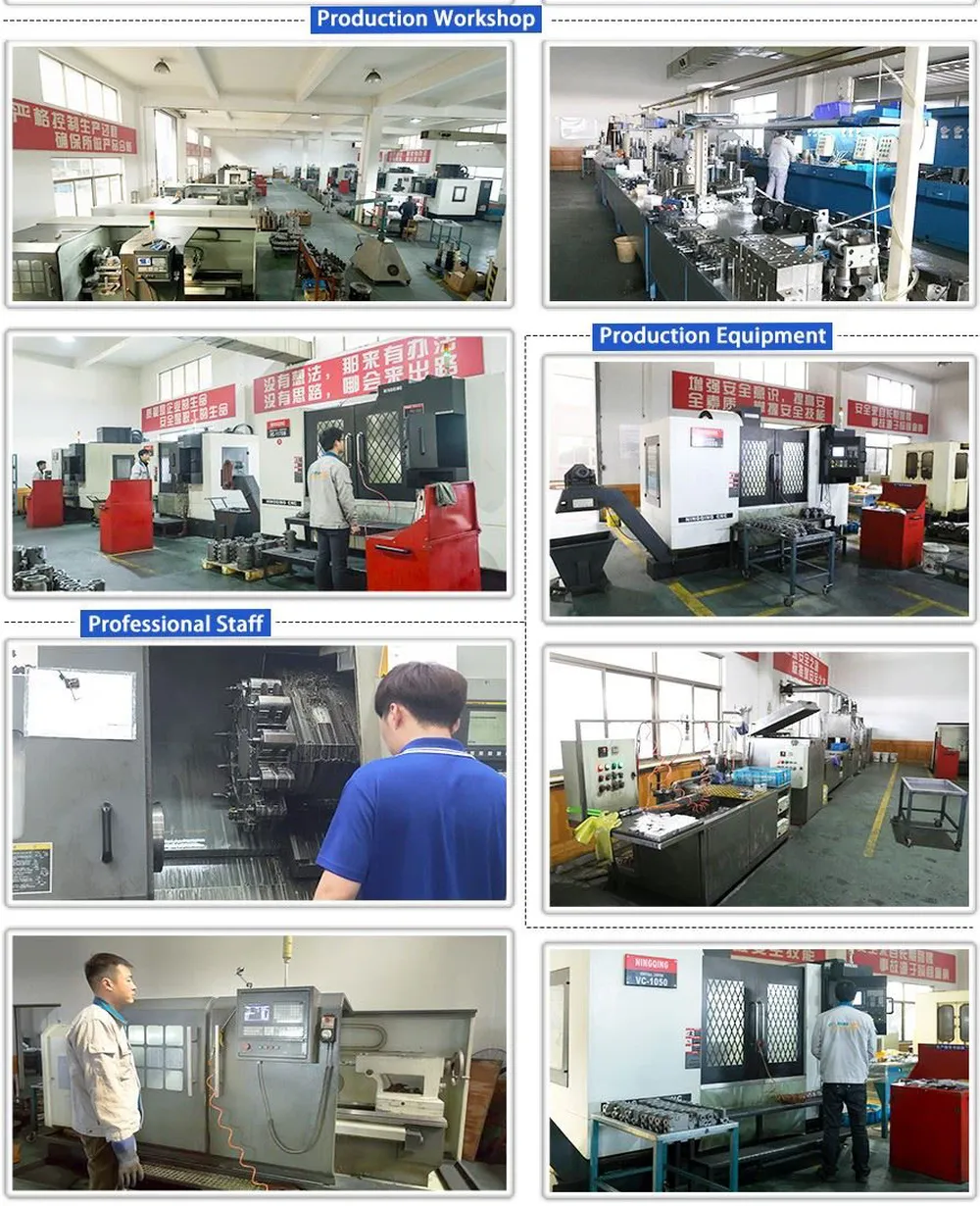

China Check Valve Manufacturers
