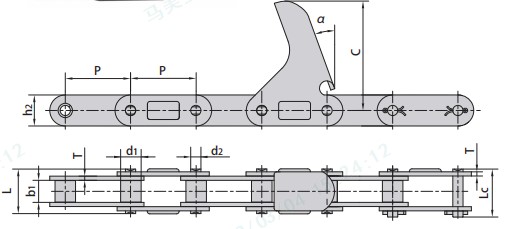

Chain No | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | |||
P | d1 max | b1 min | d2 max | Lmax | Lc max | h2 max | T | α | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | |

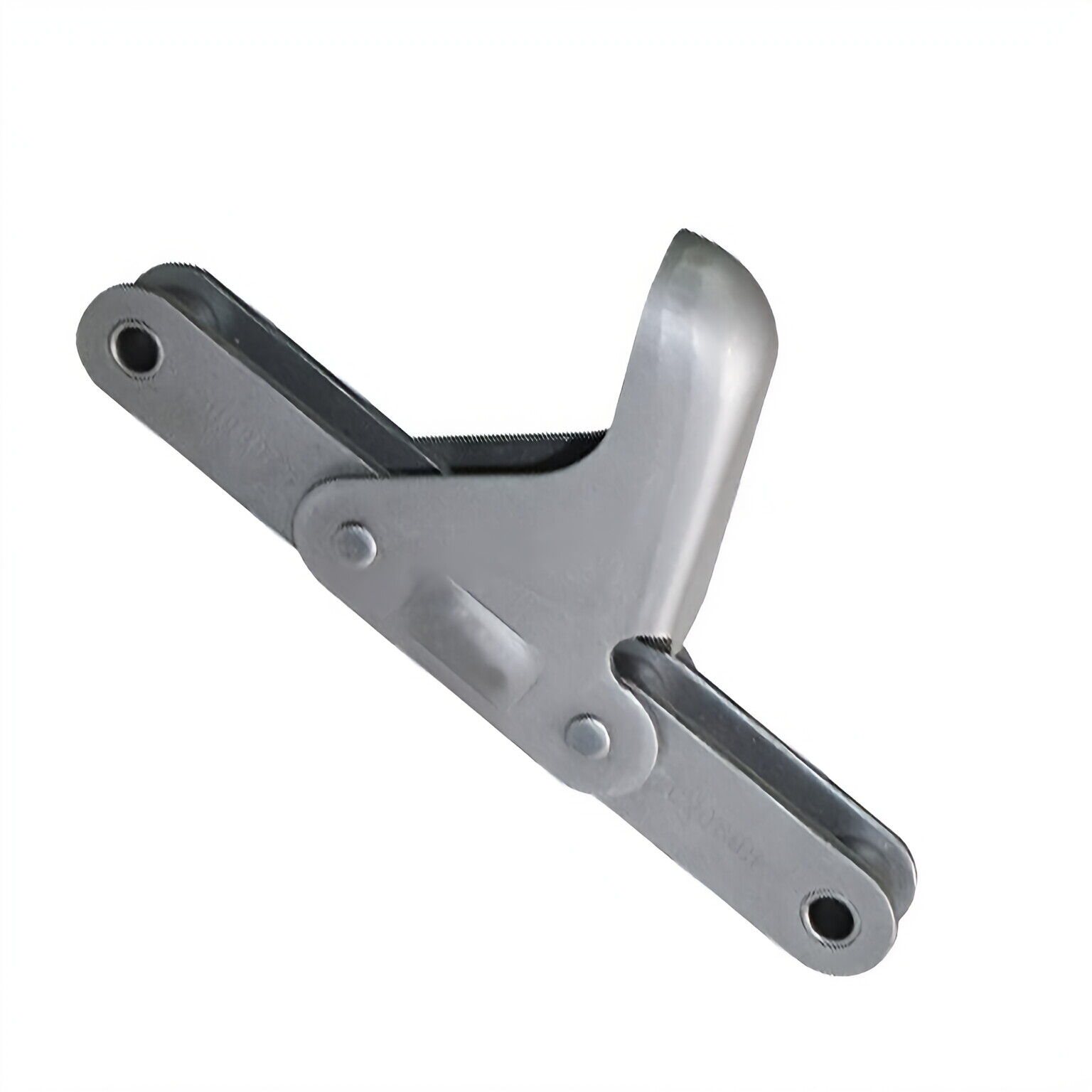

CA2060-C6E | 38.1 | 11.91 | 12.57 | 5.94 | 25.9 | 28.3 | 18.0 | 2.42 | 20.0° |
CA2060H-C6E | 38.1 | 11.91 | 12.57 | 5.94 | 31.0 | 31.6 | 18.0 | 3.25 | 22.5° |
CA550V-C6EF1 | 41.4 | 16.80 | 19.05 | 8.28 | 36.1 | 39.1 | 22.0 | 3.00 | 15.0° |
