CA550 Chain With F6/F9 Attachments

Raydaon Guoup's CA550 Chain With F6/F9 Attachments offers durable, precise solutions for industrial applications. Its robust materials and innovative design enhance efficiency, making it ideal for manufacturers and engineers seeking reliable performance. Experience seamless operation and superior durability—this chain stands out with tailored attachments for specific needs.

Send Inquiry

Product Description

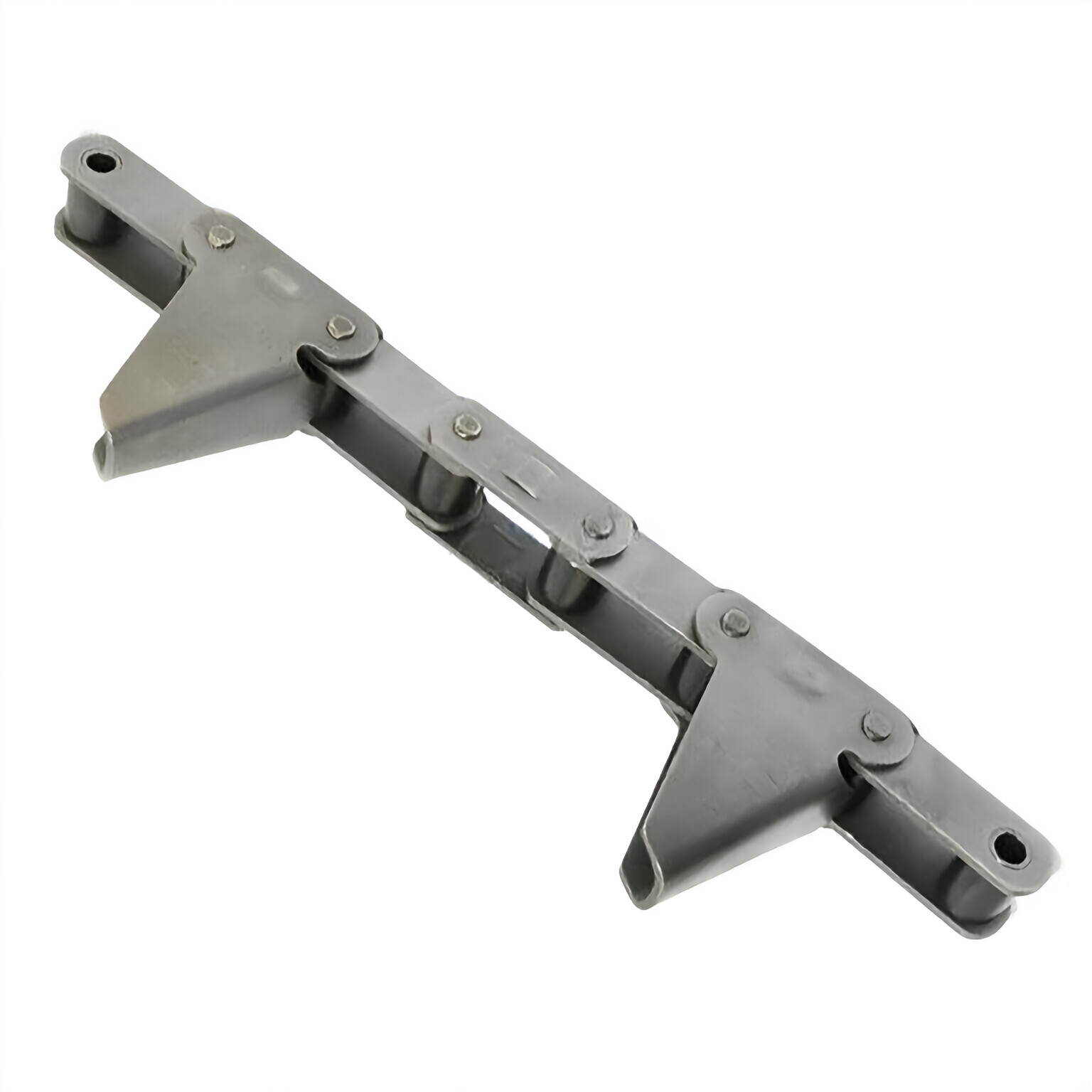

CA550F6 CA550F9 Steel Agriculture Conveyor Chains With F6/F9 Attachment

The CA550 attachment chain is a versatile roller chain that incorporates different attachments on every 2nd CA550 chain link, making it ideal for attaching cross rods in parallel running chains. These attachments are riveted for maximum strength and durability. In addition, the CA550 roller chain is pre-lubricated for improved wear protection and retention.

We can supply the CA550 roller chain with F6 attachments in any configuration needed to meet your exact needs. This F6 attachment is manufactured using precision-hardened components to ensure durability, working life, and strength.

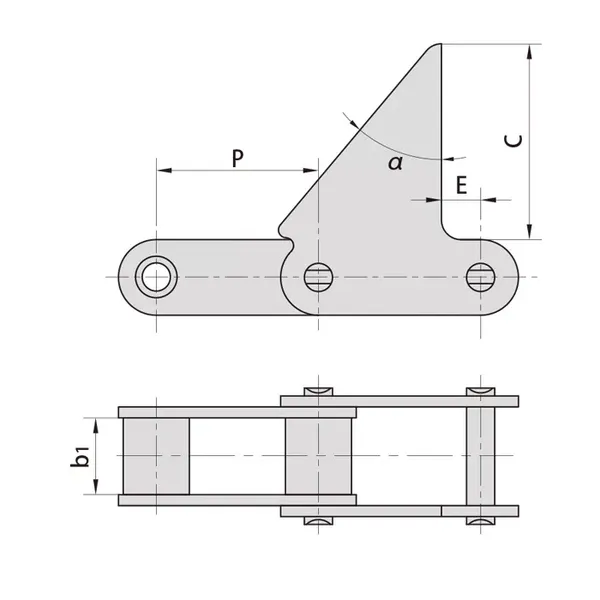

CA550 Chain Specification:

Chain No	P	b1	C	α	E
Chain No	mm	mm	mm		mm
CA550F6	41.4	19.81	50.0	40	10
CA550F9	41.4	19.81	40.7	40	10

Applications of CA550 Chain with Attachments

Agriculture
Conveyors
Corn Gathering
Elevator Feed Stations
Feeder House
Forage Harvesters and Baggers
Grain Handling
Manure Spreaders

Select CA550 Chain with Attachment from Raydafon

Raydafon transmission group is a professional transmission chain supplier. We have a complete chain production line, equipment selection, and process design that adhere to high efficiency, energy-saving, and automation, with perfect testing equipment, high-quality enterprise management, and professional technical personnel. We focus on the production, processing, and sales of the drive chains, conveyor chains, chain accessories, machinery parts, and so on, forming an "aluminum, fine, special, creative" separate chain development and production system. We have mastered the core technology of chain production and are proficient in core processing. All products are widely used in sugar, paper, cement, wood, food, mining, metallurgy, and other industries. We pay attention to the reputation of product quality through IS09001:2008 quality management system certification and obtain self-supporting, agent-related products and technology import and export business qualifications. Our products are exported to all provinces and cities in China, Europe, America, and Southeast Asia. Trust us; we will provide you with the best quality CA550 chain with attachments! Contact us now!

China Chain manufacturer & exporter, we specialize in Transmission chains (Driving Chains), Conveyor Chains, Engineering chains, Stainless Steel chains, Lifting chains, Agricultural chains, Forging Series, and Cast Iron chains.

We can custom design and manufacture specialized chains; Please feel free to contact us with any inquiries.

Transmission chain? (Driving Chain)	Short Pitch Precision Roller Chain (A Series)(1,2,3)	04C-1? 06C-1-2-3 ?085-1-2-3? 08A-1-2-3? 10A-1-2-3? 12A-1-2-3? 16A-1-2-3? 20A-1-2-3? 24A-1-2-3? 28A-1-2-3? 32A-1-2-3? 40A-1-2-3? 48A-1-2-3
	Short Pitch Precision Roller Chain (A Series)(1,2,3)	25 35?35-2 35-3 41 40 40-2 40-3 50 50-2-50-3 60 60-2 60-3 80 80-2 80-3 100 100-2? 100-3 120 120-2 120-3 140 140-2 160 160-2 180 200 200-2? 240
	Short Pitch Precision Roller Chain (B Series)(1,2,3)	06B-1-2-3 06B-1-2-3 08B-1-2-3? 10B-1-2-3? 12B-1-2-3? 16B-1-2-3 20B-1-2-3 24B-1-2-3? 28B-1-2-3? 32B-1-2-3? 40B-1-2-3? 48B-1-2-3? 56B-1-2-3?? 64B-1-2-3? 72B-1-2-3
	Heavy Duty Series Roller Chain(1,2)	08AH-1? 10AH-1? 12AH-1-2-3? 16AH-1-2-3? 20AH-1-2-3? 24AH-1-2-3? 28AH-1-2-3? 32AH-1-2-3? 40AH-1-2-3
	Side Bow Chain	40SB 43SB? 50SB? 60SB? 63SB 80SB 08BSB 08BSBY1? 10BSB? 12BSB? C2050SB
	Motorcycle Chain	410? 415? 415H? 420? 420H? 428? 428H? 520? 520H? 525? 525H? 530? 530H? 630? 630H
	Engine Mechanism Chain? ? (Timing Chain)	CL04
	Self-Lubrication Roller Chain	08BSLR? 10BSLR 12BSLR 16BSLR 40SLR 50SLR 60SLR 80SLR
	Double Pitch Transmission Chain	208A? 208B 210A? 210B? 212A? 212B? 216A? 216B? 220A? 220B
	Double Pitch Transmission Chain	2040? 2050? 2060 2080? 2100
	Bush Chain	P15F-B? P20-B? P25-B? P25F1-B P30F2-B? P36-B? P40-B? P45-B? P50-B P55-B P60-B? P70-B? P80-B
Conveyor Chain	Roller Chains With Straight Side Plates (A Series)	C08A-1-2-3? C10A-1-2-3? C12-1-2-3? C24A-1-2-3? C32A-1-2-3
	Roller Chains With Straight Side Plates (A Series)	C35? C40-1-2-3? C50-1-2-3? C80-1-2-3? C100-1-2-3? C120-1-2-3? C140-1-2-3? C160-1-2-3
	Roller Chains With Straight Side Plates (B Series)	C08B-1-2-3? C10B-1-2-3? C12B-1-2-3? C16-1-2-3? C20B-1-2-3? C24B-1-2-3? C28B-1-2-3? C32B-1-2-3
	Double Pitch Conveyor Chain	C208A? C208AH? C208B C208BL? C210A? C210AL? C212A?? C212AH?? C212AHL? C216A? C216AL? C216AH? C216AHL? C220A? C220AL? C220AH? C220AHL? C224A? C224AL? C224AH? C224AHL? C232A? C232AL? C232AH? C232AHL
	Double Pitch Conveyor Chain	C2050? C2052? C2060? C2062? C2060H? C2080? C2080H? C2082? C2082H C2100? C2100H? C2102? C2102H? C2120? C2120H? C2122? C2122H? C2160? C2160H? C2162? C2162H
	Double Pius Speed Chain	BS25-C206B? BS25-C208A? BS25-C210A? BS25-C212A? BS30-C206B? BS30-C208B? BS30-C210B? BS30-C212B
	Conveyor Chain (M Series)	M20? M28? M40? M56? M80
	Hollow Pin Conveyor Chain (MC Series)	MC28? MC56? MC112? MC224
	Conveyor Chain (FV Series)	FV40? FV63? FV90? FV112? FV140
	Conveyor Chain (FVT Series)	FVT40? FVT63? FVT90? FVT112? FVT140? FVT180? FVT250? FVT315
	Hollow Pin Conveyor Chain (FVC Series)	FVC63? FVC90? FVC112? FVC140? FVC180? FVC250? FVC315
	Conveyor Chain (Z Series)	Z40? Z100? Z160? Z300
	Conveyor Chain (ZE Series)	ZE40? ZE100? ZE160? ZE300
	Hollow Pin Conveyor Chain (ZC Series)	ZC21? ZC40? ZC60? ZC150? ZC300
	Hollow Pin Chains	08BHPF? 08BHPF5 08BHP9 10BHPF3 10BHPF4 12BHPF2 12BHPF3 16BHPF3? 16BHPF4? 40HP 08BHPF7? 08BHP? 50HP? 50HPF4? 50H-HP? 60HP? 60HPF1? 80HP? 80HPF1? 80HPF2? 80H-HP? 80HPF3? 80HPF4? HB41.75F5? A2080HP
	Welded-type cranked link chains	WR78? WH78? WR82? WH82? WR106? WH106? WR110? WH110? WR111? WH111? WR124? WH124? WR132? WH132? WR150? WH150? WR155? WH155? WR157? WH157? WR78F5? WH78F4? WH124F1? WH111F1
	Palm oil Chains	P101.6F2? P152F14? P152F17? P152F29? 90R-S? P101.6F64? P76.7? P152F31
	Sugar mill chains	DH9063? DH2198? P152F93K2? P152F78K2? DH09060? DH1796? P152F77-AS2? P203.2F9
	Rubber gloves, carrier chains	P100F155? P100F13?? P100F139? P150/90
	Lumber conveyor chains	81X? 81XH? 81XHE? 81XHH? 81XHS? 500R? 441.100R
	Sharp top chains	08AF34? 08BF21? 10AF8? 41F6? 06BF1? 06BF37? 08AF41? 08BF44? 08AF8...
Stainless Steel Chain	Stainless Steel Short Pitch Precision Roller Chain(A Series)	25SS-1? 35SS-1? 41SS-1? 40SS-1? 50SS-1? 60SS-1? 80SS-1? 100SS-1? 120SS-1
	Stainless Steel Short Pitch Precision Roller Chain(B Series)	05BSS-1? 06BSS-1? 08BSS-1? 10BSS-1? 12BSS-1? 16BSS-1? 20BSS-1? 24BSS-1
	Stainless Steel Roller Chain With Straight Side Plates	C40SS-1? C50SS-1? C60SS-1? C80SS-1? C100SS-1? C120SS-1? C08BSS-1? C10BSS-1? C12BSS-1? C16BSS-1? C20BSS-1? C24BSS-1
	Stainless Steel Double Pitch Transmission Chain	2040SS? 2050SS? 2060SS? 2080SS? 2100SS? 2120SS? 208BSS? 210BSS? 212BSS? 216BSS? 220BSS? 224BSS
	Stainless Steel Double Pitch Conveyor Chain	C2040SS? C2040HSS? C208BSS? C2050SS? C2060SS? C2060HSS? C2080SS? C2080HSS? C2100SS? C2100HSS C2120SS? C2120HSS
	Stainless Steel Hollow Pin Chain	08BHFSS? 40HPSS? 50HPSS? 60HPSS? 12BHPSS? 80HPSS? C2040HPSS? C2050HPSS? C2060HPSS? C2080HPSS? HB50.8SS
	Stainless Steel Double Pitch Hollow Pin Chain	C2042HPSS? C2052HPSS? C2062HPSS? C2082HPSS? C2042H-HPSS? C2052H-HPSS? C2062H-HPSS? C2082H-HPSS
Lifting Chain	Car Parking Chain	12AT-1 16AT-1-2? 20AT-1-2-3? 24AT-1-2
	Leaf Chain	LH0822? LH0823? LH0834? LH0844? LH0846? LH0888? LH1022?? LH1023?? LH1034?? LH1044?? LH1046?? LH1066?? LH1088?? LH1222?? LH1223? LH1234? LH1244? LH1246? LH1266? LH1288
	Leaf Chain	BL422? BL423? BL434? BL444? BL446? BL466? BL488? BL522? BL523? BL534? BL544? BL546? BL566? BL588? BL622? BL623? BL634? BL644? BL646? BL666? BL688
	Multiple Plate Bearing Pin Chain	LF30? MP50F2?? MP50.8?? MP70F1?? MP70F2?? MP70F3?? MP80F1?? MP90F1?? MP90F2?? MP110F1
	Rollerless Lift Chain	45-1? 55-1? 65-1? 85-1? 105-1? 125-1? 145-1? 165-1
Agricultural Chain	S Type Steel Agricultural Chain & Attachments	S32? S42? S45? S52? S55? S62? S77? S88? A550? A620
	C Type Steel Agricultural Chain with Attachments	CA550? CA550/S55? CA555? CA550HD? CA550V? CA557? CA620? CA2801? 38.1R? 38.4R? 38.4V? 38.4VB
	Rice Harvester Chain	S3558T-48001? S3558T-48002
Drop Forged Chain Series	Drop Forged Rivetless Chain	Imperial: 80H? X348?? X458? 468H? X658? X678? 678? 698? 998? 9118? S348? S458? S678? S698? S9118, Metric system: XT100? XT160
	Cast Detachable Chain	55? 57? 62? 74? 78
	Steel Detachable Chain	25? 32? 32W? 51? 52? 55? 62
Cast Iron Chain	Cast Iron Chain (C Series)	C55? C55L? C77? C188? C188L? C102B? C111? C131? C132
	Cast Iron Chain (H Series)	H60? H78? H82? H110
	Cast Iron Chain (4 Series)	462? 477? 488? 4103? 720? 720S? 730
	Cast Iron Chain BRH188	BRH188? C188CP? C102B-K2? C55A? C55B? C55D? CC600? H78A? H78B? H130? H138? MC33? 103? 4103F29? 907-E51
	Welded chains	WR78? WH78? WR82? WH82?? WR124? WH124
	Forging Hanging Chain	X228? X348? X458? X678? 698

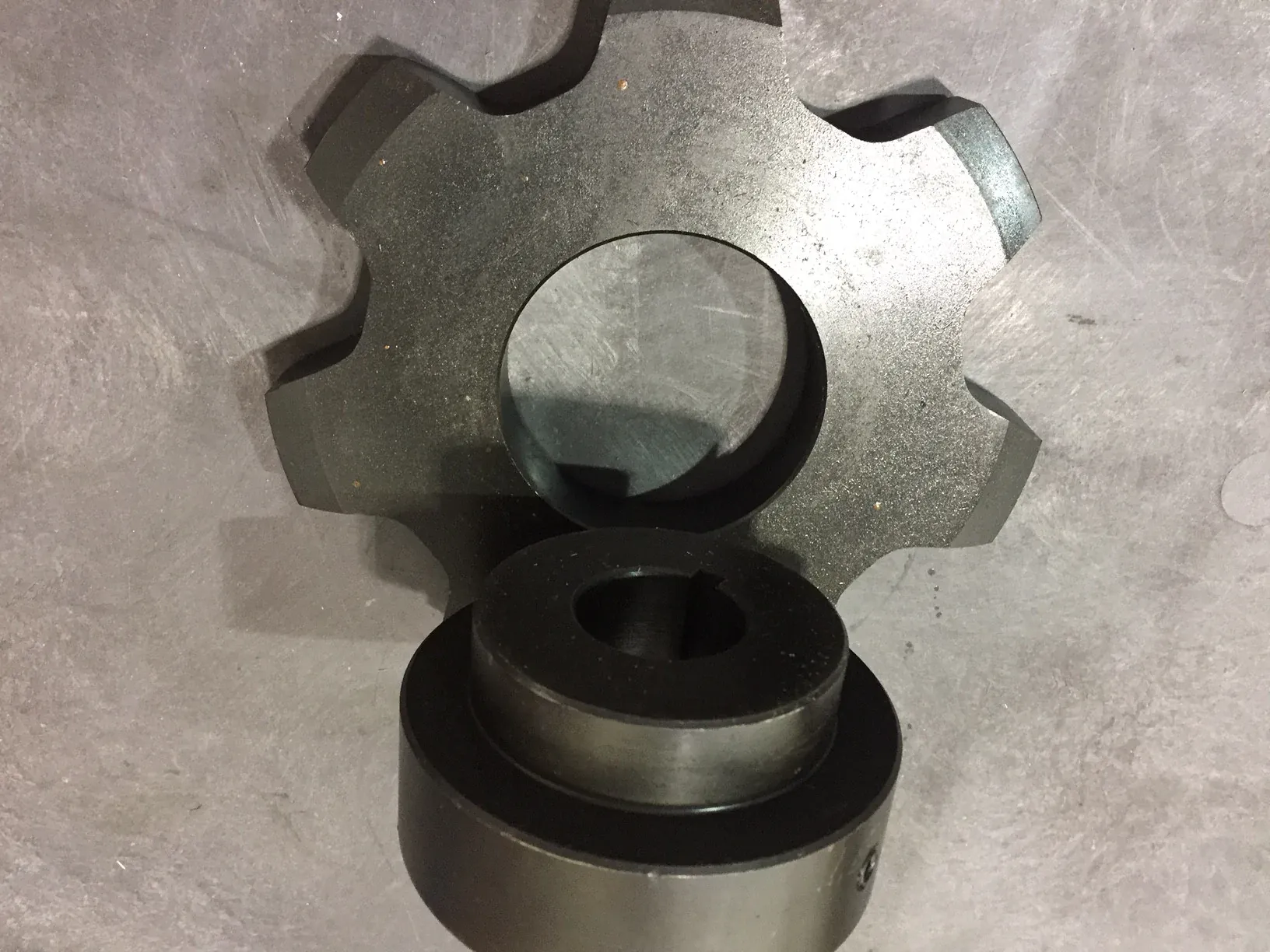

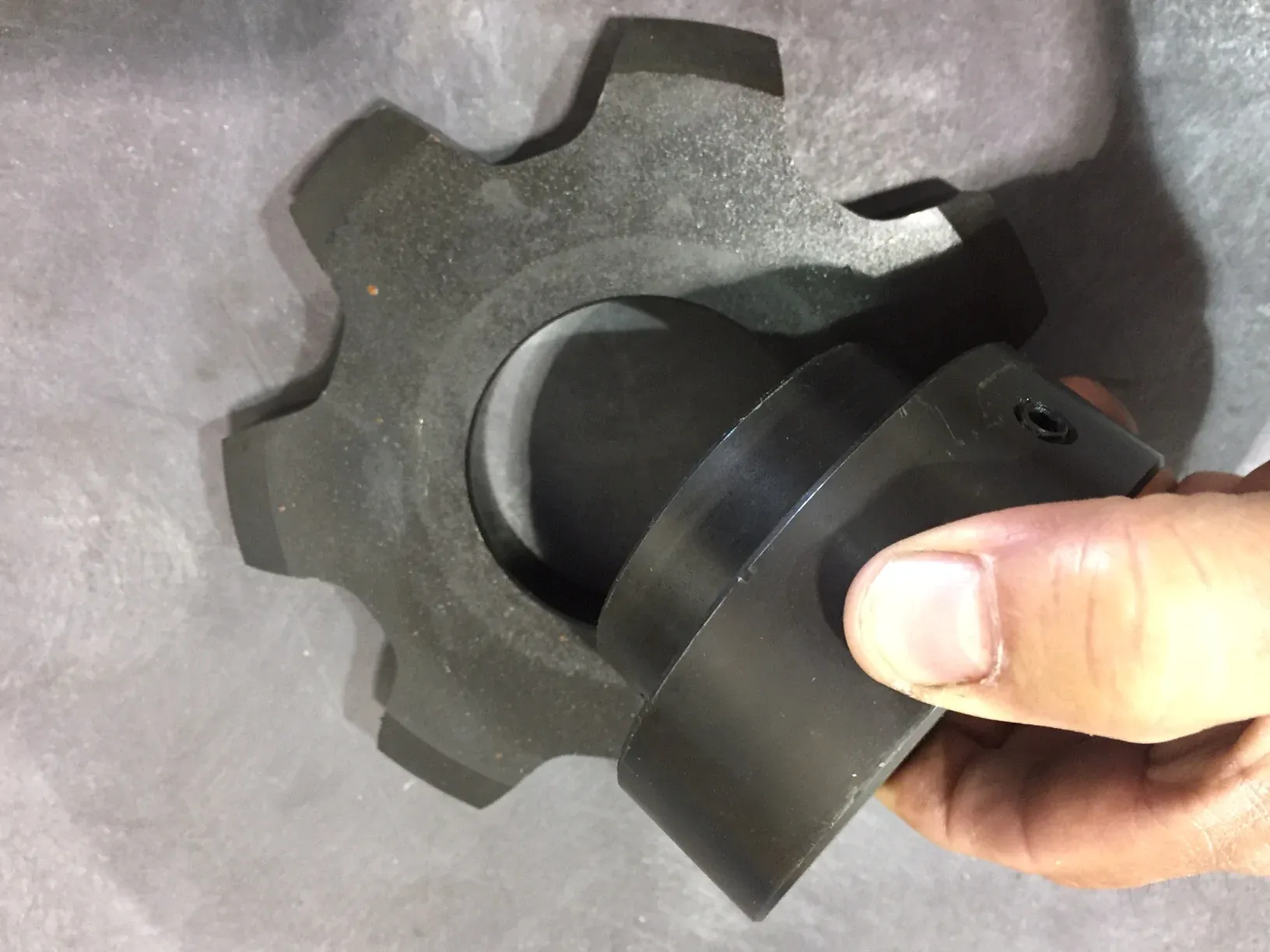

CA550 Chain Sprockets for CA550 Chain

Sprockets drive Transmission and Conveyor chains. The even distribution of power relies on proper gearing between the sprocket teeth and the chain rollers or bush. As sprockets significantly affect the life of the chain, all sprockets, from cast through to precision machine cut, are manufactured to strict tolerances and quality controls. We also advise our customers to replace their sprockets whenever a chain is returned to maximize the chain life.Sprockets can be made from various materials, including aluminum, cast iron, bronze, and manganese steel. Many are also made from Delrin and nylon. They are available in 0.05-inch through 48-inch sizes. If you are looking for a specific size, contact us! We are one of the professional sprocket suppliers that can offer customized sprockets according to your requirements.Choosing the proper sprockets is vital for the life of a roller chain. Properly selecting the sprocket will ensure smooth rotation and maximum transmission efficiency. There are many different types of sprockets for roller chains available, so choosing the right one for your specific needs is essential.
