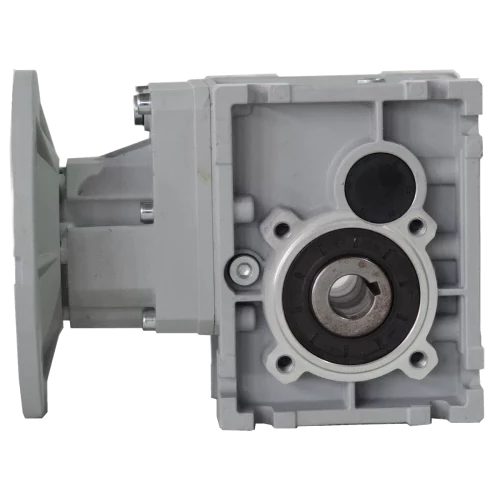

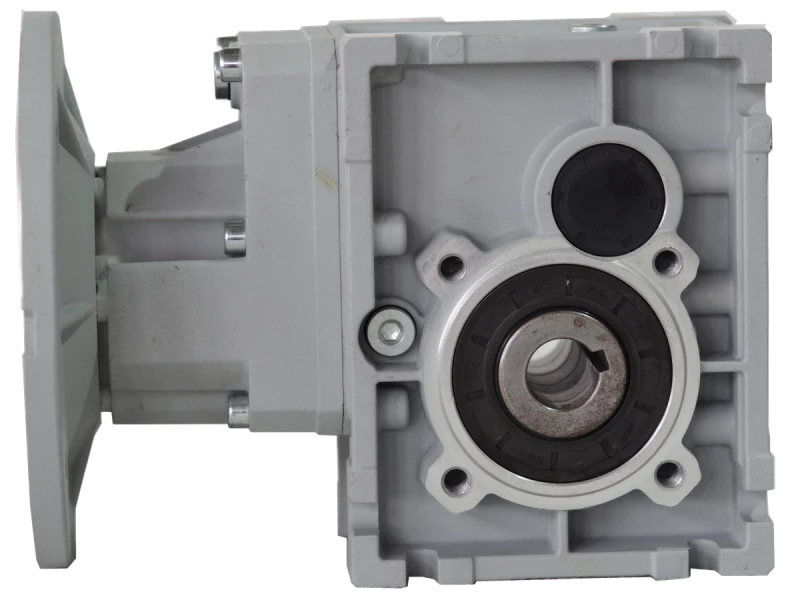

Car Wash Equipment Gearmotor - KM Series Helical Hypoid Gearbox for Car Washer

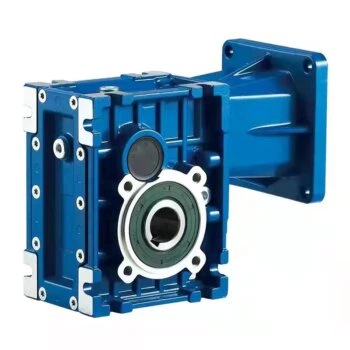

Main Materials of KM Series Car Wash Gearmotor

1.Housing: die-cast aluminum alloy (frame size 28 to 58)2.Gear wheel:20CrMnTiHl, carbonize &quencher heat treatment make the hardness of gear's surface up to 56-62 HRC. retain carbuzation layer's thickness between 0.3 and 0.5mm after precise grinding

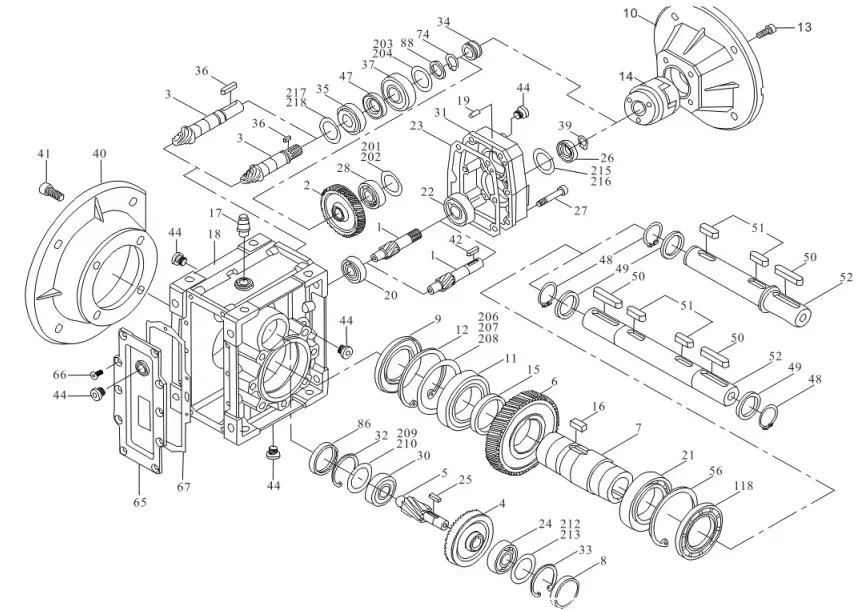

Components of KM Series Helical Hypoid Gear Reducer

1	主动齿轮/Pinion	25	键/Key	65	齿轮箱盖板/Gear case cover
2	从动齿轮/Gear	26	油封/Oil seal	66	内六角沉头螺钉/Hexagon sunk screw
3	主动齿轮轴/Pinion shaft	27	内六角螺钉/Inner hex screw	67	橡胶垫/Rubber gasket
4	从动齿轮/Gear	28	轴承/Anti-friction bearing	74	轴用挡圈/Shaft-circlip
5	主动齿轮轴/Pinion shaft	29	轴承/Anti-friction bearing	86	油封盖/Closing cap
6	从动齿轮/Gear	30	三级齿轮箱/3 stage gear case	88	垫圈/Washer
7	输出轴/Hollow shaft	31	孔用挡圈/Hole-circlip	118	油封/Oil seal
8	油封盖/Closing cap	32	孔用挡圈/Hole-circlip	1201	调整垫片/Shimring
9	油封/Oil seal	33	轴承/Anti-friction bearing	202	调整垫片/Shimring
10	输入法兰/Input flange	34	键/Key	205	调整垫片/Shimring
11	轴承/Anti-friction bearing	35	轴承/Anti-friction bearing	206	调整垫片/Shimring
12	孔用挡圈/Hole-circlip	36	轴用挡圈/Shaft-circlip	207	调整垫片/Shimring
13	内六角螺钉/Inner hex screw	37	输出法兰/Output flange	208	调整垫片/Shimring
14	联轴器/Coupling	38	内六角螺钉/Inner hex screw	209	调整垫片/Shimring
15	间隔套/Spacer	39	键/Key	210	调整垫片/Shimring
16	键/Key	40	油塞/Oil plug	211	调整垫片/Shimring
17	排气阀/Breather valve	41	油封/Oil seal	212	调整垫片/Shimring
18	齿轮箱体/Gear case	42	轴用挡圈/Shaft-circlip	213	调整垫片/Shimring
19	圆柱销/Stifte	43	垫片/Gasket	214	调整垫片/Shimring
20	轴承/Anti-friction bearing	44	键/Key	215	调整垫片/Shimring
21	轴承/Anti-friction bearing	45	键/Key	216	调整垫片/Shimring
22	轴承/Anti-friction bearing	46	双向输出轴/Double output shaft	217	调整垫片/Shimring
23	密封纸垫片/Housing gasket	47	单向输出轴/Single output shaft
24	轴承/Anti-friction bearing	48	孔用挡圈/Hole-circlip



Features of KM Series Gear Reducers for Car Washer

1. Adopt hypoid gear transmission, large transmission ratio;.2. Large output torque, high transmission efficiency, energy saving and environmental protection.3. Made of high quality aluminum alloy casting, light weight, no rust.4. Stable transmission, small noise, suitable for long-term continuous work in poor environment.5. Beautiful and durable, small volume.6. Adaptable to omni-directional installation, wide range of applications, easy to use.7. KM series reducer mounting dimensions are fully compatible with MRV series worm gear reducer (Apart of KM050 dimensions are different from MRV050)8. Modular combination, can be combined in various forms to meet the needs of various transmission conditions.

How Does a Gearmotor Work in a Car Wash System?

A gearmotor is a crucial component in car wash systems, functioning as an integrated electric motor and gearbox that reduces speed while increasing torque. Here's how a gearmotor works in a car wash system:

1. Power Conversion: The electric motor part of the gearmotor converts electrical energy into mechanical energy. This motor typically operates on standard electrical power and drives a shaft connected to a gearbox.
2. Speed Reduction and Torque Increase: The gearbox attached to the motor is designed to reduce the high speed of the motor’s shaft to a lower speed while increasing the torque. This is achieved through various gear arrangements. In car wash systems, this reduction in speed and increase in torque are crucial for the heavy-duty operations of moving brushes, rollers, and conveyor belts.
3. Driving Mechanical Movements: In a car wash, different mechanical parts such as brushes, rollers, and conveyor systems require different speeds and torque to effectively clean vehicles. The gearmotor's output shaft is connected to these components, and it drives them at the necessary speeds. For example, rollers may need to turn slowly and powerfully to scrub and move vehicles through the wash, while brushes might rotate faster to agitate and remove dirt.
4. Precision Control: Modern gearmotors are often paired with advanced controls that can adjust the speed and torque output based on the specific phase of the car wash cycle. This allows for delicate handling of different vehicle types and sizes, ensuring effective cleaning without damage.
5. Durability and Efficiency: Gearmotors in car wash systems are designed to be durable and efficient, capable of operating in wet, chemically diverse, and mechanically demanding environments. They must resist corrosion, withstand high and variable loads, and operate efficiently to keep energy costs down.

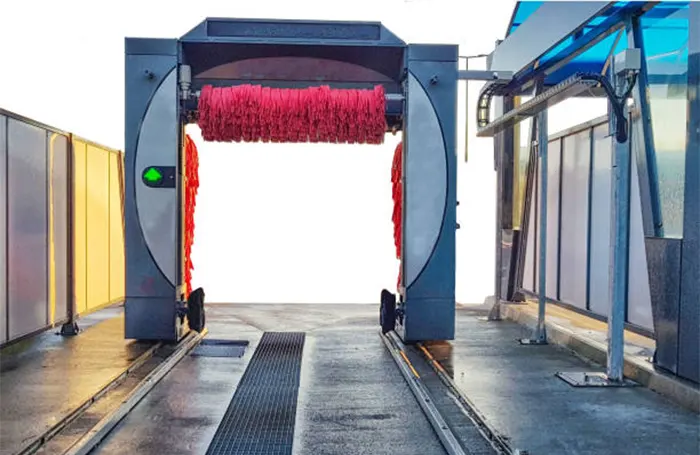

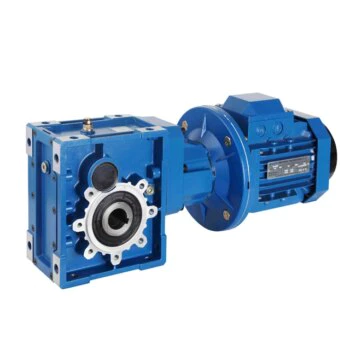

Applications of KM Series Car Wash Gearmotors

Helical hypoid gears are a type of gear system that combines the advantages of helical gears, such as smooth operation and less noise, with those of hypoid gears, which include high load capacity and compact design. This combination allows for efficient and quiet operation with a high degree of durability, which is crucial in the harsh, wet conditions of a car wash.In car wash systems, chain pullers are responsible for moving vehicles through various cleaning stations—from pre-wash soaking areas to drying zones. The KM series helical hypoid gear reducers are ideally suited for this task because they can handle the high torque requirements and frequent start-stop cycles typical in car wash operations. Their ability to maintain performance under strain and their resistance to wear contribute significantly to the reliability and longevity of the car wash equipment.

Why Choose Us?

At Raydafon, we are a globally recognized manufacturer of transmission equipment, backed by over 15 years of experience in the design, production, and sales of gearboxes. We are committed to providing superior quality, high energy efficiency, and high stability products to our valued customers.Whether you require a MRV series worm gear reducer, GV series gear reducer, or any other type of non-standard reducer, we have the expertise and the resources to meet your specific needs. Our products are widely used in various industries such as the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, and solar energy industry.We invite you to explore our comprehensive range of products and encourage you to reach out to us for any inquiries or purchases. Trust in Raydafon for all your gear reducer needs.
