Cardan Joint Parts Black SAS2 PTO Tractor PTO Shaft Adaptor Spare Parts Shaft Clutch
  • Cardan Joint Parts Black SAS2 PTO Tractor PTO Shaft Adaptor Spare Parts Shaft ClutchCardan Joint Parts Black SAS2 PTO Tractor PTO Shaft Adaptor Spare Parts Shaft Clutch

Cardan Joint Parts Black SAS2 PTO Tractor PTO Shaft Adaptor Spare Parts Shaft Clutch

Upgrade your tractor with Raydafon Group's Cardan Joint Parts Black SAS2 PTO Shaft Adaptor Spare Parts Shaft Clutch, designed for durability and smooth power transfer in demanding agricultural tasks. This high-quality adaptor ensures reliable performance, reduces wear, and enhances efficiency for farmers and equipment operators. Experience seamless operation and extended machinery life with this essential spare part, making it a smart investment for boosting productivity.

Experience seamless operation and high efficiency with our cardan joint parts Black SAS2 PTO tractor PTO shaft adaptor spare parts shaft clutch. Designed for resilience and durability, this product is a valuable addition to any tractor PTO setup. It offers a multitude of features that make it an outstanding choice for various industries. The product is brand new, comes with a one-year warranty and is applicable across a wide range of industries.

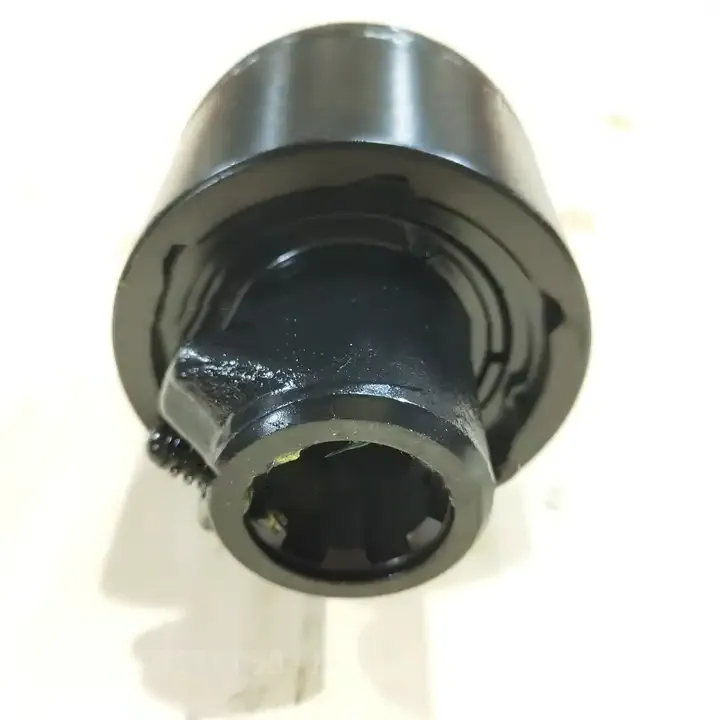

Cardan Joint Parts Black SAS2 PTO Tractor PTO Shaft Adaptor Spare Parts Shaft Clutch

Advantages of the SA Ratchet Torque Limiter

The SA ratchet torque limiter offers several benefits for tractor PTO shafts. The key advantages include:

  1. Protection Against Overloads: The primary advantage of an SA ratchet torque limiter is its ability to protect the tractor PTO system from excessive loads or sudden overloads.
  2. Adjustable Torque Limit: The SA ratchet torque limiter features an adjustable torque limit, allowing the operator to set the torque limit according to the specific requirements of the implement being used.
  3. Enhanced Safety: By disconnecting the power transmission when an overload occurs, the SA ratchet torque limiter enhances safety for the operator.
  4. Easy Reset and Re-Engagement: Once the overload condition is resolved or the excessive torque is reduced, the SA ratchet torque limiter can be easily reset and re-engaged.
  5. Compatibility with Various Implements: The SA ratchet torque limiter is designed to be compatible with a wide range of implements used with tractor PTO shafts.
  6. Durability and Reliability: SA ratchet torque limiters are typically built to withstand heavy-duty applications and harsh operating conditions. They are constructed using robust materials that provide durability and long-term reliability.

Applications of the SA Ratchet Torque Limiter

The SA ratchet torque limiter is a versatile safety device that is used in various agricultural machinery. Here are some specific agricultural applications where the SA ratchet torque limiter is commonly used:

  1. Rotary Cutters and Mowers: The SA ratchet torque limiter ensures the safe operation of these implements by protecting the PTO system from excessive loads or sudden overloads.
  2. Harvesting Machinery: The SA ratchet torque limiter provides overload protection, safeguarding the PTO system and the machinery from damage during the harvesting process.
  3. Tillage Equipment: The SA ratchet torque limiter ensures the safe operation of these implements by preventing damage caused by excessive torque or sudden overloads when encountering obstacles in the soil.
  4. Seeders and Planters: The SA ratchet torque limiter provides overload protection to the PTO system, safeguarding the machinery from damage when planting in challenging soil conditions or encountering obstacles.
  5. Cardan Joint Parts Black SAS2 PTO Tractor PTO Shaft Adaptor Spare Parts Shaft Clutch
  6. Balers: The SA ratchet torque limiter protects the PTO system in balers from overloads that can occur due to blockages or excessive resistance while compressing the material.
  7. Manure Spreaders: The SA ratchet torque limiter protects the PTO system in manure spreaders from overloads that can occur when the spreader encounters uneven distribution of the material or when foreign objects get caught in the spreading mechanism.

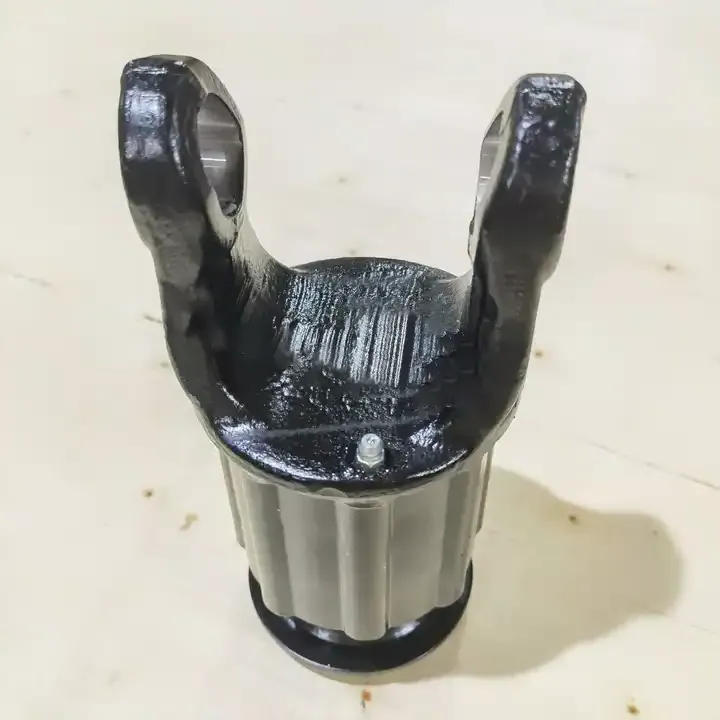

Cardan Joint Parts Black SAS2 PTO Tractor PTO Shaft Adaptor Spare Parts Shaft Clutch

Agricultural PTO Shaft Torque Limiter Types

In agricultural machinery, PTO shaft torque limiters are crucial for protecting equipment from damage due to torque overload. There are various types of PTO shaft torque limiters, each designed to cater to different operational needs and specifications:

  1. Shear Bolt Torque Limiter: This type utilizes a shear bolt that breaks under excessive torque, disconnecting the drive between the tractor and implement.
  2. Friction Clutch Torque Limiter: Friction clutch limiters slip when the torque exceeds a preset level, allowing it to absorb the excess force without breaking.
  3. Ratchet Torque Limiter: Features a ratcheting mechanism that allows rotation in one direction and locks or slips in the opposite direction when overloaded.
  4. Overrunning Clutch Torque Limiter: Allows free rotation in one direction and engages the clutch in the other. It can also incorporate a torque-limiting feature to disconnect under overload.

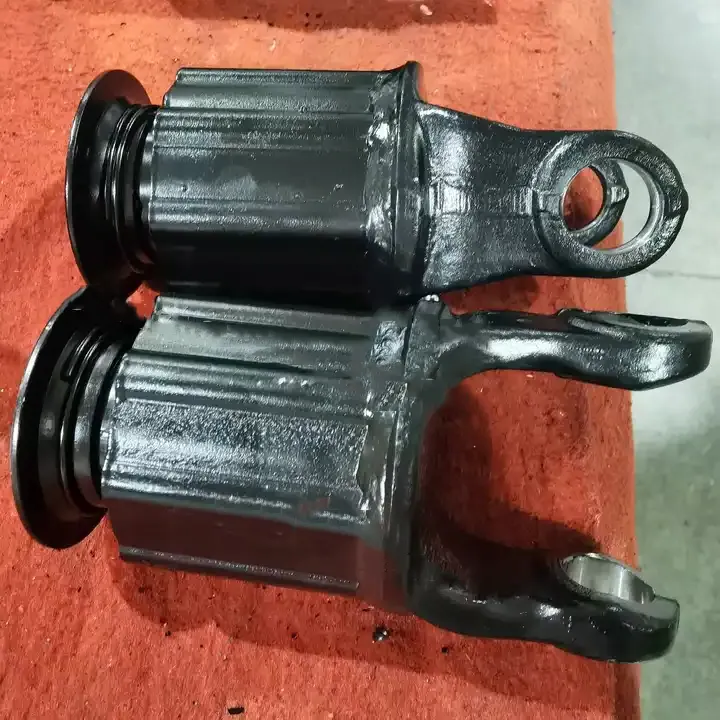

Cardan Joint Parts Black SAS2 PTO Tractor PTO Shaft Adaptor Spare Parts Shaft Clutch

How Does the Ratchet Torque Limiter for Tractor PTO Shaft Work?

The ratchet torque limiter for tractor PTO shaft works based on a simple yet effective mechanism:

    Cardan Joint Parts Black SAS2 PTO Tractor PTO Shaft Adaptor Spare Parts Shaft Clutch
  1. Construction: The ratchet torque limiter consists of a hub that connects the tractor's PTO shaft to the input shaft of the implement.
  2. Power Transmission: Under normal operating conditions, when the tractor's PTO shaft rotates, the ratchet teeth engage with the teeth on the input shaft of the implement.
  3. Torque Limiting Action: When the torque applied to the PTO shaft exceeds a predetermined limit, the ratchet torque limiter comes into action.
  4. Power Disconnection: Once the ratchet teeth disengage, the power transmission between the tractor and the implement is interrupted.
  5. Protection from Overload: The disengagement of the ratchet teeth in response to excessive torque protects the tractor's PTO system and the implement from damage.

Cardan Joint Parts Black SAS2 PTO Tractor PTO Shaft Adaptor Spare Parts Shaft Clutch

How to Install SA Ratchet Torque Limiter to PTO Shaft?

Installing a SA ratchet torque limiter to a PTO shaft typically involves the following steps:

  1. Ensure safety precautions: Make sure the PTO shaft is disconnected from any power source and is fully stationary.
  2. Identify the correct end of the PTO shaft: The PTO shaft typically has two ends, with one end connecting to the power source and the other end connecting to the implement.
  3. Remove any existing components: If there are any existing components, such as a shear bolt or other torque-limiting device, remove them from the PTO shaft.
  4. Install the torque limiter: Place the SA ratchet torque limiter onto the PTO shaft, aligning the splines or keyways on the shaft with those on the torque limiter.
  5. Secure the torque limiter: Depending on the specific design of the torque limiter, it may have set screws or other fastening mechanisms to secure it in place.
  6. Verify proper function: After installing and setting the torque limiter, rotate the PTO shaft manually to ensure that the torque limiter engages and disengages correctly.
  7. Reconnect the PTO shaft: Once you are satisfied with the installation and functionality of the torque limiter, reconnect the PTO shaft to the power source or implement, following the appropriate procedures.

Maintenance of the SA Ratchet Torque Limiter

Proper maintenance of the SA ratchet torque limiter for tractor power take-off (PTO) shaft is essential to ensure its reliable performance and longevity:

  1. Regular Inspection: Conduct regular visual inspections of the torque limiter to check for any signs of wear, damage, or misalignment.
  2. Lubrication: Apply the recommended lubricant to the ratchet teeth, pawls, and other moving parts as specified.
  3. Cleaning: Keep the torque limiter clean from dirt, debris, and agricultural residue.
  4. Calibration: If the torque limit on the torque limiter is adjustable, periodically check and recalibrate it according to the requirements of the specific implement being used.
  5. Replacement of Worn Parts: If any components of the torque limiter, such as ratchet teeth or pawls, are worn or damaged beyond repair, they should be promptly replaced with genuine replacement parts.

Why Choose Raydafon's Ratchet Torque Limiter for PTO Shaft?

Raydafon Drive Shaft Co., Ltd., located in Ningbo Zhejiang City, is a leading provider of power transmission solutions. We specialize in developing, manufacturing, and marketing a wide range of products including PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft u-joints, torque limiters, PTO shaft tubes, PTO shaft yokes, PTO shaft adaptors, industrial cardan shafts, car driveshafts, and u-joint coupling shafts. Our annual turnover is 60 million RMB, 9 Million Dollars, and it??s increasing year by year.

Cardan Joint Parts Black SAS2 PTO Tractor PTO Shaft Adaptor Spare Parts Shaft Clutch

With high-quality products, competitive prices, and quick delivery, we have earned a great reputation from customers across Europe, America, Asia, Australia, and North America. We are the top professional OEM supplier for many agricultural implement factories in the domestic market. Adhering to our principles of "Quality first, Deliver quickly, Price competitive", we strive to provide excellent customer service and high-quality products. We are proud to hold the CE, TS/16949, and ISO9001 certificates, which reflect our commitment to quality and customer satisfaction.

We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship. With our commitment to innovation, quality, and customer satisfaction, we aim to become a global leader in the power transmission industry.
