Cat 2/3 Hook Hydraulic Top Link 600-840 for Ford New Holland John Deere Tractor

Cat 2/3 Hook Hydraulic Top Link 600-840 for Ford New Holland John Deere Tractor

The Cat 2/3 Hook Hydraulic Top Link 600-840 is a versatile and essential component designed for use with Ford New Holland and John Deere tractors. This hydraulic top link is engineered to enhance the functionality and efficiency of a tractor's three-point hitch system.With a category 2/3 hook, it provides a robust connection between the tractor and various implements, ensuring secure and reliable operation. Its adjustable length of 600 to 840 millimeters allows for flexible positioning and precise control, accommodating different implements and tasks.The hydraulic mechanism enables easy and quick adjustments without manual intervention, which is particularly beneficial when changing implements or altering the angle of attachment during fieldwork. This feature not only saves time but also increases safety by minimizing the need for the operator to leave the tractor cab.Constructed from durable materials, the top link is built to withstand the demanding conditions of agricultural work. It is corrosion-resistant, ensuring longevity and consistent performance. Whether used for plowing, tilling, or other farm activities, the Cat 2/3 Hook Hydraulic Top Link 600-840 significantly enhances the versatility and productivity of compatible tractors.

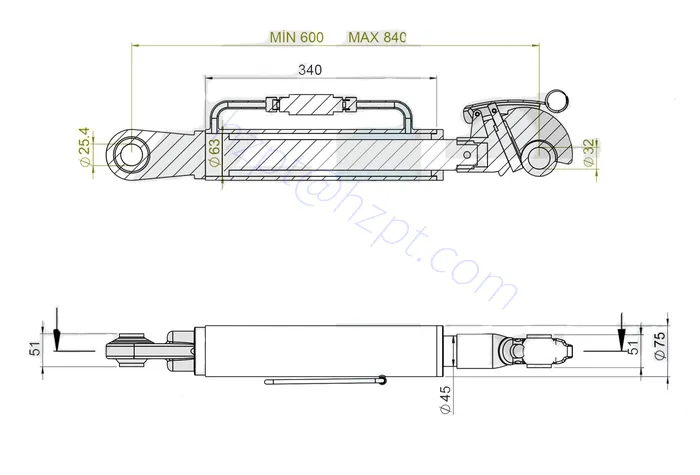

Cat 2/3 Hook Hydraulic Top Link 600-840 Dimensions

Products Specifications:

Please check dimensions before ordering. For detailed dimensions please see images.

Eye to eye closed:	600mm
Eye to eye open:	840mm
Category:	2/3
Outside diameter:	75mm
Inside diameter:	63mm
Shaft Diameter:	45mm
Ball tractor end:	25.4mm
Ball implement end:	32mm
Lift Capacity:	3500kg
Suitable For:	Ford New Holland, John Deere

Key Features of Cat 2/3 Hook Hydraulic Top Link for Tractor

The Cat 2/3 Hook Hydraulic Top Link for tractors offers a range of key features that enhance its functionality and usability:

1. Adjustable Length: The hydraulic top link features an adjustable length ranging from 600 to 840 millimeters. This adaptability allows operators to customize the link's reach to meet specific implement requirements, enhancing the tractor’s versatility. The ability to adjust the length easily ensures that various agricultural tasks can be performed efficiently without needing multiple top links.
2. Hydraulic Adjustment: With its hydraulic mechanism, this top link enables quick and effortless adjustments from the tractor cab. This feature eliminates the need for manual reconfiguration, saving time and reducing physical strain on the operator. By allowing on-the-go adjustments, it enhances productivity and safety, especially during tasks requiring frequent changes in implement positioning.
3. Category 2/3 Compatibility: Designed to fit Category 2 and 3 three-point hitch systems, this hydraulic top link is versatile and compatible with a wide range of tractors, including popular models from Ford New Holland and John Deere. This dual compatibility ensures that it can be easily integrated into various setups, accommodating diverse agricultural applications without the need for additional adaptors.
4. Durable Construction: The top link is constructed from high-quality, durable materials, providing excellent resistance to wear and tear. Its robust build ensures it can withstand the harsh conditions often encountered in agricultural work, including exposure to weather and heavy loads. This durability translates to a longer lifespan and reliable performance, reducing the need for frequent replacements.
5. Corrosion Resistance: Engineered with corrosion-resistant materials, this hydraulic top link is designed to endure prolonged exposure to moisture and chemicals commonly found in farming environments. This feature is crucial for maintaining its structural integrity and functionality over time, ensuring consistent performance and reducing maintenance costs associated with rust and corrosion damage.
6. Improved Implement Control: The precision offered by the hydraulic adjustment system allows for better control over attached implements. Operators can fine-tune the angle and height of implements to achieve optimal performance for specific tasks. This precise control is particularly beneficial for tasks like plowing and tilling, where exact positioning can significantly affect efficiency and results.

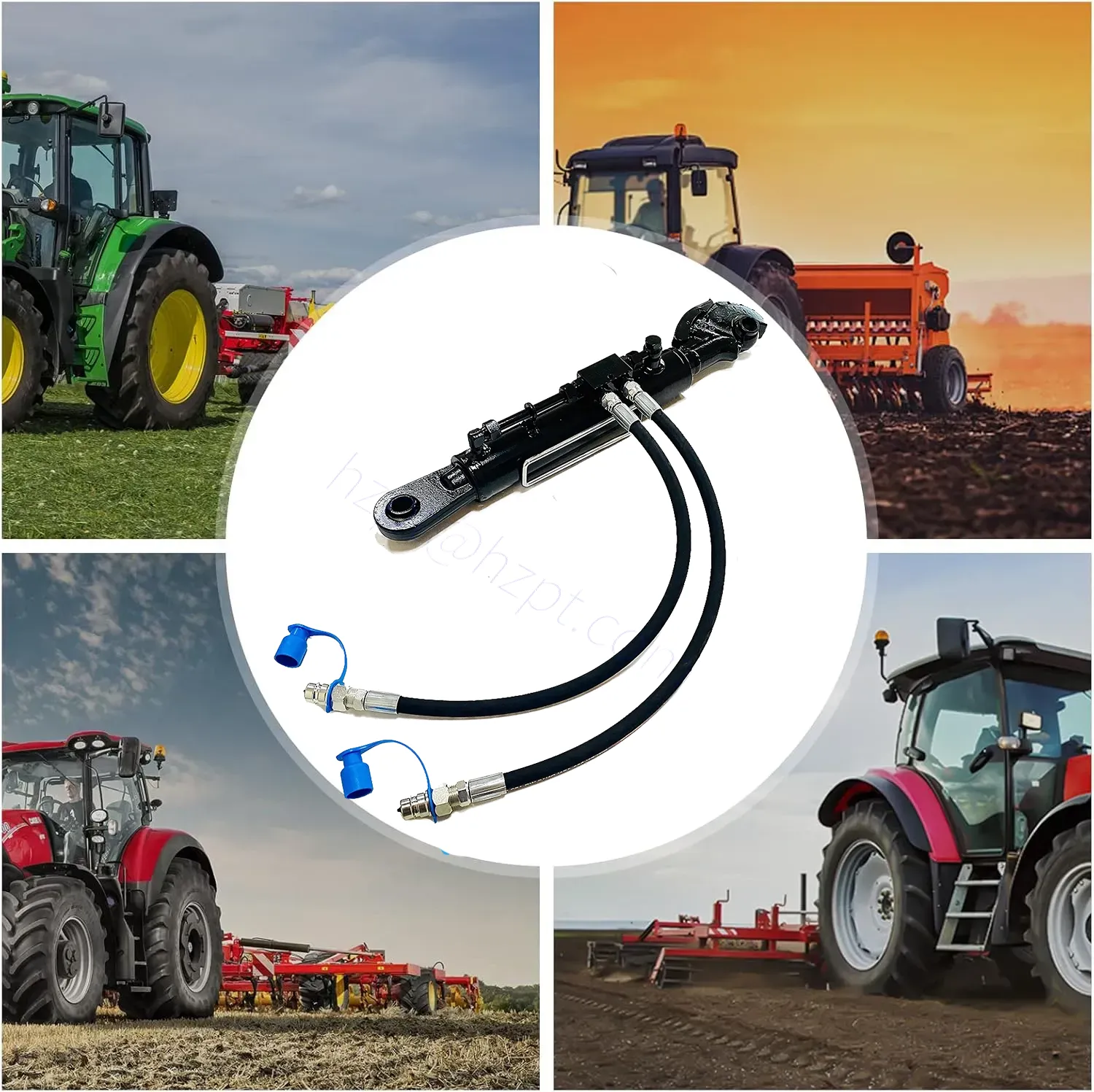

Applications of Cat 2/3 Tractor Hydraulic Top Link with Hook

The Cat 2/3 Tractor Hydraulic Top Link with Hook is a versatile agricultural implement that finds applications across various tasks and operations in the field. Some common applications include:

• Plowing: The hydraulic top link allows for precise angle adjustments of the plow, ensuring optimal soil turnover and consistent depth. By easily modifying the plow’s position from the cab, operators can adapt to varying soil conditions, improving efficiency and reducing strain on the tractor. This adaptability ensures thorough and uniform field preparation.
• Tilling: For tilling operations, the hydraulic top link provides enhanced control over the tiller’s depth and angle. Adjustments can be made quickly to accommodate different soil types and moisture levels, resulting in improved soil aeration and seedbed preparation. This flexibility aids in achieving the desired soil texture, promoting better crop growth and yield.
• Mowing: When mowing uneven terrains, the hydraulic top link facilitates the precise adjustment of mower height and angle. This capability ensures an even cut and reduces the risk of scalping the ground. Operators can quickly adapt to changes in terrain, maintaining a consistent mowing pattern and enhancing the overall appearance of the landscape.
• Seeding and Planting: During seeding and planting, the hydraulic top link allows for accurate positioning of seed drills and planters. This precision ensures uniform seed placement and depth, which is crucial for optimal germination and crop establishment. Quick adjustments can be made to accommodate different seed types and planting conditions, enhancing planting efficiency and effectiveness.
• Harvesting: In harvesting applications, the hydraulic top link aids in positioning harvest implements like reapers and balers for optimal performance. Adjustments can be made to ensure the implement operates at the correct height and angle, reducing crop loss and improving harvest quality. This flexibility is essential for adapting to varying crop densities and field conditions.
• Grading: For grading tasks, this top link allows for precise control over blades and box scrapers. Adjusting the implement’s angle ensures even distribution of materials, whether leveling land or spreading gravel. This capability enhances the quality of grading work, resulting in smoother surfaces and more efficient land management, crucial for construction and landscaping applications.

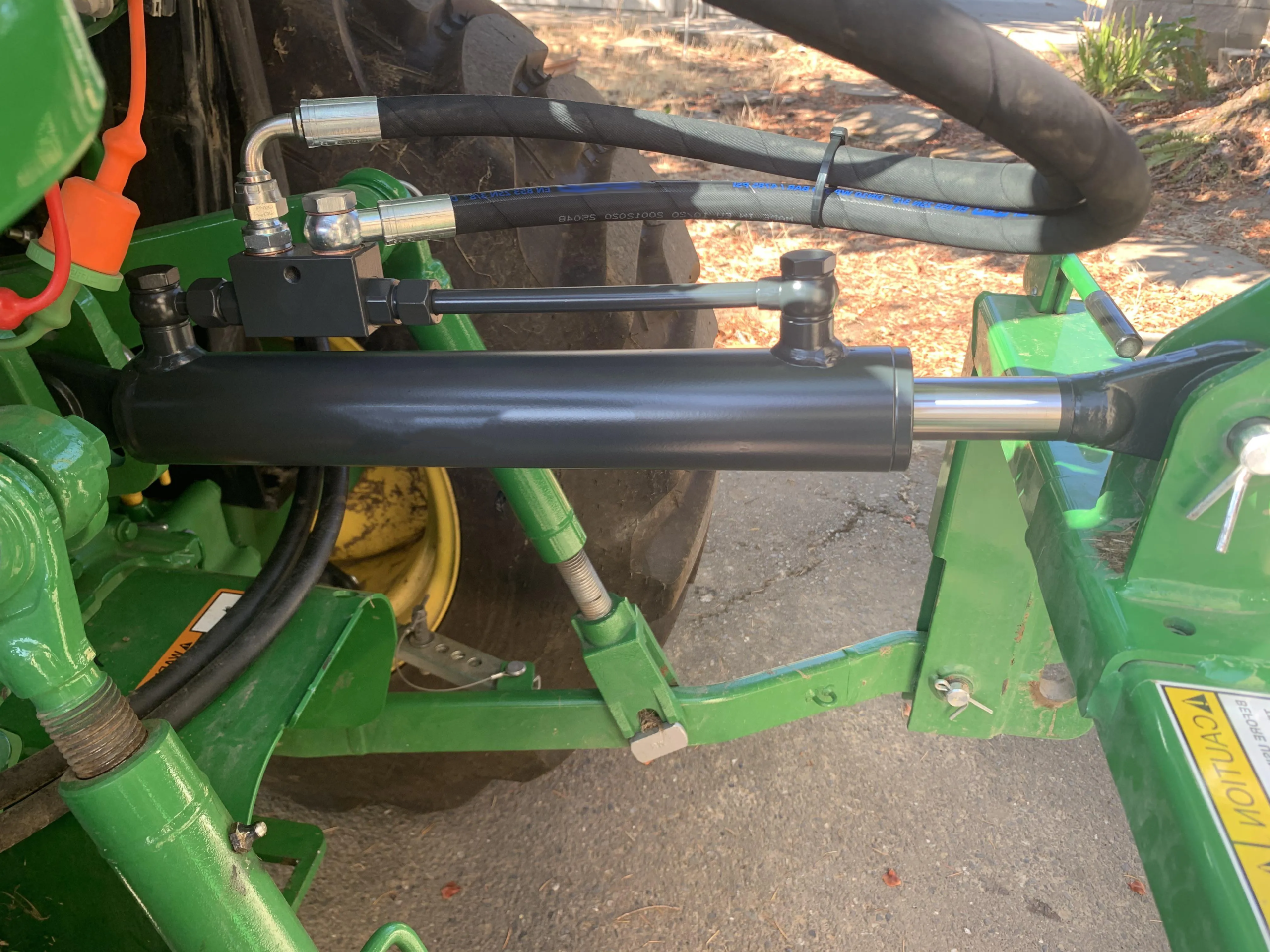

Installation Steps of Cat 2/3 Tractor Hook Hydraulic Top Link for Tractor

Installing a Cat 2/3 Tractor Hook Hydraulic Top Link on a tractor is a relatively straightforward process. Below are the general steps involved in installing this type of hydraulic top link:

1. Preparation and Safety Measures: Before installation, ensure the tractor is parked on a level surface and the engine is off. Engage the parking brake to prevent any movement. Gather all necessary tools and protective equipment, like gloves and safety glasses, to maintain safety during the installation process. Review the top link's manual for specific instructions.
2. Remove Existing Top Link: Carefully detach the existing mechanical top link from the tractor’s three-point hitch. Use appropriate wrenches to loosen and remove the bolts or pins securing the top link. Keep these components in a safe place in case they are needed later. Ensure the area is clear of any debris or obstructions before proceeding.
3. Attach the Hydraulic Top Link: Position the hydraulic top link between the tractor and the implement. Align the holes on the top link with those on the tractor’s hitch. Insert the appropriate pins or bolts through these holes, securing them tightly to ensure a solid connection. Double-check that the top link is properly aligned and seated.
4. Connect Hydraulic Hoses: Attach the hydraulic hoses to the tractor's hydraulic system. Ensure the connections are clean and free of dust or debris to prevent contamination. Secure the hoses using the appropriate fittings, and check for any leaks. Test the hydraulic system by engaging it briefly to ensure the hoses are correctly connected and operational.
5. Adjust the Top Link Length: With the hydraulic system engaged, adjust the top link to the desired length. Use the tractor’s controls to extend or retract the top link, ensuring it fits the implement correctly. Make necessary adjustments to achieve the optimal angle and height for the attached implement, which will enhance performance during agricultural tasks.
6. Test and Finalize Installation: After adjustments, test the implement to ensure it operates correctly with the new hydraulic top link. Move the tractor slowly and operate the implement to check for stability and performance. Make any final adjustments if needed. Once satisfied, ensure all connections are secure and the installation is complete, ready for field operations.

Why Choose Raydafon's Hydraulic Top Links?

Raydafon is a leading manufacturer and supplier specializing in the production and sales of hydraulic top links. With a robust infrastructure and advanced technology, we operate on a large scale, ensuring high-quality manufacturing processes and innovative solutions. Our team of skilled engineers and technicians is dedicated to continuous improvement and excellence, positioning us as a formidable force in the agricultural machinery industry.Our hydraulic top links are designed with precision and durability, offering features such as adjustable lengths and robust construction to handle various agricultural tasks. These products provide unmatched advantages in flexibility, ease of use, and efficiency, making them ideal for applications with rotary mowers, land levelers, disc ploughs, forage harvesters, snow blowers, and post hole diggers. Our products not only enhance the performance of your implements but also ensure operational safety and productivity across different terrains and conditions.At Raydafon, our expertise and influence in the hydraulic top link sector are unparalleled. We pride ourselves on our professionalism, international certifications, and ability to deliver customized solutions tailored to our clients' needs. Our state-of-the-art production facilities and comprehensive after-sales service reinforce our commitment to customer satisfaction. We offer a wide range of products, including Cat 2 hook hydraulic top links, Cat 3 hook hydraulic top links, Cat 3 hydraulic top links, Cat 2 hydraulic top links, and Cat 1 hydraulic top links, catering to diverse requirements and ensuring optimum performance for every task.

FAQs:

Q: How does the hydraulic top link improve tractor operations?A: By allowing on-the-go adjustments, the hydraulic top link enhances the operator's control over the implement. This feature is particularly useful for optimizing performance when transitioning between different field conditions, slopes, or tasks, without needing to manually stop and adjust.Q: What tractors are compatible with Cat 2/3 hydraulic top links?A: These top links are designed for tractors equipped with Category 2 or Category 3 three-point hitches. It's important to check the specific dimensions and hydraulic capacity of your tractor to ensure compatibility and optimal performance when using the hydraulic top link.Q: Can the hydraulic top link be used with all implements?A: While it is compatible with most implements designed for Cat 2/3 hitches, always verify the implement's specifications. The hydraulic top link is ideal for tasks that require frequent angle adjustments, such as grading or using a box blade, enhancing the implement's effectiveness.Q: What are the benefits of using a hydraulic top link over a manual one?A: A hydraulic top link reduces manual labor and increases precision. It allows for real-time adjustments from the tractor cab, saving time and effort. This is particularly advantageous in large fields or dynamic environments where constant changes are required.Q: How is the hydraulic top link installed on a tractor?A: Installation involves removing the existing top link and attaching the hydraulic top link to the tractor's top link brackets. Hydraulic hoses then connect the top link to the tractor’s hydraulic system. Ensure all connections are secure and properly tightened to prevent leaks.Q: Are there maintenance requirements for a hydraulic top link?A: Regular maintenance includes checking for hydraulic fluid leaks, ensuring hoses and fittings are intact, and lubricating pivot points. Inspect the cylinder for any signs of wear or damage, and ensure that the hydraulic fluid levels in the tractor are adequate for optimal operation.Q: What safety precautions should be taken when using a hydraulic top link?A: Always ensure that the hydraulic system is properly pressurized and that there are no leaks before use. Avoid standing between the tractor and implements during adjustments, and ensure that all controls are understood and easily accessible to prevent accidents.Q: How does a hydraulic top link affect implement durability?A: By allowing precise adjustments, the hydraulic top link can reduce stress on the implement and tractor. This precision helps prevent unnecessary wear and tear caused by improper angles or force distribution, potentially extending the lifespan of the equipment.
