Category Cat 1 Hydraulic Top Link 465-640mm 18.3"-25.2" Toplink 19mm Ball ends

Cat 1 Hydraulic Top Link 465-640mm 18.3"-25.2" Toplink 19mm Ball ends

The Cat 1 Hydraulic Top Link 465-640mm (18.3"-25.2") is a versatile tool designed for agricultural and industrial applications. It's commonly used to enhance the functionality of three-point hitch systems on tractors. This hydraulic top link allows for adjustable length, ranging from 465mm to 640mm (18.3 inches to 25.2 inches), providing flexibility for various tasks and equipment.The hydraulic mechanism enables users to easily adjust the top link’s length on the go, improving the efficiency and precision of operations such as grading, plowing, or mowing. This is particularly useful when working on uneven terrain or when frequent adjustments are needed.Equipped with 19mm ball ends, the top link ensures a secure connection to the tractor and implements, reducing the risk of detachment during use. The ball ends also allow for a degree of angular movement, accommodating slight misalignments and enhancing durability.Made from robust materials, this hydraulic top link is designed to withstand harsh working conditions, providing long-lasting performance. Its compatibility with Category 1 hitch systems makes it suitable for small to medium-sized tractors, offering a reliable solution for improving tractor-implement interactions.

Specifications of Cat 1 Hydraulic Top Link 465-640mm 18.3"-25.2"

Eye to eye closed:	465mm (18.3")
Eye to eye open:	640mm (25.2")
Category:	1 (19mm hole)
Inside diameter:	50mm
Outside diameter:	60mm
Shaft diameter:	30mm
Pull capacity:	2300Kg
Push capacity:	3600kg
Hydraulic Hoses:	2x Hydraulic Hoses
Hose Thread Male end:	1/2 Inch BSP
Hose Thread Female end:	1/2 Inch BSP
Adapters:	Comes with 2x 1/2 Inch QR Male Adapters

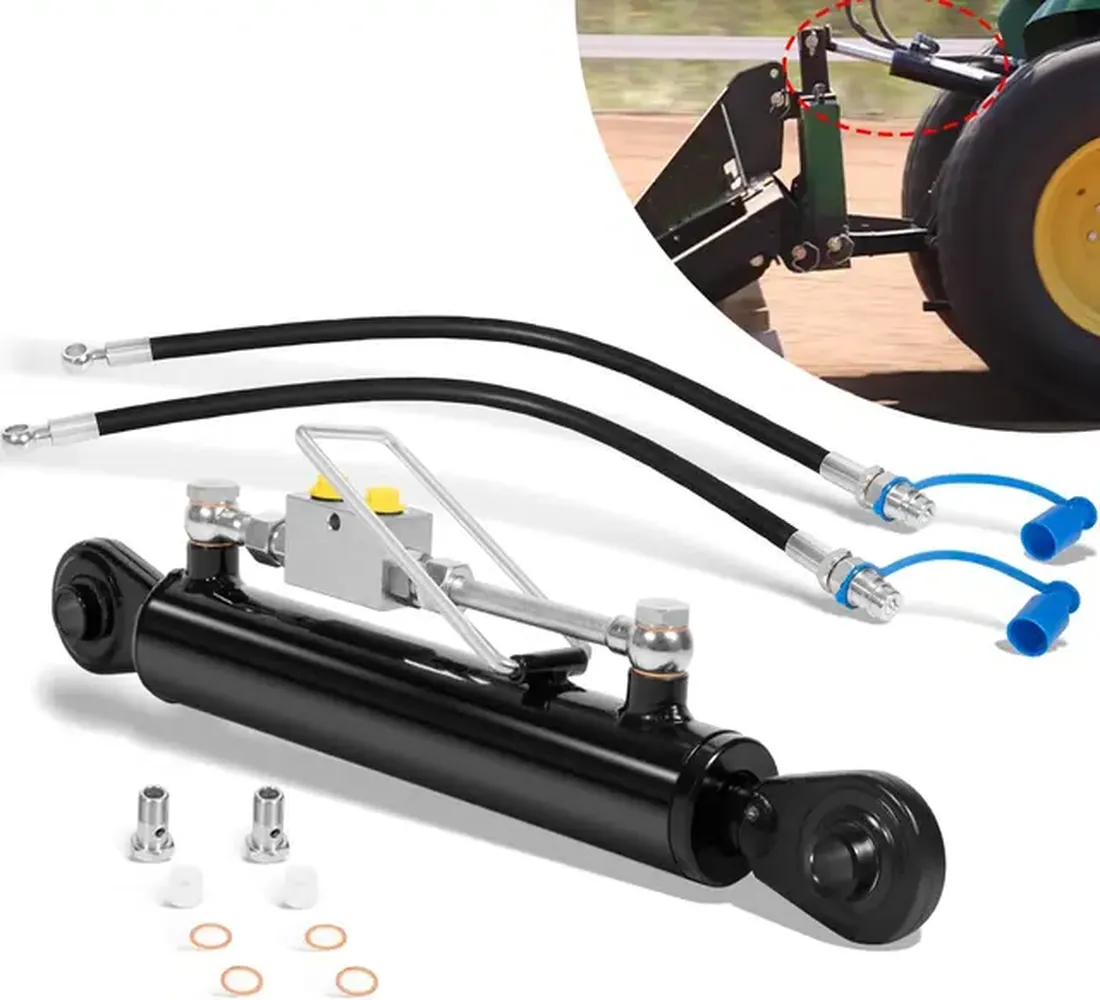

Advantages of Category 1 Hydraulic Top Link with 2x Hydraulic Hoses

Using a Category 1 Hydraulic Top Link with two hydraulic hoses offers several advantages in agricultural applications:

1. Enhanced Adjustability: The hydraulic top link allows for quick and precise adjustments to the implement angle and height without manual effort. This adaptability is especially beneficial when transitioning between different types of terrain or tasks, such as plowing, mowing, or grading. The hydraulic adjustment saves time and reduces strain on the operator.
2. Improved Implement Control: With hydraulic hoses, the top link can be controlled directly from the tractor’s cab, giving the operator the ability to make real-time adjustments. This increased control enhances the precision of operations, ensuring optimal implement positioning and performance. Operators can respond promptly to changing conditions, maximizing efficiency and effectiveness.
3. Versatility Across Tasks: The flexibility provided by the hydraulic top link makes it suitable for a wide range of agricultural and industrial applications. Whether adjusting the tilt of a plow or the angle of a mower, the hydraulic top link accommodates various tasks, making it an invaluable tool for farmers and contractors seeking multipurpose solutions.
4. Reduced Wear and Tear: By providing smoother adjustments and reducing the need for manual intervention, the hydraulic top link minimizes the mechanical stress placed on the tractor and implements. This leads to reduced wear and tear on equipment, extending the lifespan of both the implements and the tractor, ultimately saving costs on maintenance and repairs.
5. Consistent Implement Performance: The hydraulic top link ensures consistent performance of implements by maintaining the correct angle and pressure during operation. This consistency is vital for achieving uniform results, whether it’s even plowing depth or consistent mowing height, leading to improved crop yields and better-quality outcomes in various farming tasks.
6. Durability and Reliability: Constructed with robust materials, the hydraulic top link is designed to withstand harsh working environments and heavy use. The inclusion of hydraulic hoses enhances its durability by ensuring reliable fluid transmission, providing dependable performance over time. This reliability is key for operators who require equipment they can trust in demanding situations.

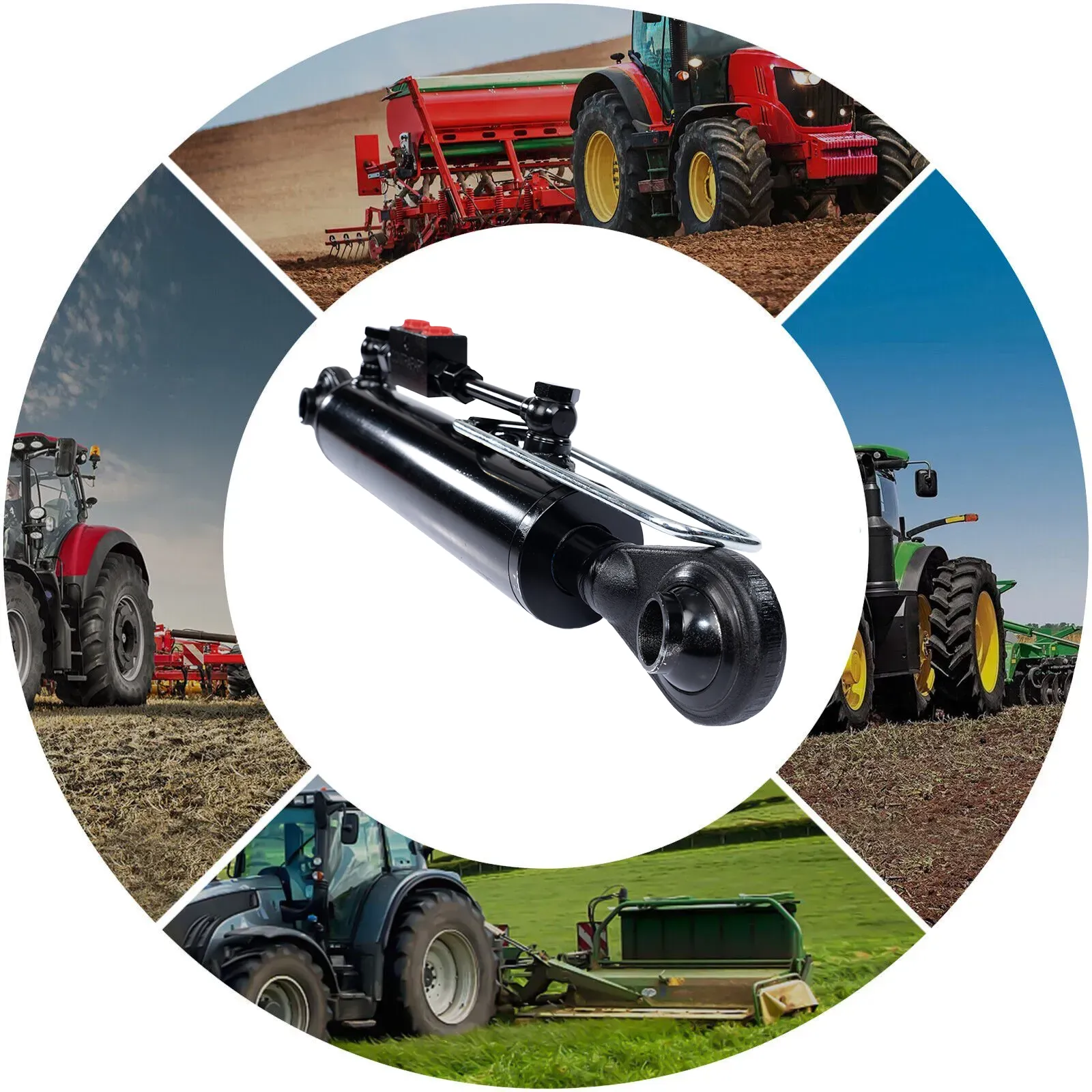

Typical Applications of Hydraulic Toplink Cat 1 for Tractor

Hydraulic top links, especially those designed for Category 1 tractors, find a wide range of applications in agricultural settings due to their versatility and functionality. Some typical applications include:

• Mowing Operations: In mowing, the hydraulic toplink helps maintain the correct cutting angle and height, ensuring an even cut across varied terrain. This precision is important for maintaining pastures and fields, reducing the risk of scalping or uneven mowing, which can affect regrowth and overall field aesthetics.
• Grading and Leveling: When grading land or leveling surfaces, the hydraulic toplink provides the flexibility needed to adjust implements like box blades or land planes. This capability ensures a smooth, even finish, which is essential for construction projects, landscaping, or preparing fields for planting.
• Tilling and Cultivation: For tilling and cultivation, the toplink’s adjustability aids in setting the appropriate depth and angle of implements like rotary tillers or cultivators. This ensures thorough soil preparation, breaking up clods and incorporating organic matter evenly, which promotes better seedling establishment and growth.
• Post-Hole Digging: When using post-hole diggers, the hydraulic toplink helps maintain the correct vertical alignment, ensuring straight and accurate holes. This precision is important for fencing and building projects, where exact placement and depth are necessary for structural integrity.
• Snow Removal: In snow removal, the hydraulic toplink allows for quick adjustments of snow blades or blowers, optimizing their angle for effective clearing. This adaptability is crucial for maintaining clear paths and driveways, enhancing safety and accessibility during winter conditions.

Cat 1 Hydraulic Top Link vs. Cat 3 Hydraulic Top Link

The Cat 1 Hydraulic Top Link is designed for smaller tractors, typically used in light to medium-duty applications. It features a smaller pin size and is suitable for implements that require less force. This makes it ideal for tasks like mowing, light plowing, and basic landscaping. The Cat 1 link is generally used with tractors that have lower horsepower and are often found in small-scale farming or gardening contexts.On the other hand, the Cat 3 Hydraulic Top Link is built for heavy-duty applications and larger tractors with higher horsepower. It comes with a larger pin size, providing greater strength and durability. This makes it suitable for demanding tasks such as deep plowing, large-scale cultivation, and heavy material handling. The Cat 3 link is used in commercial farming and large industrial settings, where robust performance and reliability are critical.The main differences lie in their size, strength, and intended applications, with Cat 1 being for lighter use and Cat 3 for more intensive tasks.

Feature	Cat 1 Hydraulic Top Link	Cat 3 Hydraulic Top Link
Tractor Size	Small to medium	Large
Horsepower Range	Lower horsepower	Higher horsepower
Pin Diameter	Smaller	Larger
Typical Applications	Light-duty tasks	Heavy-duty tasks
Implements Used	Mowers, light plows	Heavy plows, large cultivators
Agricultural Use	Small-scale farming	Commercial farming
Material Strength	Less robust	More robust
Durability	Suitable for lighter wear	Built for heavy wear
Cost	Generally lower	Generally higher
Adjustability	Basic adjustments	Enhanced adjustments
Weight Capacity	Lower capacity	Higher capacity
Construction	Lighter construction	Heavier construction
Usage Frequency	Occasional use	Frequent use
Maintenance	Easier to maintain	Requires more maintenance
Attachment Compatibility	Limited to smaller attachments	Compatible with larger attachments
Market Availability	More common in smaller markets	Specialized for larger markets

Cat 1 Hydraulic Top Link	Cat 3 Hydraulic Top Link

Why Choose Raydafon's Hydraulic Top Links?

Raydafon is a leading manufacturer and supplier specializing in the production and sales of hydraulic top links. With a robust infrastructure and advanced technology, we operate on a large scale, ensuring high-quality manufacturing processes and innovative solutions. Our team of skilled engineers and technicians is dedicated to continuous improvement and excellence, positioning us as a formidable force in the agricultural machinery industry.Our hydraulic top links are designed with precision and durability, offering features such as adjustable lengths and robust construction to handle various agricultural tasks. These products provide unmatched advantages in flexibility, ease of use, and efficiency, making them ideal for applications with rotary mowers, land levelers, disc ploughs, forage harvesters, snow blowers, and post hole diggers. Our products not only enhance the performance of your implements but also ensure operational safety and productivity across different terrains and conditions.At Raydafon, our expertise and influence in the hydraulic top link sector are unparalleled. We pride ourselves on our professionalism, international certifications, and ability to deliver customized solutions tailored to our clients' needs. Our state-of-the-art production facilities and comprehensive after-sales service reinforce our commitment to customer satisfaction. We offer a wide range of products, including Cat 2 hook hydraulic top links, Cat 3 hook hydraulic top links, Cat 3 hydraulic top links, Cat 2 hydraulic top links, and Cat 1 hydraulic top links, catering to diverse requirements and ensuring optimum performance for every task.

FAQs:

Q: What is a Cat 1 Hydraulic Toplink?A: A Cat 1 Hydraulic Toplink is an adjustable hydraulic cylinder used in agricultural machinery to connect and control the angle of implements to tractors. It replaces the traditional manual top link, allowing for more precise adjustments from the tractor's seat, enhancing operational efficiency.Q: How does the hydraulic toplink improve efficiency?A: By enabling on-the-go adjustments, the hydraulic toplink allows operators to quickly modify implement angles without leaving the tractor. This feature significantly reduces downtime and increases productivity, especially during tasks that require frequent changes, such as plowing or tilling.Q: What types of equipment can use a Cat 1 Hydraulic Toplink?A: This hydraulic toplink is compatible with Category 1 three-point hitch systems, commonly found on smaller tractors. It is suitable for various implements, including plows, harrows, and mowers, providing flexibility and enhanced control for diverse farming operations.Q: What are the installation requirements for a Cat 1 Hydraulic Toplink?A: Installation requires a tractor equipped with a hydraulic system capable of connecting to the toplink's hoses. Users should ensure that their tractors have the necessary hydraulic ports and sufficient pressure capacity to operate the toplink effectively and safely.Q: How do you maintain a hydraulic toplink?A: Regular maintenance involves checking for hydraulic fluid leaks, ensuring fittings and hoses are secure, and lubricating moving parts. Keeping the cylinder clean and inspecting for any signs of wear or damage are crucial for prolonging the toplink's lifespan and maintaining optimal performance.Q: What safety precautions should be taken when using a hydraulic toplink?A: Operators must follow safety protocols such as depressurizing the hydraulic system before maintenance, wearing protective gear, and ensuring all connections are secure. Understanding the tractor's hydraulic system and the toplink's operation manual can prevent accidents and ensure safe usage.Q: Can a Cat 1 Hydraulic Toplink be used with any tractor?A: While designed for Category 1 three-point hitches, compatibility depends on the tractor's hydraulic system and specifications. It's essential to verify that the toplink matches the tractor's capabilities, including hydraulic pressure and connection points, for safe and efficient use.Q: What are the benefits of using a hydraulic toplink over a manual one?A: A hydraulic toplink offers easier, more precise adjustments, reducing manual labor and physical strain. It enhances the tractor's versatility and allows operators to make quick modifications to implement angles, improving the effectiveness of various agricultural tasks.Q: How do you troubleshoot common issues with a hydraulic toplink?A: Common issues include leaks, loss of pressure, and sluggish movement. Troubleshooting involves checking hydraulic connections, inspecting hoses for damage, and ensuring the hydraulic fluid is at the correct level. Consulting the manufacturer's manual and seeking professional assistance when needed can resolve most issues effectively.
