Cat 3/3 Hydraulic Top Link 650-876mm for John Deere 6090 6095 6100 6105 Tractor

Cat 3/3 Hydraulic Top Link 650-876mm for John Deere 6090 6095 6100 6105 Tractor

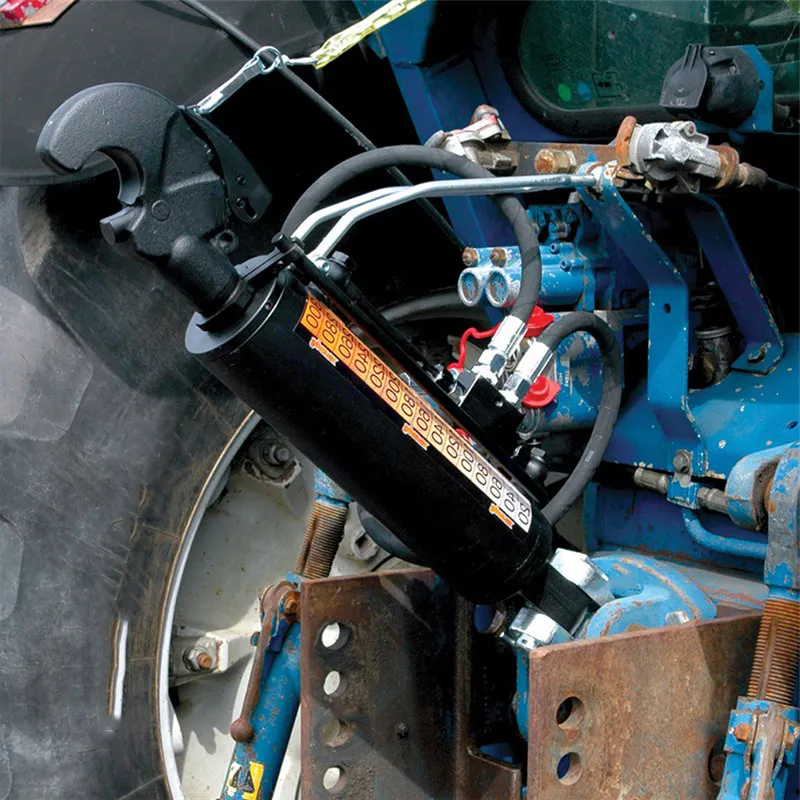

The Cat 3/3 Hydraulic Top Link 650-876mm for John Deere 6090, 6095, 6100, and 6105 tractors is a versatile component designed to enhance the functionality and efficiency of these agricultural machines. This hydraulic top link is an essential part of the tractor's three-point hitch system, providing adjustable length capabilities from 650mm to 876mm. This range of adjustment allows for precise control over the tilt and angle of attached implements, such as plows, harrows, or mowers.Constructed from high-quality materials, the hydraulic top link is built to withstand the demanding conditions of agricultural work. It features robust hydraulic cylinders that enable easy and quick adjustments, improving the overall flexibility when working with various implements. This adaptability not only increases productivity but also ensures optimal implement performance and reduced wear.In addition, the Cat 3/3 hydraulic upper link is compatible with well-known tractors such as Case International IH, John Deere, Fendt, Kubota, Deutz-Fahr, Lamborghini, Landini, Massey Ferguson, McCormick, Same, Valmet & Valtra, etc., making it a valuable addition for farmers looking to optimize their tractor versatility. By facilitating smoother and more efficient operations, this hydraulic top link contributes to enhanced tractor performance and farm productivity.

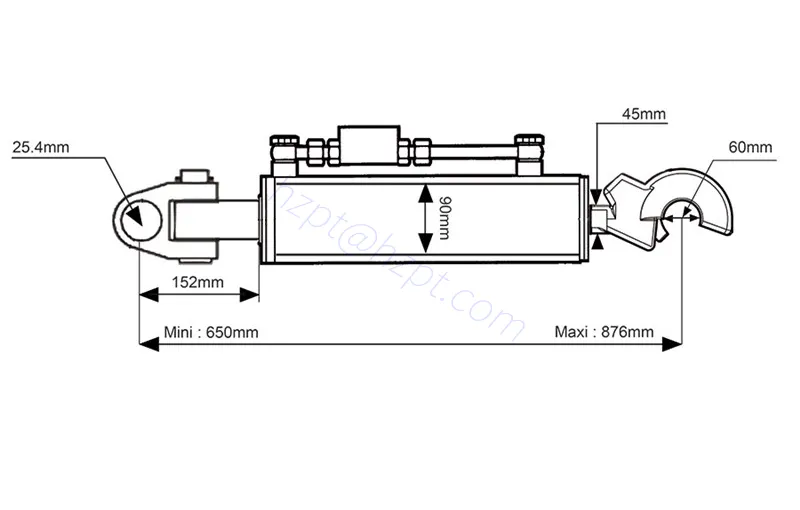

Cat 3 Hydraulic Top Link 650-876mm Dimensions

Products Specifications:

Category Implement End:	3
Category Tractor End:	3
Category:	3/3
Check Valve Position:	Top
Cylinder Bore (mm):	90

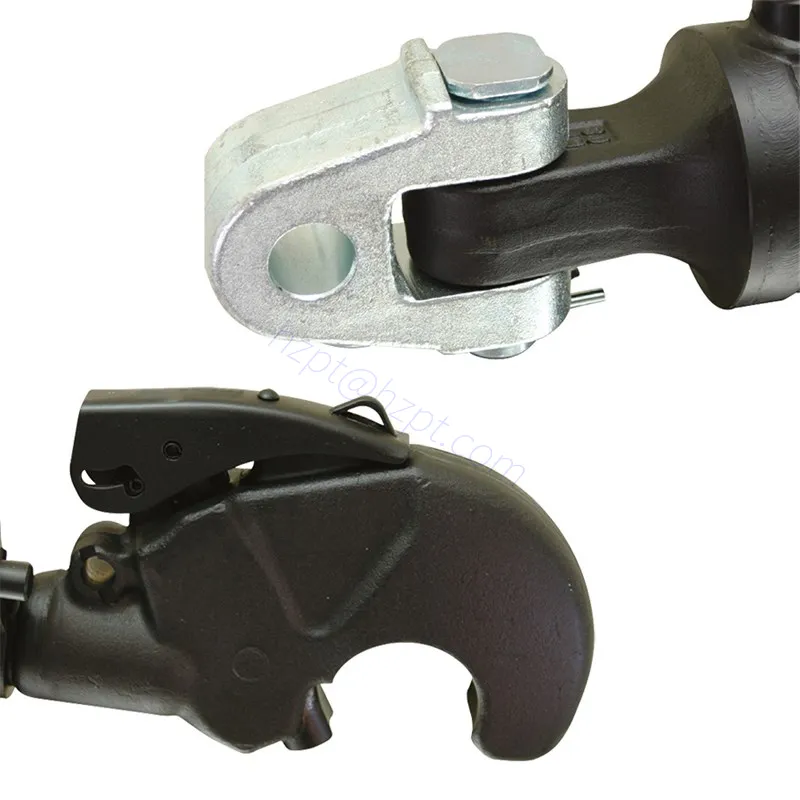

Implement End:	Q.R CBM Hook
Lift kgs @180 bar:	8770
Maximum Length (mm):	876
Minimum Length (mm):	650
Rod Ø (mm):	45
Suitable for Tractors up to HP/Kw:	200hp (147kW)
Supplied:	Hose set, chain & ball, marker label with knuckle & pin
Thrust kgs @180 (bar):	11700

Cat 3/3 Hydraulic Top Link 650-876mm Suitable For

Case International IH: CVX140, CVX150, CVX160, CVX170, CVX175, CVX195Deutz-Fahr: Agrotron 610 TTV, Agrotron 620 TTV, Agrotron 630 TTV, Agrotron 1130 TTV, Agrotron 1140 TTV, Agrotron 1145 TTV, Agrotron 1160 TTV, Agrotron 6150, Agrotron 6150.4, Agrotron 6155, Agrotron 6155.4, Agrotron 6160, Agrotron 6160.4, Agrotron 6165, Agrotron 6165.4, Agrotron 6175, Agrotron 6175.4, Agrotron 6180, Agrotron 6185, Agrotron 6190, Agrotron 6205, Agrotron 6215, Agrotron M600, Agrotron M610, Agrotron M615, Agrotron M620, Agrotron M625, Agrotron M640, Agrotron M650Fendt: Farmer 409, Farmer 410, Farmer 411, Farmer 412, Favorit 816, Favorit 818, Favorit 822, Favorit 824, Favorit 916, Favorit 920, Favorit 924, Favorit 926, Vario 512, Vario 513, Vario 514, Vario 516, Vario 820Fiat: 130-90, 140-90, 160-90, 180-90, 1180, 1280, 1300, 1380, G170, G190, G210, G240John Deere: 6090MC, 6090RC, 6095MC, 6095RC, 6100MC, 6100RC, 6105M, 6105MC, 6105RC, 6110M, 6110MC, 6110RC, 6115M, 6115MC, 6115RC, 6120M, 6125M, 6130, 6130M, 6135M, 6135R, 6140M, 6140R, 6145M, 6145R, 6150M, 6150R, 6155M, 6155R, 6170M, 6170R, 6175M, 6175R, 6190R, 6195M, 6195R, 6210R, 6215R, 6230, 6230 Premium, 6230R, 6250R, 6330, 6330 Premium, 6430, 6430 Premium, 6530, 6530 Premium, 6534 Premium, 6630, 6630 Premium, 6830, 6830 Premium, 6930, 6930 Premium, 7430 Premium, 7430E Premium, 7530 Premium, 7530E Premium, 7600, 7700, 7710, 7800, 7810Kubota: M7131, M7151, M7171Lamborghini: 120 CHAMPION, 135 CHAMPION, 135 Formula, 150 CHAMPION, 160 CHAMPION, 165 Racing, 180 CHAMPION, 190 Racing, 200 CHAMPION, R6.130, R6.140, R6.150, R6.150.7, R6.160, R6.165.7, R6.175, R6.180.7, R6.185Landini: POWERMASTER 180, POWERMASTER 190, POWERMASTER 200, POWERMASTER 210, POWERMASTER 220, POWERMASTER 230, Powermax 145, Powermax 165, Powermax 180Massey Ferguson: 6S.135 DYNA 6, 6S.145 DYNA 6, 6S.155 DYNA 6, 6S.165 DYNA 6, 6S.180 DYNA 6, 7S.155 DYNA 6, 7S.165 DYNA 6, 7S.180 DYNA 6, 7S.190 DYNA 6, 7S.210 DYNA 6, 6614, 6615, 6616 DYNA VT, 6713, 6714, 6715, 6716, 6718, 7465, 7475, 7480, 7485, 7490, 7495, 7497, 7499, 7615 DYNA VT, 7616 DYNA VT, 7618 DYNA VT, 7619 DYNA 6, 7620 DYNA 6, 7622 DYNA 6, 7624 DYNA 6, 7626 DYNA 6, 7719 DYNA 6, 7720 DYNA 6, 7722 DYNA 6, 7724 DYNA 6, 7726 DYNA 6, 7726 DYNA VTMcCormick: MTX110, MTX120, MTX125, MTX135, MTX140, MTX145, MTX150, MTX155, MTX165, MTX175, MTX185, MTX200, XTX145, XTX165, XTX185, XTX200, XTX215Same: FORTIS 150, FORTIS 160, FORTIS 180, FORTIS 190, LASER 140, LASER 160, Rubin 120, Rubin 135, Rubin 150, Rubin 160, Rubin 180, Rubin 200Valmet & Valtra: N104, N114E, N124, N134, N135, N154E, N155E, N174, N175, T144, T145, T154, T155, T174E, T175E, T194, T195, T214, T215, T234, T235 ACTIVE, T235 DIRECT, T235 HITECH, T235 VERSU, T255 ACTIVE, T255 HITECH, T255 VERSU

Applications of Hydraulic Top Link for Tractor

Hydraulic top links for tractors are versatile components that find various applications across different agricultural tasks. Here are some common applications where hydraulic top links are used:

1. Lawn Mowers: Hydraulic top links allow precise height and angle adjustments when attaching lawn mowers to tractors. This capability ensures an even and consistent cut across various terrains. By adjusting the mower’s position on-the-fly, operators can efficiently manage different grass types and conditions, leading to a well-maintained landscape with minimal manual intervention and increased productivity.
2. Rotary Tillers: For rotary tillers, a hydraulic top link provides significant flexibility in adjusting the tilling depth and angle. This adaptability is crucial for preparing seedbeds in diverse soil conditions. By optimizing the tiller’s position, operators can improve soil aeration and mixing, ensuring better seed germination and plant growth, thus enhancing overall crop yield and farm efficiency.
3. Disc Plows: When using disc plows, the hydraulic top link allows for quick and precise adjustments to the plow’s angle and depth. This ensures efficient soil turnover and reduces strain on the tractor. Enhanced control over plowing operations leads to improved soil structure, better weed management, and preparation for planting, ultimately contributing to healthier crops.
4. Disc Harrows: Hydraulic top links offer essential adjustments for disc harrows, allowing for optimal leveling and penetration depth. This capability improves the breaking up of soil clods and the incorporation of crop residues. By fine-tuning the harrow’s position, farmers can achieve a well-prepared seedbed, promoting uniform plant growth and enhancing the efficiency of subsequent planting operations.
5. Potato Planters: In potato planting, precise control over the planter’s angle and depth is crucial. The hydraulic top link facilitates these adjustments, ensuring accurate seed placement and coverage. This precision leads to better germination rates and uniform crop emergence. By enhancing planting accuracy, the hydraulic top link contributes to increased yields and more efficient use of resources.

How Does a 3 Point Hydraulic Top Link for Tractor Work?

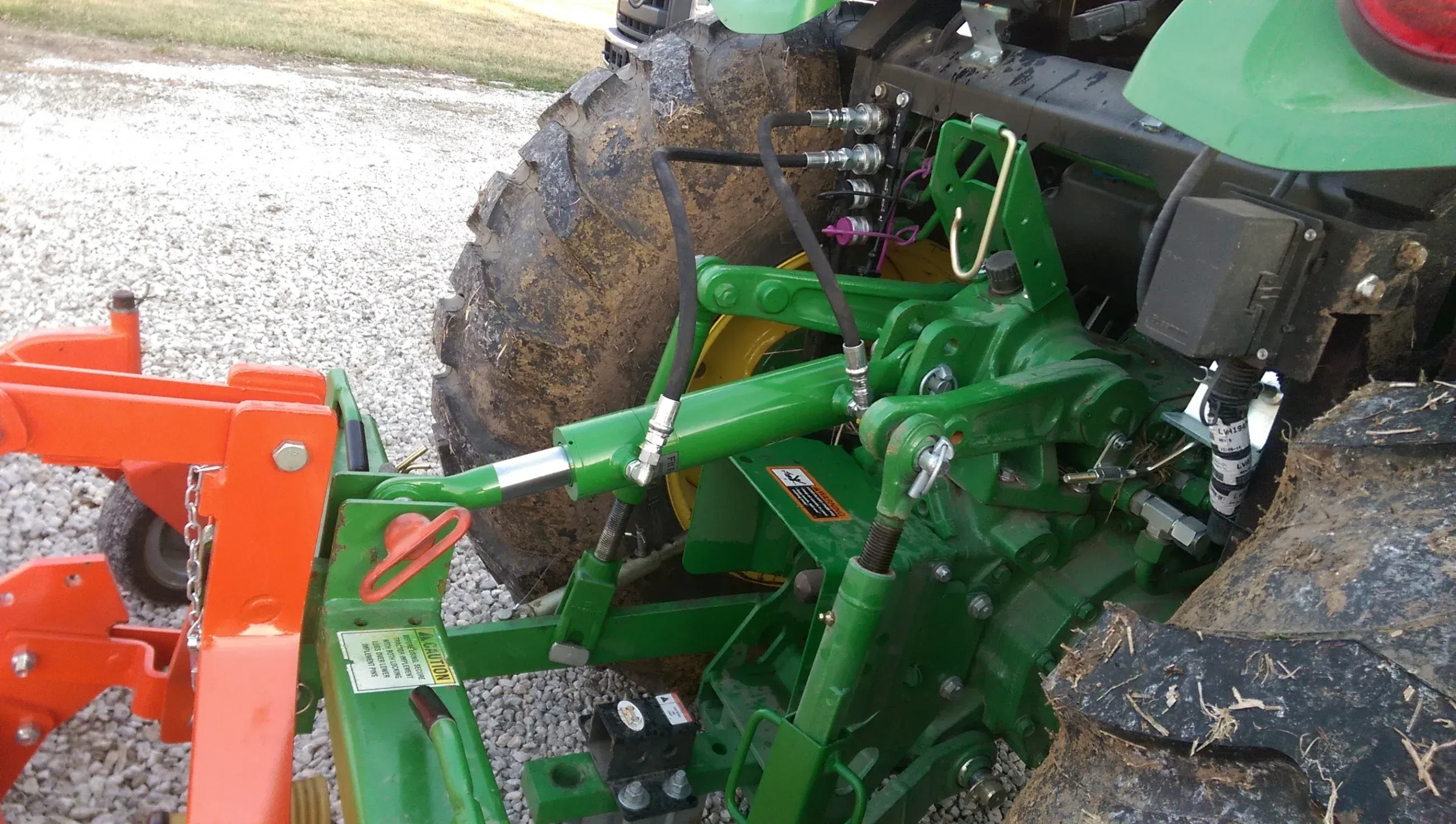

The 3-point hydraulic top link for a John Deere tractor is a key component that enables precise control and adjustment of attached implements. Here's how it typically works:

• Hydraulic System Integration: The hydraulic top link integrates with the tractor's hydraulic system, using hoses and connectors to receive hydraulic fluid. This integration allows the top link to utilize the tractor's hydraulic pressure, enabling the extension or retraction of the piston within the cylinder. This setup is essential for providing the necessary force to adjust the implement's position.
• Piston and Cylinder Mechanism: At the core of the hydraulic top link is the piston and cylinder mechanism. The hydraulic fluid enters the cylinder, pushing the piston to extend or retract. This movement changes the length of the top link, allowing for precise adjustments. The robust design ensures durability and the ability to withstand significant forces during operation.
• Control and Precision: Operators control the hydraulic top link from the tractor's cab, usually through a joystick or lever. This control system provides the ability to make fine adjustments to the link's length, ensuring the attached implement is positioned correctly. This precision is crucial for tasks requiring specific angles and depths, such as plowing or tilling.
• Real-Time Adjustments: One of the key advantages of a hydraulic top link is the ability to make real-time adjustments while operating the tractor. This capability allows operators to respond quickly to changing field conditions, such as uneven terrain or varying soil types. By adapting on-the-fly, the efficiency and effectiveness of the task at hand are greatly increased.
• Versatility and Adaptability: The hydraulic top link's adjustable nature makes it highly versatile, accommodating various implements and tasks. Whether adjusting for a rotary tiller or a disc harrow, the top link can be fine-tuned to meet the specific requirements of each implement. This adaptability ensures optimal performance and maximizes the utility of the tractor across different applications.

FAQs:

Q1. What is a hydraulic top link?A hydraulic top link is an adjustable component used in a tractor's three-point hitch system. It allows operators to change the angle and length of the connection between the tractor and various implements, enhancing versatility and operational efficiency in agricultural tasks.Q2. How does a hydraulic top link work?The hydraulic top link operates using hydraulic pressure to extend or retract a piston within a cylinder. This movement adjusts the length of the link, allowing the operator to fine-tune the position and angle of attached implements, ensuring optimal performance and adaptability to different tasks.Q3. Why is adjustability important in agricultural applications?Adjustability is crucial because it allows farmers to modify the positioning of implements for varying soil conditions and tasks. This flexibility ensures improved implement performance, reduces wear and tear, and increases efficiency, ultimately leading to better crop management and productivity.Q4. Can a hydraulic top link be used with any implement?While hydraulic top links are versatile, compatibility depends on the implement's design and the tractor's specifications. They are most effective with implements that require precise positioning, such as mowers, plows, and tillers. Always check compatibility with your specific equipment before use.Q5. How do you install a hydraulic top link?Installation involves attaching the hydraulic top link to the tractor’s three-point hitch system. It requires connecting the hydraulic hoses to the tractor’s hydraulic system. Proper installation is crucial for safe operation, so following the manufacturer’s instructions or consulting a professional is advised.Q6. What maintenance does a hydraulic top link require?Regular maintenance includes checking for hydraulic fluid leaks, inspecting hoses and connections for wear, and ensuring the cylinder operates smoothly. Keeping the equipment clean and lubricated will prolong its lifespan and maintain efficient functionality in various agricultural applications.Q7. How does a hydraulic top link improve efficiency?By allowing quick adjustments to the position and angle of implements, a hydraulic top link reduces downtime and the need for manual adjustments. This efficiency translates to faster operation times, improved task execution, and ultimately, enhanced productivity on the farm.Q8. Are there safety considerations when using a hydraulic top link?Yes, safety is paramount. Ensure all connections are secure, and hoses are free of leaks or damage. Operators should be familiar with the control mechanisms and always check the system's integrity before use to prevent accidents or equipment damage.Q9. What factors should be considered when selecting a hydraulic top link?Consider compatibility with your tractor and implements, the required length range, hydraulic capacity, and durability of materials. Additionally, evaluate the ease of installation and adjustability features to ensure it meets your operational needs and enhances your equipment’s performance.
